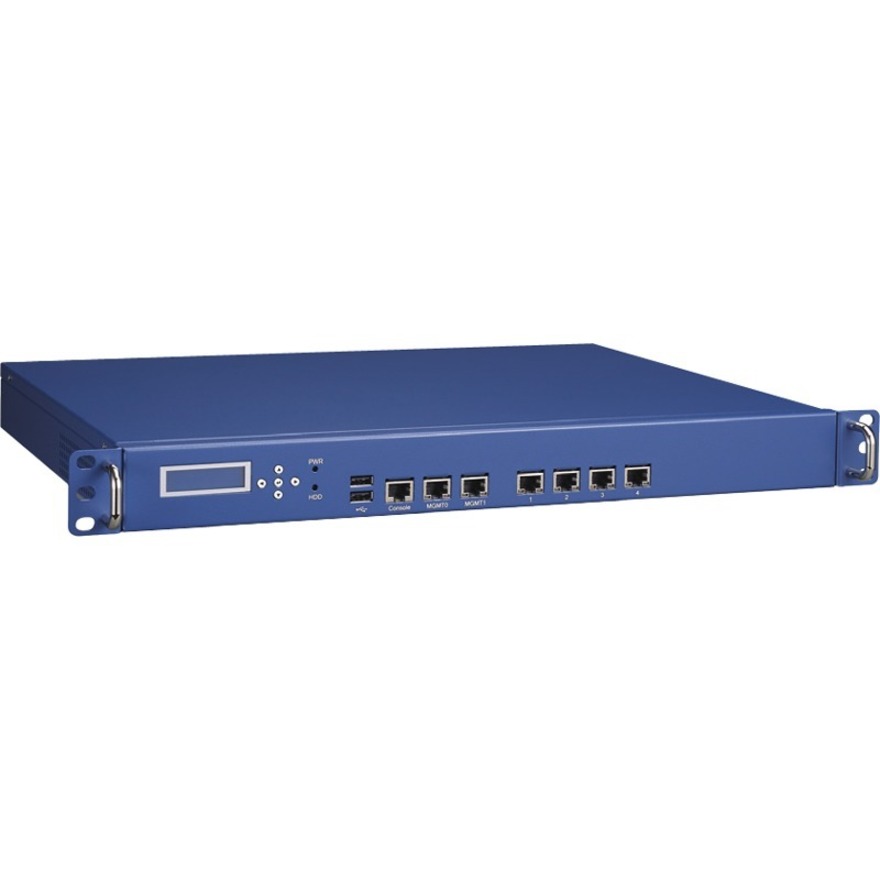

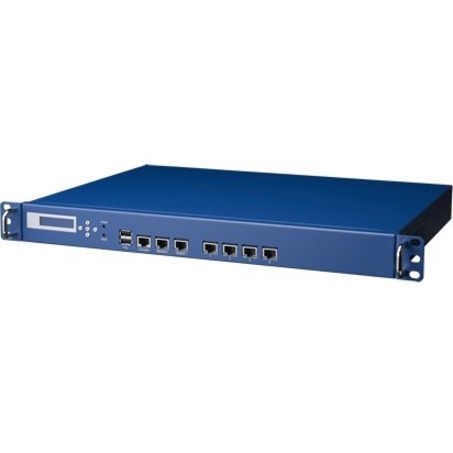

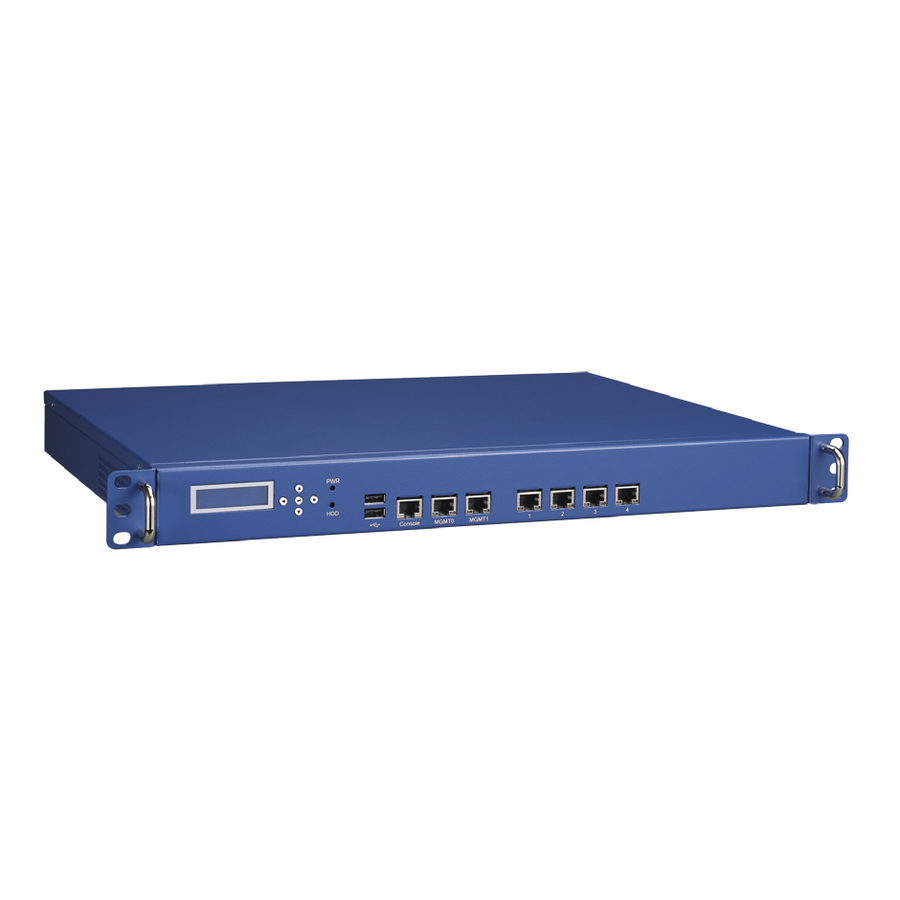

Advantech FWA-2320-02E Network Appliance

The FWA-2320 is the latest addition to Advantech's portfolio of networking platforms based on the Intel® Atom processor C2000 family extending the scalability of the Intel® platform for communications infrastructure from high end ATCA based systems all the way down to this entry level 1U rackmount appliance. The FWA-2320 can support 2-core, 4-core and 8-core processor SKUs with or without QuickAssistTM hardware acceleration providing additional flexibility to Network Equipment Providers to choose a platform which meets their performance / price targets. In addition to supporting up to 8 Atom cores based on the Silvermont architecture in 22nm technology yielding higher clock frequencies and significantly increased performance gains, the new System On Chip processor features tighter IO integration and improved IO bandwidth. On-chip functions include four server class GbE ports and crypto acceleration for symmetric keys, bulk security encryption/decryption and public key functions. The four Ethernet data ports support optional LAN bypass and are complemented by two PCIe based Gigabit Ethernet management ports. System features include an LCM, one RJ45 console and 2 USB ports as well as one internally mounted 3.5" HDD/SDD with SATA Gen3 support. A mSATA slot and a USB DOM socket provide options for adding SSDs. A PCIex1 slot provides further expansion capabilities. Please contact your Advantech representative to learn more about our full range portfolio based on the Intel® platform for communications infrastructure and Advantech's unique customization options including (but not limited to) branding, alternative power supplies and other system configuration options.
