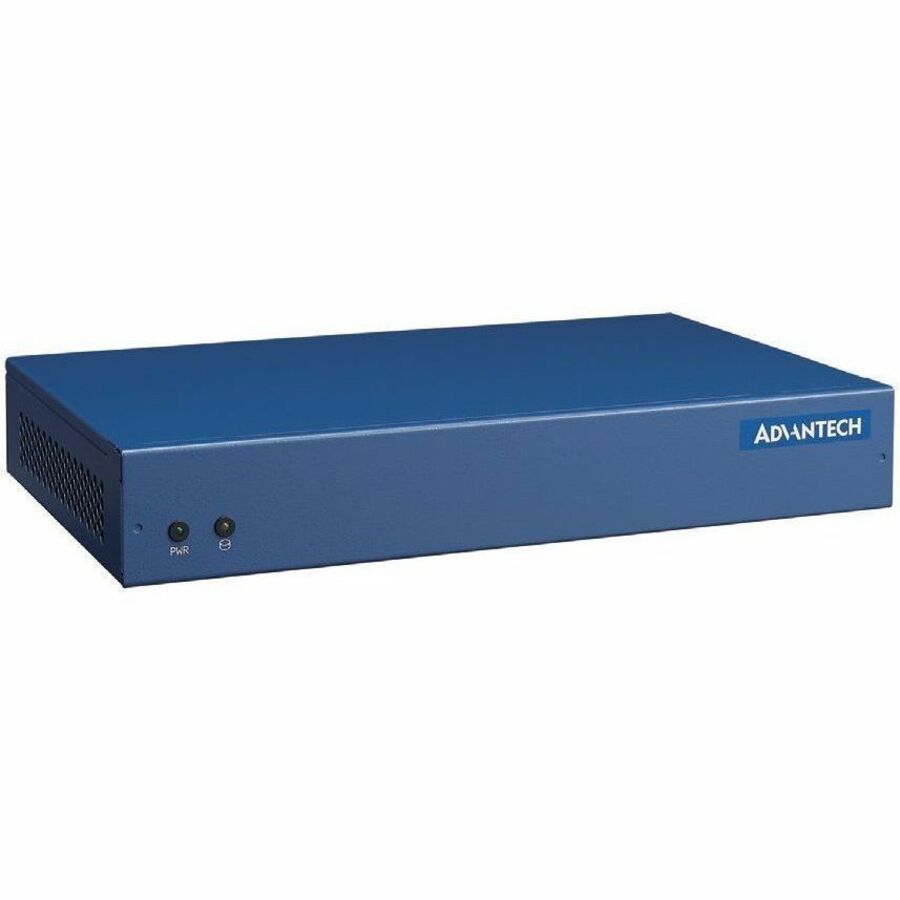

Advantech FWA-1320 Network Security Appliance

The FWA-1320 is the latest addition to Advantech's portfolio of networking platforms based on the Intel® Atom processor C2000 family extending the scalability of the Intel® platform for communications infrastructure from high end ATCA based systems all the way down to this desktop appliance. The FWA-1320 can support 2-core, 4-core processor SKUs with or without QuickAssist hardware acceleration providing additional flexibility to Network Equipment Providers to choose a platform which meets their performance/price targets. In addition to supporting up to eight Atom cores based on the Silvermont architecture in 22nm technology yielding higher clock frequencies and significantly increased performance gains, the new System On Chip processor features tighter I/O integration and improved IO bandwidth. On-chip functions include four server class GbE ports and crypto acceleration for symmetric keys, bulk security encryption/decryption and public key functions. The four Ethernet data ports support optional LAN bypass and are complemented by two PCIe based Gigabit Ethernet management ports. Advantech's advanced LAN bypass simplifies bypass control via a common user mode API across the full appliance product range. It is particularly easy to integrate with application software in environments with a single OS as well as multiple OS instances.

System features include one RJ45 console and two USB ports as well as one internally mounted 2.5" HDD/SDD with SATA Gen3 support. A mSATA slot and a USB DOM socket provide options for adding SSDs. A PCIe x4 slot provides further expansion capabilities. Please contact your Advantech representative to learn more about our full range portfolio based on the Intel® platform for communications infrastructure.
