SKU
SC504
Category
Barcode Scanners
Overview

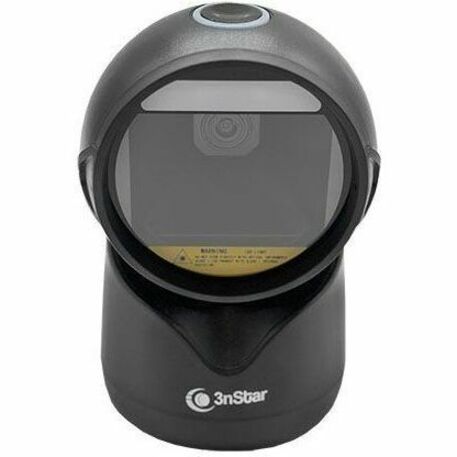

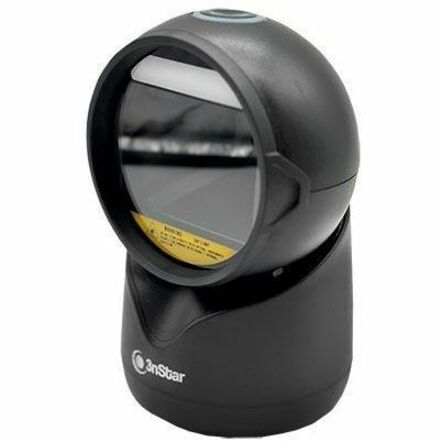

Enhance your retail experience with the SC504 Omnidirectional scanning solution, designed to cater to the diverse needs of retailers at an affordable cost. This compact, lightweight, and rugged device is optimized to elevate both customer satisfaction and employee efficiency.
The SC504 Omnidirectional scanner features an intuitively located sweet spot, ensuring ease of use, and boasts a rapid scan speed of 60 frames per second. Its versatility is further emphasized by a tiltable scanning head, offering a 65° range to effortlessly accommodate objects of varying sizes and shapes.
Warranty
Limited Warranty: 1 Year
Highlights
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Features CMOS image sensor
Laser-free design provides high-performance scanning without the risk of eye injury
Wired connectivity makes this scanner ideal for retail and desktop applications
Specifications
Environmental Conditions
Operating Temperature
32°F (0°C) to 122°F (50°C)
Storage Temperature
14°F (-10°C) to 140°F (60°C)
Humidity (Non-condensing)
20% to 95%
General Information
Manufacturer
3nStar, Inc.
Manufacturer Part Number
SC504
Brand Name
3nStar
Product Model
SC504
Product Name
2D Hands Free Omni-directional Barcode Scanner
Product Type
Barcode Scanner
Interfaces/Ports
Host Interface
USB
Physical Characteristics
Form Factor
Hands-free
Rugged
Yes
Color Family
Black
Product Color
Black
Product Material
Polycarbonate (PC)
Durability
Drop Resistant
Height
6"
Width
3.7"
Length
3.9"
Weight (Approximate)
9.35 oz
Technical Information
Connectivity Technology
Cable
Scanning Capability
1D, 2D
Barcode Symbology Supported
1D: Codabar, Code 39?Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5(Industrial)?Standard 2 of 5?IATA),Matrix 2 of 5,Code 11? Code 128?GS1-128?UPC-A?UPC-E?EAN-8?EAN-13?MSI Code,GS1DataBar Expanded?GS1 DataBar Limited,GS1 DataBar Omnidirectional, Matrix 2 of 5?Telepen 2D: PDF417, QR code, DataMatrix, Aztec, China Post?Hong Kong 2 of 5) Korea Post?Han Xin code?MaxiCode?MicroPDF417?GS1 Composite Code, Codablock A, Codablock F
