Manageable - 10 Gigabit Ethernet - 10GBase-X - TAA Compliant - 3 Layer Supported - Modular - 20 W Power Consumption - Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
$382.78
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

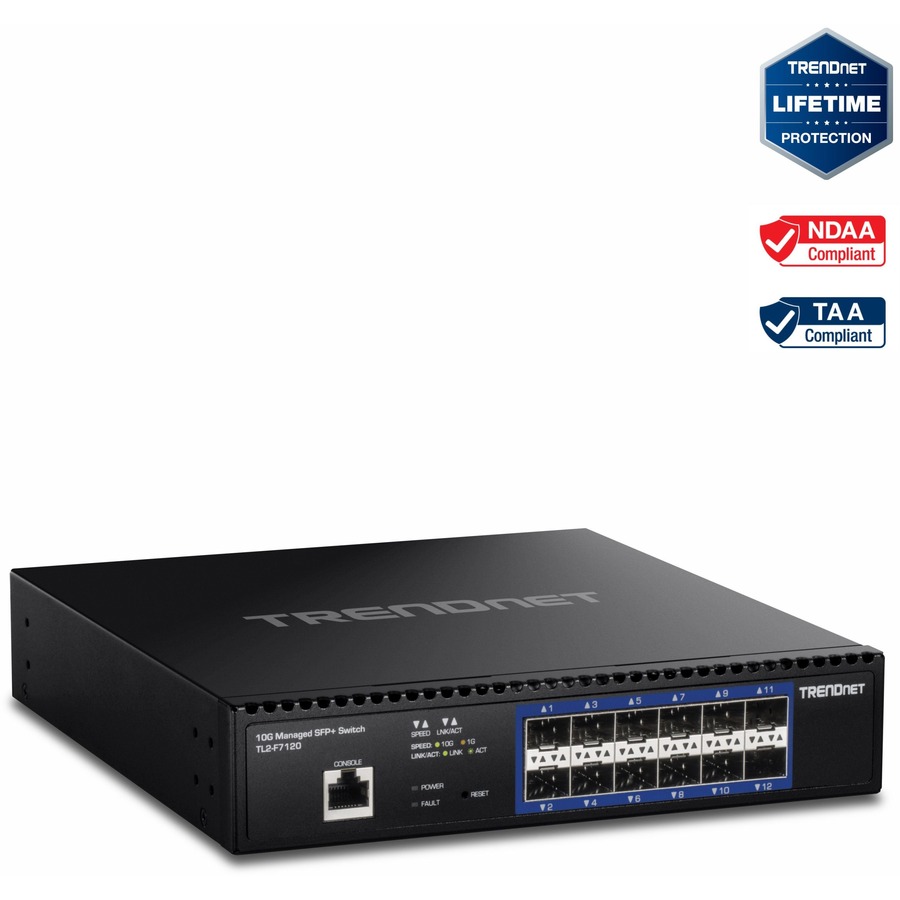

TRENDnet's 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches TL2-F7120 by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
TRENDnet's 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network. High-Speed 10G SFP+
Offers 12 x 10G SFP+ slots for high- speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
L2 Management
Fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches. Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Integration Flexibility
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
FEATURES | Hardware Design

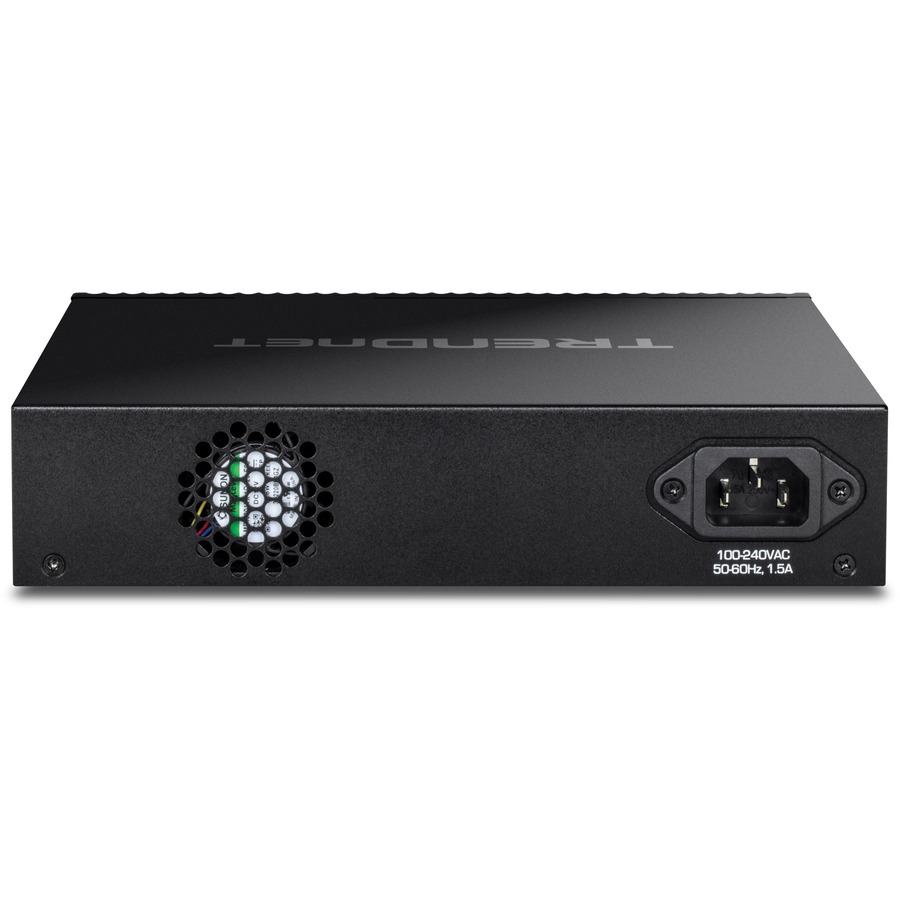

The 10Gb fiber switch provides 12 x 10G SFP+ slots, a built-in power supply, and 1U rackmount brackets
Switching Capacity
Supports a 240Gbps switch capacity
Smart Fan
The smart fan on the 10G SFP+ switch saves energy and eliminates distracting operating noise by auto adjusting the fan speed and use based on cooling needs
LED Indicators
LED indicators on the 10G SFP+ switch convey port status
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance
Rackmount Design

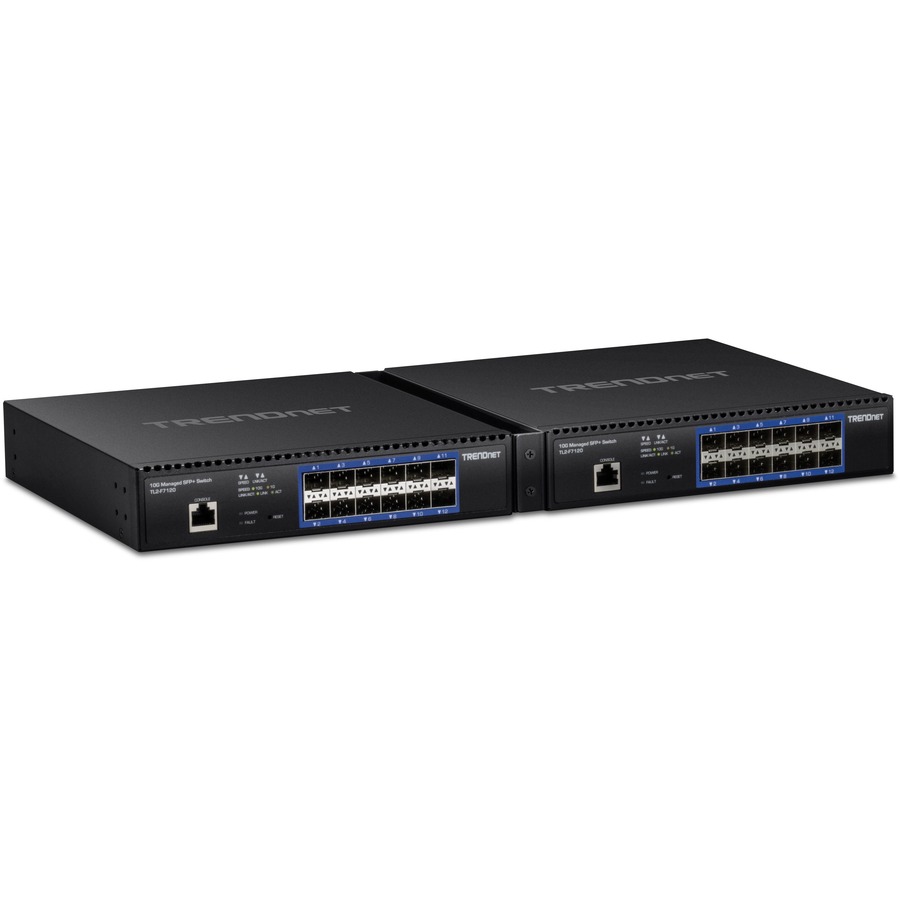

Save rack space by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
IPv6 Ready
This 10G SFP+ switch supports Ipv6 configuration and Ipv6 neighbor discovery
IP Routing
Supports inter-VLAN routing and Ipv4/Ipv6 static routing
• NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
TRENDnet’s 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
TRENDnet’s 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
High-Speed 10G SFP+
Offers 12 x 10G SFP+ slots for high-speed network uplinks or downlink NAS/access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
L2 Management
Fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Hardware Design
The 10Gb fiber switch provides 12 x 10G SFP+ slots, a built-in power supply, and 1U rackmount brackets
Switching Capacity
Supports a 240Gbps switch capacity
Smart Fan
The smart fan on the 10G SFP+ switch saves energy and eliminates distracting operating noise by auto adjusting the fan speed and use based on cooling needs
LED Indicators
LED indicators on the 10G SFP+ switch convey port status
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance
Rackmount Design
Save rack space by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
IPv6 Ready
This 10G SFP+ switch supports Ipv6 configuration and Ipv6 neighbor discovery
IP Routing
Supports inter-VLAN routing and Ipv4/Ipv6 static routing
Traffic Management
A broad range of network configurations are supported by this 10G managed SFP+ switch: 802.1ax link aggregation, , 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
Access Control
Features such as IPv4/IPv6 ACL, port security (mac entry restriction), 802.1X, TACACS+, and RADIUS are compatible with layered access controls
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring, and DDM are supported on the 10G SFP+ switch
Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

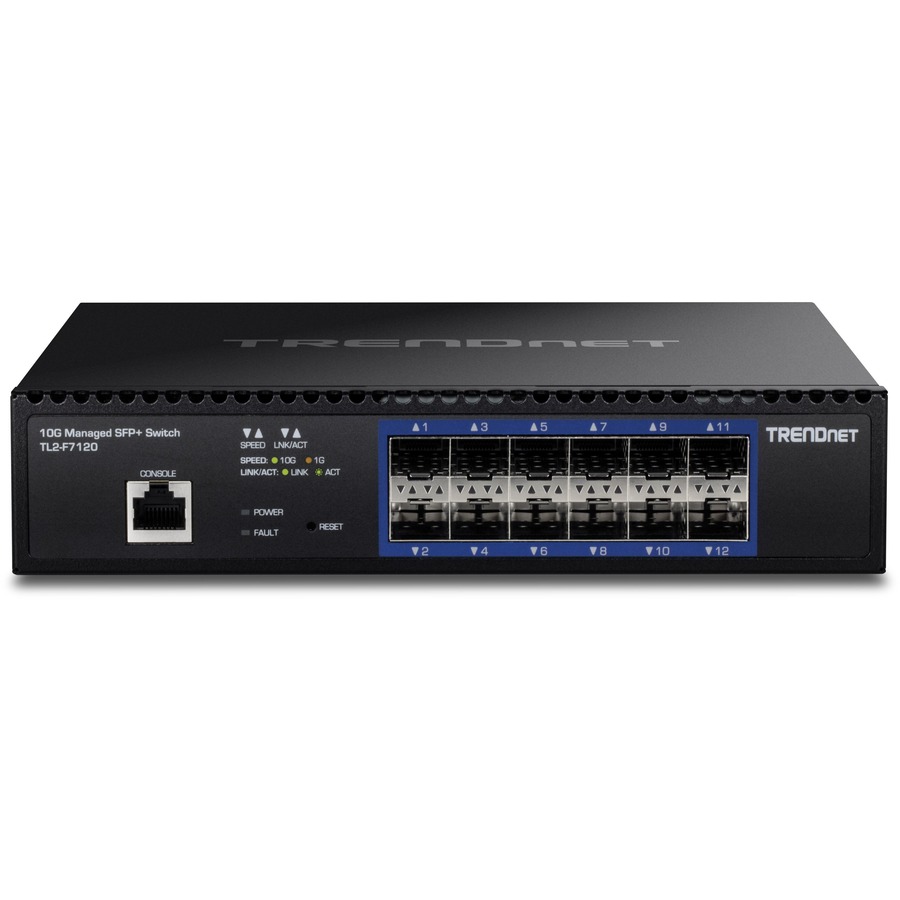

DEVICE INTERFACE: 12 x SFP+ Ports (1Gbps / 10Gbps); 1 x RJ-45 Console Port (out-of-band); LED Indicators; Reset Button
SWITCHING CAPACITY: 12-Port 10G Layer 2 Managed SFP+ Switch provides 240Gbps switching capacity
LAYER 2 MANAGEMENT: The 12 Port 10G Switch is fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches.
HIGH SPEED 10G SFP+: The managed switch offers 12 x 10G SFP+ slots for high-speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
INTEGRATION FLEXIBILITY: The 10G switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.1ax link aggregation, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
RACKMOUNT DESIGN: Save rack space with this network switch by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
TRENDnet LIFETIME PROTECTION: The 12 Port 10G Layer 2 Managed SFP+ Switch comes with lifetime TRENDnet Manufacturer Protection.
NDAA / TAA compliant (U.S. and Canada only)
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TL2-F7120 |
| Brand Name | TRENDnet |
| Product Model | TL2-F7120 |
| Product Name | 12-Port 10G Layer 2 Managed SFP+ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Maximum Data Transfer Rate | 2.50 GB/s |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 8.3" |
| Depth | 9.1" |
| Weight (Approximate) | 3.53 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 20 W |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 12 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 12 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
