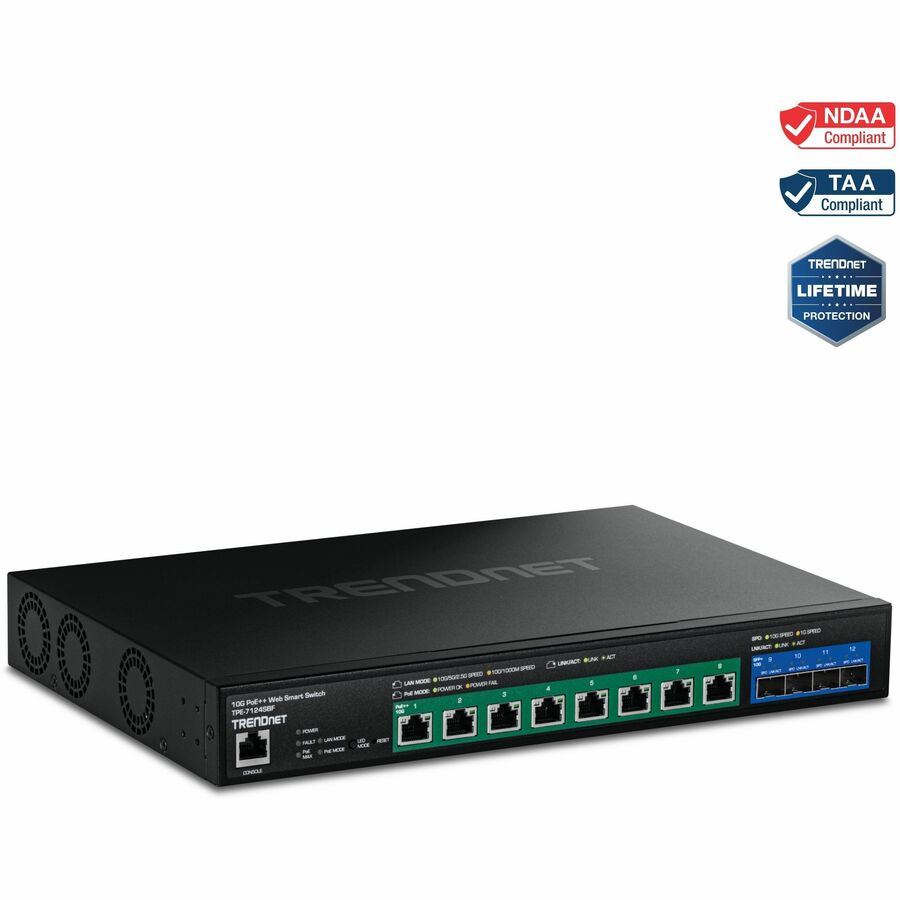

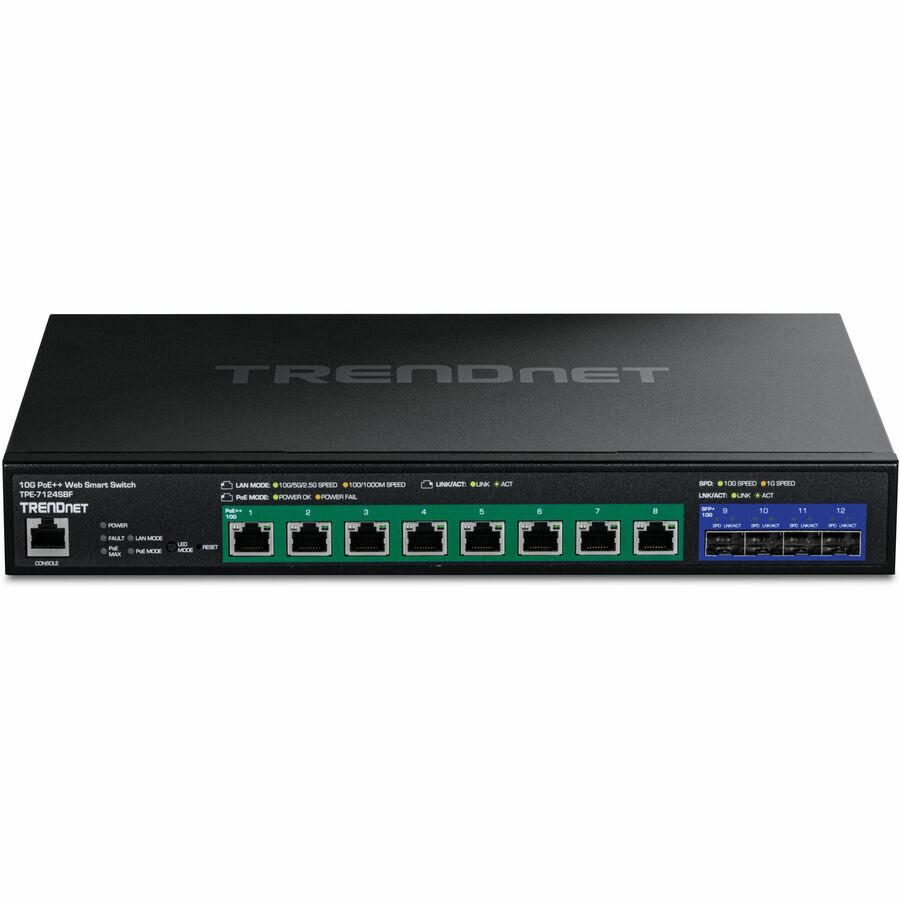

TRENDnet 12-Port 10G PoE++ Web Smart Switch, TPE-7124SBF, 720W PoE Power Budget, 8 x 10G PoE++ Ports, 4 x 10G SFP+ Ports, NDAA TAA Compliant, 1U 19" Rack Mountable, Lifetime Protection

TRENDnet's 12-Port 10G PoE++ Web Smart Switch (720W), model TPE-7124SBF, offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface.Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IPsurveillance system performance, and minimize network traffic.This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for longdistance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.

• DEVICE INTERFACE: 8 x 10G PoE++ Ports; 4 x 10G SFP+ Ports; 720W PoE Power Budget; LED indicators; Reset Button

• TRENDnet LIFETIME PROTECTION: We stand by our products. The TPE-7124SBF 10G PoE++ Switch is secured with Lifetime Manufacturer Protection from TRENDnet

• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

• POE++ POWER: A 720W total PoE power budget on this 10G PoE++ switch supplies up to eight PoE++ devices with up to 90W per port.

• PERPETUAL POE + ALIVE CHECK: Continuously send power to your PoE PD devices during a switch reboot or a firmware update, PoE alive check automatically attempts to recover an unresponsive PoE device connected

• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and more

• MONITORING: RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

• RACKMOUNT READY: The network switch is equipped with 1U 19" rack mountable metal housin

More from the Manufacturer

TRENDnet’s 12-Port 10G PoE++ Web Smart Switch (720W), model TPE-7124SBF, offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

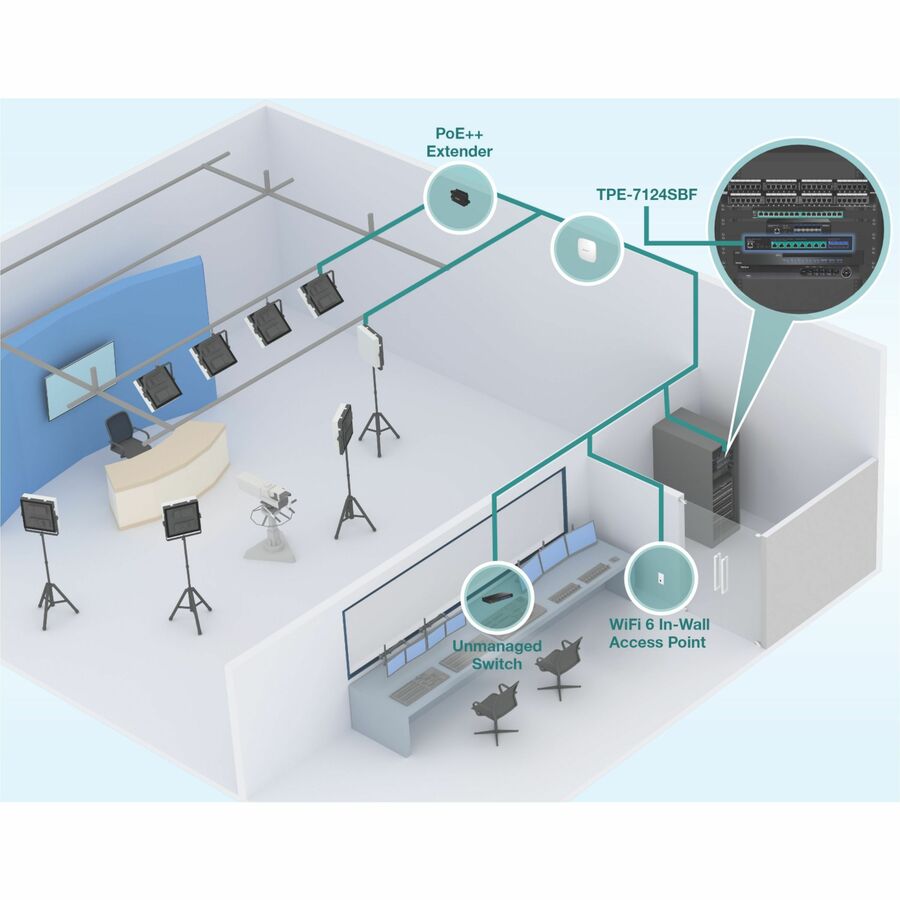

This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for long-distance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.

FEATURES

High-Speed 10GBASE-T and 10G SFP+

Offers eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability to an SMB network.

Web Smart Management

Provides an easy-to-use web-based management GUI for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

PoE++

A 720W total PoE power budget on this 10G PoE++ switch supplies up to eight PoE++ devices with up to 90W per port.

12-Port 10G PoE++ Web Smart Switch (720W)

8 x 10G PoE++ ports

4 x 10G SFP+ ports

720W PoE power budget

Fast PoE minimizes wait time for powering up PoE devices

Perpetual PoE eliminates PoE down time during switch reboot

PoE alive check automatically attempts to recover an unresponsive, connected PoE device

Supports 100M/1G/2.5G/10GBASE-T link speeds

Easy-to-use web-based management interface

Supports IPv6, LACP, VLAN, QoS, IGMP/MLD Snooping

IPv4/IPv6 Static Routing support

Bandwidth control per port

Voice VLAN support

1U 19” rack mountable metal housing

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty

10G

Provides eight 10G ports, four 10G SFP+ ports, and a 240Gbps switching capacity

PoE++

Eight PoE++ ports provide up to 90W of power per port

Full Power

Provides a total 720W PoE power budget

Fast PoE

With Fast PoE, the PoE++ switch provides power to a connected PoE device within a few seconds of the switch receiving power—no need to wait for the switch to fully boot up

Perpetual PoE

Continuously send power to your PoE PD devices during a switch reboot or a firmware update

IPv6 Ready

This 10Gb managed switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management

A broad range of network configurations on the 10G managed switch are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Troubleshooting

A convenient cable diagnostic test and traffic statistics aid in network troubleshooting the 10G managed PoE++ switch

Access Control

Features such as ACL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring

The 10G managed PoE++ switch features RMON, SNMP, SNMP Trap, and Port Mirroring, supporting administrator monitoring solutions

Smart Fans

Smart fans save energy by auto adjusting the fan speed and use based on cooling needs

Rackmount Design

This switch is well-suited for a 1U rack installations with the included rackmount brackets

Jumbo Frame

Send larger packets, or Jumbo Frames (up to 10KB), for increased performance

LED Indicators

LED indicators on the 10G managed PoE++ switch convey port status

Internal Power Supply

Built-in internal power supply with included power cord

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3ae

IEEE 802.3an

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

IEEE 802.3bz

IEEE 802.3bt

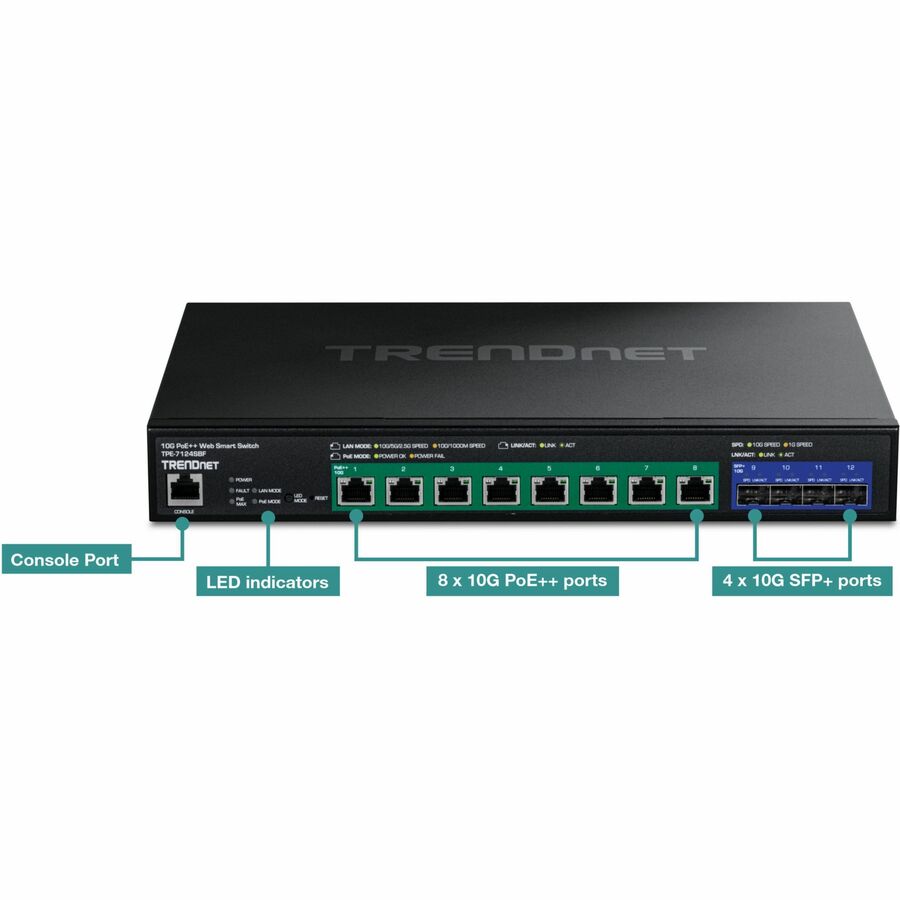

Device Interface

8 x 10G PoE++ ports (100Mbps/1Gbps/2.5Gbps/10Gbps)

4 x 10G SFP+ ports (1Gbps/10Gbps)

LED indicators

Reset button

Data Transfer Rate

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2Gbps (full duplex)

2.5G Ethernet: 5Gbps (full duplex)

10G Ethernet: 20Gbps (full duplex)

SFP: 2Gbps (full duplex)

SFP+: 20Gbps (full duplex)

Performance

Switch fabric: 240Gbps

RAM buffer: 2MB

MAC Address Table: 32K entries

Jumbo Frames: 10KB

HOL Blocking Prevention

Forwarding rate: 178.56Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) limited administration only

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image and configuration

MIB

RMON MIB RFC 1271

LLDP MIB IEEE 802.1ab

RFC 1213 MIB II

RFC 1643 Ethernet-like interface MIB

RFC 1493 bridge MIB

Spanning Tree

IEEE 802.1d STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3

MLD Snooping v1, v2

IGMP fast leave

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial-In User Authentication

DHCP Snooping

Loopback Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

TOS (IPv4 only)

IPv4 Address and Mask (IPv4 only)

IPv6 Address and Prefix Length (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 6

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

Power

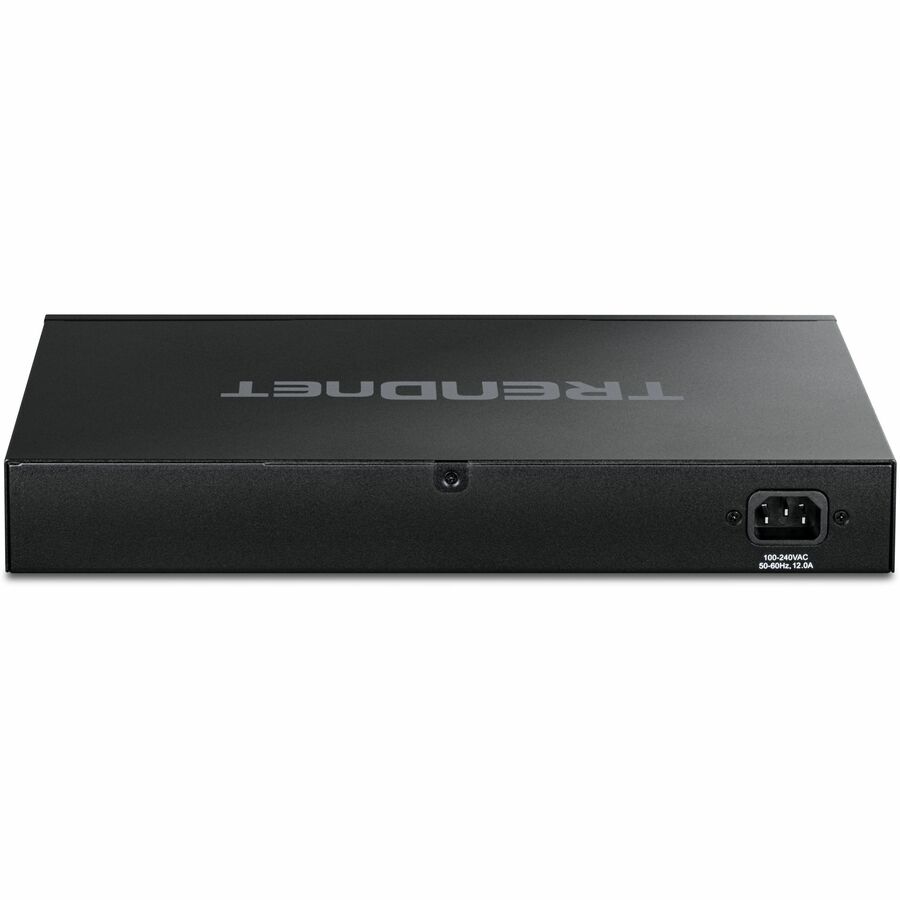

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 57.4W (No PD connected)

PoE

PoE budget: 720W

802.3bt: Up to 90W per port

PoE++ Pins 3, 4, 5, 6 for power+ and pins 1, 2, 7, 8 for power-

PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power- (mode A)

PD auto classification

Over current/short circuit protection

PD alive check

Fast PoE

Perpetual PoE

Fan/Acoustics

Quantity: 3

Smart fans

Max. noise level 51.1 dBA

MTBF

161,000 hours @ 25° C

Operating Temperature

0° – 50° C (32° – 122° F)

Operating Humidity

Max. 90% non-condensing

Dimensions

330 x 228 x 44mm (12.99 x 8.98 x 1.73 in.)

Weight

2.875kg (6.33 lbs.)

Certifications

CE

FCC

UL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TPE-7124SBF

Power cord (1.5m / 5 ft.)

Console cable (1m / 3.28 ft.)

Rackmount brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
