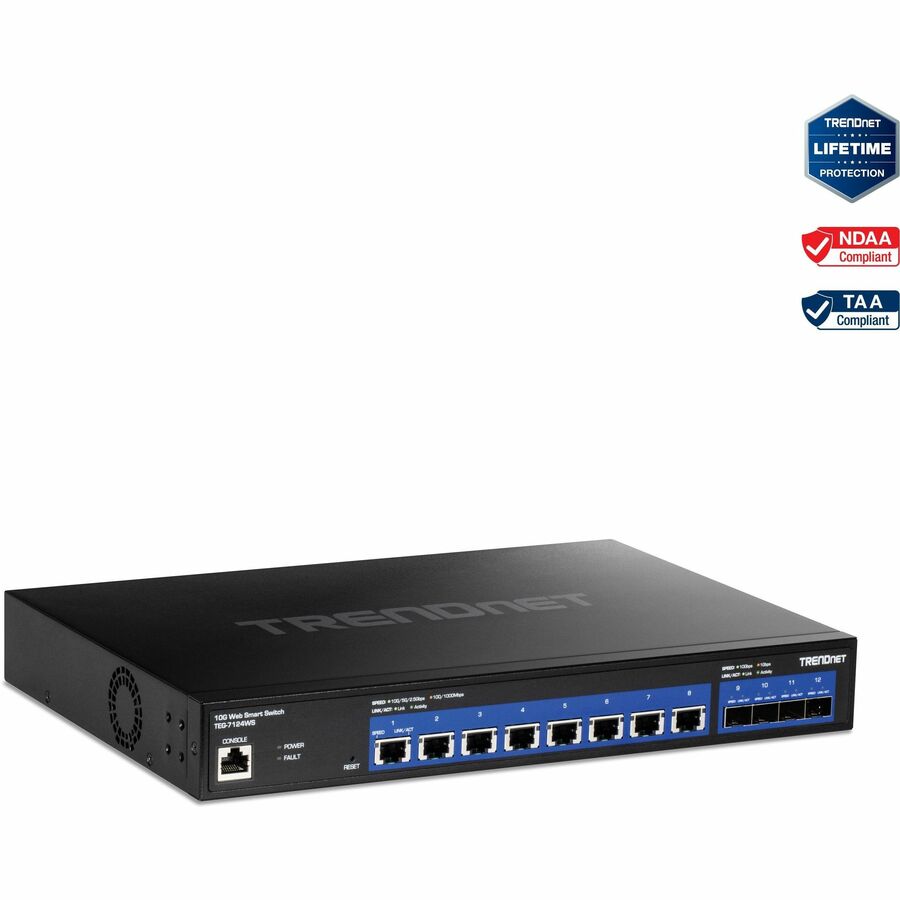

TRENDnet 12-Port 10G Web Smart Switch, TEG-7124WS, 8 x 10G RJ-45 Ports, 4 x SFP+ Slots, Ethernet Splitter, NDAA & TAA Compliant, Rack Mountable Housing, Lifetime Protection, Black

TRENDnet's 12-Port 10G Web Smart Switch, model TEG-7124WS, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready 10Gb managed switch comes with an easy-to-use, intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this 10Gb managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

This 12-Port 10G managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for long-distance, high-speed fiber network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

DEVICE INTERFACE: 8 x 10G Ports; 4 x 10G SFP+ Slots; 240Gbps Switching Capacity; LED Indicators

HIGH SPEED 10GBASE-T and 10G SFP+: Supports 10M/100M/1G/2.5G/5G/10G link speeds for high-speed network uplinks or

downlink NAS/access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.

WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration

complexity and offers a combination of SMB management features for easy deployment.

INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap,

and syslog for monitoring and flexible network integration.

IPv6 READY: This 10G switch supports IPv6 configuration and IPv6 neighbor discovery

TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric

VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth

management, and QoS queue scheduling

RACKMOUNT READY: The network switch is equipped with 1U 19" rack mountable metal housing

MONITORING: RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

TRENDnet LIFETIME PROTECTION: The TEG-7124WS 10G Web Smart Switch comes with Lifetime TRENDnet ManufacturerProtection.

Lifetime Warranty

More from the Manufacturer

TRENDnet’s 12-Port 10G Web Smart Switch, model TEG-7124WS, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready 10Gb managed switch comes with an easy-to-use, intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10Gb managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

This 12-Port 10G managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for long-distance, high-speed fiber network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

High-Speed 10GBASE-T and 10G SFP+

Offers eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability to an SMB network.

Web Smart Management

Provides an easy-to-use web-based management GUI for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring for flexible network integration.

NETWORKING SOLUTION

12-Port 10G Web Smart Switch

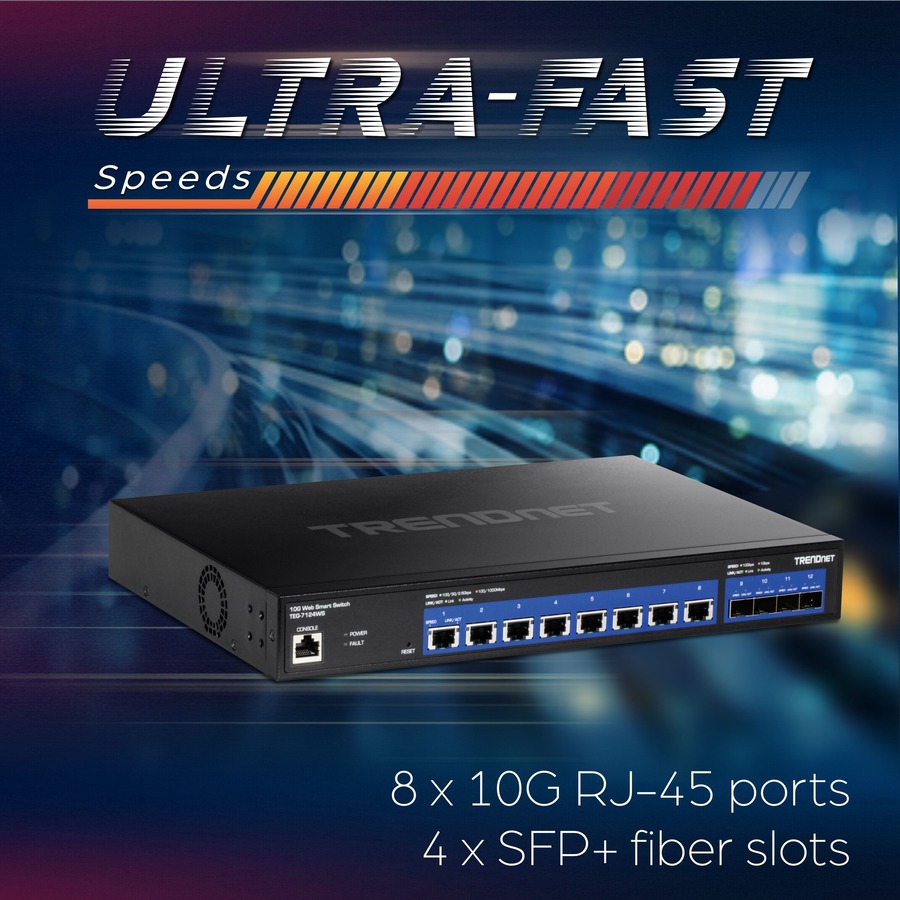

8 x 10G ports

4 x SFP+ slots

Supports 1G/2.5G/10G link speeds

Easy-to-use web-based management interface

Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping

Bandwidth control per port

Private and Voice VLAN support

240Gbps switching capacity

IEEE 802.1p QoS with queue scheduling support

1U 19” rack mountable metal housing

NDAA / TAA compliant (U.S. and Canada only)

FEATURES

Monitoring

RMON, SNMP, SNMP Trap, and

Port Mirroring support administrator

monitoring solutions

Access Control

Features such as ACL, SSL, MAC/

port filtering, 802.1X, TACACS+,

and RADIUS are compatible with

layered access controls

Troubleshooting

A convenient cable diagnostic test

and traffic statistics aid in network

troubleshooting

Hardware Design

Provides eight 10G ports, four 10G

SFP+ slots, a 240Gbps switching

capacity, a built-in power supply,

and rackmount brackets

IPv6 Ready

This switch supports IPv6

configuration and IPv6 neighbor

discovery

Traffic Management

A broad range of network

configurations are supported by:

802.3ad link aggregation,

Asymmetric VLAN, 802.1Q VLAN,

Voice VLAN, RSTP, MSTP,

Loopback Detection, GVRP, 802.1p

Class of Service (CoS), port

bandwidth management, and QoS

queue scheduling

© Copyright 2023 TRENDnet, Inc. All Rights Reserved.

TRENDnet 12-Port 10G Web Smart Switch - TEG-7124WS

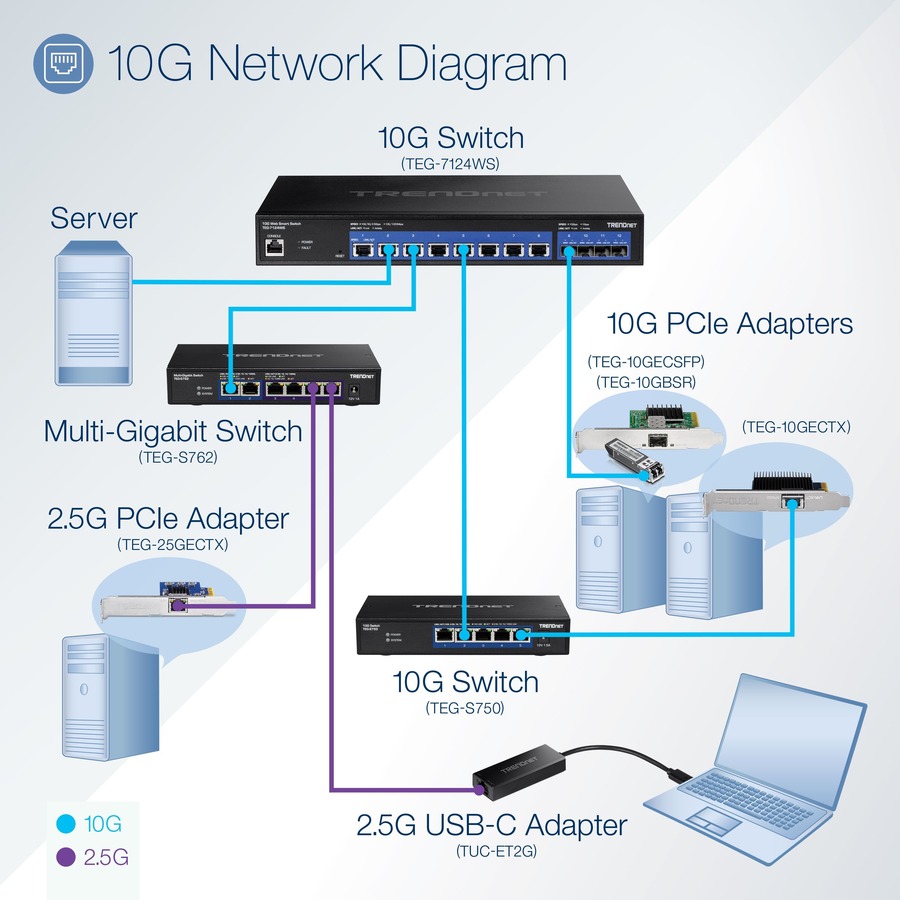

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3ae

IEEE 802.3af

IEEE 802.3at

IEEE 802.3an

IEEE 802.3az

IEEE 802.3bz

Device Interface

8 x 10G Ports

4 x 10G SFP+ slots

LED indicators

Data Transfer Rate

Gigabit Ethernet: 2000Mbps (full duplex)

2.5G Ethernet: 5000Mbps (full duplex)

10G Ethernet: 20Gbps (full duplex)

SFP: 2000Mbps (full duplex)

SFP+: 20Gbps (full duplex)

Performance

Switch fabric: 240Gbps

RAM buffer: 16MB

MAC Address Table: 32K entries

Jumbo Frames: 10KB

HOL Blocking Prevention

Forwarding rate: 178.56Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) for basic administration

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image and configuration

MIB

RMON MIB RFC 1271

LLDP MIB IEEE 802.1ab

RFC 1213 MIB II

RFC 1643 Ethernet intf MIB

RFC 1493 bridge MIB

Spanning Tree

IEEE 802.1d STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3 (per VLAN)

MLD Snooping v1, v2

IGMP fast leave

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial-In User Authentication

DHCP Snooping

Loopback Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

TOS (IPv4 only)

IPv4 Address and Mask (IPv4 only)

IPv6 Address and Prefix Length (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 6

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

Power

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 152.3W

Fan/Acoustics

Quantity: 1

Smart Fans

Noise Level: 39 dBa (max.)

MTBF

53,900 hours

Operating Temperature

-0° – 50° C (32° – 122° F)

Operating Humidity

Max. 90% non-condensing

Dimensions

325 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)

Rack mountable 1U height

Weight

1.96kg (4.31 lbs.)

Certifications

CE

FCC

UL

Warranty

Lifetime Warranty*
