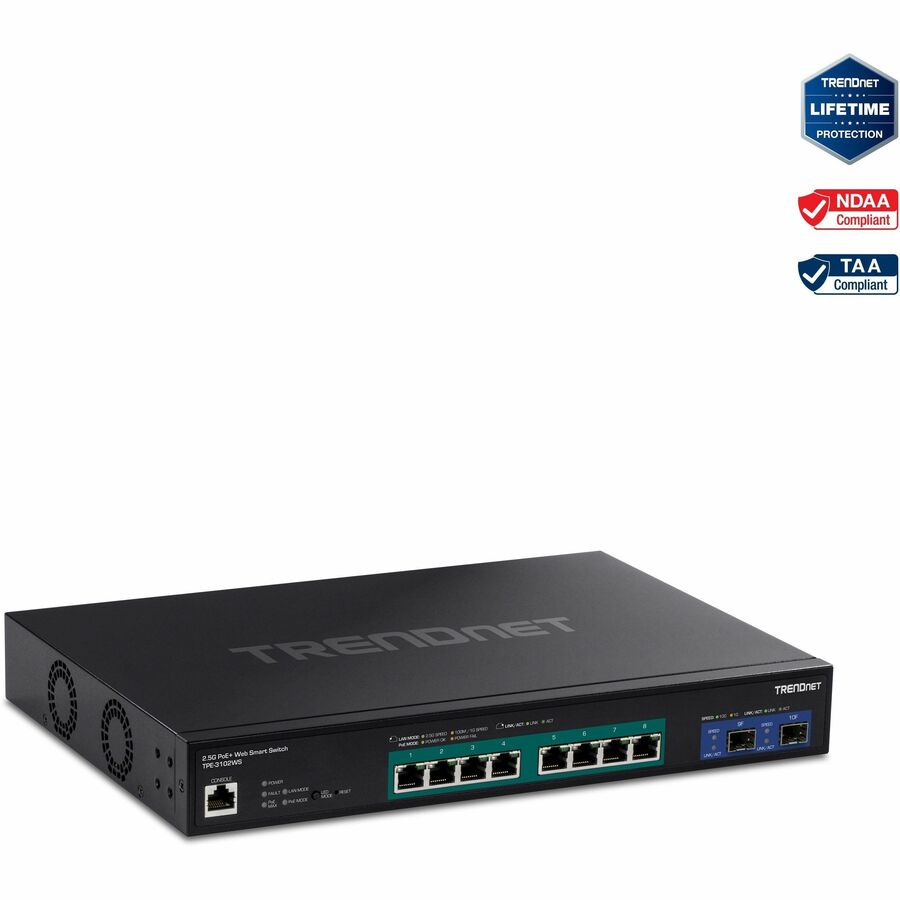

TRENDnet 10-Port Multi-Gig Web Smart PoE+ Switch, 8 x 2.5GBASE-T PoE+ Ports, 2 x 10G SFP+ Slots, Metal Housing, Managed Network Ethernet Switch, Lifetime Protection, Black, TPE-3102WS

TRENDnet's Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. 8 x 2.5GBASE-T PoE+ ports

2 x 10 SFP+ slots

240W PoE power budget

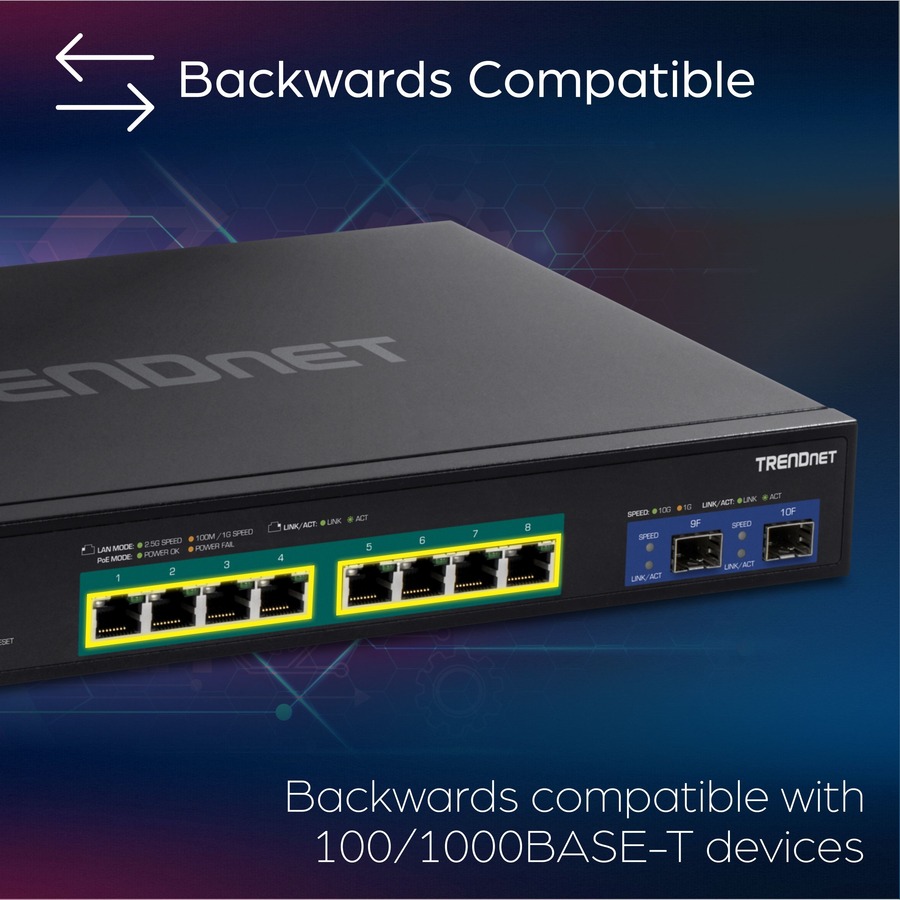

Backwards compatible with 100/1000BASE-T devices

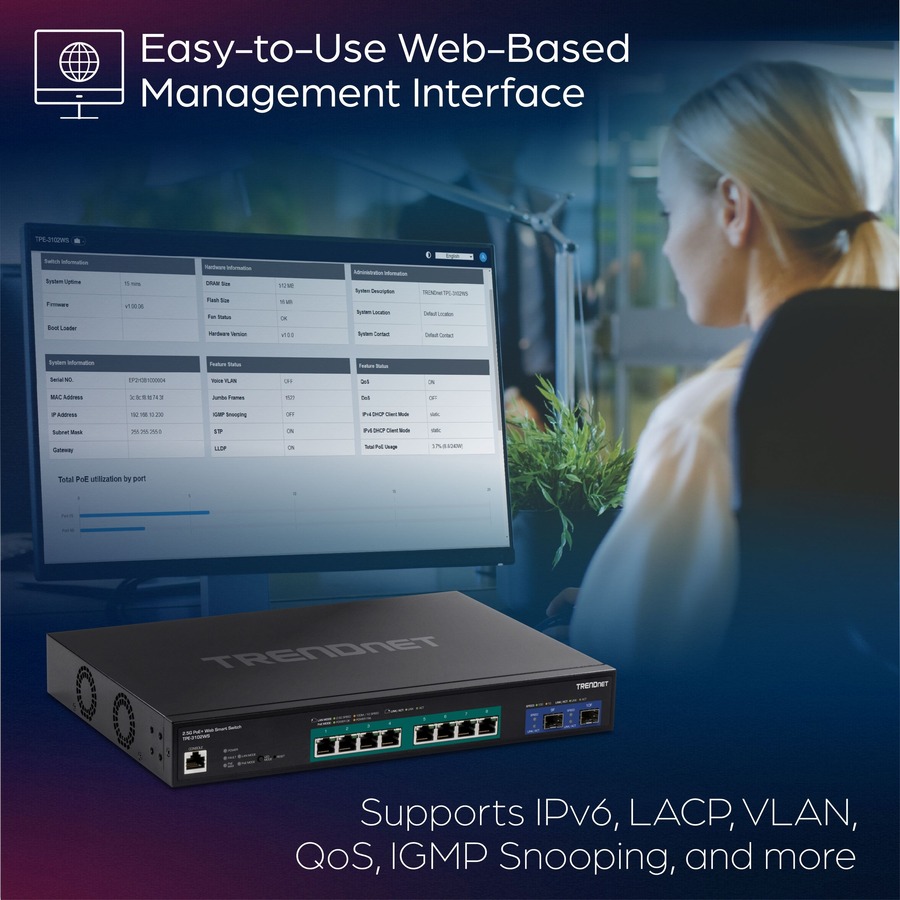

Easy-to-use web-based management interface

PoE alive check automatically attempts to recover an unresponsive PoE device connected

Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping

Bandwidth control per port

Private, Multicast, and Voice VLAN support

1U 19" rack mountable

80Gbps switching capacity

IEEE 802.3bz (2.5G) compliant

IEEE 802.3ae (SFP+) compliant

Lifetime Warranty

NDAA / TAA compliant (U.S. and Canada only)

More from the Manufacturer

TRENDnet’s Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls

to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive

web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports

TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP

monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve

voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds

capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated

10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB

network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G

managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network’s throughput.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Multi-Gig Web Smart Managed

PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users

only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as

high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and

more.

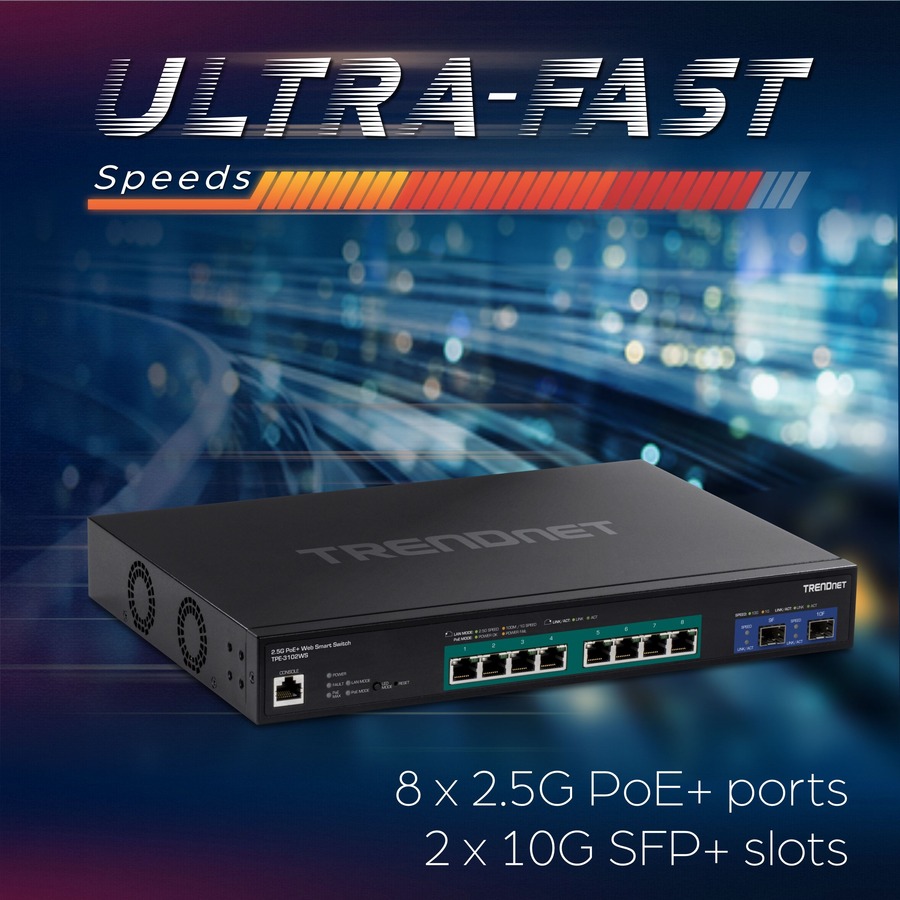

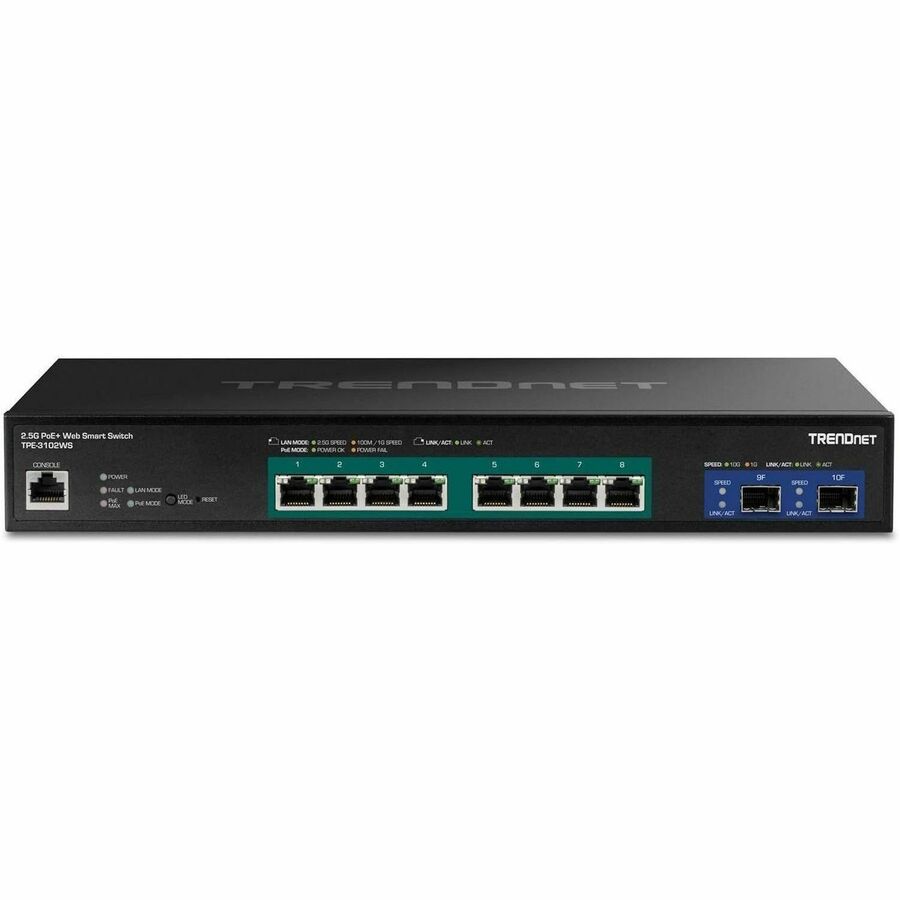

• DEVICE INTERFACE: 8 x 2.5GBASE-T PoE+ Ports; 2 x 10G SFP+ Slots; LED Indicators; Metal Housing

• 2.5G PORTS: This 12 Port Multi-Gig PoE+ Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multigigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

• 10G SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a costeffective solution in adding 10G link capability.

• POE POWER: Supplies up to 30W of PoE+ power per port with a 240W power budget

• EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch

• SWITCHING CAPACITY: 80Gbps switching capacity

• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric

VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth

management, and QoS queue scheduling

• WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration

complexity and offers a combination of SMB management features for easy deployment.

• ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with

layered access controls

• COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices

• INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap,

and syslog for monitoring and flexible network integration.

• RACK MOUNTABLE: Features a 1U 19” rack mountable design for installation flexibility

• COMPLIANCE: IEEE 802.3bz (2.5G) compliant; IEEE 802.3ae (SFP+) compliant

• LIFETIME PROTECTION: TRENDnet LIFETIME PROTECTION: The TPE-3102WS multi-gig PoE+ web smart switch comes

with Lifetime TRENDnet Manufacturer Protection.

• NDAA / TAA compliant (U.S. and Canada only)

FEATURES

10G SFP+ Slots

Offers two ultra-fast 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

2.5G Ports

Equipped with eight high-speed 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

FEATURES

Easy Installation

No configuration needed, simply

connect network devices to the

2.5G managed PoE+ switch

PoE Power

Supplies up to 30W of PoE+ power

per port with a 240W power budget

IPv6 Ready

This 2.5G managed PoE+ switch

supports IPv6 configuration and

IPv6 neighbor discovery

LED Indicators

LED indicators on this 2.5G

managed PoE+ switch convey port

status

Troubleshooting

The 2.5G managed PoE+ switch’s

convenient cable diagnostic test

and traffic statistics aid in network

troubleshooting

Access Control

Features such as ACL, SSL, MAC/

port filtering, 802.1X, TACACS+,

and RADIUS are compatible with

layered access controls

Jumbo Frame

Sends larger packets, or Jumbo

Frames (up to 10KB) for increased

performance

Monitoring

RMON, SNMP, SNMP Trap, and

Port Mirroring support administrator

monitoring solutions

Traffic Management

A broad range of network

configurations are supported by:

802.3ad link aggregation,

Asymmetric VLAN, 802.1Q VLAN,

Voice VLAN, RSTP, MSTP,

Loopback Detection, GVRP, 802.1p

Class of Service (CoS), port

bandwidth management, and QoS

queue scheduling

Integration Flexibility

Managed features on the 2.5G

managed PoE+ switch include

access control lists, VLAN, IGMP

snooping, QoS, RMON, SNMP trap,

and syslog for monitoring and

flexible network integration

Housing Design

Sturdy metal housing

Cursus Sapien Ut

TRENDnet 10-Port Multi-Gig Web Smart PoE+ Switch -TPE-3102WS

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3ae

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

IEEE 802.3bz

Device Interface

8 x 2.5G Ports

2 x 10G SFP+ slots

LED indicators

Data Transfer Rate

Gigabit Ethernet: 2000Mbps (full duplex)

2.5G Ethernet: 5000Mbps (full duplex)

SFP: 2000Mbps (full duplex)

SFP+: 20Gbps (full duplex)

Performance

Switch fabric: 80Gbps

RAM buffer: 1.5MB

MAC Address Table: 16K entries

Jumbo Frames: 10KB

HOL Blocking Prevention

Forwarding rate: 59.52Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) for basic administration

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image and configuration

MIB

RMON MIB RFC 1271

LLDP MIB IEEE 802.1ab

RFC 1213 MIB II

RFC 1643 Ethernet intf MIB

RFC 1493 bridge MIB

Spanning Tree

IEEE 802.1d STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3

MLD Snooping v1, v2

IGMP fast leave

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial-In User Authentication

DHCP Snooping

Loopback Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

TOS (IPv4 only)

IPv4 Address and Mask (IPv4 only)

IPv6 Address and Prefix Length (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 6

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

Power

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 60W (No PD connected)

PoE

PoE budget: 240W

802.3at: Up to 30W per port

PoE Mode A: Pins 1, 2 for power and pins 3.6 for power

PD auto classification

Over current/short circuit protection

Fan/Acoustics

Quantity: 1

Smart Fans

Noise Level: 48.5 dBa (max.)

MTBF

342,321 hours

Operating Temperature

-0° – 40° C (32° – 104° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

300 x 230 x 44mm (13 x 9.06 x 1.73 in.)

Weight

2.265kg (1.46 lbs.)

Certifications

CE

FCC

UL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TPE-3102WS

Quick Installation Guide

Power Cord (1.5m / 5 ft.)

Rackmount Brackets
