10-Port Industrial Gigabit PoE+ Wall-Mounted Switch
$376.70
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
• NETWORK PORTS: 8 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots
• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG102F 10-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• REDUNDANT POWER: Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S24052, TI-S24048,, TI-S48048, and 48VDC3000)
• MOUNTING HARDWARE :Includes DIN-Rail bracket and magnetic wall mount kit
• POE+ POWER & SWITCHING CAPACITY: Supplies up to 30W of PoE+ power per port with a 240W power budget and 20Gbps switching capacity
• COMPACT: The flat and compact size makes the front access switch ideal for cabinet installations where space is limited
• SHOCK & VIBRATION RESISTANT: Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
• WIDE TEMPERATURE RANGE: Hardened industrial housing offers a wide operating temperature range of -40° - 75° C (-40° - 167° F), allowing for installations in extreme hot and cold environments
More from the Manufacturer
OVERVIEW
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

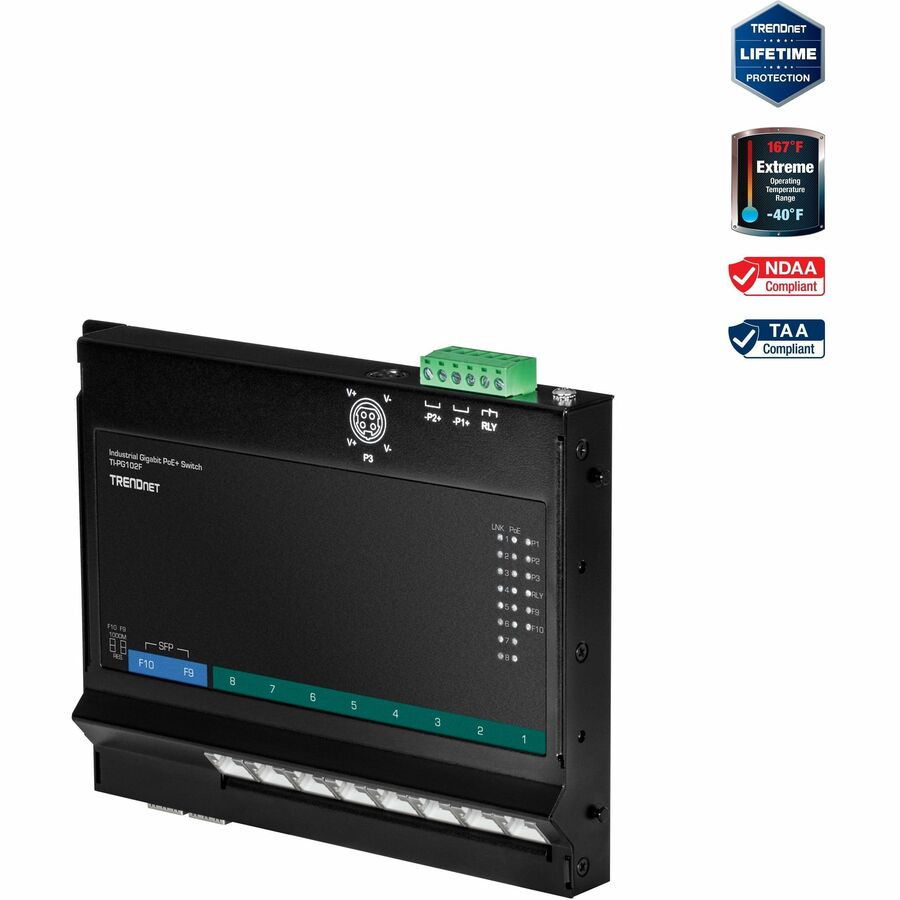

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited
PoE+ Power
A 240W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices
Hardened Industrial Design
Equipped with an IP40 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports

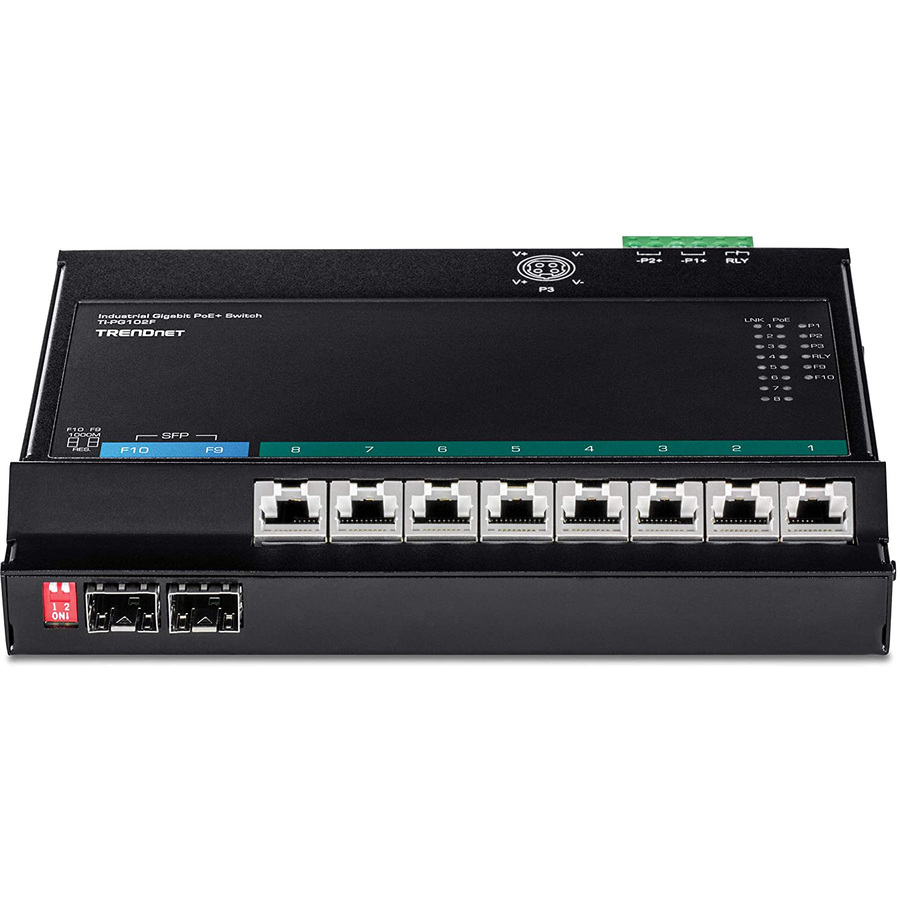

8 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots
PoE Power
Supplies up to 30W of PoE+ power per port with a 240W power budget
Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size makes the front access switch ideal for cabinet installations where space is limited
Mounting Hardware

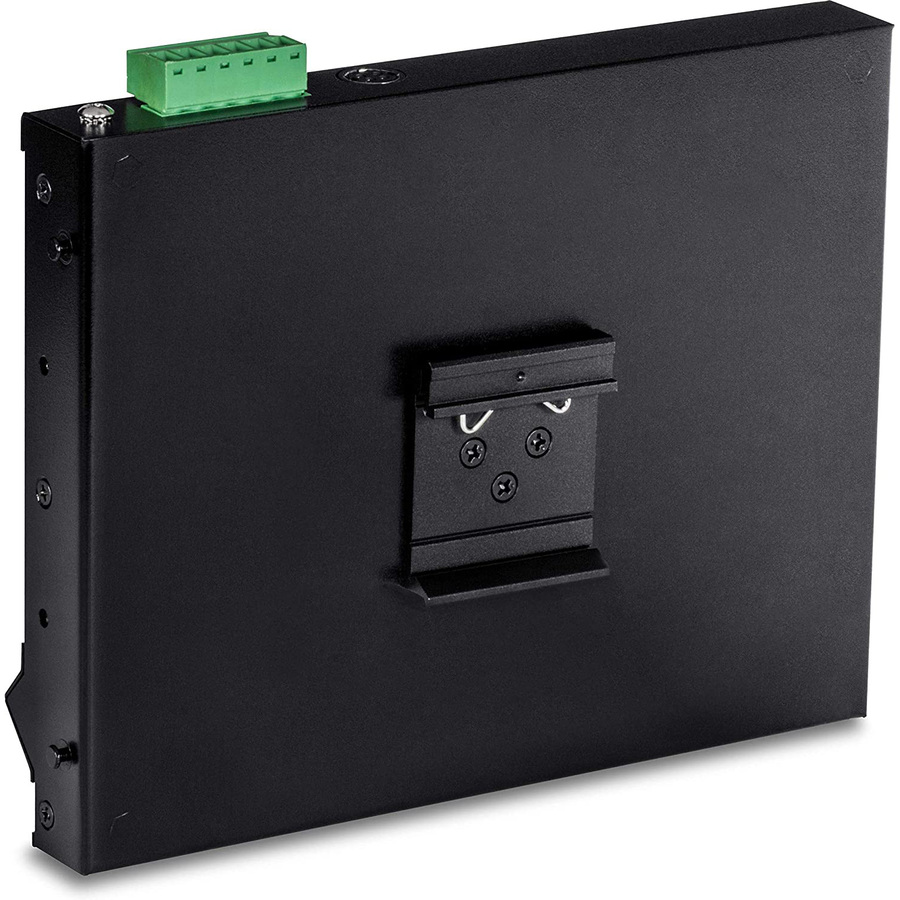

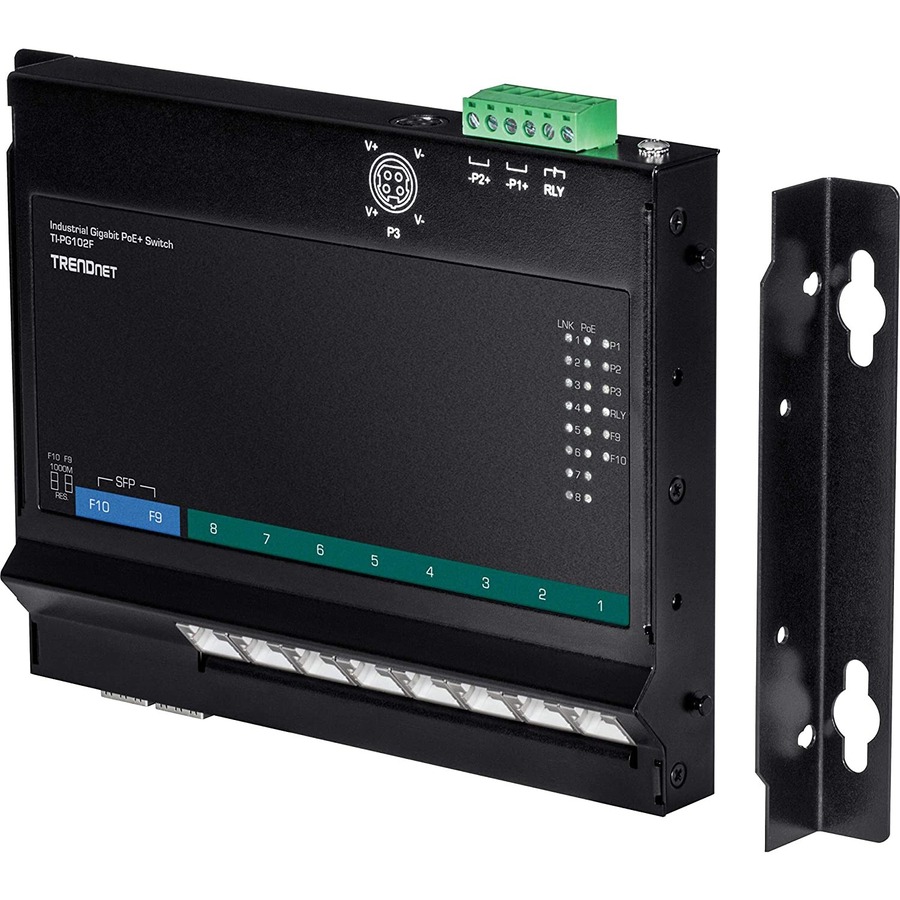

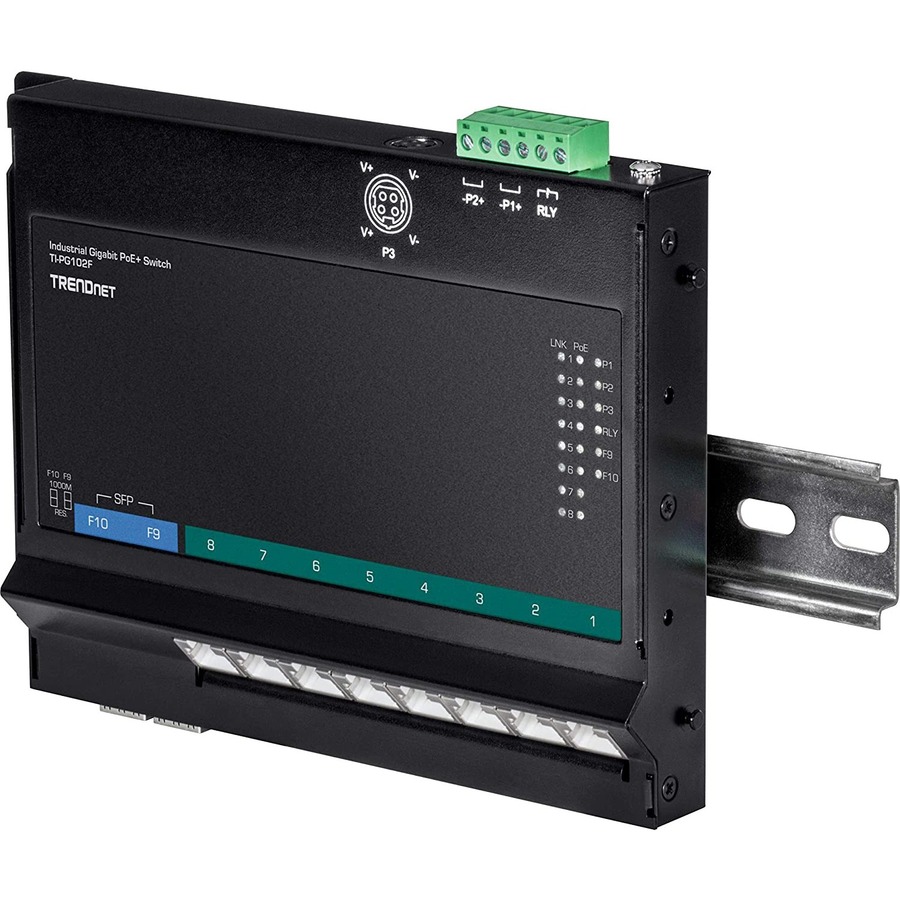

Includes DIN-Rail bracket and magnetic wall mount kit
Switching Capacity
20Gbps switching capacity
Redundant Power
Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S24052, TI-S24048, , TI-S48048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 10KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
LED Indicators
Front access switch with LED indicators that convey power and port status
Grounding Point
Grounding point protects equipment from external electrical surges
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Device Interface
8 x Gigabit PoE+ ports
2 x Gigabit SFP slots (1000Base-FX)
6-pin removable terminal block
LED indicators
Wall mount
DIN-Rail mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 0.25MB (Change unit of measure)
Switching Fabric: 20Gbps
MAC Address Table: 11K entries
Jumbo Frame: 10KB
Forwarding rate: 14.88Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Redundant power inputs
Power DIN adapter (sold separately: model 48VDC3000)
ESD 8kV support
Low-profile design
DC Power
Input: 48 – 56V DC
Recommended power supply: TI-S24052, TI-S24048, TI-S48048 (sold separately)
Max. consumption: 4.8W (no PoE)
Optional Power DIN Adapter (48VDC3000 sold separately)
Input: 100 – 240V AC, 50/60Hz, 2A
Output: 48V DC, 3.34A 160W max.
PoE
PoE budget: 240W
Terminal Block
Redundant power inputs, alarm relay contact, 6-pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – in. / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm
Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
MTBF
459,123 hours
Housing
IP40 metal case
DIN-Rail mount
Wall mount
Grounding point
Operating Temperature
-40° – 75° C (-40° – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
150 x 145 x 23mm (5.9 x 5.7 x 1 in.)
Weight
635g (22.5 oz.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-PG102F
Quick Installation Guide
Removable terminal block
DIN-Rail and magnetic wall mount kits
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
10-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
8 x Gigabit PoE+ ports
2 x Gigabit SFP slots
240W PoE power budget
20Gbps switching capacity
Forwarding rate: 14.88Mpps (64-byte packet size)
Supports jumbo frames up to 10KB
Hardened IP40 rated metal housing
Includes DIN-Rail Bracket and magnetic wall mount kit
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S24052, TI-S24048, , TI-S48048, and 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG102F |
| Brand Name | TRENDnet |
| Product Model | TI-PG102F |
| Product Name | 10-Port Industrial Gigabit PoE+ Wall-Mount Front Access Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 10" |
| Width | 21" |
| Depth | 23" |
| Weight (Approximate) | 38.50 lb |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
