9 Ports - 10 Gigabit Ethernet - 10GBase-T - 2 Layer Supported - 11.90 W Power Consumption - Twisted Pair - Wall Mountable, Desktop - Lifetime Limited Warranty
$131.92
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 2 and Nov 6, then process your delivery right after.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable multi-gigabit switches are cost-effective solutions to increase your network's throughput.
• DEVICE INTERFACE: 8 x 2.5G Ports (1Gbps/2.5Gbps); 1 x 10G Port (1Gbps/2.5Gbps/10Gbps); LED indicators
• TRENDnet LIFETIME PROTECTION: We stand by the quality of our products. The TEG-S591 9-Port multi gig switch is backed by TRENDnet's Lifetime Manufacturer Protection.
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• 2.5G PORTS: The network multi gig switch is equipped with eight 2.5G RJ-45 ports that provide multi-gigabit speeds capable ofup to 2.5Gbps over existing Cat5e or better cabling.
• STANDARDS: IEEE 802.3bz (2.5G); IEEE 802.3an (10G); IEEE 802.3ab; IEEE 802.3x compliant
• WALL MOUNTABLE DESIGN: The sturdy Ethernet Switch has a wall mountable design for greater installation flexibility
More from the Manufacturer
Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.
2.5G Ports
Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.
10G Port
Offers one 10G port for high-speed network connection providing a cost-effective solution in adding 10G link capability.
Fanless
The compact fanless design lowers power consumption, energy costs, and eliminates distracting operating noise.
Easy Installation
No configuration needed, simply connect network devices to this multi-gigabit 2.5G / 10G switch
Fanless
Compact fanless design on the 2.5G / 10G switch lowers energy consumption and eliminates operating noise
Jumbo Frame
The 2.5Gb switch sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
2.5G Ports
Equipped with 2.5G RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Housing Design
The multi-gigabit 2.5G / 10G switch features a sturdy metal housing

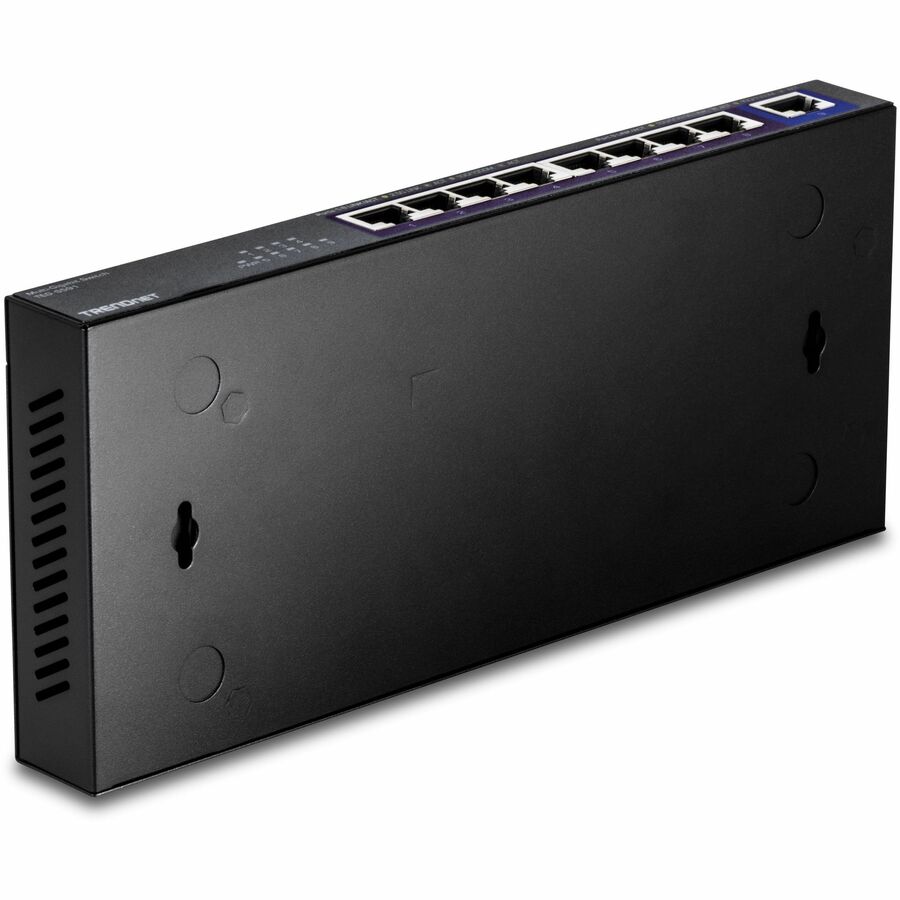

Wall Mountable
Features a convenient wall mountable design for greater installation flexibility
10G Port
Equipped with one 10G port for an ultra-fast network connection providing a cost-effective solution in adding 10G link capability
DEVICE INTERFACE: 8 x 2.5G Ports (1Gbps/2.5Gbps); 1 x 10G Port (1Gbps/2.5Gbps/10Gbps); LED indicators
2.5G PORTS: The network multi gig switch is equipped with eight 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
STANDARDS: IEEE 802.3bz (2.5G); IEEE 802.3an (10G); IEEE 802.3ab; IEEE 802.3x compliant
WALL MOUNTABLE DESIGN: The sturdy Ethernet Switch has a wall mountable design for greater installation flexibility.
TRENDnet LIFETIME PROTECTION: The TEG-S591 9-Port multi gig switch is backed by TRENDnet’s Lifetime Manufacturer Protection.
NDAA / TAA compliant (U.S. and Canada only)
Specifications
Standards
IEEE 802.3ab
IEEE 802.3an
IEEE 802.3bz
IEEE 802.3u
IEEE 802.3x

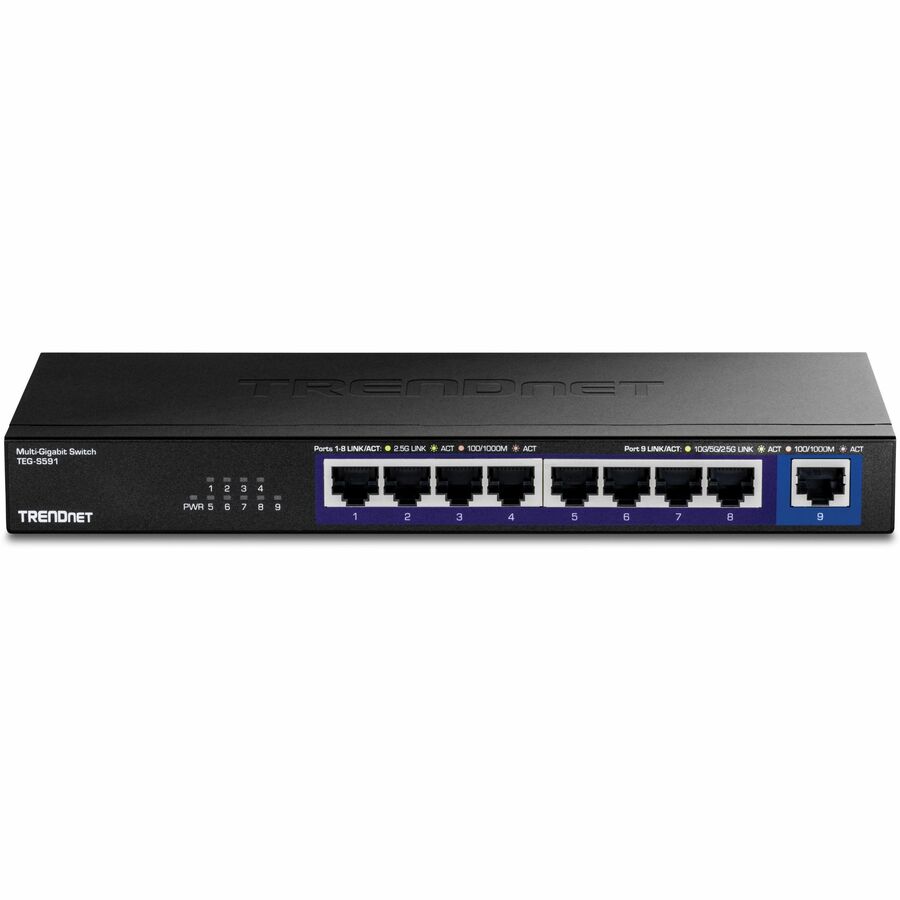

Device Interface
8 x 2.5G RJ-45 ports (1Gbps/2.5Gbps)
1 x 10G RJ-45 port (1Gbps/10Gbps)
LED indicators
Wall mountable
Data Transfer Rate
Gigabit Ethernet: 2Gbps (full duplex)
2.5G Ethernet: 5Gbps (full duplex)
10G Ethernet: 20Gbps (full duplex)
Performance
Switch fabric: 60Gbps
RAM buffer: 1MB
MAC address table: 4K entries
Jumbo frames: 12KB
Forwarding mode: Store and forward
Forwarding rate: 44.64Mpps (64-byte packet size)
Power
Input: 90 – 264V AC, 47/63 Hz
Output: 12V, 1.5A
Max. consumption: 11.9W
MTBF
518,151 hours
Fan / Acoustics
Fanless
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
240 x 105 x 27mm (9.45 x 4.1 x 1 in.)
Weight
0.72 kg (1.6 lbs.)
Certifications
CE
FCC
LVD
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TEG-S591
Quick Installation Guide
Power adapter (12V, 1A)
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-S591 |
| Brand Name | TRENDnet |
| Product Model | TEG-S591 |
| Product Name | 9-Port Multi-Gig Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 9 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network, 1 x 10 Gigabit Ethernet Network |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Wall Mountable, Desktop |
| Height | 1.1" |
| Width | 9.4" |
| Depth | 4.1" |
| Weight (Approximate) | 1.60 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | AC, Power Supply |
| Power Consumption | 11.90 W |
| Technical Information | |
| Features | Fanless |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
