Basic - Universal Input - 24 x IEC 60320 C13, 18 x IEC 60320 C39 - Network (RJ-45) - 0U - Vertical - Rack-mountable - Vertical
MSRP$1,793.52
$1,650.04
Save 8%In stock: 377
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features | 17 Removable Power Cables with 15 Different Plugs Support Universal Input

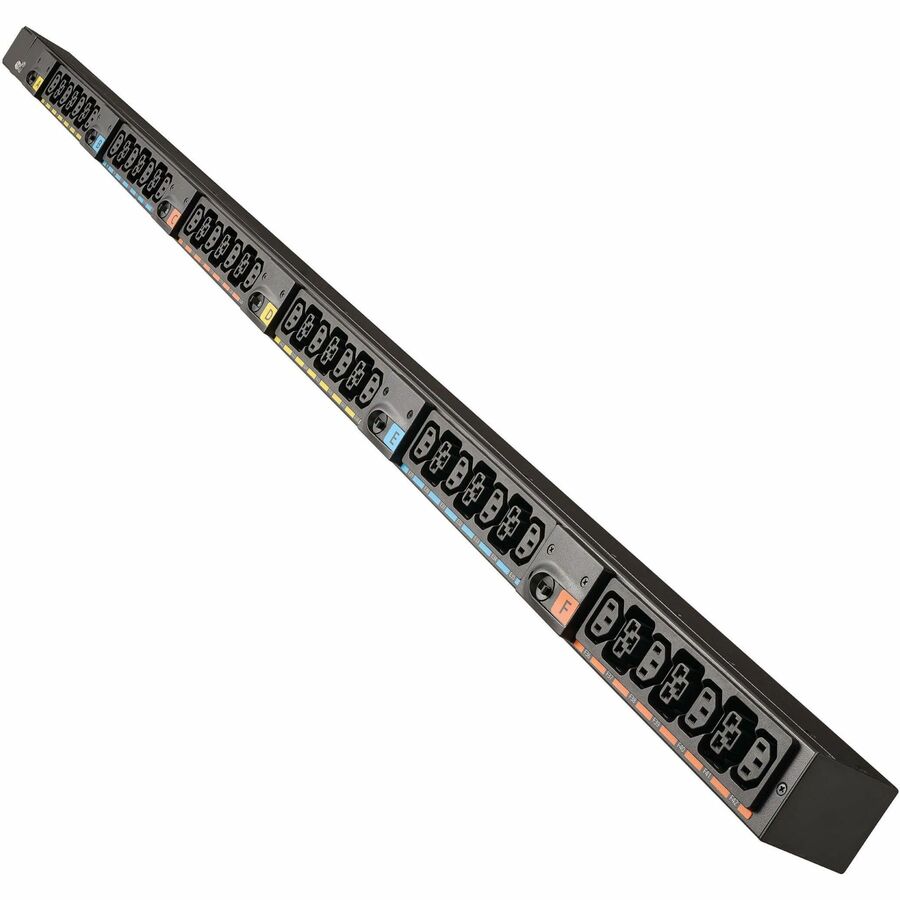

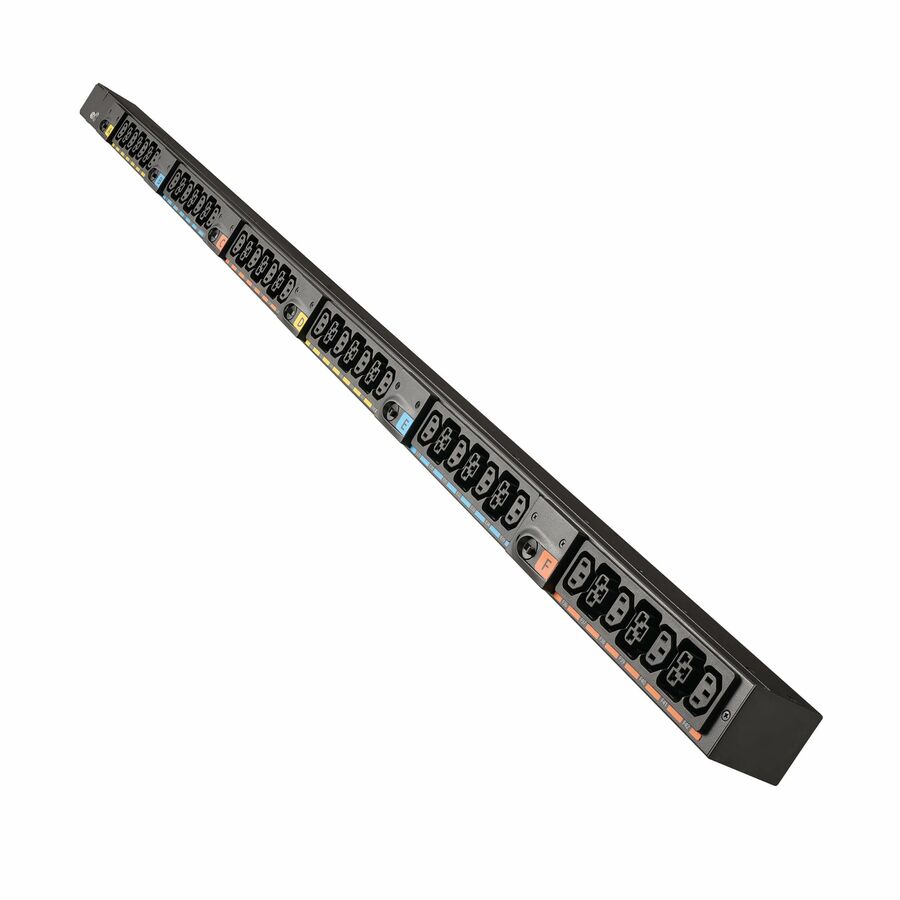

This universal input PDU (UPDU) G4 is designed to meet your most diverse rack-power needs. Equipped with 42 outlets, the EVBAGU23X-E accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase. Pair the UPDU with any one of 17 removable power cables with 15 different plug options (all sold separately). This UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations. It also ensures you won't outgrow your PDU as your power needs evolve.
42 Outlets Give You Plenty of Power Options

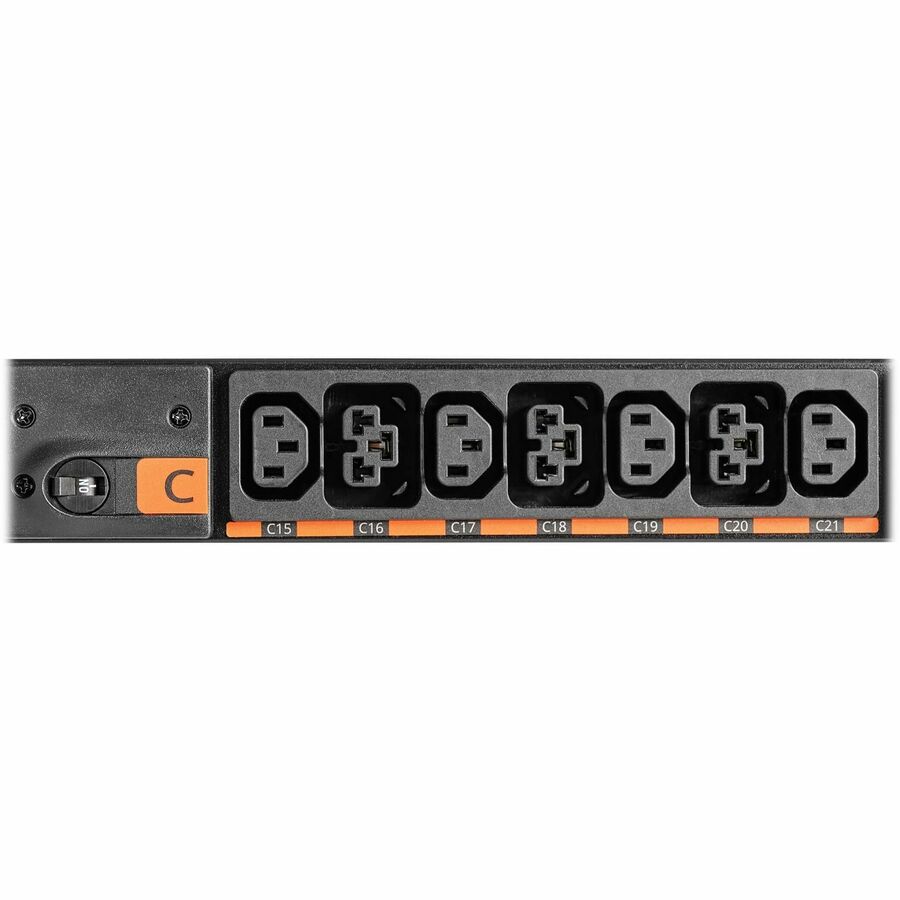

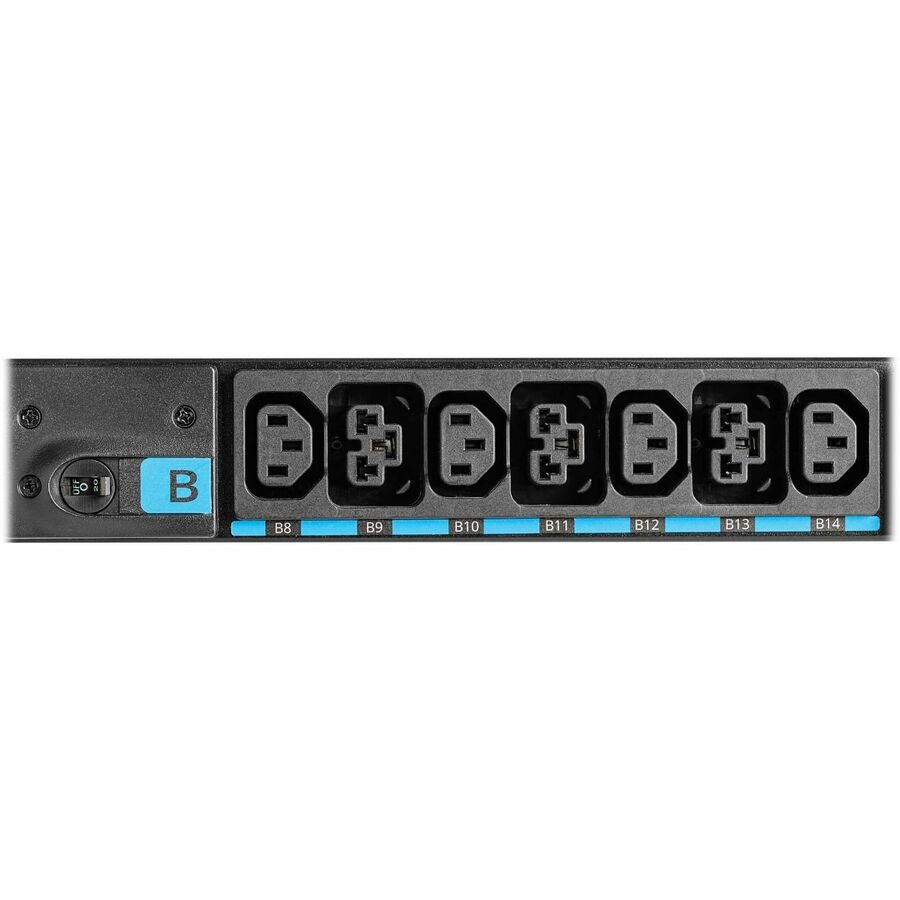

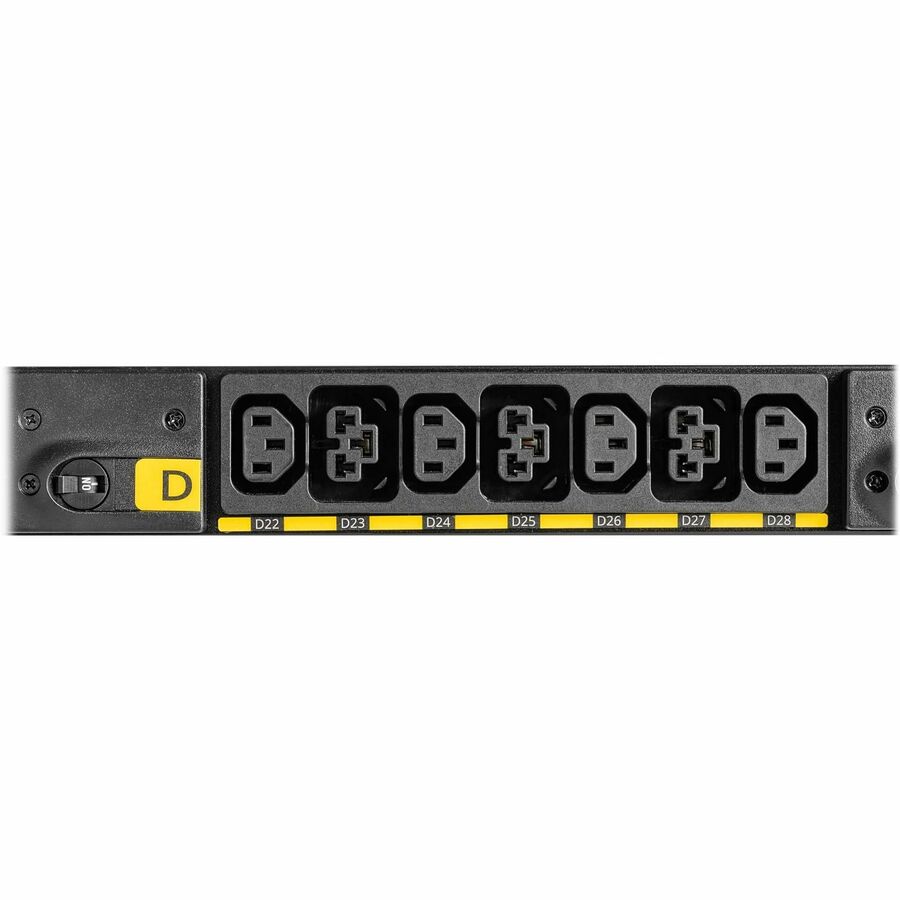

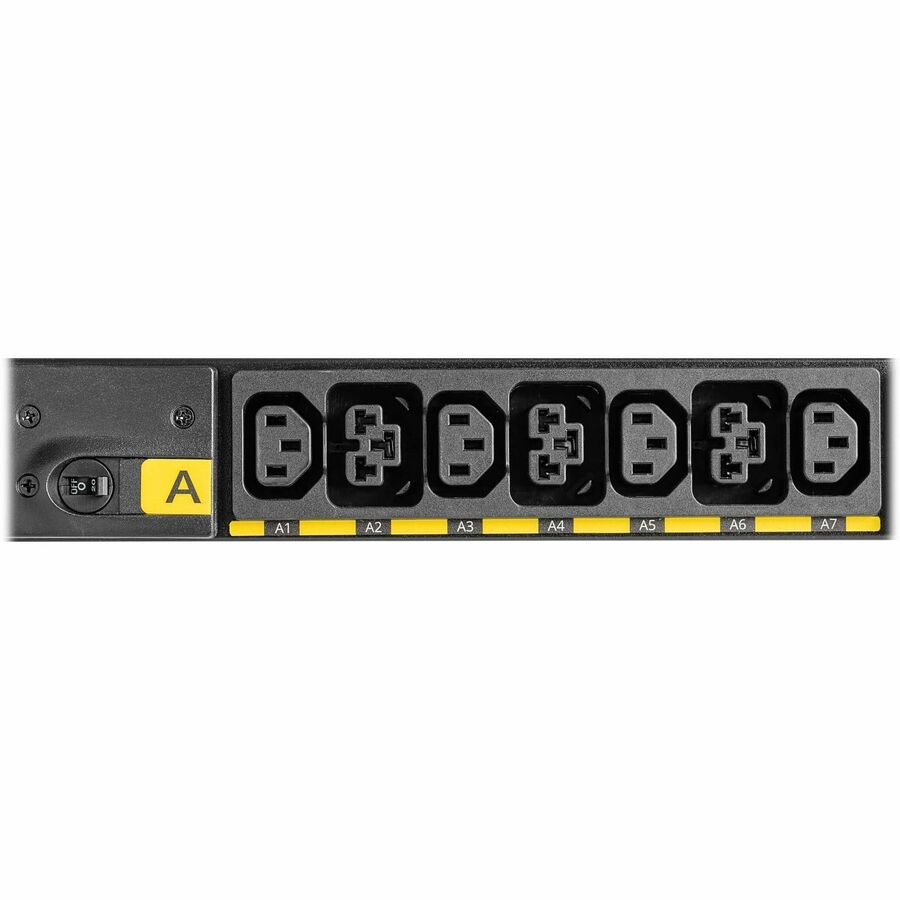

The EVBAGU23X-E features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install.
Convenient Box-to-Rack Installation
This UPDU G4 features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. Choose from a collection of 17 interchangeable AC input cables and 15 plug options (all power cables sold separately) that support a wide variety of voltages and capacities. Low-profile circuit breakers are flush with the lightweight aluminum chassis, and its narrow two-inch width saves space within the rack for revenue-generating equipment.
Limited Warranty: 3 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EVBAGU23X-E |
| Brand Name | Eaton |
| Product Series | G4 |
| Product Model | EVBAGU23X-E |
| Product Name | G4 EVBAGU23X-E 42-Outlets PDU |
| Product Type | PDU |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable, Button Mount |
| Form Factor | Vertical |
| Rack Height | 0U |
| Height | 64.4" |
| Width | 2.1" |
| Depth | 2.1" |
| Weight (Approximate) | 13.70 lb |
| Power Description | |
| Input Voltage | 230 V AC, 415 V AC, 120 V AC |
| Input Voltage Range | 100 V AC - 240 V AC, 173 V AC - 415 V AC |
| Output Voltage | 200 V AC, 208 V AC, 230 V AC, 240 V AC |
| Power Rating (VA) | 23 kVA |
| Power Rating (Watt) | 23 kW |
| Input Current | 63 A |
| Input Frequency | 60 Hz |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase/Three Phase |
| Plug/Connector Type | Universal Input |
| Receptacle Type | IEC 60320 C13, IEC 60320 C39 |
| Receptacle Detail | 24 x IEC 60320 C13, 18 x IEC 60320 C39 |
| Protection Type | Double Pole, Overload Protection, Circuit Protection |
| Load Capacity (VA) | 23 kW |
| Load Capacity (Watt) | 23 kW |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
