QNAP TS-H765EU-8G-US SAN/NAS Storage System
Intel Atom x7405C Quad-core (4 Core) - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR5 SDRAM - Serial ATA/600, Serial ATA/300 Controller - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Levels - 4 x Total Bays - 4 x 3.5" Bay - 2.5 Gigabit Ethernet - Wireless LAN - 2 USB Port(s) - 1 USB 2.0 Port(s) - Network (RJ-45) - QuTS hero h5.2.3 - FTP, SFTP, TFTP, SSL/TLS, FXP, NFS, NFSv3, NFSv4, AFP, CIFS/SMB, SNMPv2, ... - 8 GB Flash Memory Capacity - 1U
- SKU
- TS-H765EU-8G-US
- Category
- Storage Arrays & Servers
$1,002.16
Back ordered — ships when restocked.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TS-H765EU-8G-US
- Category
- Storage Arrays & Servers
Overview

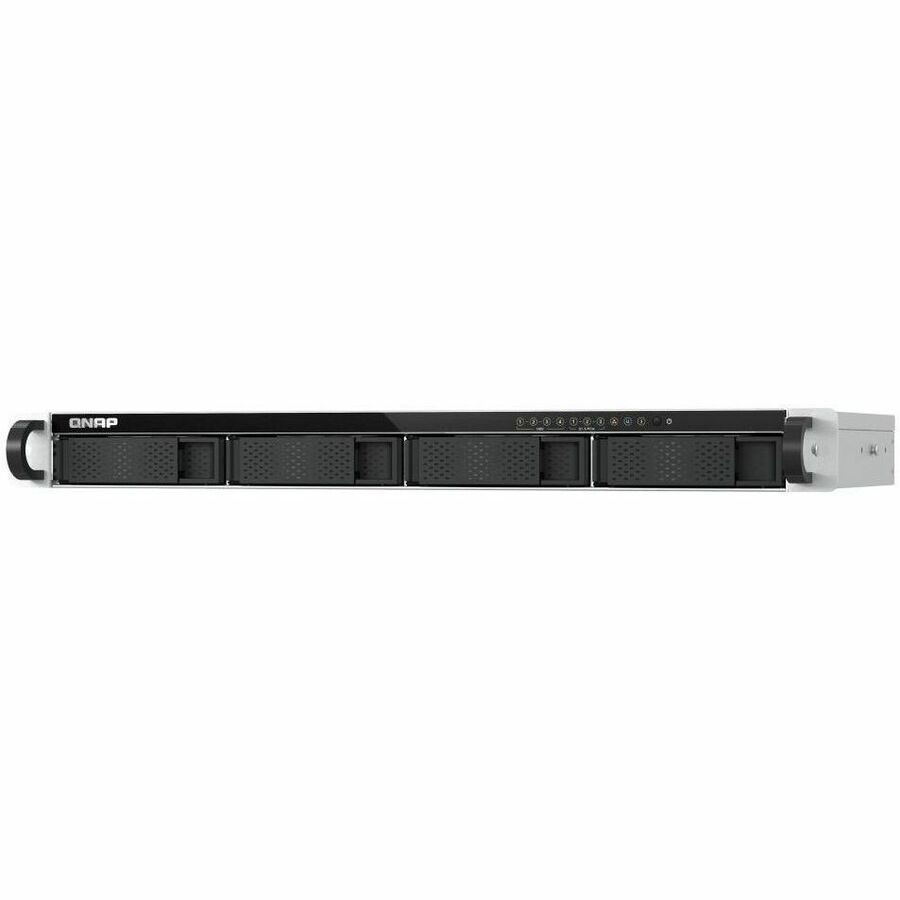

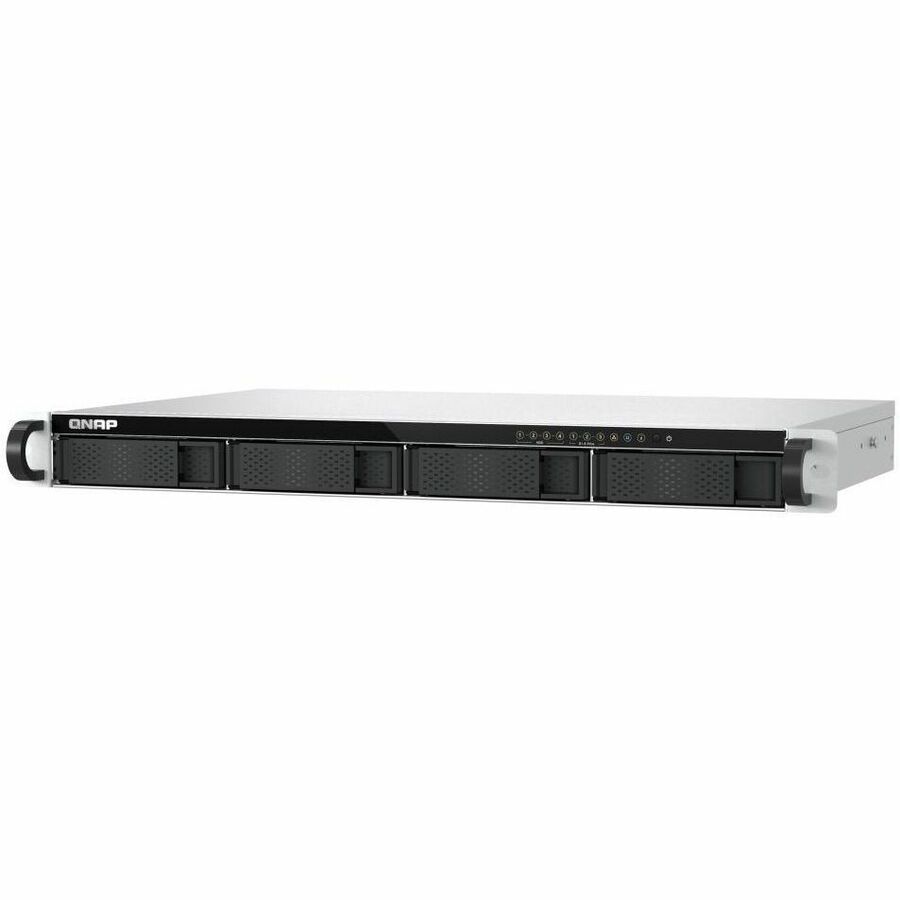

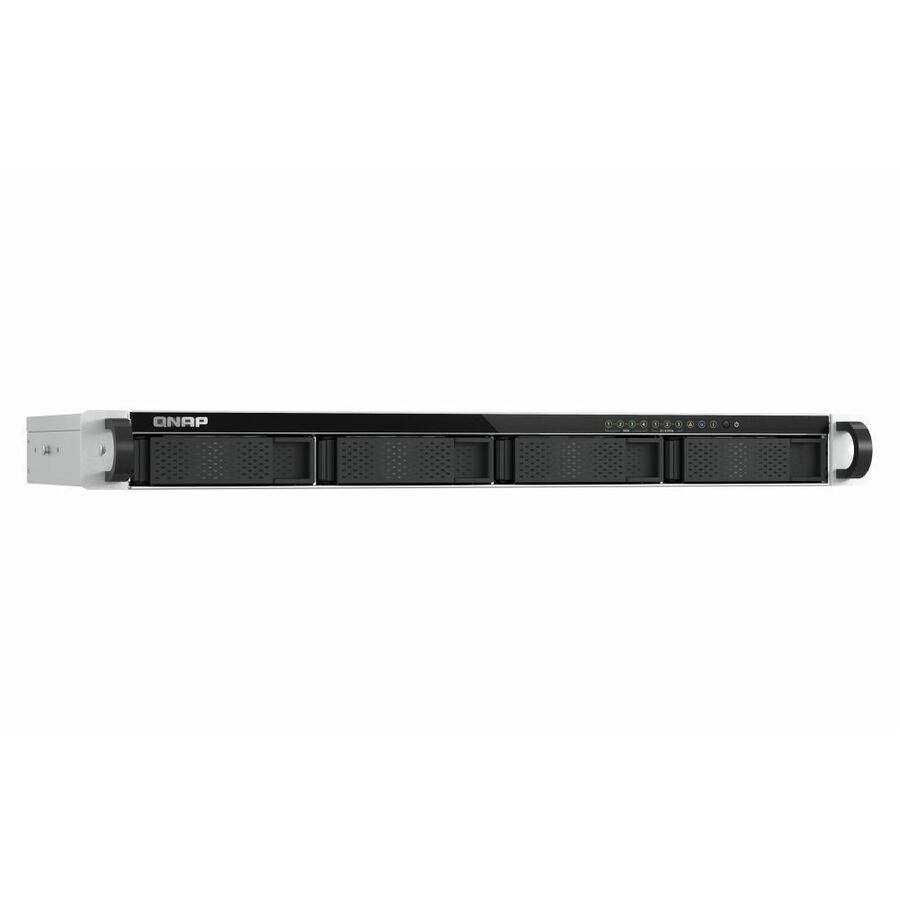

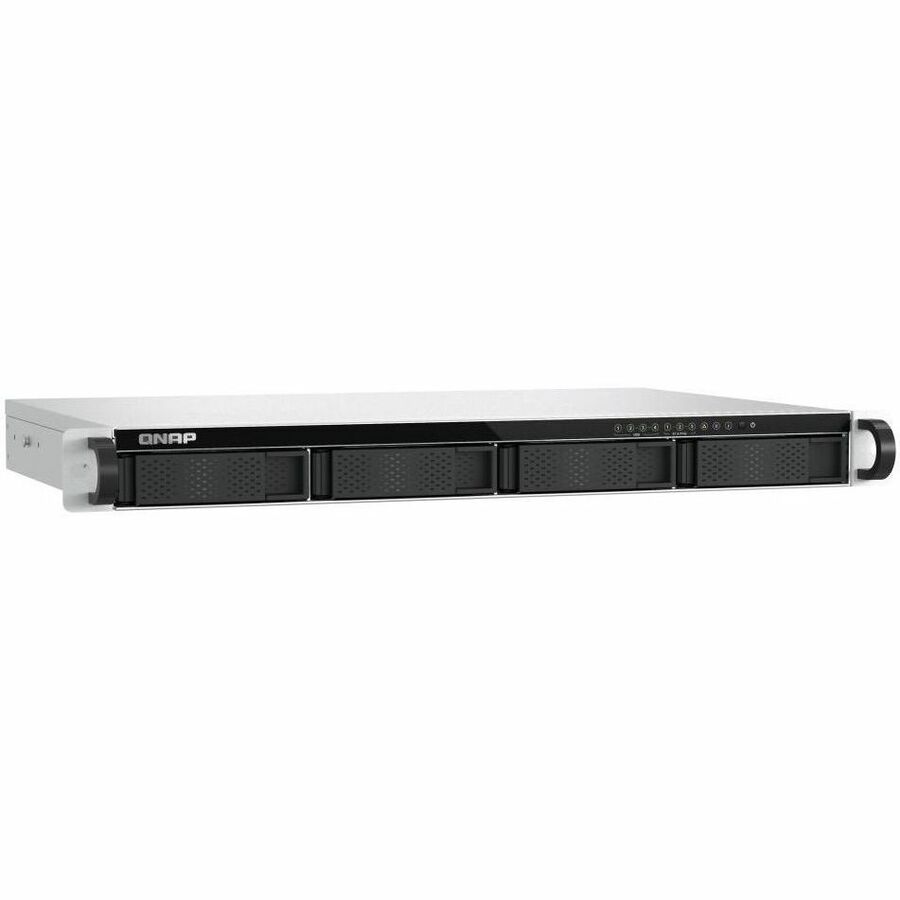

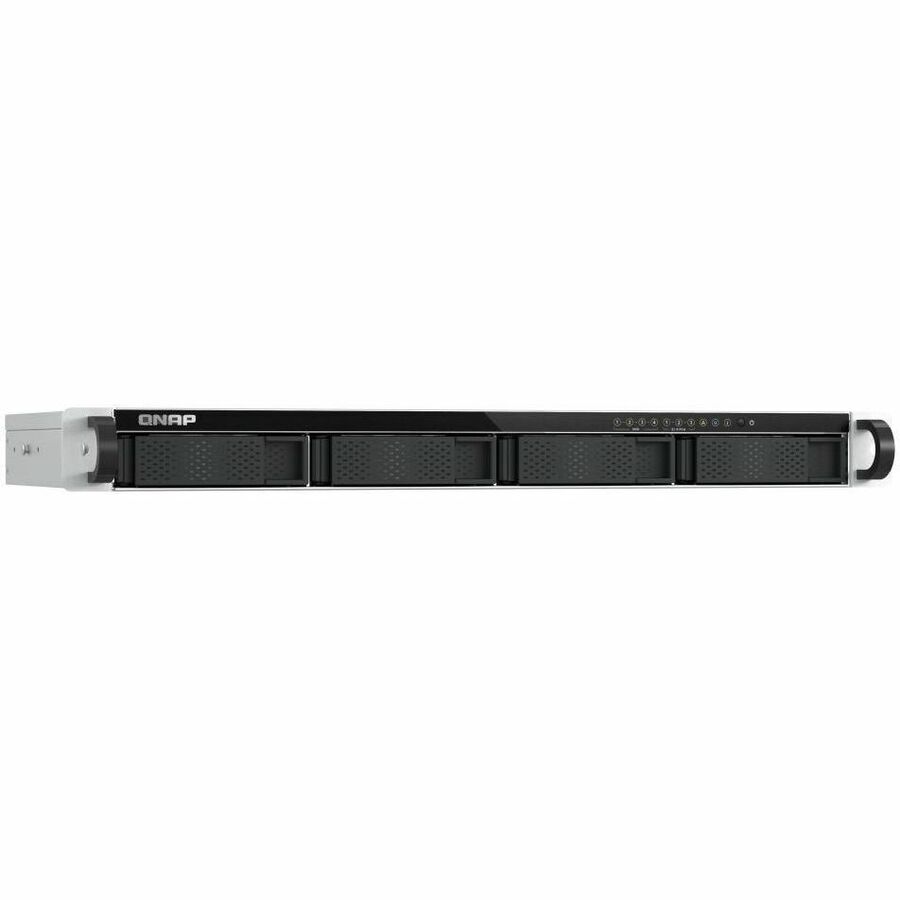

1U short-depth design for flexible deployment
The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
Highlights
- 1U short-depth design, Intel® Atom 4-core processor (Up to 3.4GHz)
- 3x E1.S/M.2 PCIe NVMe slots, 2 x 2.5GbE, USB 3.2 Gen 1 (5Gbps)
- Long-term availability (until 2031)
- The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.
- Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
- Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).
- Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
- Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
- The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.
Specifications
| Additional Warranty Information | The TS-h765eU is backed by a 3-year warranty at no additional cost. |
|---|---|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | TS-H765EU-8G-US |
| Protocols | FTP, SFTP, TFTP, SSL/TLS, FXP, NFS, NFSv3, NFSv4, AFP, CIFS/SMB, SNMPv2, SNMPv3, IPv4, IPv6, SSH, Telnet, HTTP, HTTPS, TLS, PPTP, L2TP, IPSec, iSCSI, DHCP, DDNS, LDAP |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 9.94 lb |
| Operating System | QuTS hero h5.2.3 |
| Form Factor | Rack-mountable |
| Manufacturer | QNAP Systems |
| Product Model | TS-H765EU-8G-US |
| Product Name | TS-H765EU-8G-US SAN/NAS Storage System |
| Processor Type | Atom |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Controller Type | Serial ATA/600, Serial ATA/300 |
| Rack Height | 1U |
| Brand Name | QNAP |
| Expansion Slot Type | PCI Express |
| Memory Technology | DDR5 SDRAM |
| Processor Model | x7405C |
| Height | 1.7" |
| Width | 16.9" |
| Depth | 11.5" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 8 GB |
| Processor Manufacturer | Intel |
| Wireless LAN | Yes |
| RAID Supported | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 150 W |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 1 |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Drive Interface | Serial ATA/600, Serial ATA/300 |
| Total Number of Expansion Slots | 3 |
| Number of USB 3.2 Gen 2 Ports | 1 |
