Metered - NEMA L6-20P, IEC 60320 C20 - 16 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Rack-mountable, Wall-mountable
MSRP$411.00
$264.69
Save 36%In stock: 8
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

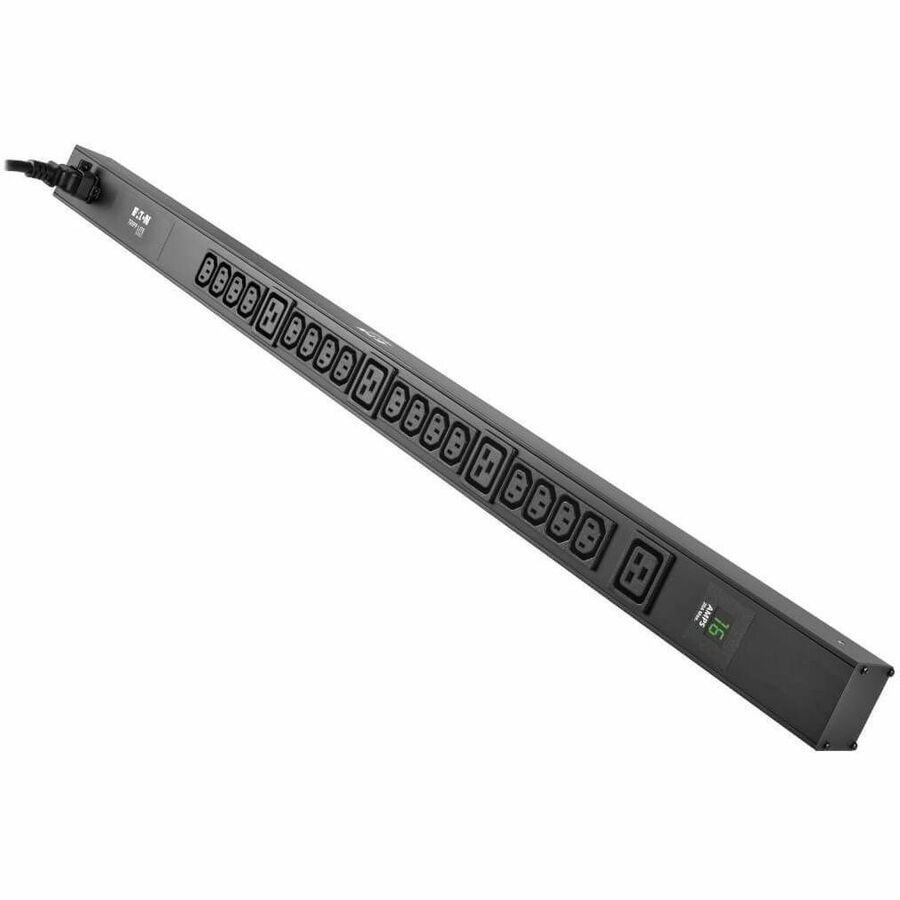

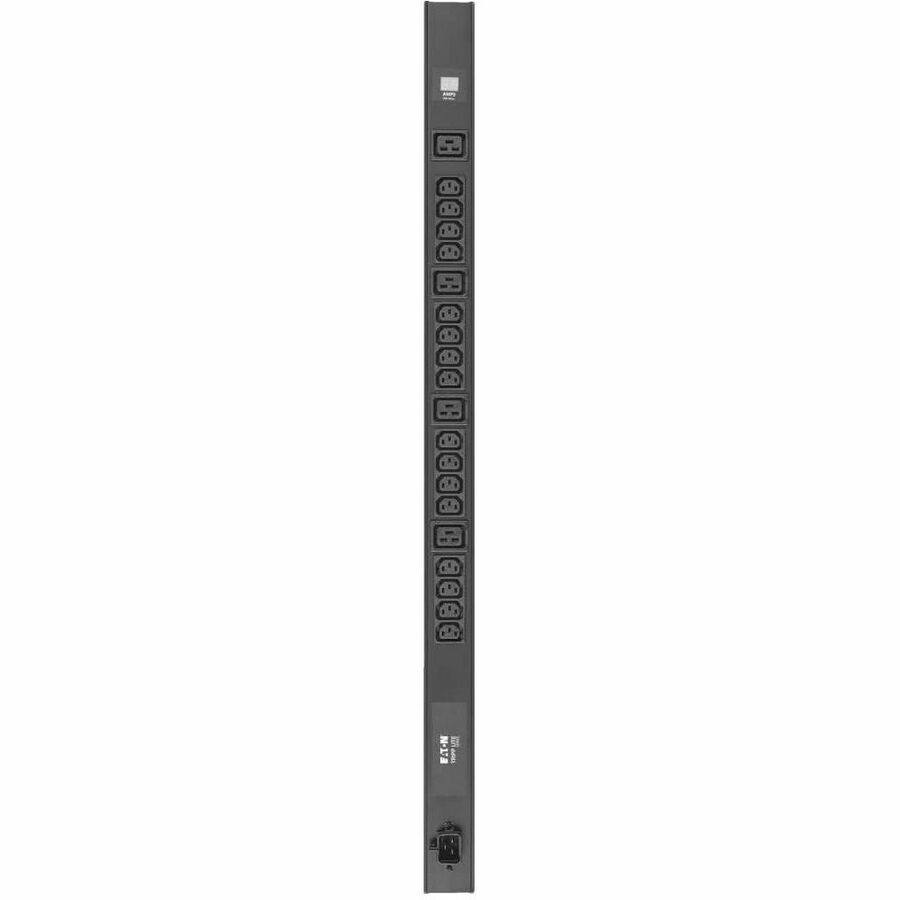

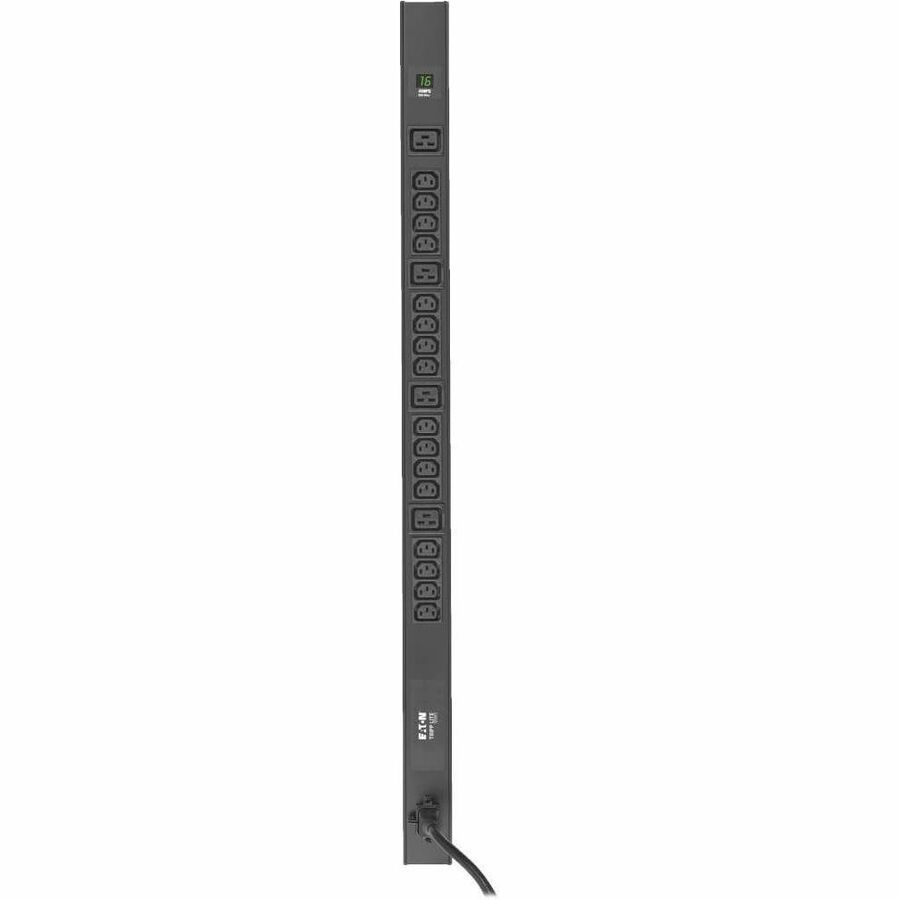

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

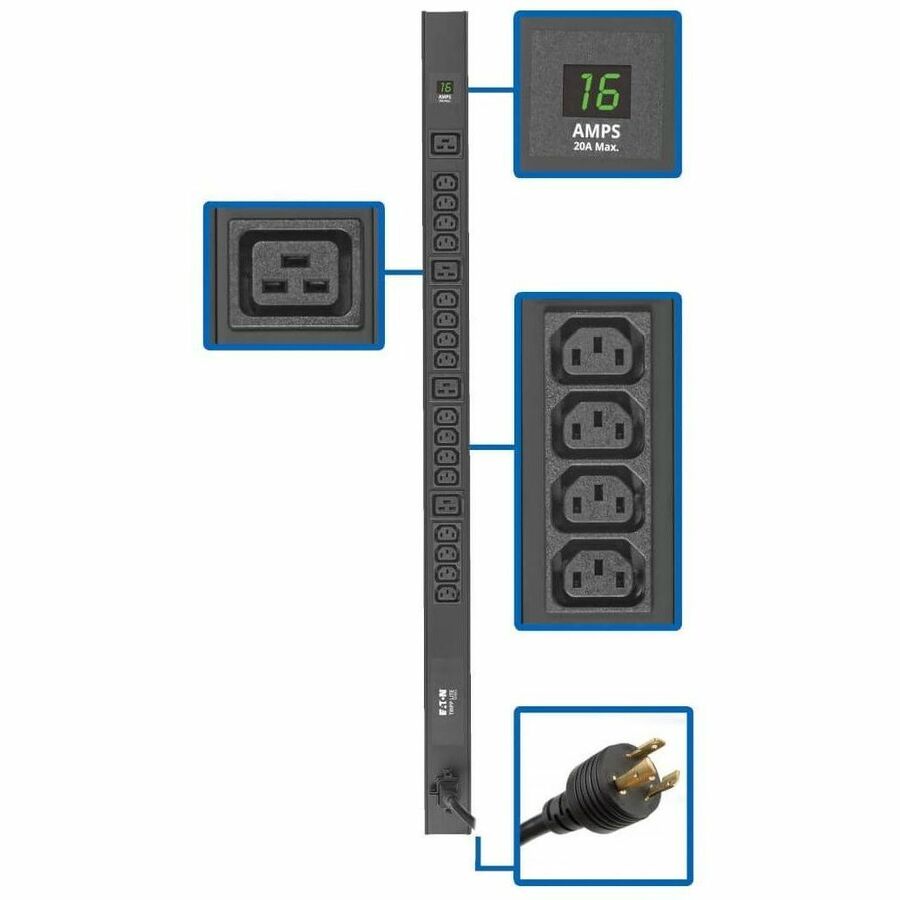

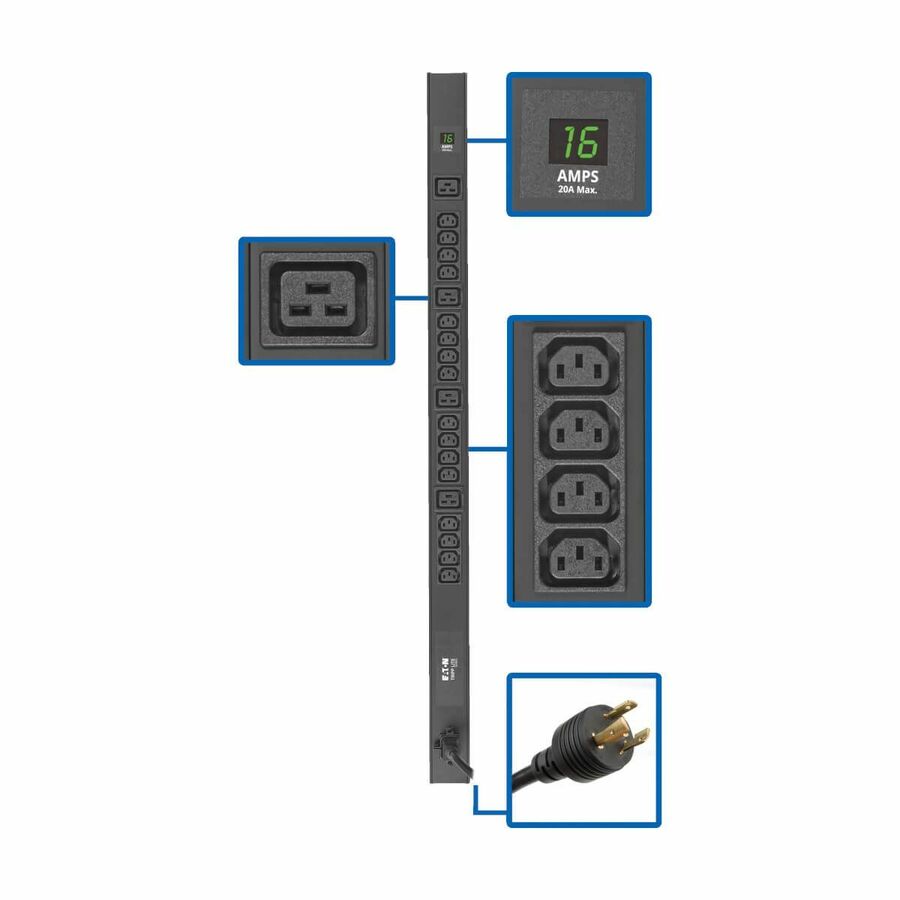

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMV20HV-36 features 16 C13 and four C19 200-240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Versatile Installation Options Give You Plenty of Choices
The 40-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Compatible with a Variety of Input Cords to Fit Your Facility's Power Source
The PDU's C20 inlet accepts a variety of 16A international cordsets. An included 10-ft. (3.05 m) cord with NEMA L6-20P input plug connects to an AC power source, generator or protected UPS system to distribute power to connected loads.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Package Contents |
|
|---|---|
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PDUMV20HV-36 |
| Limited Warranty | 2 Year |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Weight (Approximate) | 5.20 lb |
| Input Current | 20 A |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV20HV-36 |
| Product Name | PDUMV20HV-36 20-Outlets PDU |
| Mount Type | Rack-mountable, Wall-mountable |
| Protection Type | Circuit Protection, Overload Protection, Accidental Power Shutdown |
| Rack Height | 0U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA L6-20P, IEC 60320 C20 |
| Placement | Under-counter |
| Country of Origin | China |
| Cord Length | 10 ft |
| Height | 39.8" |
| Width | 2.3" |
| Depth | 3.8" |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Environmentally Friendly | Yes |
| PDU Type | Metered |
| Mounting Orientation | Vertical/Toolless |
| Power Rating (Watt) | 3840 W |
| Receptacle Detail | 16 x IEC 60320 C13, 4 x IEC 60320 C19 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
