8 C13 and 2 C19 Outlets Dual C20 Inlets 12 ft. Cords Network Card 1U TAA
Auto Transfer Switch - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal - Rack-mountable - TAA Compliant
MSRP$1,349.00
$1,241.08*
Save 8%In stock: 21
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20HVAT1 features eight C13 and two C19 200-240V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack.
TAA-Compliant for GSA Schedule Purchases
The PDUMNH20HVAT1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
More from the Manufacturer
Get network-grade power distribution with automatic transfer switching!
The TAA-compliant PDUMNH20HVAT1 single-phase monitored PDU is a dependable, space-saving, cost-effective solution for distributing power in high-density IT environments. Featuring eight C13 and two C19 200-240V outlets, automatic transfer switching (ATS) and a built-in network interface, it’s the ideal solution for a small- to mid-size data center, server room, network closet or any environment requiring advanced power distribution.
Innovative features for premium performance
Built-in LX platform network management card
A built-in WEBCARDLXE with the latest version of PowerAlert Device Manager firmware (PADM20) allows remote access from anywhere in the world.
LX platform provides enhanced management capabilities, including customizable dashboard graphs to fit user preferences.
PADM20 works in conjunction with PowerAlert Element Manager (PAEM) to expand maintenance functions in large installations, including firmware update checks and backup/restoration of device configurations.
PADM20’s Auto-Probe feature allows the PDUMNH20HVAT1 to automatically reboot connected devices in the event of a network communication failure.
Automatic transfer switching
Dual 12-foot power cords with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Should the primary source fail or become unstable, automatic transfer switching (ATS) will switch the PDU to the secondary source within 2 to 7 milliseconds.
An on-board ATS processor constantly evaluates the power quality of both input sources.
If the secondary source is unavailable or of lower quality than the primary source, the PDU will
not
switch to the secondary source.
Digital load meter
The PDUMNH20HVAT1’s digital ammeter reports the total load for all connected equipment.
Monitoring amperage helps ensure proper load balance and prevent downtime.
Maintaining proper load levels, even while adding new equipment, can keep your total cost of ownership (TCO) low.
Easy installation
This all-metal PDU mounts into 1U of rack space using the included mounting hardware.
The PDU and included hardware are designed for EIA-standard 19-inch racks.

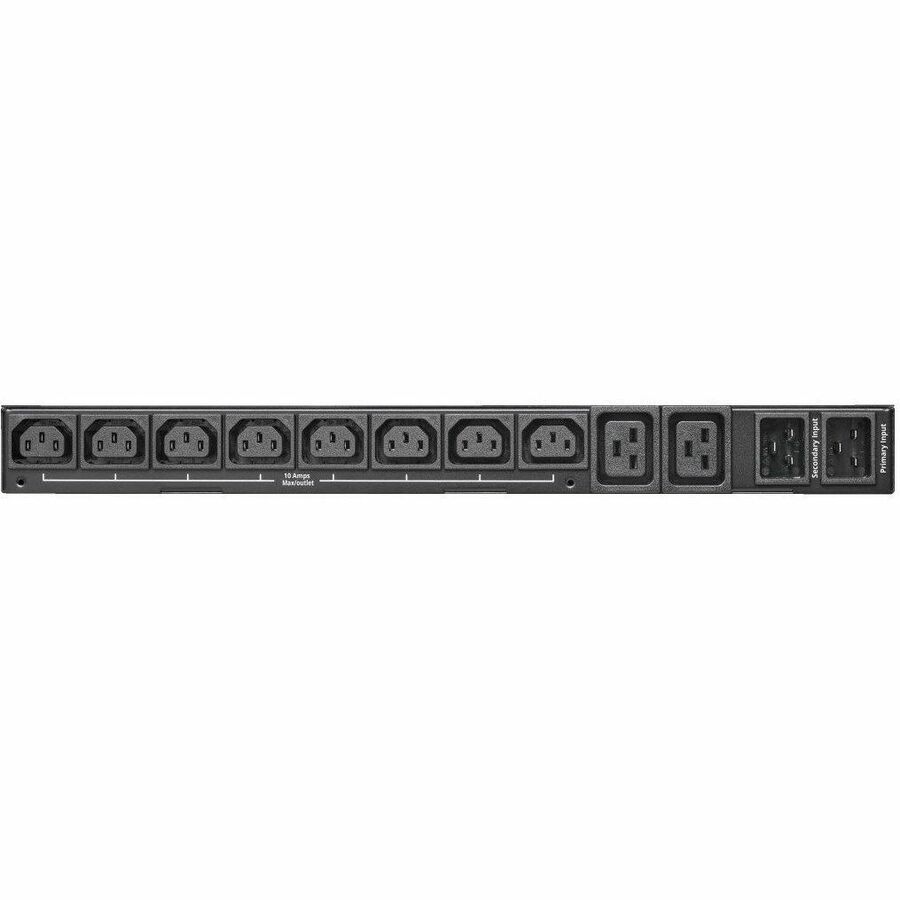

Dual 12 ft. C19-to-C20 input cords connect to separate primary and secondary power sources.

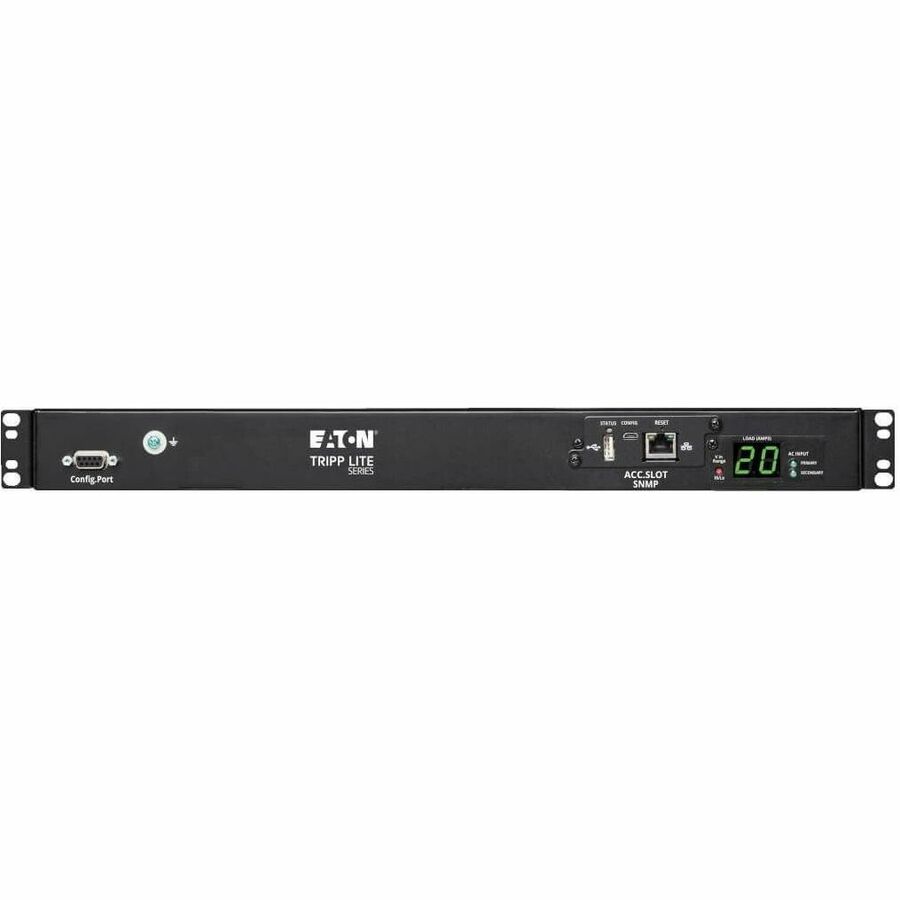

When the PDU is connected to a live AC power source, the Primary or Secondary LED illuminates to indicate which source is supplying power to the outlets.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH20HVAT1 |
| Brand Name | Tripp Lite series |
| Product Model | PDUMNH20HVAT1 |
| Product Name | PDUMNH20HVAT1 10-Outlets PDU |
| Product Type | PDU |
| Management | |
| Management |
|
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 14.8" |
| Weight (Approximate) | 10.30 lb |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Power Rating (Watt) | 3800 W |
| Input Current | 20 A |
| Technical Information | |
| PDU Type | Auto Transfer Switch |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 2 x IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Protection Type | Circuit Protection, Overload Protection |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
