15-55A, 200-415V, 24 Outlets (12) C13 (12) C19
Metered, Metered-by-Outlet - Universal Input, Hardwired - 12 x IEC 60320 C13, 12 x IEC 60320 C39 - 230 V AC, 415 V AC, 400 V AC - Overload Protection, Double Pole - Network (RJ-45) - 0U - Vertical - Rack-mountable, Button Mount - Vertical
MSRP$2,354.00
$2,165.68
Save 8%In stock: 253
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Features | 17 Removable Power Cables with 15 Different Plugs Support Universal Input
This universal-input PDU (UPDU) G4 is designed to meet your most diverse rack-power needs. With 24 outlets, the EVMOGU23A-E accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase. Pair the UPDU with any one of 17 removable power cables with 15 different plug options (all sold separately). This UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations. It also ensures you won't outgrow your PDU as your power needs evolve.
Market-Leading Cybersecurity Ensures Your Data Is Kept Safe
Chain-of-trust encryption and secure firmware boot capability prevent the EVMOGU23A-E UPDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable Gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMOGU23A-E is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.
Remote Management Saves Time and Money

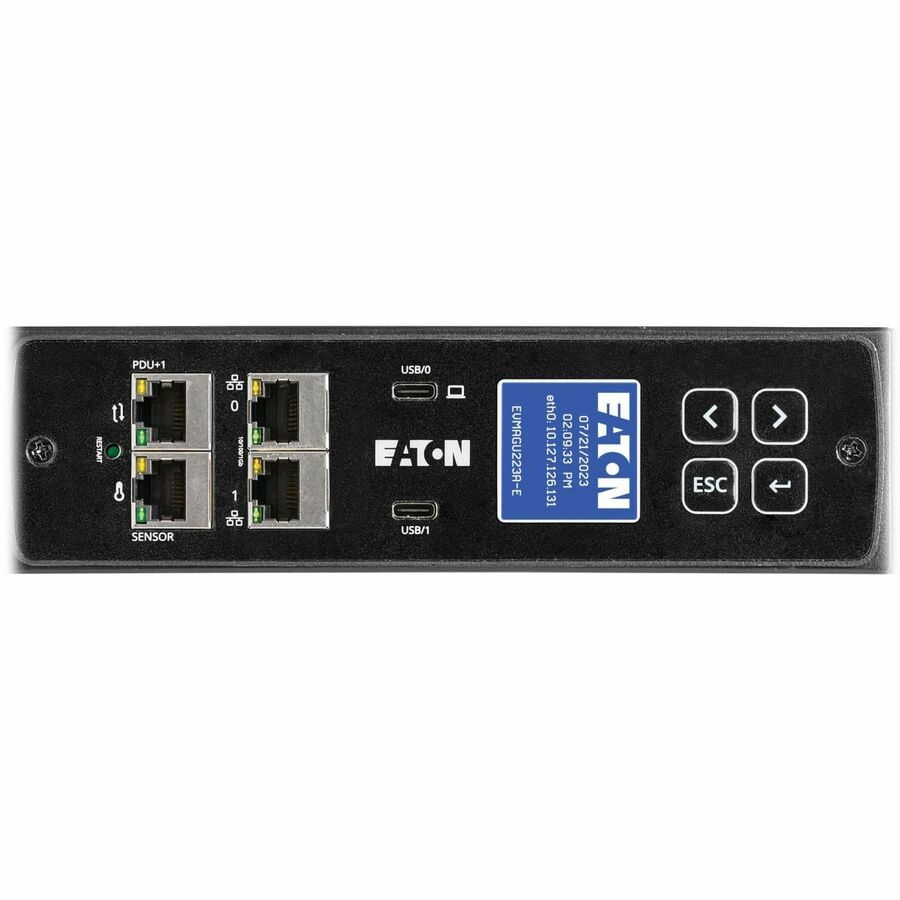

The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMOGU23A-E is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections.
24 Outlets Give You Plenty of Power Options

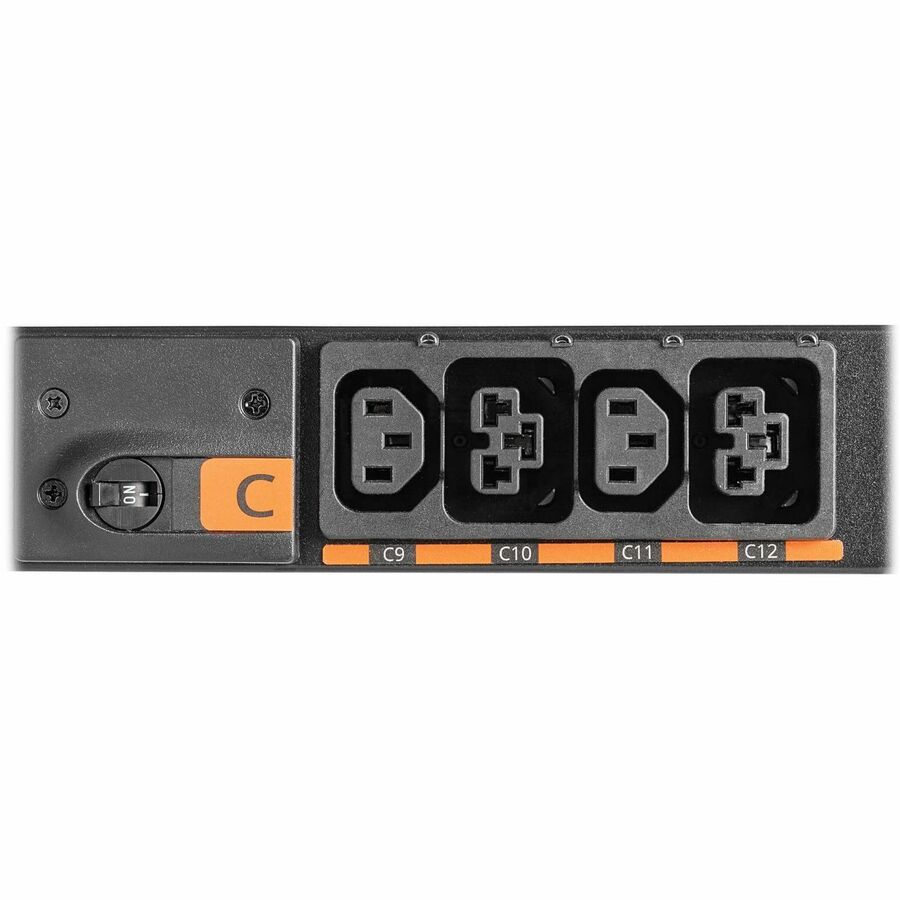

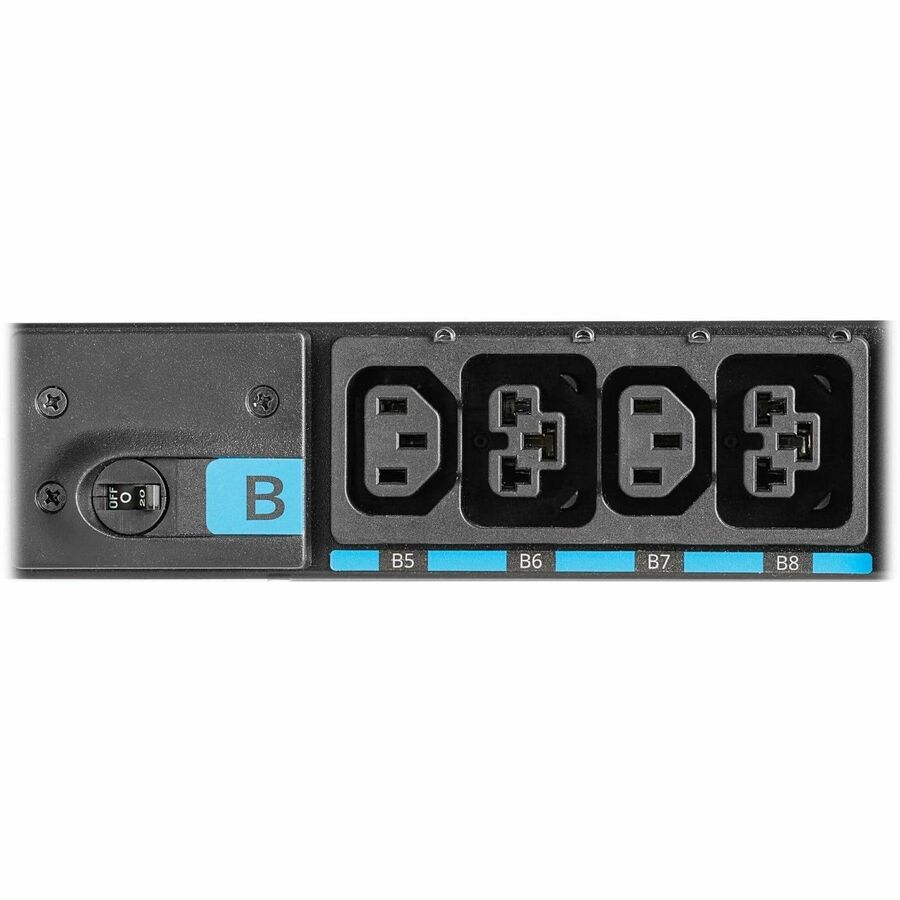

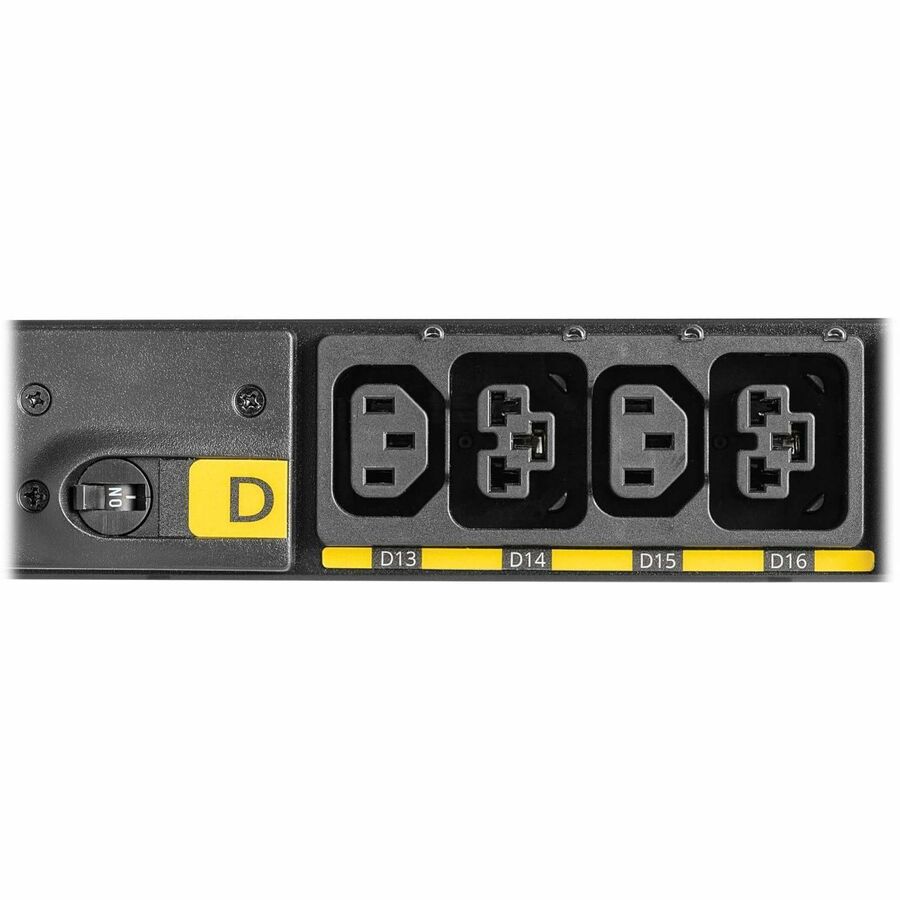

The EVMOGU23A-E features 12 C13 outlets, which accept C14 connectors, and 12 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install.
Outlet-Level Metering Boosts Performance and Efficiency
All outlets provide metering and monitoring for granular power data and precision control of power delivery. The outlets are evenly distributed into six color-coded load banks, each with its own circuit breaker, to improve load balancing and organize connections in a crowded rack.
Convenient Box-to-Rack Installation
This UPDU G4 features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. Choose from a collection of 17 power cables and 15 plug options (all power cables sold separately). Low-profile circuit breakers are flush with the lightweight aluminum chassis, and its narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMOGU23A-E models with each model maintaining its own individual IP address from a single network connection point.
Meets Global Approval
The EVMOGU23A-E UPDU meets industry standards all over the world, making it compatible in a broad range of IT facilities, not just physically, but also from a regulatory perspective.
Limited Warranty: 3 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EVMOGU23A-E |
| Brand Name | Eaton |
| Product Model | EVMOGU23A-E |
| Product Name | EVMOGU23A-E 24-Outlets PDU |
| Product Type | PDU |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable, Button Mount |
| Form Factor | Vertical |
| Rack Height | 0U |
| Height | 55.9" |
| Width | 2" |
| Depth | 2.6" |
| Weight (Approximate) | 11.20 lb |
| Power Description | |
| Input Voltage | 208 V AC, 220 V AC, 230 V AC, 240 V AC, 400 V AC, 415 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Current | 63 A |
| Input Frequency | 60 Hz |
| Technical Information | |
| PDU Type | Metered, Metered-by-Outlet |
| Phase | Single Phase/Three Phase |
| Plug/Connector Type | Universal Input, Hardwired |
| Receptacle Type | IEC 60320 C13, IEC 60320 C39 |
| Receptacle Detail | 12 x IEC 60320 C13, 12 x IEC 60320 C39 |
| Protection Type | Overload Protection, Double Pole |
| Features | LCD Display, LED Status Indicator |
| Load Capacity (VA) | 23 kW |
| Load Capacity (Watt) | 23 kW |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Data Center |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
