HDMI over Cat5e/6 Extender Kit - Full HD 1080p (1920x1080 60Hz) - HDMI HDbitT over IP Extender with IR- 394ft (120m)- TX to RX - One to one / One to Many Connection - Works with IGMP gigabit ethernet switch Hub - Support VLAN and cascade up to 256 units - IR Extension support full frequency for 20KHz to 60KHz- Reset Button - Aliminum Metal Housing - included 2x IR Extension cable - Wall Mountable - 2 years warranty
SKU
Category
Audio & Video Consoles/Extenders
Request pricing
Confirmed with stock before any payment. TAA verified on request.
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Audio & Video Consoles/Extenders
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Extends HDMI signals up to 394ft (120m) to a distant display over economical Cat6 cabling
Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: Additional Receivers, part# CE-H26U11-S1, sold separately
Delivers crystal clear Full HD video content up to 1080p@60Hz resolution
IR remote control pass-through feature allows you to remotely control the HDMI source device at the display location
High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Plug-n-Play installation, no software installation required
Built-in power led indicator provides easy power status monitoring
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H26T11-S1
Brand Name
SIIG
Product Name

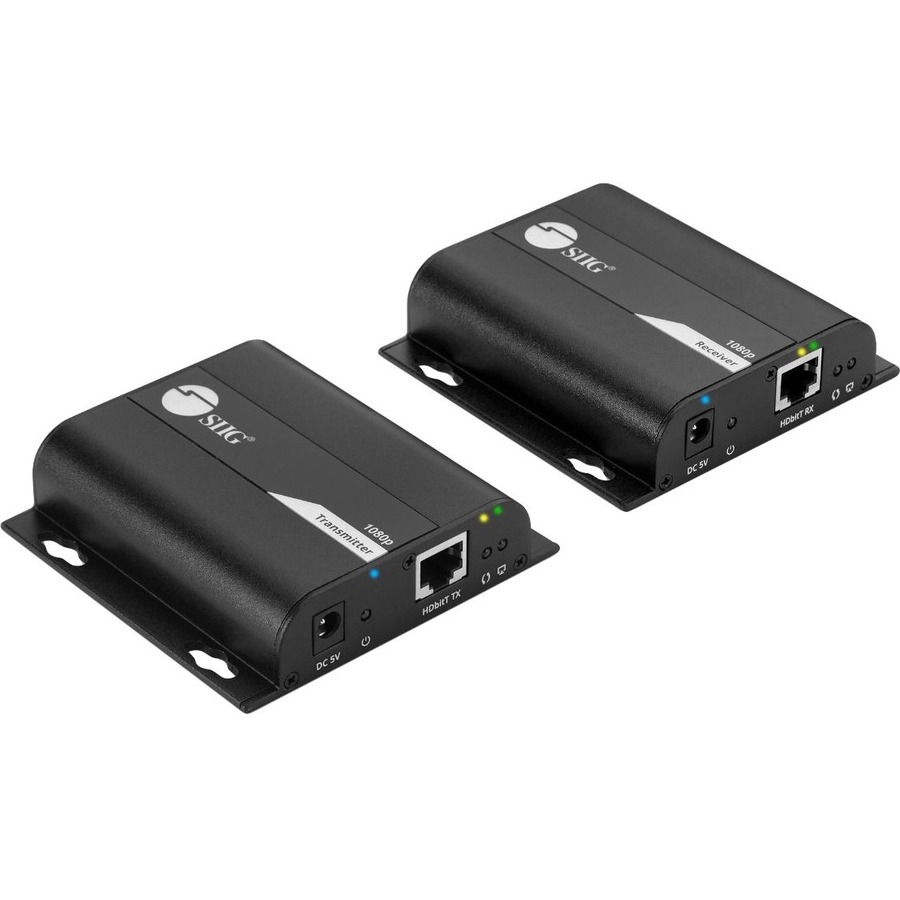

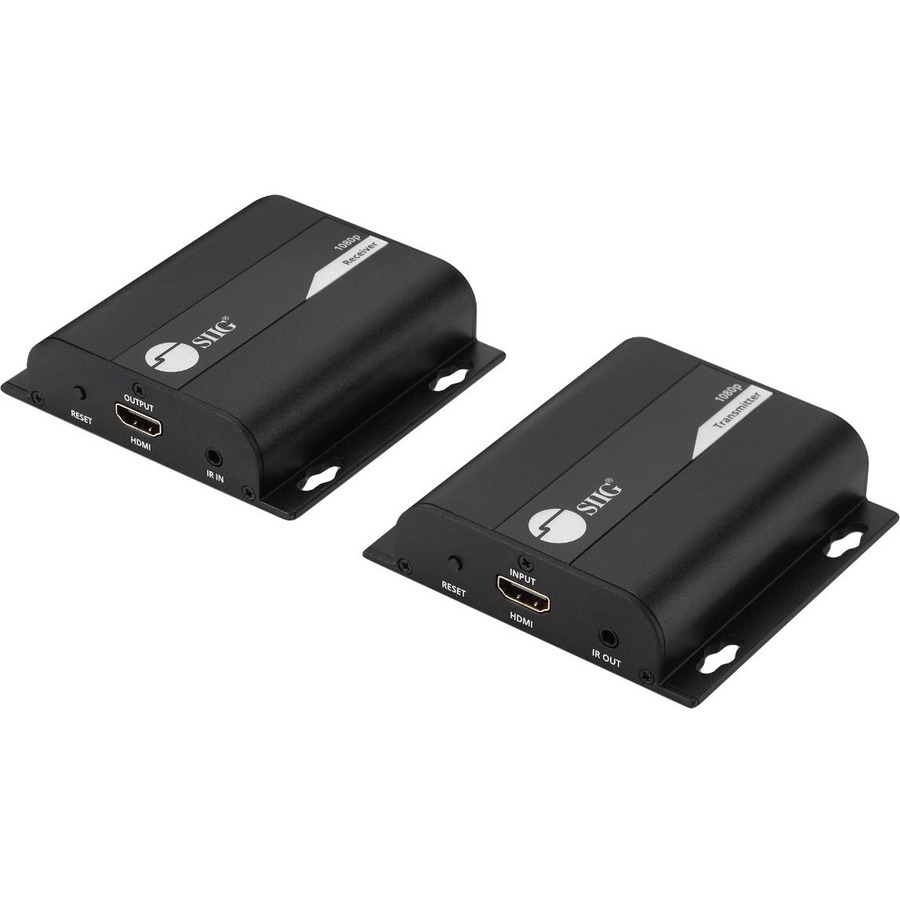

HDMI HDbitT Over IP Extender with IR - 120m
Product Type
Video Extender Transmitter/Receiver

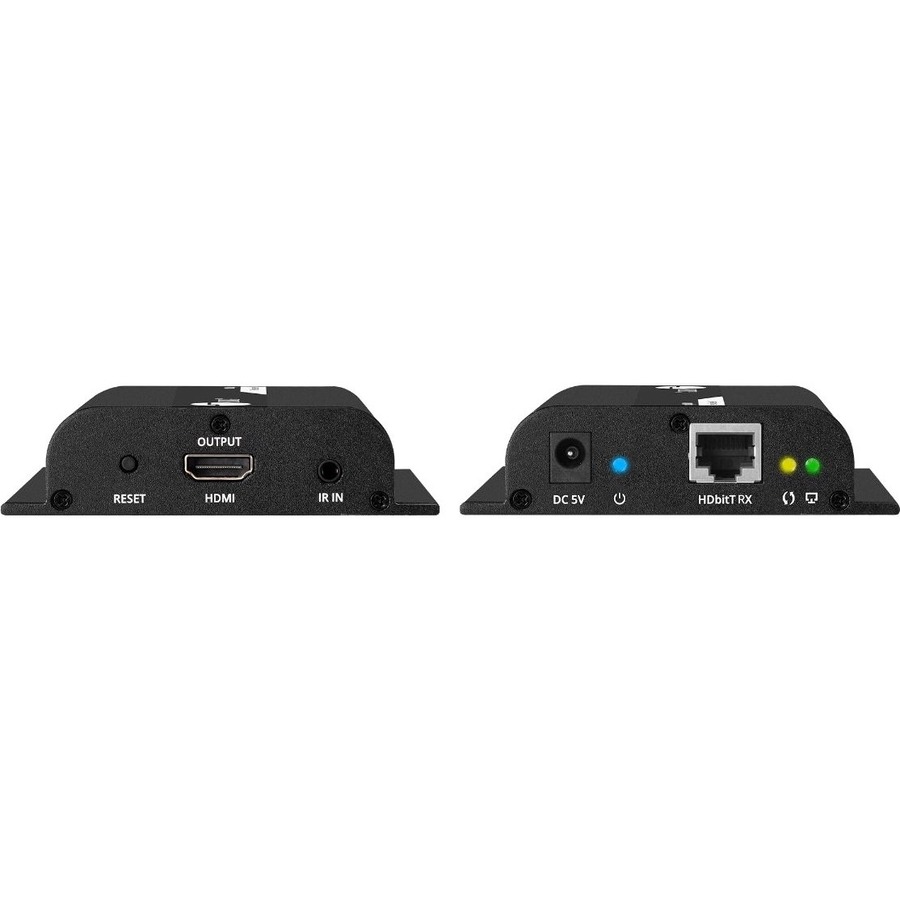

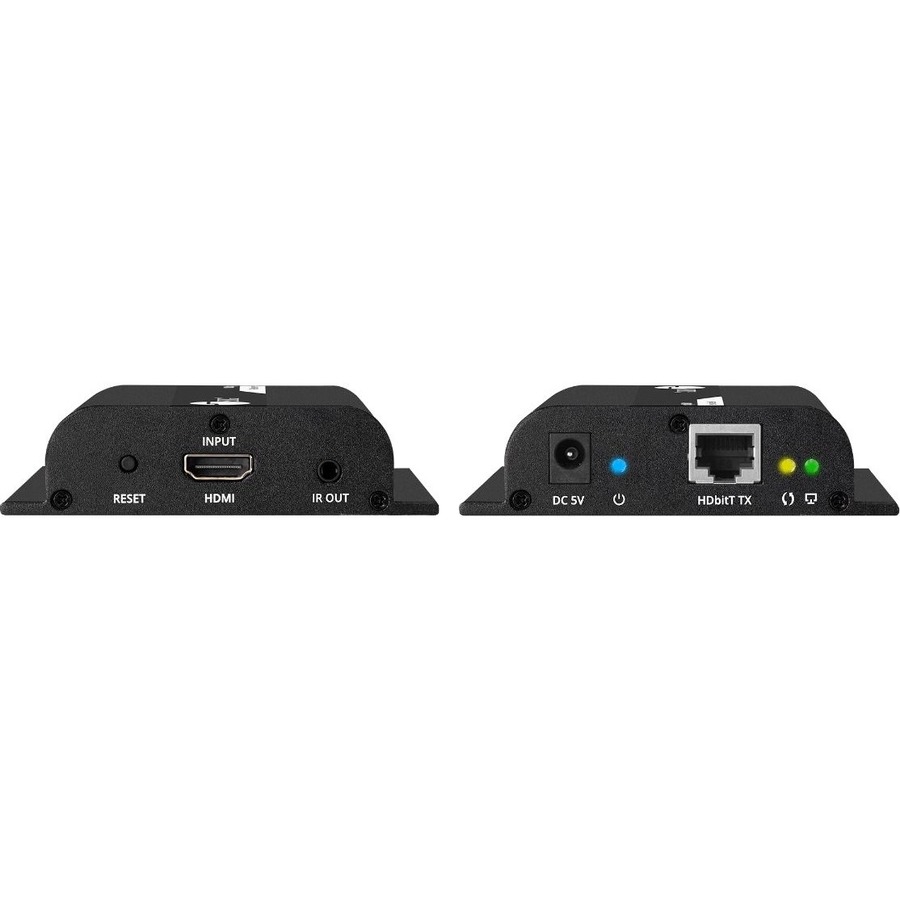

Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Remote (IR) Input
1
Remote (IR) Output
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 6
Physical Characteristics
Transmitter Height
0.93"
Transmitter Width
3.70"
Transmitter Depth
3.81"
Receiver Height
0.93"
Receiver Width
3.70"
Receiver Depth
3.81"
Form Factor

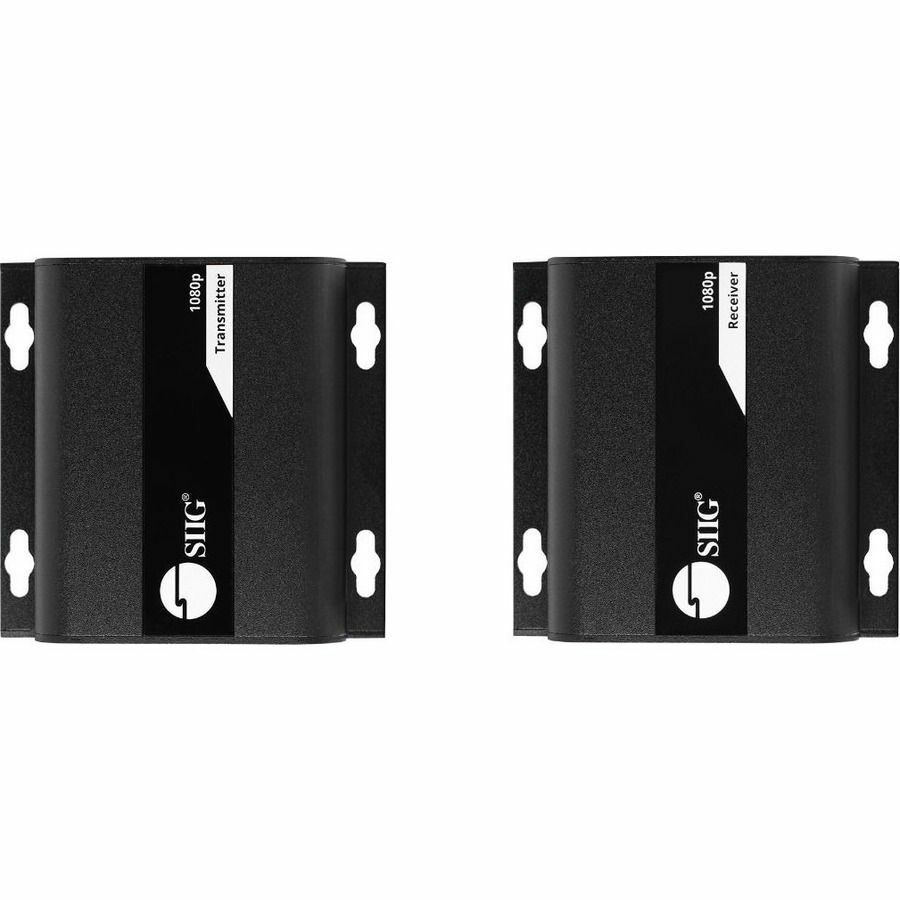

Wall Mountable
Transmitter Weight (Approximate)
5.28 oz
Receiver Weight (Approximate)
5.28 oz
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
393.70 ft
Video
Graphics Modes
Full HD
Supported Video Modes
480p, 720p, 1080i, 1080p
Maximum Video Resolution
1920 x 1080
Warranty
Limited Warranty
2 Year
Miscellaneous

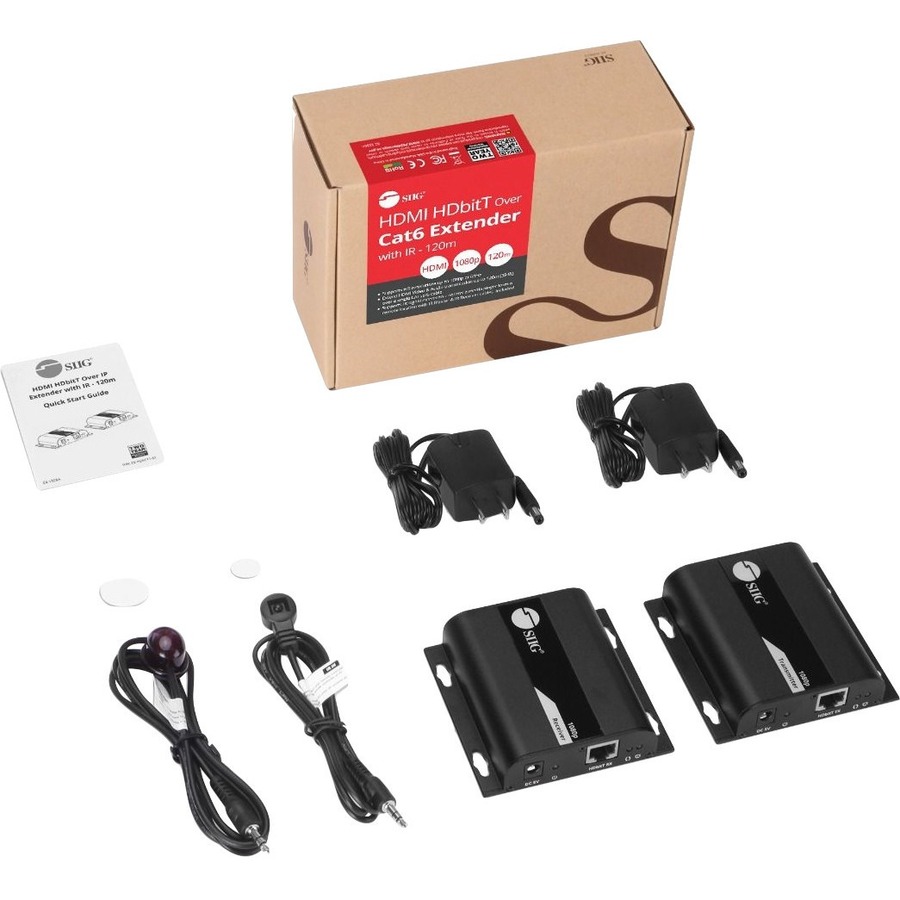

Package Contents
HDMI HDbitT Over IP Extender with IR - 120m
2x Power Adapter
IR Blaster Extension Cable & IR Receiver Extension Cable
