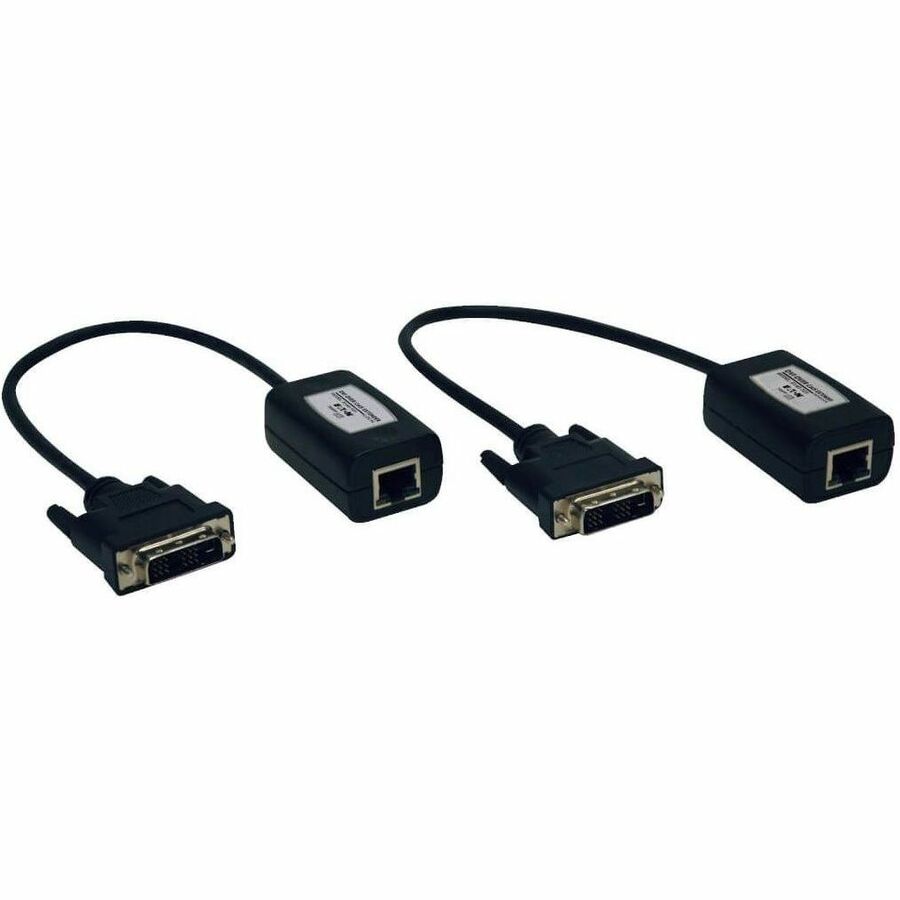

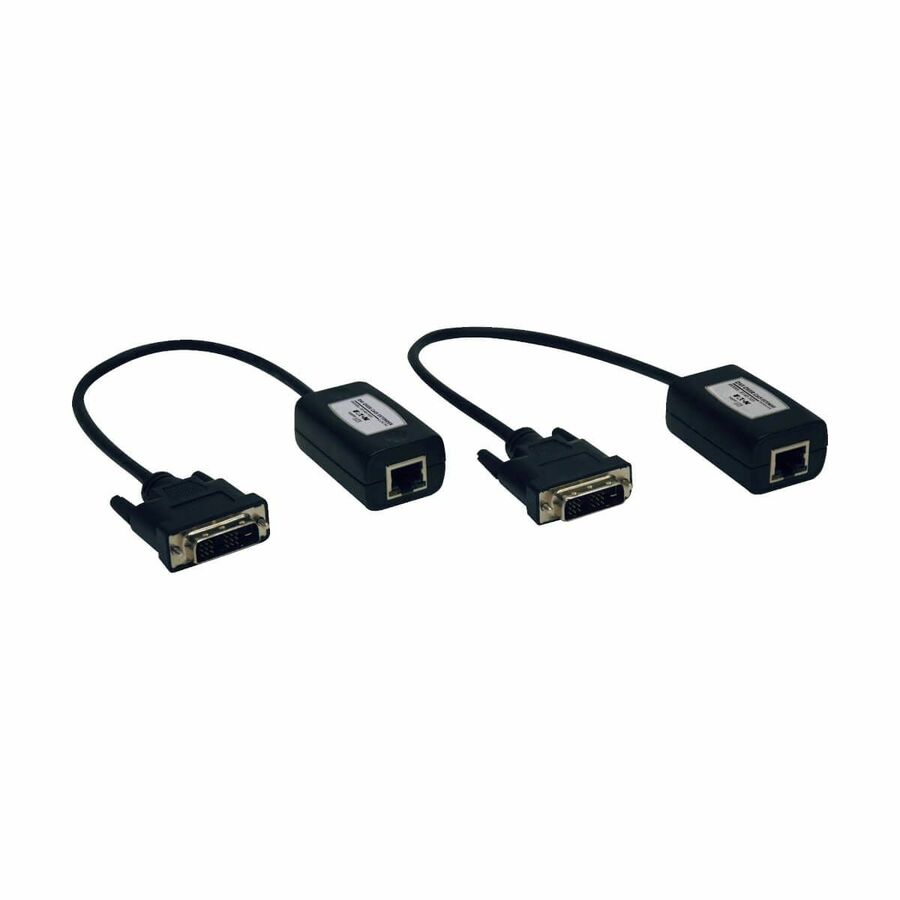

Eaton Tripp Lite Series DVI over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 100 ft. (30 m), TAA
1 Input Device - 1 Output Device - 100 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
- SKU
- B140-101
- Category
- Audio & Video Consoles/Extenders
MSRP$125.19
$85.37
Save 32%In stock: 63
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B140-101
- Category
- Audio & Video Consoles/Extenders
Overview
Passive extender kit lets you extend a 1920 x 1080 signal up to 50', or a 1024 x 768 signal up to 100'. Universal design is compatible with all operating systems. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Hassle-free functionality does not require an external power supply for immediate use.
More from the Manufacturer
Built-In DVI Cables & Easy to Set Up
With the B140-101 you can extend a 1024 x 768 (60Hz) signal up to 100 ft., when using 24 Awg, Solid-Wire UTP cable (Tripp Lite N202-Series), or a 1920 x 1080 (60Hz) signal up to 50 ft. The direct plug-in design of the units allows for greater installation flexibility and eliminates the need for extra DVI cables.
With no software, drivers, hardware, additional cables or external power adapters to install, the B140-101's plug-and-play setup gets your application up and running faster. Simply connect the local unit to the video source, the remote unit to the display and connect the units to each other with cost-effective Cat5 cable to start watching as the B140-101 provides crystal-clear resolution. There is no equalization or image adjustment necessary!
One-Year Warranty, Environmentally Responsible Design & TAA-Complaint
The B140-101 comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
The B140-101 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Warranty
Additional Warranty Information: <p>1-year limited warranty</p> Limited Warranty: 1 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Extender kit comes with transmitter and receiver units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Compatible with all operating systems
- Plug and play, no external power, software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| Additional Warranty Information | 1-year limited warranty |
|---|---|
| Package Contents |
|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | B140-101 |
| Limited Warranty | 1 Year |
| Connectivity Technology | Wired |
| Manufacturer | Eaton Corporation |
| Product Model | B140-101 |
| Product Name | DVI Over Cat5 Passive Extender Kit |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Graphics Modes | Full HD |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 100 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of DVI Outputs | 1 |
| DVI In | Yes |
| DVI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Number of DVI Inputs | 1 |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
