2x 1000/10GBASE-X (SFP/SFP+) + 24x 10/100/1000BASE-T, AC Powered, 5 Year Warranty
MSRP$2,206.17
$1,561.19
Save 29%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

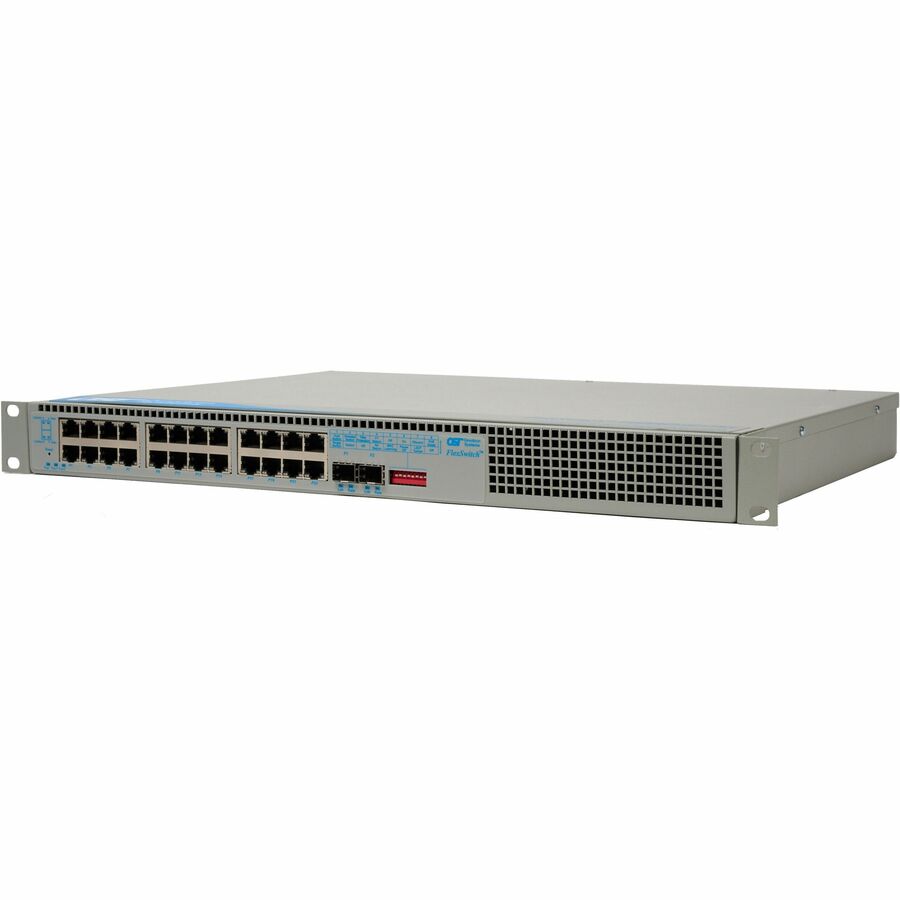

The FlexSwitch 10GR/Sx is an unmanaged Ethernet switch that features two 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink ports and twenty-four 10/100/1000 RJ-45 copper ports. This layer 2 switch is ideal for connecting computers and servers in a high density office environment.
The RJ-45 uplink ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.
Dual Device mode enables the switch to operate as two independent and isolated switches. In Dual Device mode, the switch provides separate and independent traffic paths, each supporting one uplink port and twelve user ports. Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports. Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port.
For daisy-chain applications, the second uplink port can be used to cascade multiple switches.
The mode of operation is configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the front of the FlexSwitch for ease of identification and use.
The switches feature Small Form Pluggable (SFP) transceiver receptacle ports supporting a variety of copper and fiber transceivers. It supports multi-gigabit copper transceivers and 1G and 10G fiber transceivers in standard, CWDM and DWDM wavelengths.
An alarm relay is available to detect he status of the input power to the switch. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
The switch can be 19" rack mounted using the attached rack-mount brackets. They are available with an internal 100 to 240V AC power supply or with a DC terminal connector.
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | 6905-00-01 |
| Packaged Quantity | 1 |
| Power Source | AC |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 8.90 lb |
| Features | IP20, Alarm Relay |
| Form Factor | Rack-mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 6905-00-01 |
| Product Name | FlexSwitch 10GR/Sx, 2x SFP/SFP+, 24x RJ-45, 5 Year Warranty |
| Network Technology | 10/100/1000Base-T, 10GBase-X |
| Package Type | Retail |
| Product Line | FlexSwitch |
| Product Series | 10GR/Sx |
| Brand Name | Omnitron Systems |
| Plug/Connector Type | IEC 320 |
| Expansion Slot Type | SFP+ |
| Country of Origin | United States |
| Height | 1.8" |
| Width | 17.4" |
| Depth | 14" |
| Manageable | No |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Product Condition | New |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP+ Slots | 2 |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3bz |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
