Genuine Netgear through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
GS752TP-300NAS
Category
Switches & Bridges
Overview
All ports PoE+ with up to 760W PoE budget - Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA.
Highlights
SIMPLE SETUP - Setup and configure with easy-to-use web-browser based interface
POWER-OVER-ETHERNET - 48 Gigabit PoE+ ports (802.3af and 802.3at) providing up to 30w per port with 380w total PoE power budget
FEATURE-RICH AND SECURE - Advanced Smart features include Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN routing, Private VLANs and MVR
COMPREHENSIVE LAYER2 NETWORKING - VLAN, QoS, IGMP Snooping, Rate limiting, LACP Link aggregation, STP, SNMP, and ACL
ProSAFE LIFETIME PROTECTION - Lifetime Limited Hardware warranty, Next Business Day Replacement and 24/7 chat with a NETGEAR expert
Specifications
Package Contents

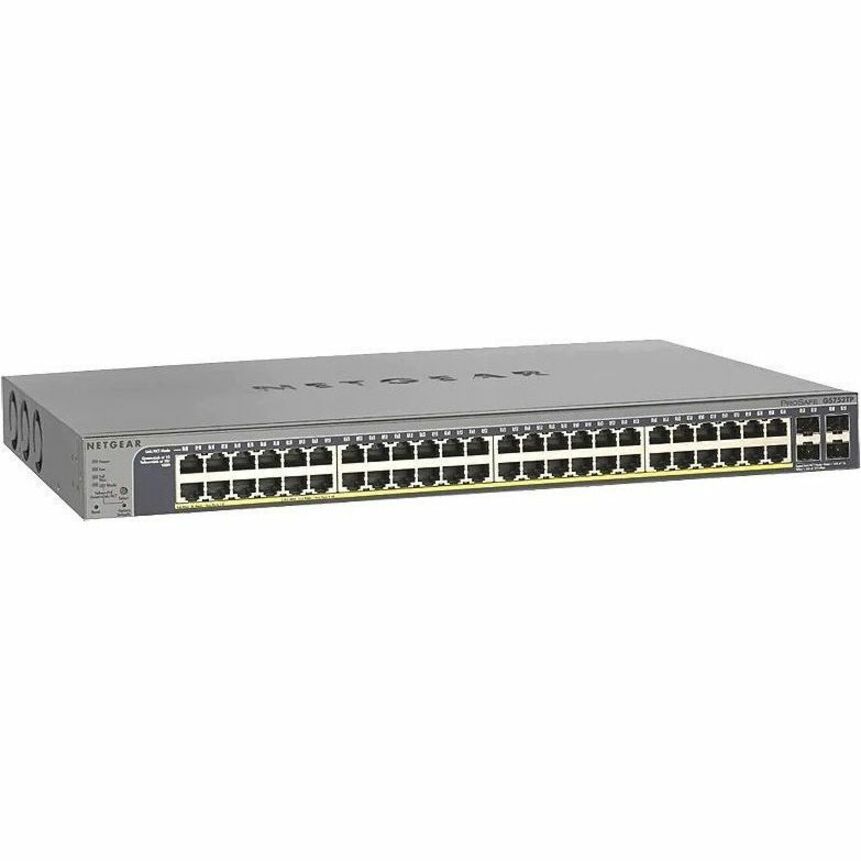

ProSafe GS752TP Ethernet Switch
Power cord
Rack-mounting kit
Resource CD with links to online documentation
Installation guides
Web-management user manual
Smart Control Center (SCC) software and user guide
Product Type
Ethernet Switch
Manufacturer Part Number
GS752TP-300NAS
Power Source
Power Supply
Limited Warranty
Lifetime
Layer Supported
3
Weight (Approximate)
11.24 lb
Form Factor
Rack-mountable
Manufacturer
Netgear, Inc
Product Model
GS752TP
Product Name
ProSafe GS752TP Ethernet Switch
Network Technology
10/100/1000Base-TX, 1000Base-X
Power Consumption
512.80 W
Product Line
ProSafe
Brand Name
Netgear
Expansion Slot Type
SFP (mini-GBIC)
Height
1.7"
Width
17.3"
Depth
12.4"
Manageable
Yes
Number of Power Supplies Supported
1
Number of Power Supplies Installed
1
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Number of SFP Slots
4
Modular
Yes
Uplink Port
Yes
Stack Port
No
Media Type Supported
Twisted Pair, Optical Fiber
Total Number of Network Ports
48
Shared SFP Slot
No
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE+, 4 x Gigabit Ethernet Expansion Slot
