Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

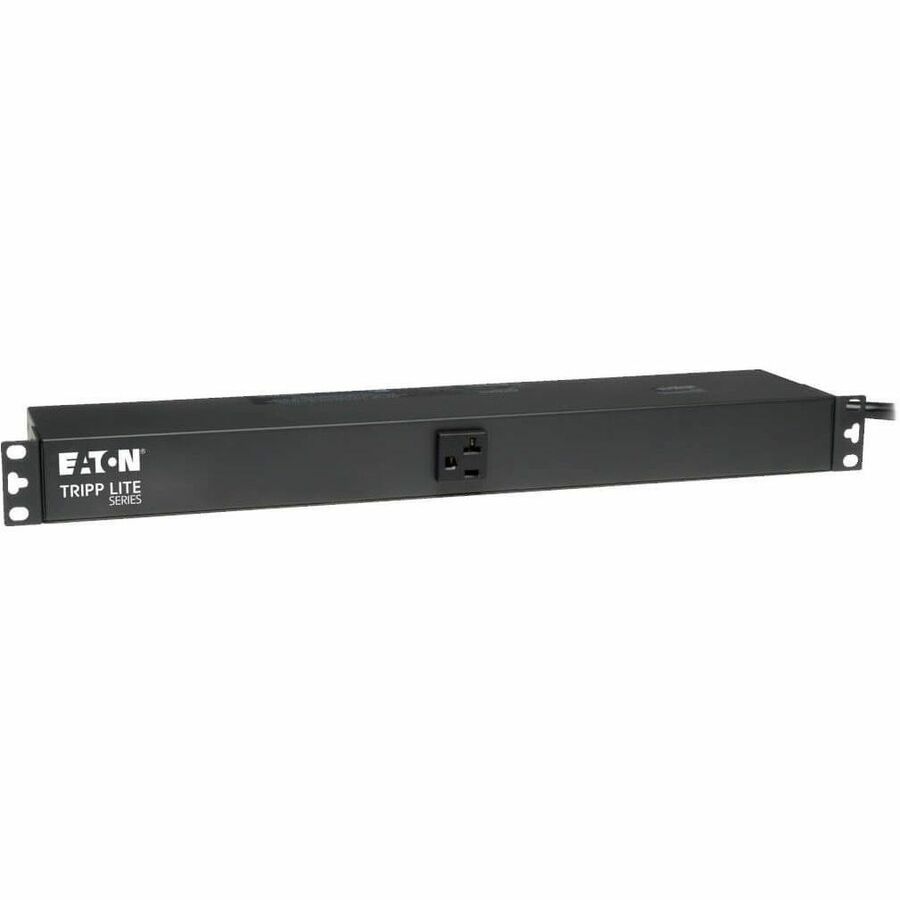

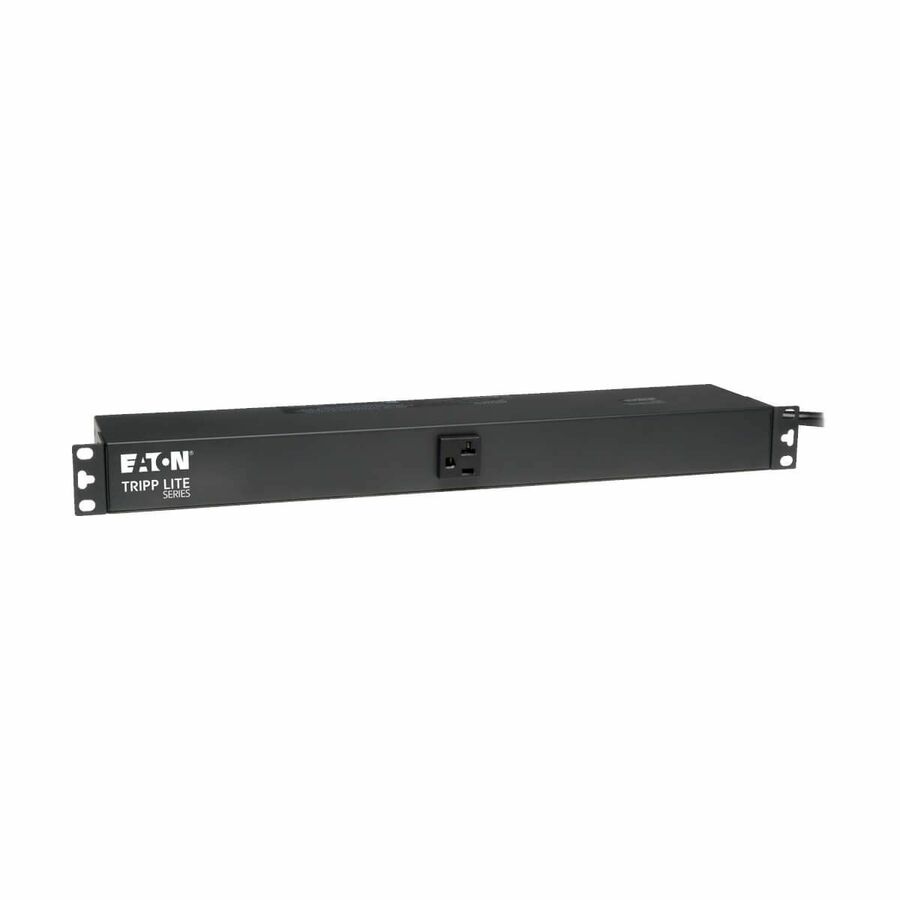

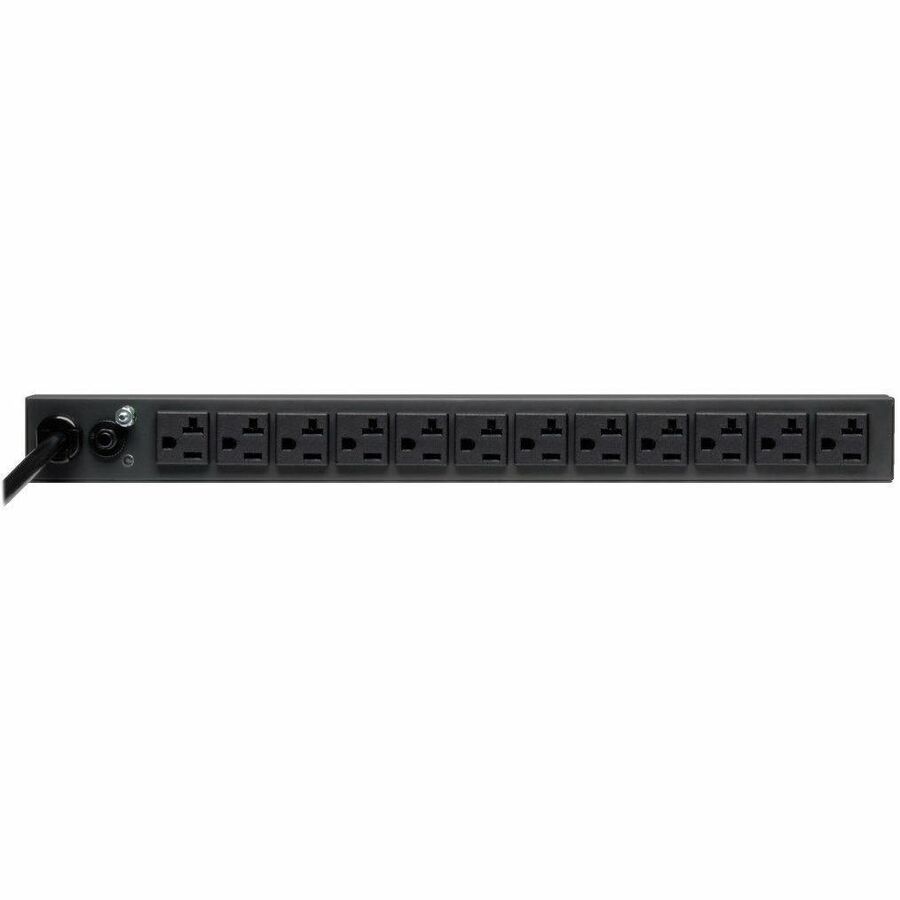

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1226 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ideal no-frills PDU for telecom, security, audio/video and other network applications
13 NEMA 5-15/20R outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime

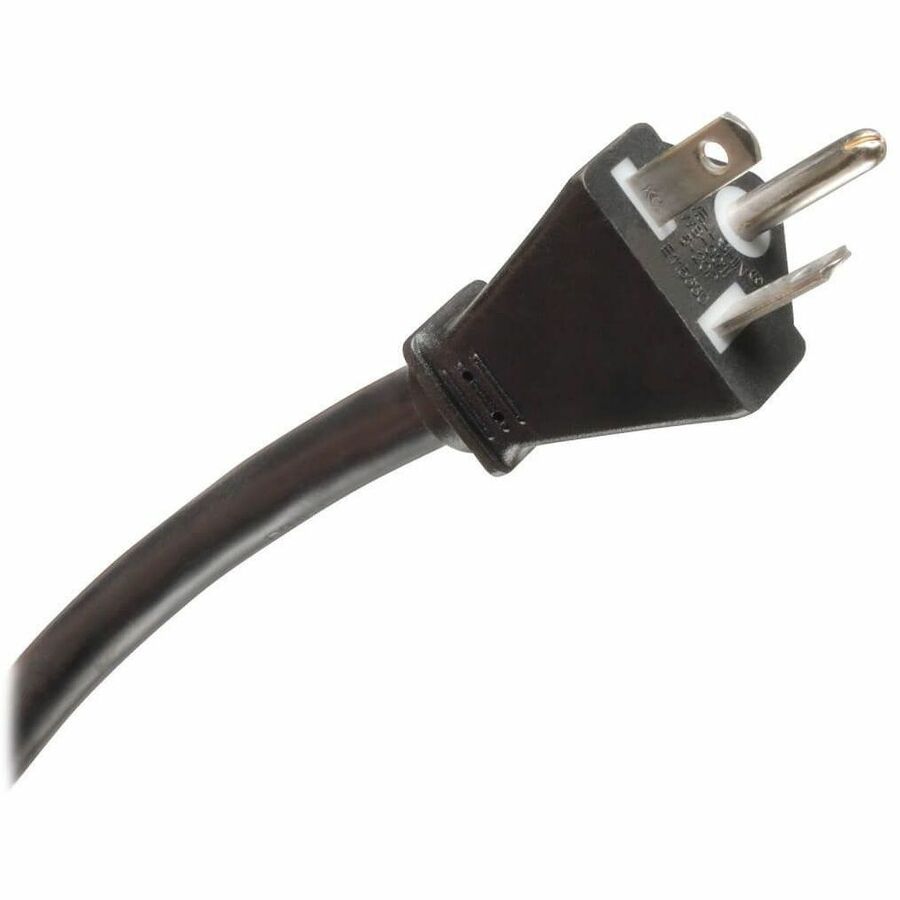

6 ft. cord with NEMA 5-20P single-phase input connects to AC power source
Flexible installation options include 1U and 0U rack, under counter and on wall
5-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
PDU1226
Brand Name
Tripp Lite series
Product Model
PDU1226
Product Name
PDU1226 13-Outlets PDU
Product Type
PDU
Physical Characteristics
Mounting Orientation
Horizontal/Vertical
Mount Type
Rack-mountable, Wall-mountable
Rack Height
1U
Height
1.8"
Width
17.5"
Depth
4.5"
Weight (Approximate)
5.20 lb
Power Description
Input Voltage
120 V AC
Output Voltage
100 V AC, 120 V AC, 127 V AC
Power Rating (Watt)
2500 W
Input Current
20 A
Technical Information
PDU Type
Basic
Phase
Single Phase
Plug/Connector Type
NEMA 5-20P
Receptacle Type
NEMA 5-15/20R
Receptacle Detail
13 x NEMA 5-15/20R
Protection Type
Overload Protection, Circuit Protection, Accidental Power Shutdown
