APC by Schneider Electric InfraStruXure PDU 40kW 480V/208V W/ MBP

40 kW

SKU: PD40G6FK1-M
Category: PDUs

MSRP$35,415.00

$22,675.39

Save 36%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: PD40G6FK1-M
Category: PDUs

Overview

The APC Configurable Power Distribution Units bring agility, availability, and speed of deployment to your data center. Our factory-tested power distribution units are built to your exact specifications, support overhead or underfloor distribution, and feature a convenient, portable rack form factor.

• Install factory assembled and tested power distribution solutions fast and faultlessly

• Control cable clutter with cut-to-size cord sets for your site-specific, custom-designed breakers and connectors

• Reduce operating costs with NEMA-rated TP1 transformers - the most efficient in the industry

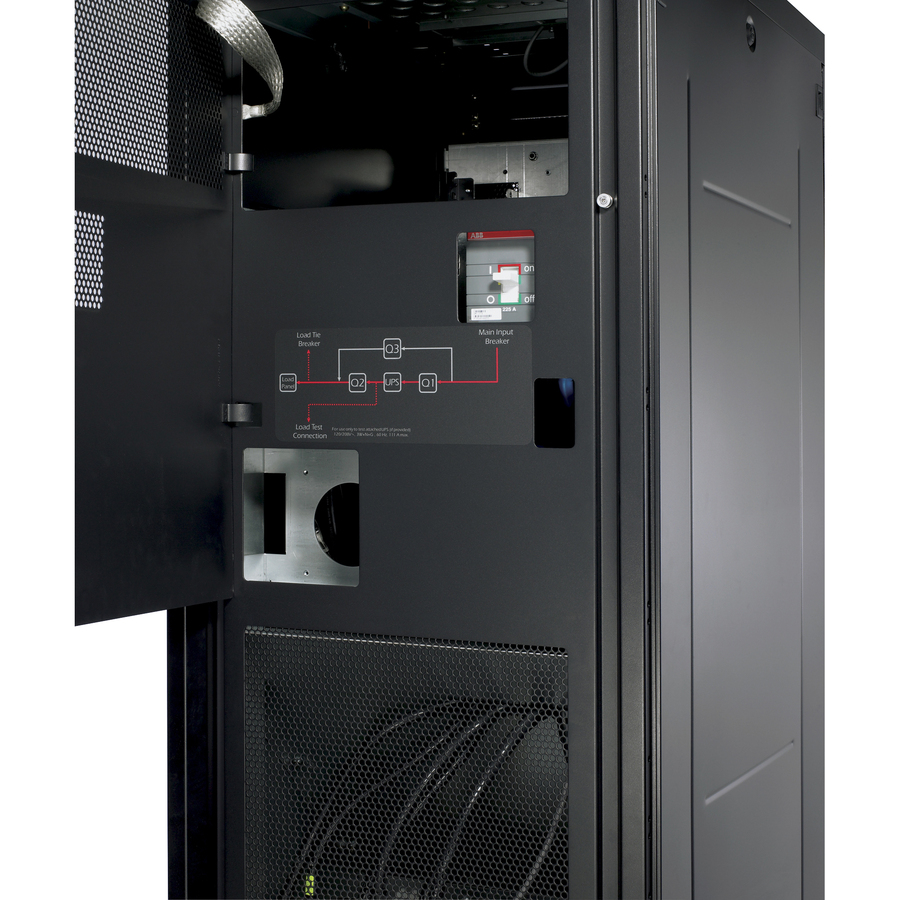

• Perform maintenance and service from the front or rear - no side access required

• Monitor and manage power usage locally at the PowerView display interface or remotely using a Web browser, StruxureWare Data Center Expert, or your building management system

Warranty

Limited Warranty: 1 Year

Highlights

PDU allows power to be more efficiently distributed and controlled
Three Phase phase PDU provides dependable power output with maximum efficiency
120 V AC output voltage for better reliance and maximum usability

Specifications

Package Contents	InfraStruXure PDU 40kW 480V/208V W/ MBP Installation Guide User Manual
Product Type	PDU
Manufacturer Part Number	PD40G6FK1-M
Packaged Quantity	1
Limited Warranty	1 Year
Output Voltage	120 V AC, 230 V AC
Weight (Approximate)	1276 lb
Input Current	67 A
Manufacturer	Schneider Electric SA
Product Name	InfraStruXure PDU 40kW 480V/208V W/ MBP
Product Line	InfraStruXure
Brand Name	APC by Schneider Electric
Height	81"
Width	24"
Depth	36"
Phase	Three Phase
Power Rating (Watt)	40 kW
