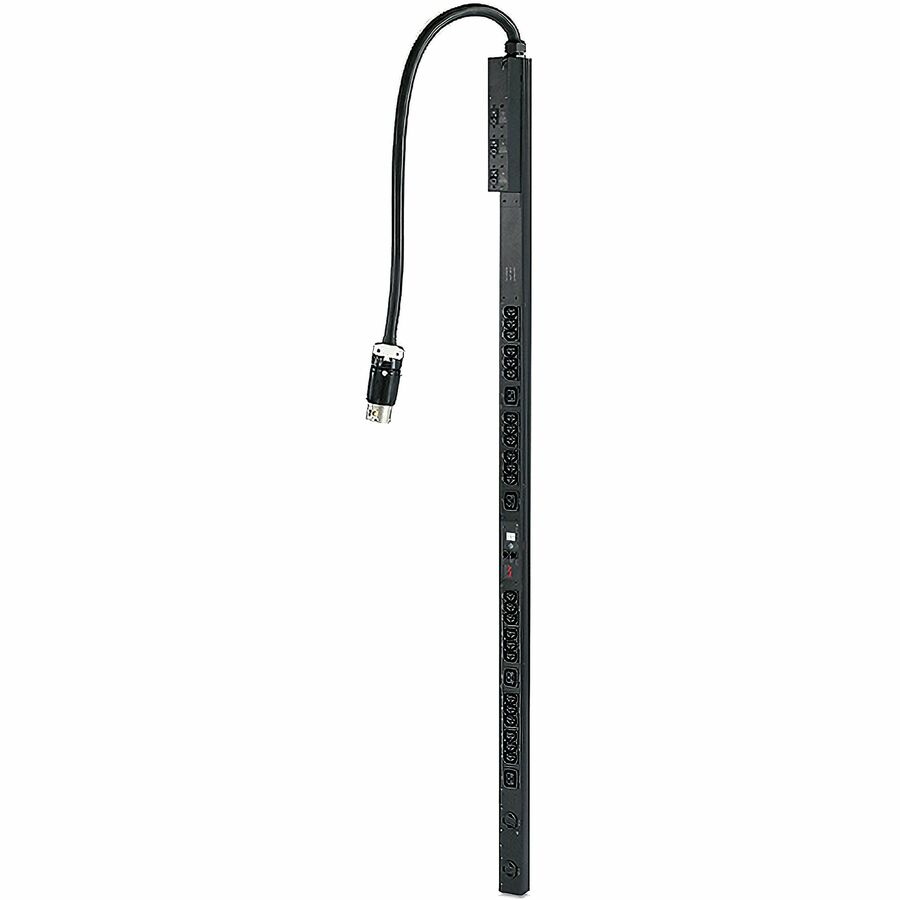

APC NetShelter Metered Rack PDU, Zero U, 14.4kW, 208V, 24 C13, 4 C19, 2 NEMA L6-30R outlet
Metered - CS8365 - 4 x IEC 60320 C19, 2 x NEMA L6-30R, 24 x IEC 60320 C13 - 208 V - 14.40 kW - Overload Protection - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable
SKU
Category
PDUs
MSRP$3,360.00
$2,990.40
Save 11%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 12 and Nov 16, then process your delivery right after.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
PDUs
Overview
It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Warranty
Limited Warranty: 2 Year
Highlights

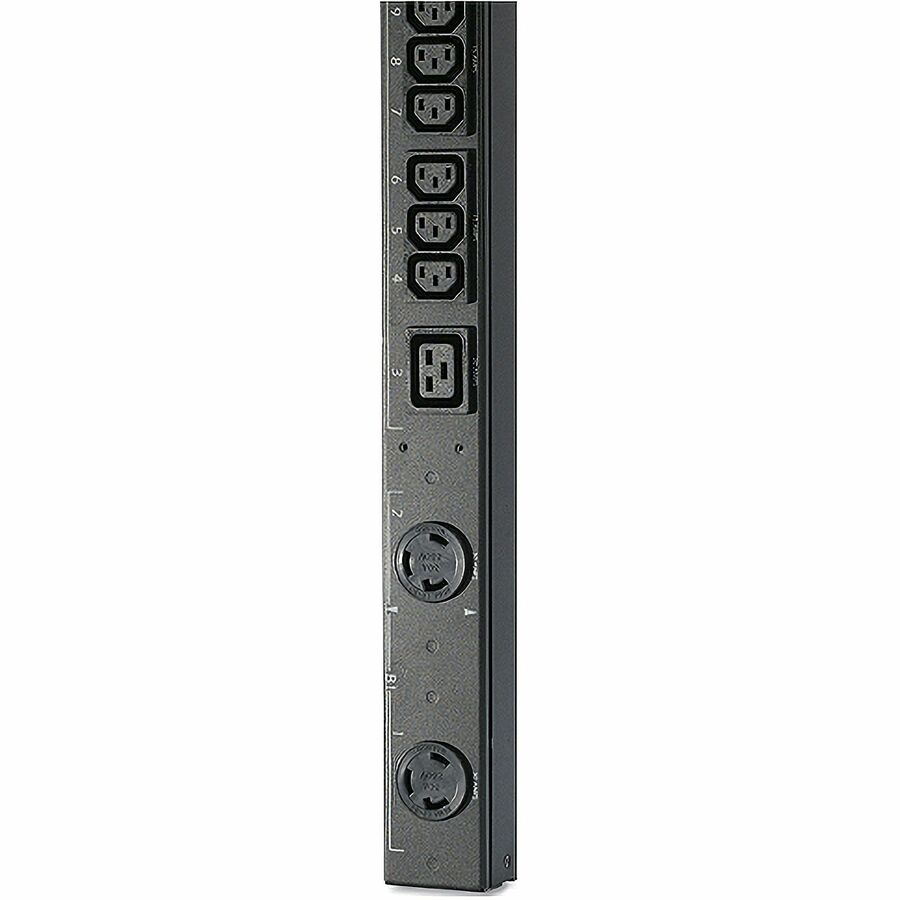

Provides 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets for comprehensive power distribution

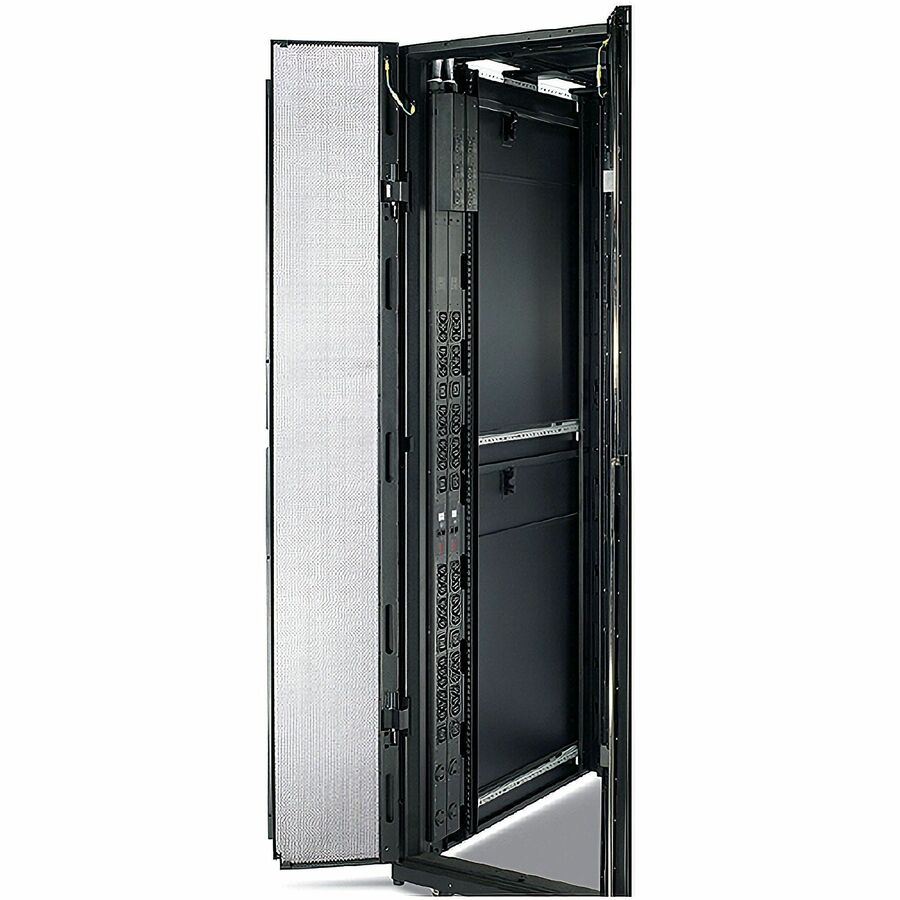

Vertical mounting to save valuable rack space
Supports up to 40A, 208V power distribution, ensuring reliable power delivery
Includes a cord retention bracket and toolless mounting kit for quick setup
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP7869B
Brand Name
APC
Product Name
30-Outlets PDU
Product Type
PDU
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Vertical
Mount Type
Rack-mountable
Placement
Side
Rack Height
0U
Cord Length
9.84 ft
Height
70"
Width
2.2"
Depth
3.7"
Weight (Approximate)
22.84 lb
Power Description
Input Voltage
208 V
Output Voltage
208 V AC
Power Rating (Watt)
14.40 kW
Input Current
50 A
Technical Information
PDU Type
Metered
Phase
Three Phase
Plug/Connector Type
CS8365
Plug/Connector Detail
1 x CS8365
Receptacle Type
IEC 60320 C19, NEMA L6-30R, IEC 60320 C13
Receptacle Detail
4 x IEC 60320 C19, 2 x NEMA L6-30R, 24 x IEC 60320 C13
