Tripp Lite by Eaton PDU 7.4kW Single-Phase Switched PDU LX Interface 230V Outlets (16-C13) IEC-309 Blue 230V 32A 3.6m Cord 2U Rack-Mount TAA

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

More from the Manufacturer

Next-Generation PDU Distributes and Manages Single-Phase Power with No Java Required

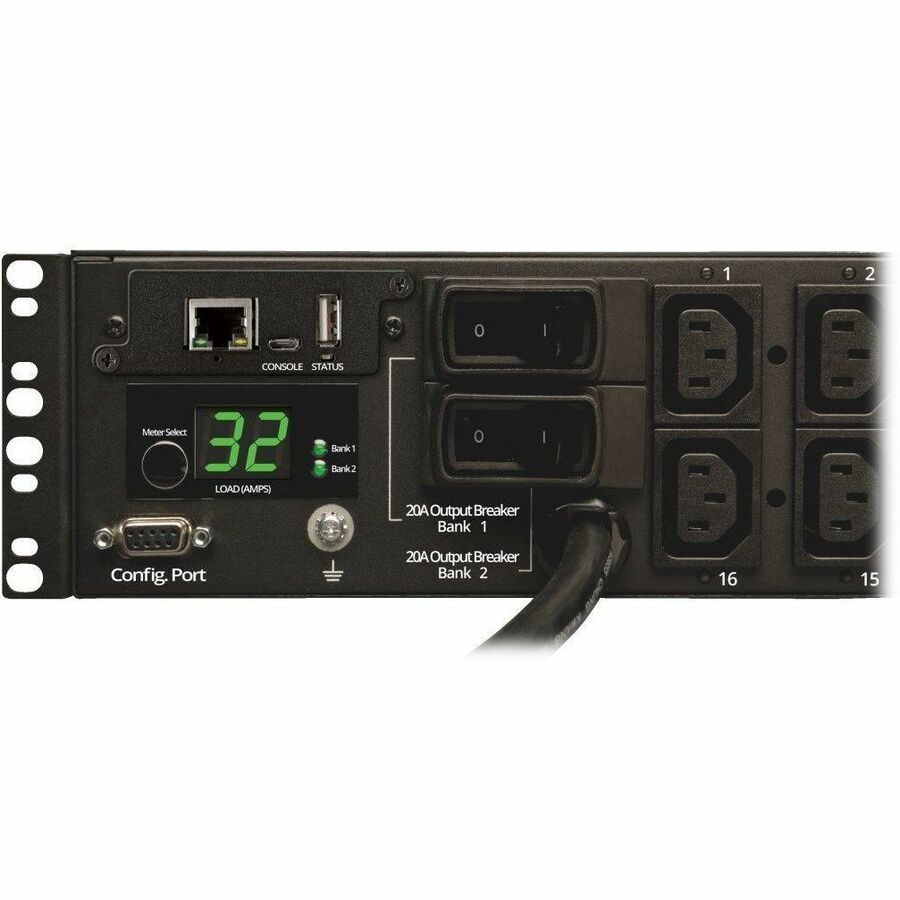

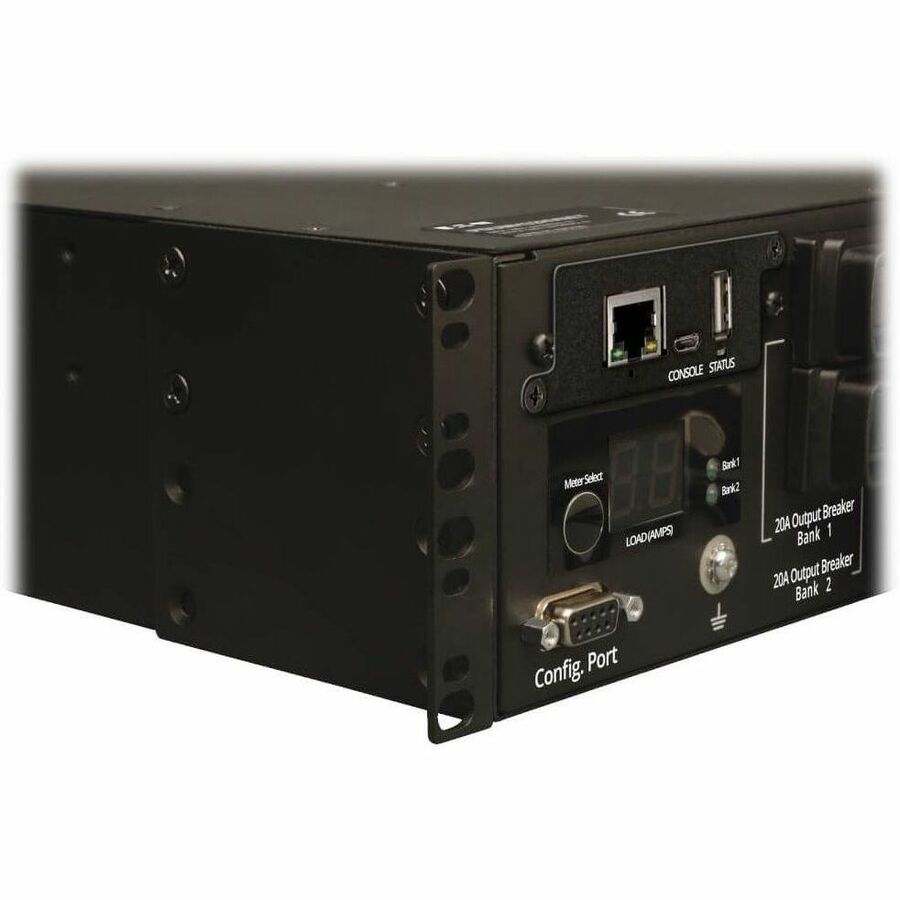

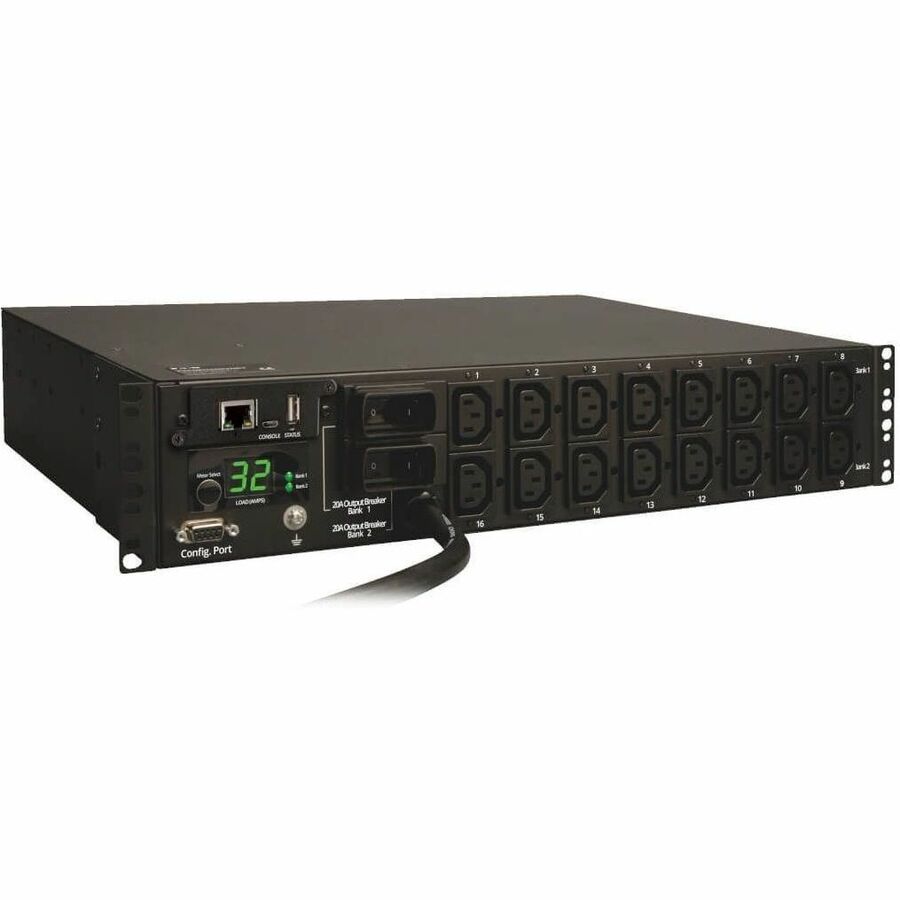

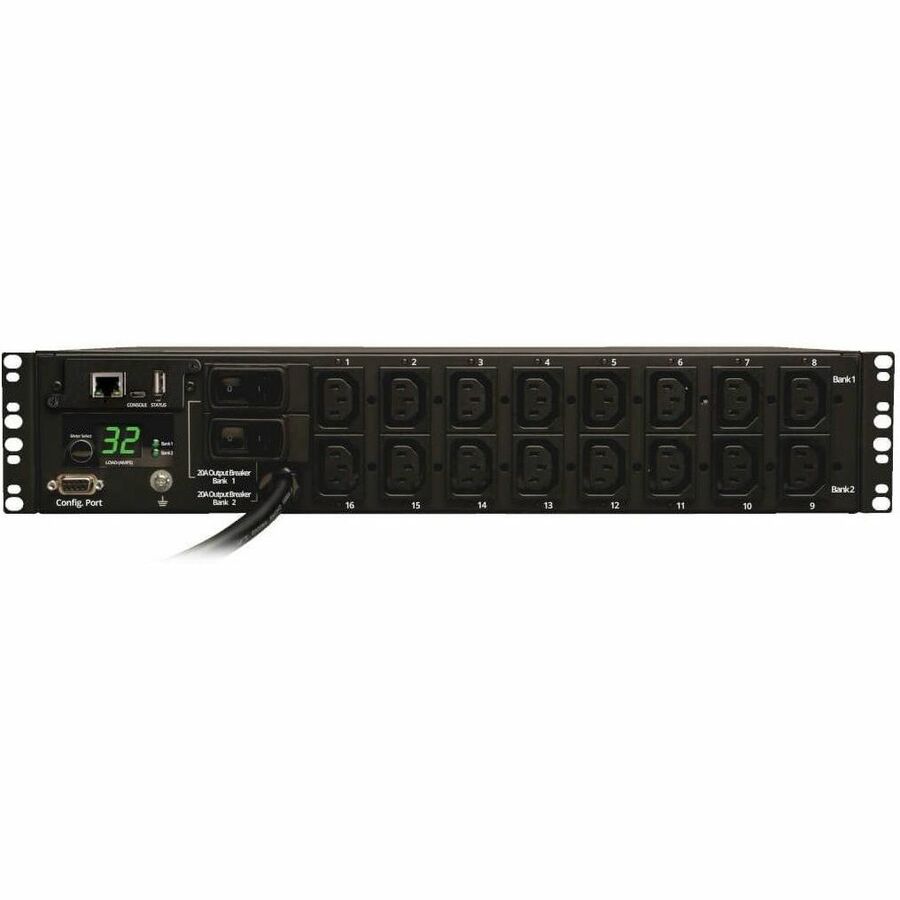

Featuring a built-in network interface, Tripp Lite's PDUMH32HVNET 7.4kW Single-Phase Switched PDU provides full remote power monitoring and control for network devices in server rooms, network closets and small data centers. It features 16 switched C13 outlets, arranged in two separately breakered 20A banks, with included plug retention sleeves. Its 12-foot cord with Blue 230V IEC-309 32A (2P+E) plug connects the PDU to a compatible AC power source, generator or protected UPS system.

Product Specifications

HTML5-Based Interface Provides Advanced Network Monitoring Capabilities

With a built-in Java-free, HTML5-based LX Platform interface (the mobile-friendly PowerAlert Device Manager), the PDUMH32HVNET provides complete remote access f­or power monitoring and email notifications via a secure network or Web browser. When used with an optional EnviroSense2 environmental sensor (sold separately), it can also perform temperature/humidity and dry contact monitoring, providing IT personnel with enhanced oversight of facility power and environmental conditions. As an added bonus, up to three EnviroSense2 modules can be daisy-chained together. The PDUMH32HVNET supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts can be configured to warn against potential overload, power loss and downtime.

Supports Real-Time Load and Power Status Monitoring

The PDUMH32HVNET is equipped with a digital ammeter that allows you to monitor the PDU’s total load in real time. This meter helps ensure the PDU is used below maximum capacity with no danger of overload.

Reduces the Cost of Data Center Maintenance

Remote moitoring and control capabilities lower the PDUMH32HVNET’s total cost of ownership by reducing the frequency of on-site visits. This advanced unit offers the ability to remotely turn on, turn off, recycle or lock out power to each individual receptacle as well as monitor site electrical conditions and output power consumption.

Integrates Easily Into Your Existing Infrastructure

The PDUMH32HVNET mounts horizontally in any 2- or 4-post rack. It occupies just 1U of space. Mounting ears are reversible for front or rear installation. For extra support, add the optional PDU4PKIT Rear Support Rail Kit.
