SKU
GS110TP-300NAS
Category
Switches & Bridges
Overview

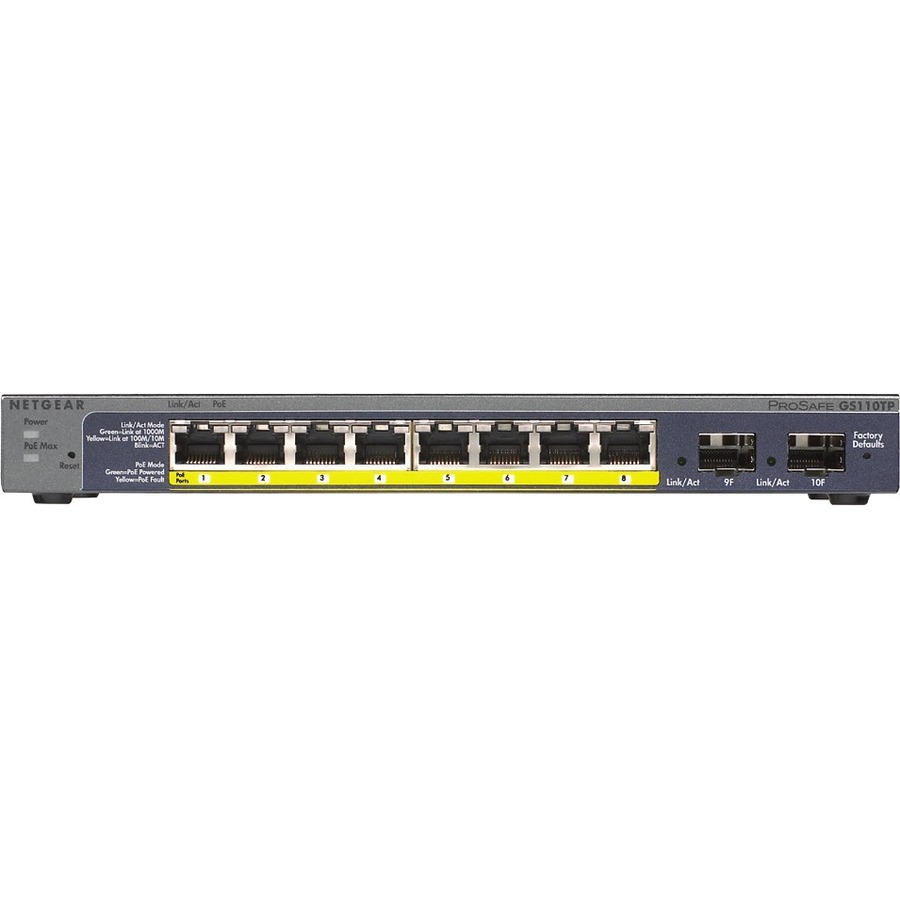

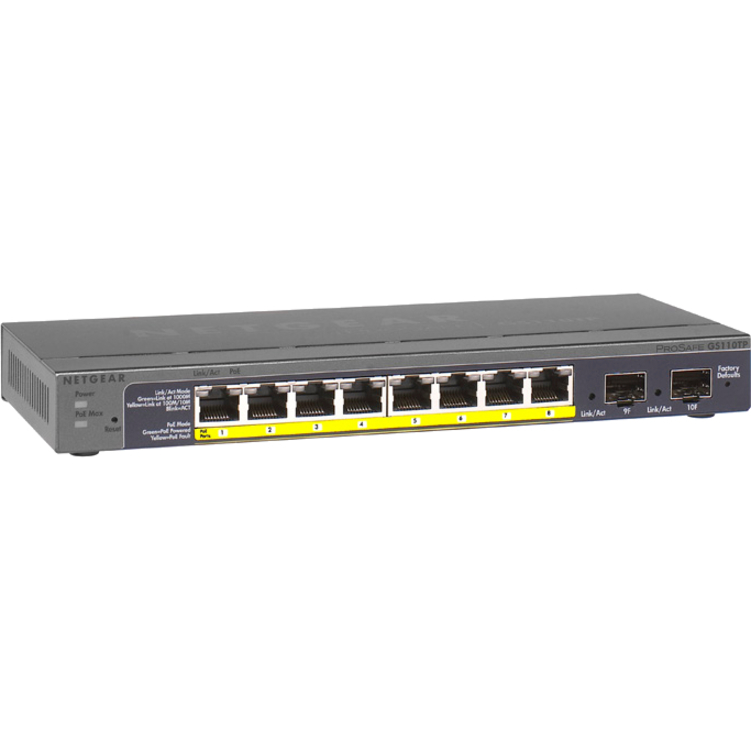

Small, Yet Powerful Gigabit Smart Switch Packed with Advanced Features
Joining the NETGEAR® ProSAFE® family of Smart Managed Switches with high performance and cost efficiency, this 10-port Gigabit Smart Managed Switch is packed with powerful L2 features capable of enhancing any type of business network. The GS110TP is designed for customers who need a low port density solution with the combination of Gigabit speed and PoE capability. The GS110TP comes with 8 dedicated 10/100/1000 Mbps copper ports to connect to your end devices and two additional Gigabit Fiber ports for uplinks with greater distance. With PoE capability on all 8 copper ports, the GS110TP can automatically detect PoE on the end devices and dynamically manage power assignments and priority. It is capable of delivering up to 15.4W of power per port, up to a maximum total of 46W across all connected PoE devices, and network connectivity concurrently across a single ethernet cable, to power devices such as wireless access points, IP phones and IP cameras, providing flexibility and ease of deployment to your network.
The GS110TP comes with a comprehensive set of features, such as enhanced VLAN and QoS, access control lists (ACL), 802.1x port authentication (MD5), rate limiting and IGMP snooping and many more, to provide businesses with networks that are geared for growth while ensuring performance and reliability. Both an intuitive Web-browser GUI interface and Smart Control Center (Windows PC required), offer simple Smart Managed Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization.
With the fanless design and compact form factor, the GS110TP offers quiet operation and is suitable for deployments in any type of environment, especially the ones which are sensitive to noise.
Highlights
Effectively increases available bandwidth on your network
Cascade to other network devices through the uplink port to expand your local area network
Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
Can work as layer 3 routing for scalable network design
The desktop installation makes it ideal for deployments outside the wiring closet
Management capability allows maximum efficiency and with unrestricted control
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
Package Contents
ProSafe GS110TP Ethernet Switch
AC Adapter
Rubber Footpads
Wall-Mount Kit
Resource CD
Installation Guide
Product Type
Ethernet Switch
Manufacturer Part Number
GS110TP-300NAS
Power Source
Power Supply
Limited Warranty
Lifetime
Layer Supported
3
Weight (Approximate)
1.54 lb
Form Factor
Desktop, Wall Mountable
Manufacturer
Netgear, Inc
Product Model
GS110TP
Product Name
ProSafe GS110TP Ethernet Switch
Network Technology
10/100/1000Base-T, 1000Base-X
Product Line
ProSafe
Brand Name
Netgear
Expansion Slot Type
SFP
Country of Origin
Thailand
Height
1.1"
Width
9.3"
Depth
4"
Manageable
Yes
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Number of SFP Slots
2
Modular
Yes
Uplink Port
Yes
Media Type Supported
Twisted Pair, Optical Fiber
Total Number of Network Ports
8
Port/Expansion Slot Details
8 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Uplink
Total Number of Expansion Slots
2
Energy Efficiency Compliance
Energy-related Products Directive (ErP)
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
