Lenovo ThinkSystem SR570 7Y03A06FNA 1U Rack Server - Xeon Silver 4208 2.10 GHz - 16 GB RAM - Serial ATA/600 Controller
Lenovo

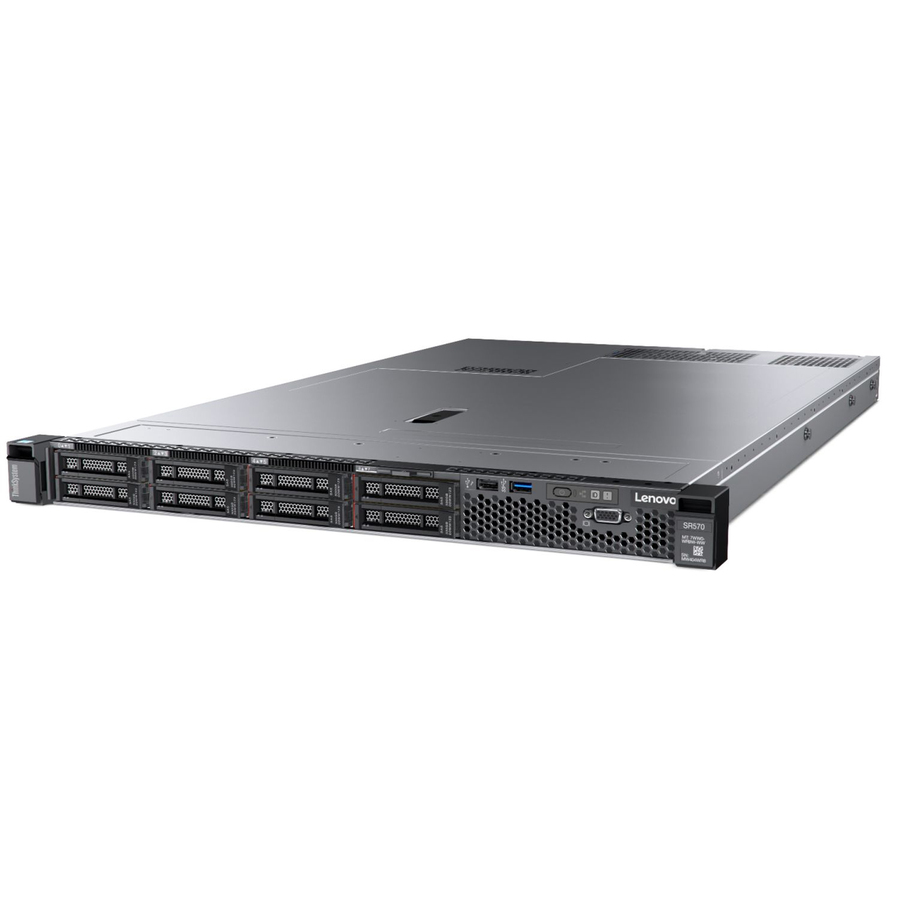

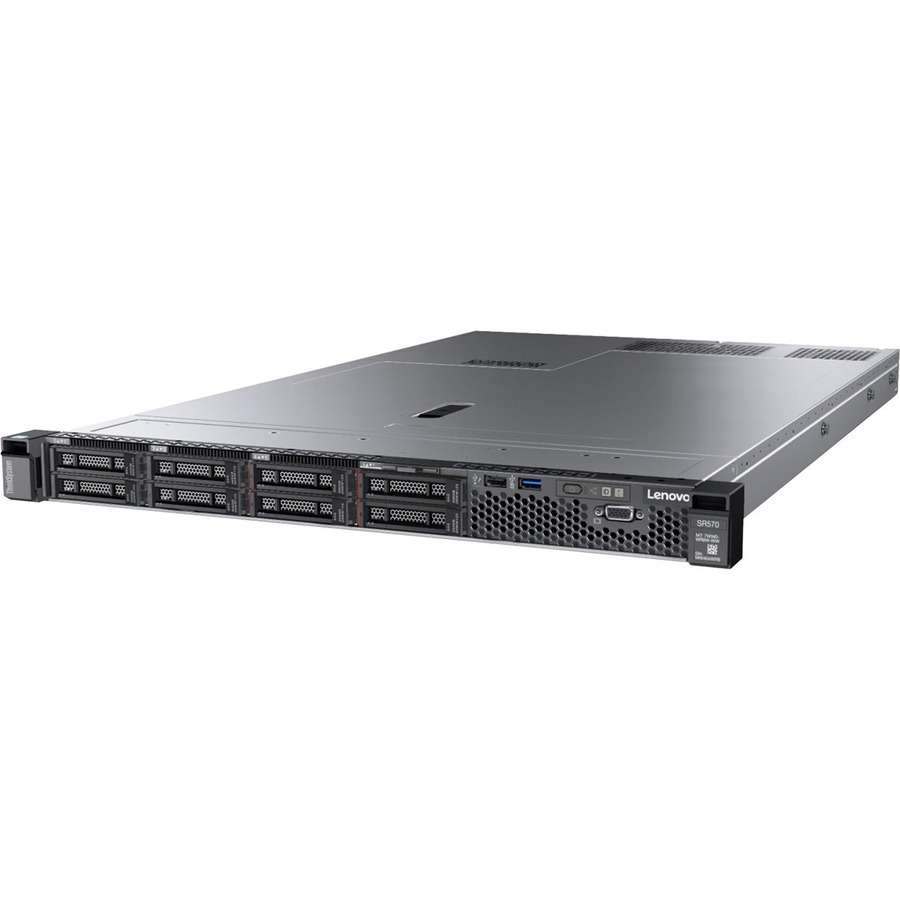

Lenovo ThinkSystem SR570 7Y03A06FNA 1U Rack Server - Xeon Silver 4208 2.10 GHz - 16 GB RAM - Serial ATA/600 Controller

Intel C622 Chip - 2 Processor Support - TruDDR4 Up to 16 MB Graphic Card - Gigabit Ethernet

SKU
7Y03A06FNA
Category
Servers

MSRP$4,499.00

$3,342.11

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
7Y03A06FNA
Category
Servers

Overview

Lenovo ThinkSystem SR570 is a 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as the balance of performance, memory, and flexible storage configurations. The SR570 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, infrastructure security, web serving, and application development.

Highlights

  • 2 processors supported for faster processing and improved access to data, optimizing performance under heavy loads
  • With 16 GB memory, improve system performance and reduce processing delays
  • Xeon Silver 2.10 ghz processor delivers strong performance for work and entertainment needs
  • Rack form factor offers easy deployment and streamlined usage, enhancing operational efficiency in server environments
  • RAID provides redundancy to safeguard data during drive failures, ensuring maximum dependability and uninterrupted operations
  • With TruDDR4 memory technology, achieve faster data rates and enhanced system responsiveness for enterprise applications
  • Gigabit Ethernet port offers ultra-fast network speeds, supporting modern workloads and reducing bottlenecks in data flow
  • 1 Network (RJ-45) Ports eliminate the need for additional wiring, streamlining deployment and reducing installation costs
  • 4 USB ports feature a refined design and safer connectivity, ensuring reliable, secure, and easy device connections every time
  • Octa-core (8 Core) processor core helps server process data quickly and reliably for maximum productivity

Specifications

Package Contents
  • ThinkSystem SR570 7Y03A06FNA Server
  • Rack Installation Guide
  • Electronic Publications Flyer
Product TypeServer
Cache11 MB
Error CheckingECC
Input Voltage120 V AC, 230 V AC
Manufacturer Part Number7Y03A06FNA
Limited Warranty3 Year
Standard Memory16 GB
Weight (Approximate)35.27 lb
Form FactorRack
ManufacturerLenovo Group Limited
Product Model7Y03A06FNA
Product NameThinkSystem SR570 7Y03A06FNA Server
Processor Speed2.10 GHz
Processor TypeXeon Silver
Product LineThinkSystem
Security Features
  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Onboard Trusted Platform Module (TPM) version 1.2 or 2.0 (configurable UEFI system setting)
  • Trusted Cryptographic Module (TCM) (optional; available in China only)
  • Lockable front bezel (optional)
  • Security Key Lifecycle Manager (SKLM) encryption key management for SEDs - FoD upgrade (optional)
  • Lenovo Business Vantage security software (optional; available in China only)
Controller TypeSerial ATA/600
Product SeriesSR570
Rack Height1U
Brand NameLenovo
Operating System SupportedWindows Server 2016, Windows Server 2012 R2, Red Hat Enterprise linux 7.4, Red Hat Enterprise Linux 6.9, SUSE Linux Enterprise Server 12 SP3
Memory TechnologyTruDDR4
Processor Model4208
Height1.7"
Width17.1"
Depth28.1"
Processor CoreOcta-core (8 Core)
Environmentally FriendlyYes
Chipset ManufacturerIntel
Chipset ModelC622
Number of Power Supplies Supported2
Graphics Memory Capacity16 MB
Number of Processors Supported2
RAID SupportedYes
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Remote ManagementYes
Total Number of USB Ports4
Number of USB 2.0 Ports1
Number of USB 3.0 Ports3
Total Number of Expansion Slots3
Energy StarYes
Number of Occupied Memory Slots2
PCI Express DetailsSlot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile
Remote Management ControllerXClarity Controller
Total Number of Memory Slots16
Energy Efficiency CertificationENERGY STAR 2.1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
