Lenovo
Lenovo ThinkSystem ST250 V3 7DCEA022NA Tower Server - 1 Xeon E-2434 3.40 GHz - 16 GB RAM - Serial ATA/600 Controller
Intel C266 Chip - 1 Processor Support - 128 GB RAM Support - TruDDR5 Up to 16 MB Graphic Card - Gigabit Ethernet - 10 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 300 W
- SKU
- 7DCEA022NA
- Category
- Servers
$2,090.29
Back ordered
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7DCEA022NA
- Category
- Servers
Overview

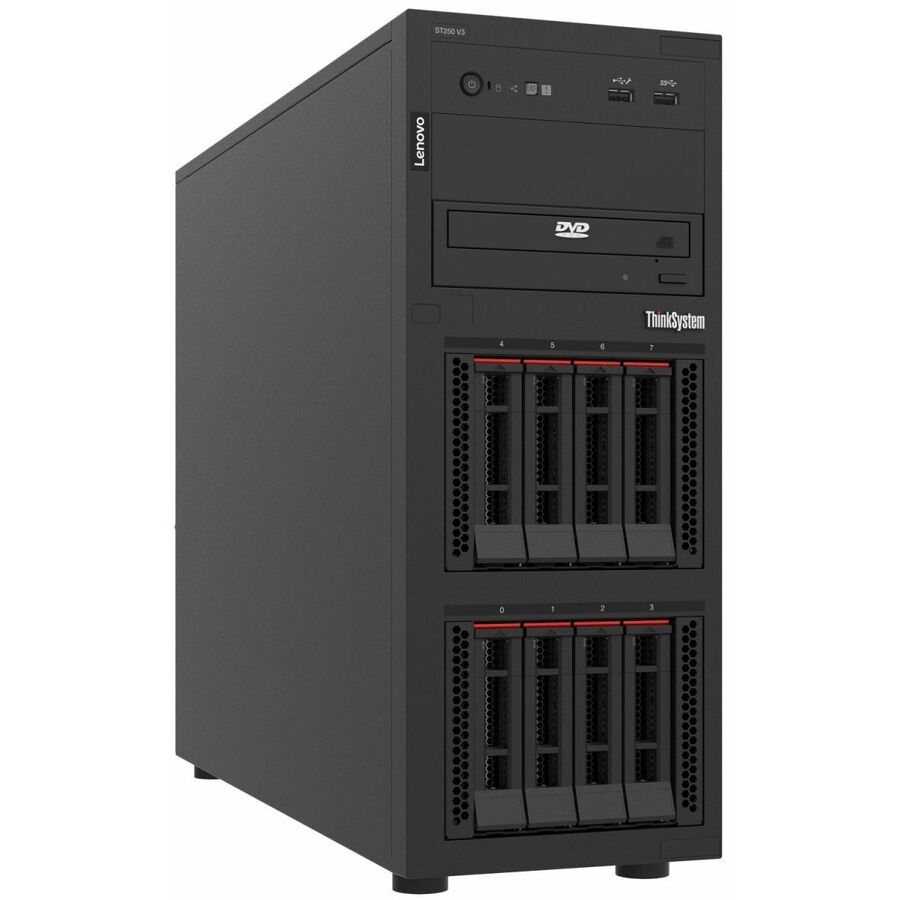

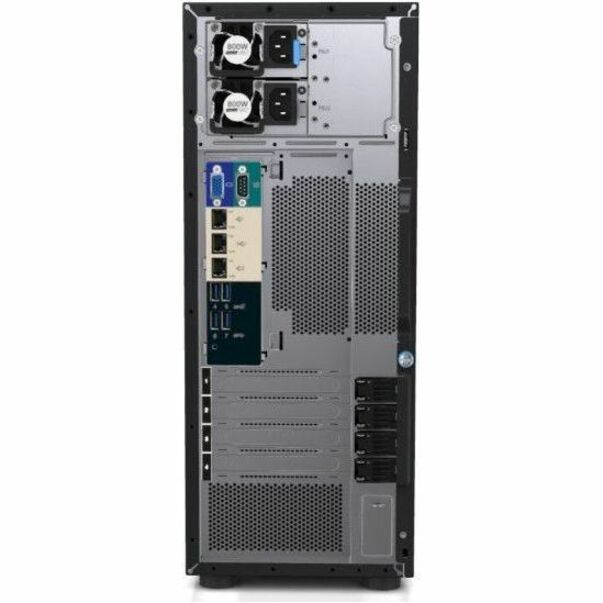

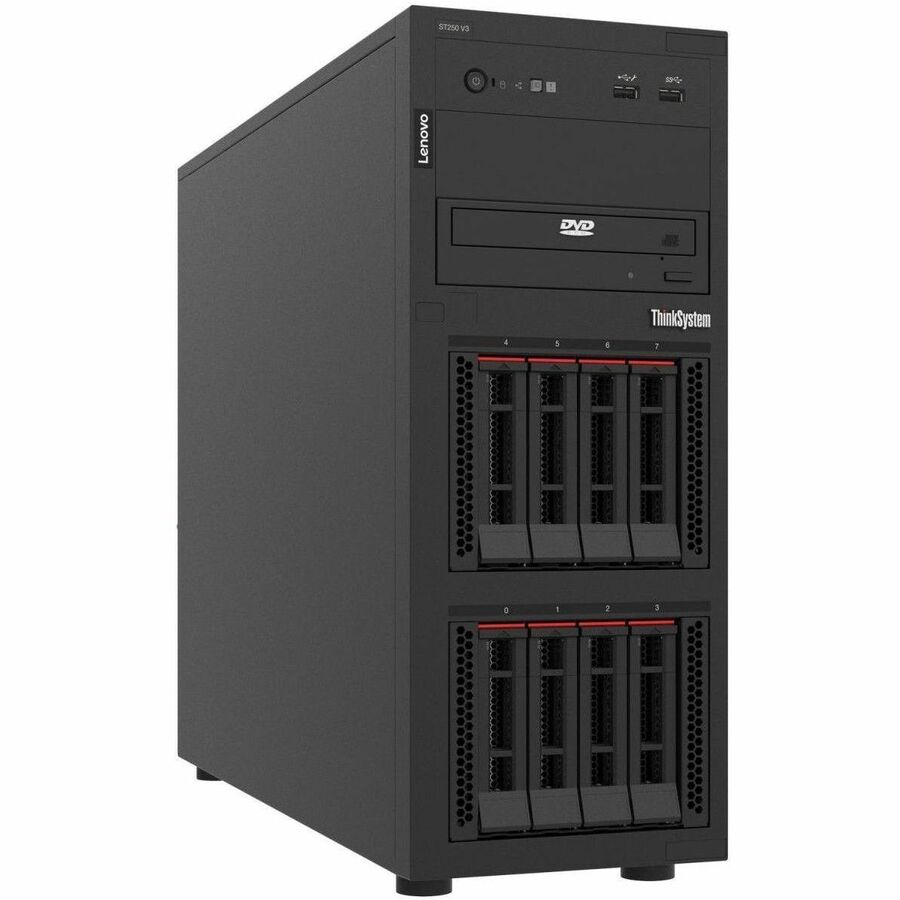

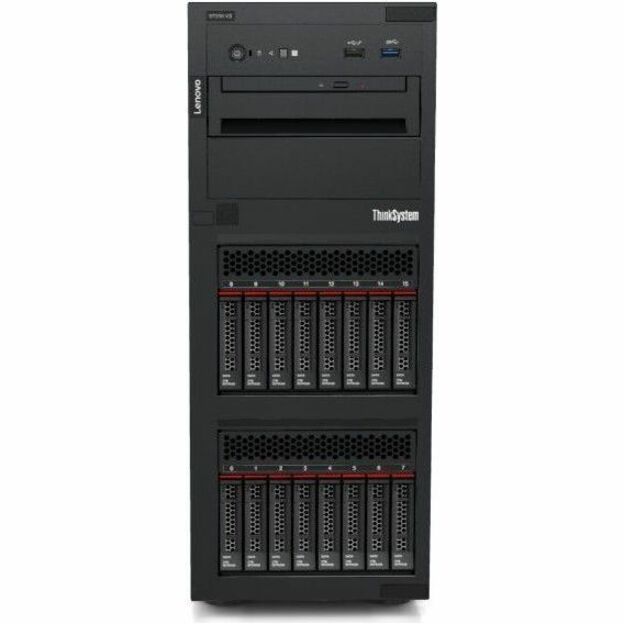

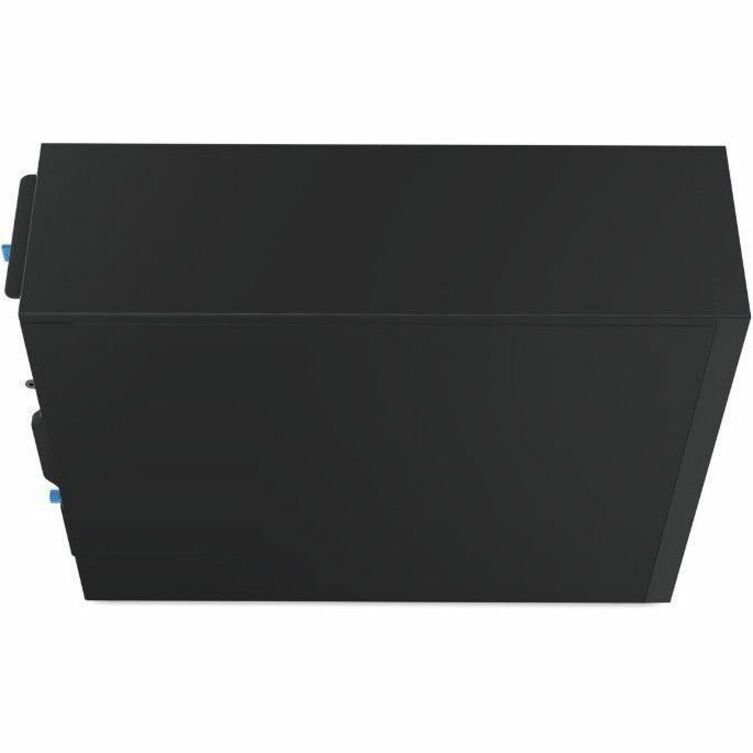

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
Highlights
- 1 processors supported for faster processing and improved access to data, optimizing performance under heavy loads
- With 16 GB memory, improve system performance to execute complex applications smoothly and shorten processing time
- 1 x 300 W power supply unit (PSU) meets system power demands for stable and uninterrupted operations
- Intel Xeon 3.40 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
- Tower form factor is cost-effective and highly configurable, making it suitable for growing businesses with evolving needs
- With TruDDR5 memory technology, achieve faster data rates and enhanced system responsiveness for enterprise applications
- Gigabit Ethernet is ideal for frequent large file transfers, such as backups and replication, ensuring smooth and efficient operations
- 2 Network (RJ-45) Ports allow Ethernet cables to transmit data and power simultaneously, reducing cabling complexity
- 7 USB ports provide a refined design and safer connectivity, ensuring reliable and secure device connections every time
- Quad-core (4 Core) processor core helps server process data quickly and reliably for maximum productivity
Specifications
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) |
|---|---|
| Package Contents |
|
| Product Type | Server |
| Cache | 8 MB |
| Error Checking | ECC |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | 7DCEA022NA |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Limited Warranty | 3 Year |
| Standard Memory | 16 GB |
| Weight (Approximate) | 34.86 lb |
| Form Factor | Tower |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCEA022NA |
| Product Name | ThinkSystem ST250 V3 7DCEA022NA Server |
| Processor Speed | 3.40 GHz |
| Processor Type | Xeon |
| Product Line | ThinkSystem |
| Security Features |
|
| Controller Type | Serial ATA/600 |
| Product Series | ST250 V3 |
| Brand Name | Lenovo |
| Plug/Connector Type | C13 |
| Operating System Supported | Windows Server 2022, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 8.9, Red Hat Enterprise Linux 9.3, SUSE Linux Enterprise Server 15 SP5, Ubuntu 22.04 LTS x64, Red Hat Enterprise Linux 8.10, Red Hat Enterprise Linux 9.4, SUSE Linux Enterprise Server 15 SP6, Ubuntu 24.04 LTS x64 |
| Memory Technology | TruDDR5 |
| Processor Model | E-2434 |
| Height | 17.5" |
| Width | 6.9" |
| Depth | 22.8" |
| Processor Core | Quad-core (4 Core) |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD, China Environmental Labeling Program (CELP), Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Number of External 5.25" Bays | 2 |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Number of Internal 2.5" Bays | 8 |
| Graphics Memory Capacity | 16 MB |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 10 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 300 W |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Total Number of Expansion Slots | 4 |
| Energy Star | Yes |
| Number of Occupied Memory Slots | 1 |
| Hot Swappable Bays | Yes |
| Memory Clock Speed | 4.80 GHz |
| Controller Model | Intel VROC |
| Number of SFF Bays | 8 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
| Remote Management Controller | XClarity Controller |
| Energy Efficiency Certification | China Energy Conservation Program (CECP), ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
