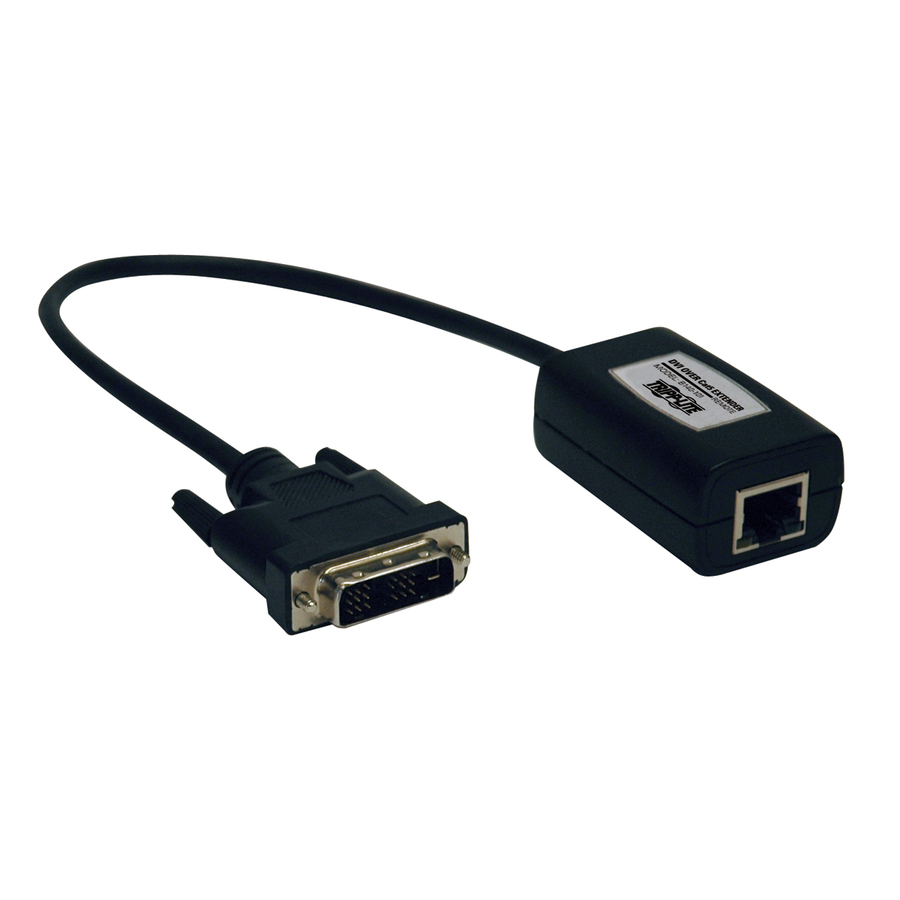

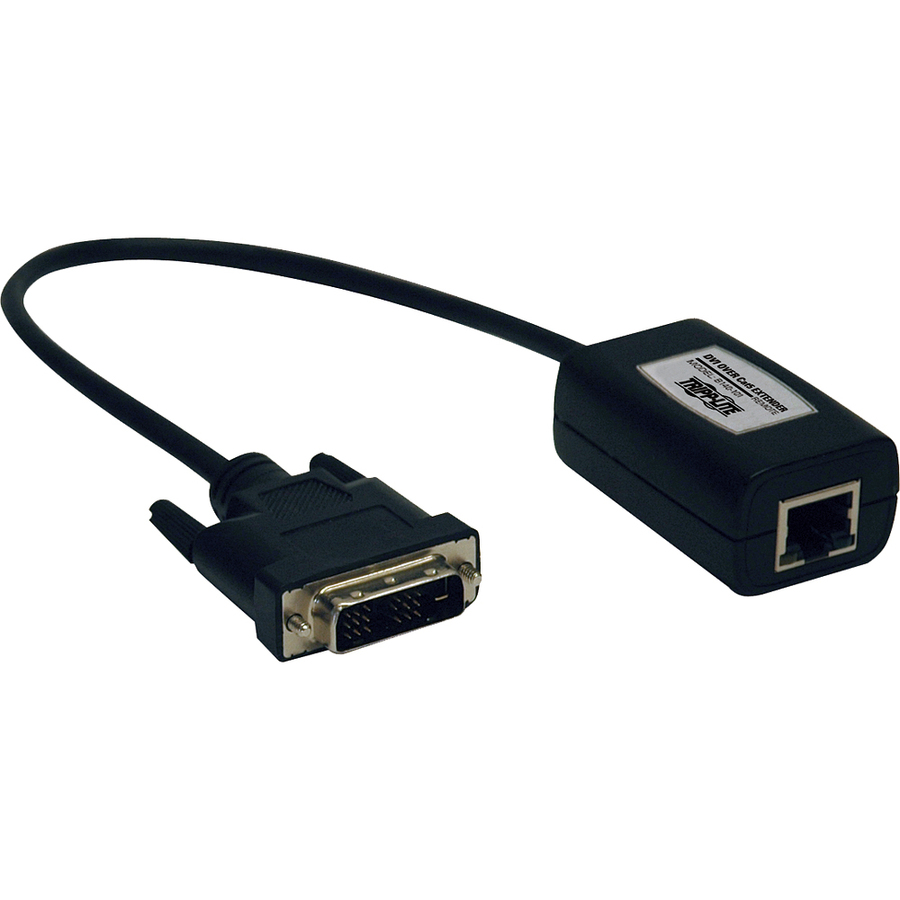

Eaton Tripp Lite Series DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA

The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1P0 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 100 ft..

More from the Manufacturer

Extend a DVI Signal Up to 100 ft. Away

The B140-1P0 lets you extend a high-quality DVI signal beyond the maximum 15-ft. DVI cable length. When used with a B140-series transmitter, the B140-1P0 can extend a 1024 x 768 (60Hz) signal up to 100 ft. and a 1920 x 1080 (60Hz) signal up to 50 ft. For maximum distance performance, use 24 AWG Solid Wire Cat5e/6 cable (Tripp Lite N202-series).

Convenient Plug-and-Play Setup

Compatible with all DVI video sources and operating systems and with no software or drivers to install, the B140-1P0's plug-and-play setup gets your application up and running quickly. Simply connect the unit to the remote display, then connect to a Tripp Lite B140-Series Transmitter (sold separately) using Cat5/6 cable, and connect the transmitter unit to the local display and DVI video source.

TAA-Compliant for GSA Schedule Purchases

The B140-1P0 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

One-Year Warranty and Environmentally Responsible Design

The B140-1P0 comes backed by a one-year warranty. As part of Tripp Lite’s commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.

Typical Applications

• Extend connections to DVI-enabled TVs, projectors and monitors up to 100 ft. with Cat5/6 cabling

• Ideal for any home, business, retail, or any other application that uses a DVI-D single-link video signal

What’s in the Box

B140-1P0 DVI over Cat5/6 Passive Extender Remote Unit

Owner's Manual
