Extends HDMI audio/video signals up to 120m over cost effective Cat 6/7 cable, while maintaining signal strength and superior audio/video quality, 4K30Hz, HDCP 1.4, One to Many, Many-to-Many, IR Control, work for RX (CE-H25E11-S2)
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Audio & Video Consoles/Extenders
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

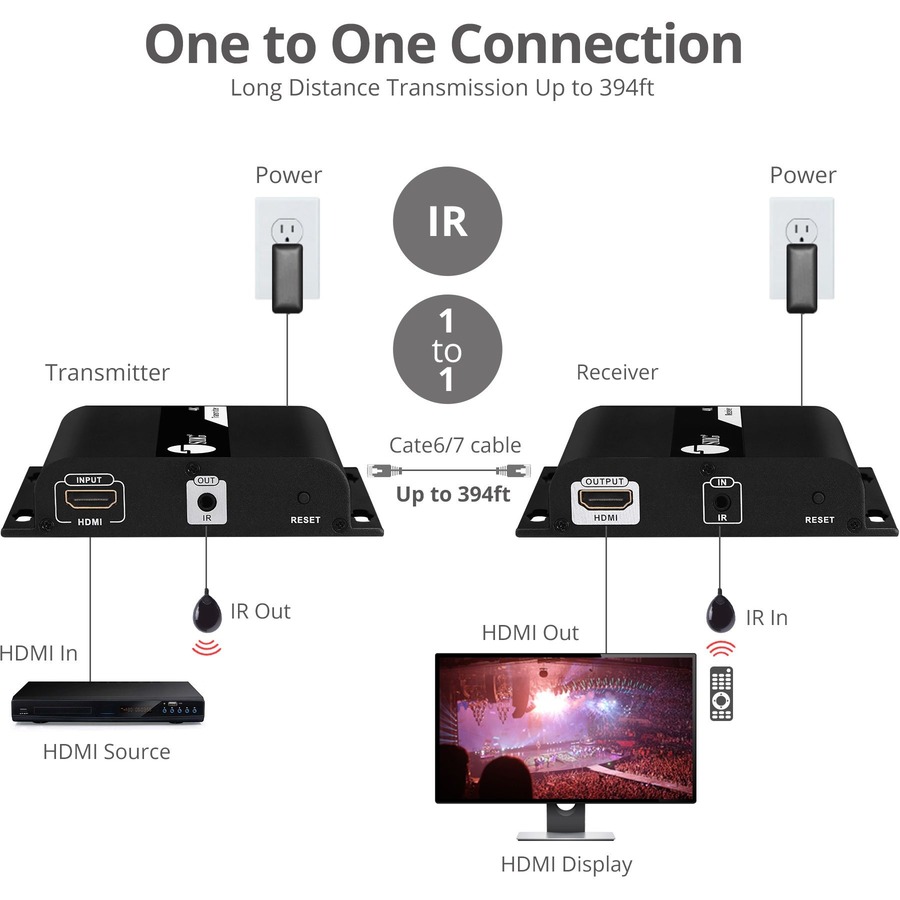

With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
Supports up to 4K @30Hz and 1080p. HDCP 1.4 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance

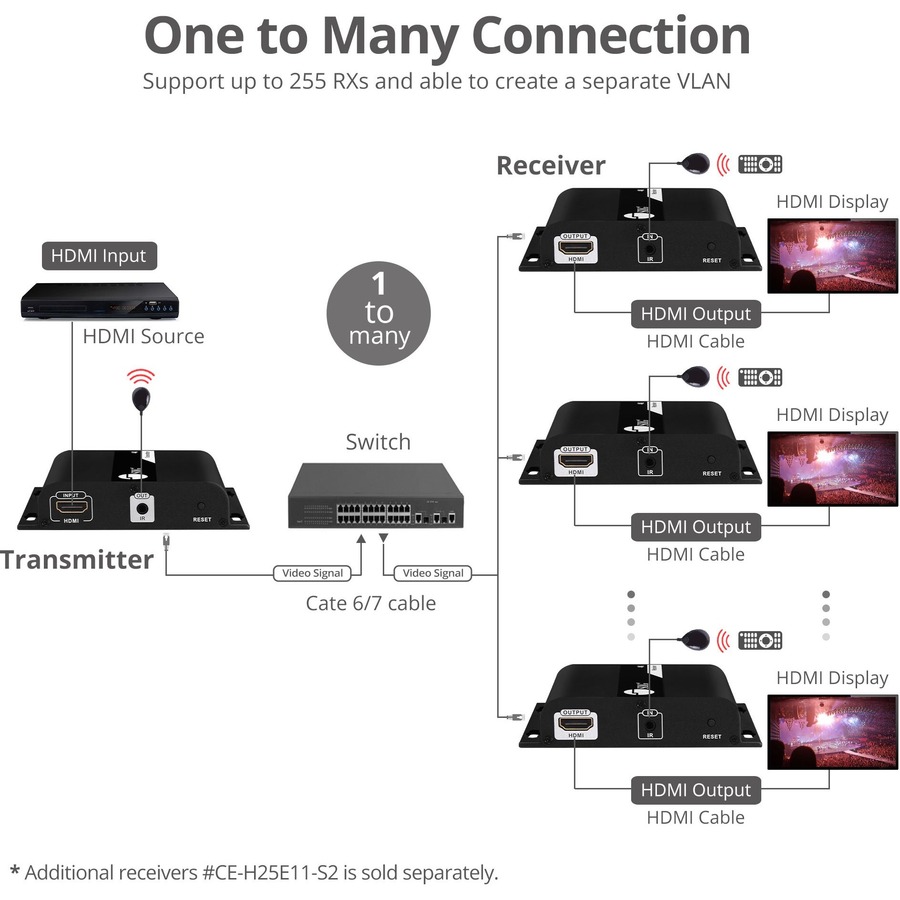

Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 255 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. *Additional Receivers (CE-H25E11-S2) are sold separately
One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable

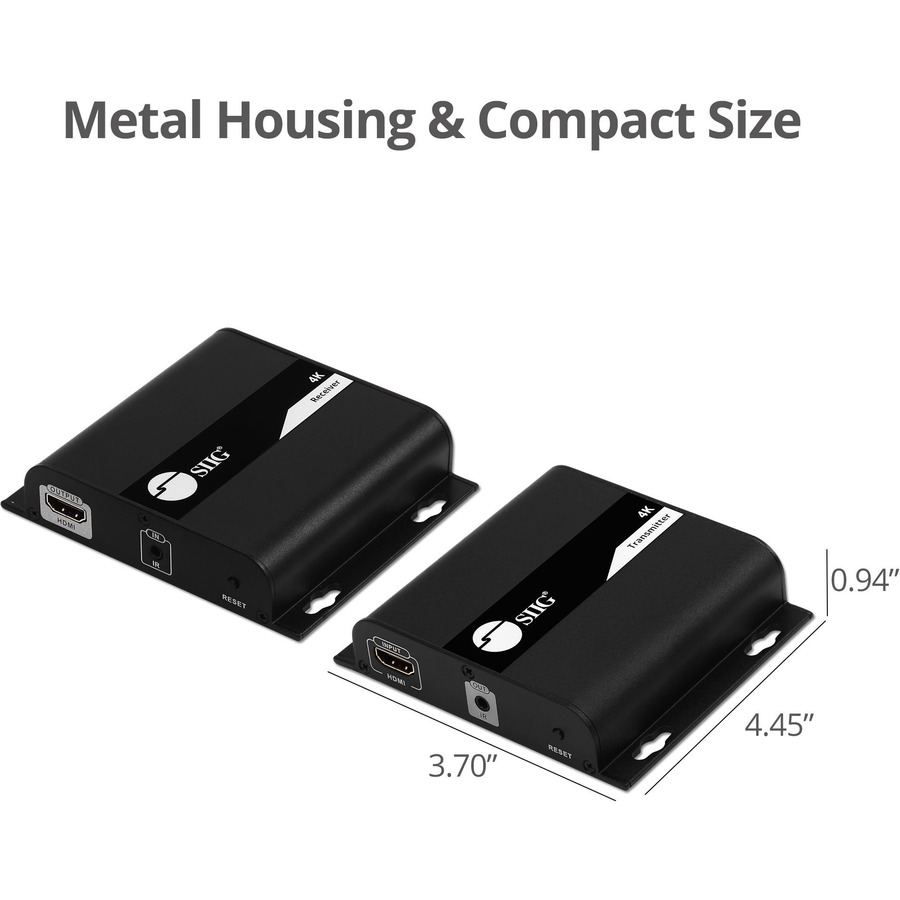

High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H25D11-S2
Brand Name
SIIG
Product Name
HDMI 4K30Hz HDbitT over IP Extender - 120m
Product Type
Video Extender Transmitter/Receiver
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 7
Physical Characteristics
Product Color
Black
Transmitter Height
0.93"
Transmitter Width
4.22"
Transmitter Depth
3.70"
Receiver Height
0.93"
Receiver Width
4.22"
Receiver Depth
3.70"
Form Factor
Surface-mountable
Transmitter Weight (Approximate)
5.92 oz
Receiver Weight (Approximate)
5.92 oz
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
393.70 ft
Video
Graphics Modes
4K
Warranty
Limited Warranty
2 Year
Miscellaneous

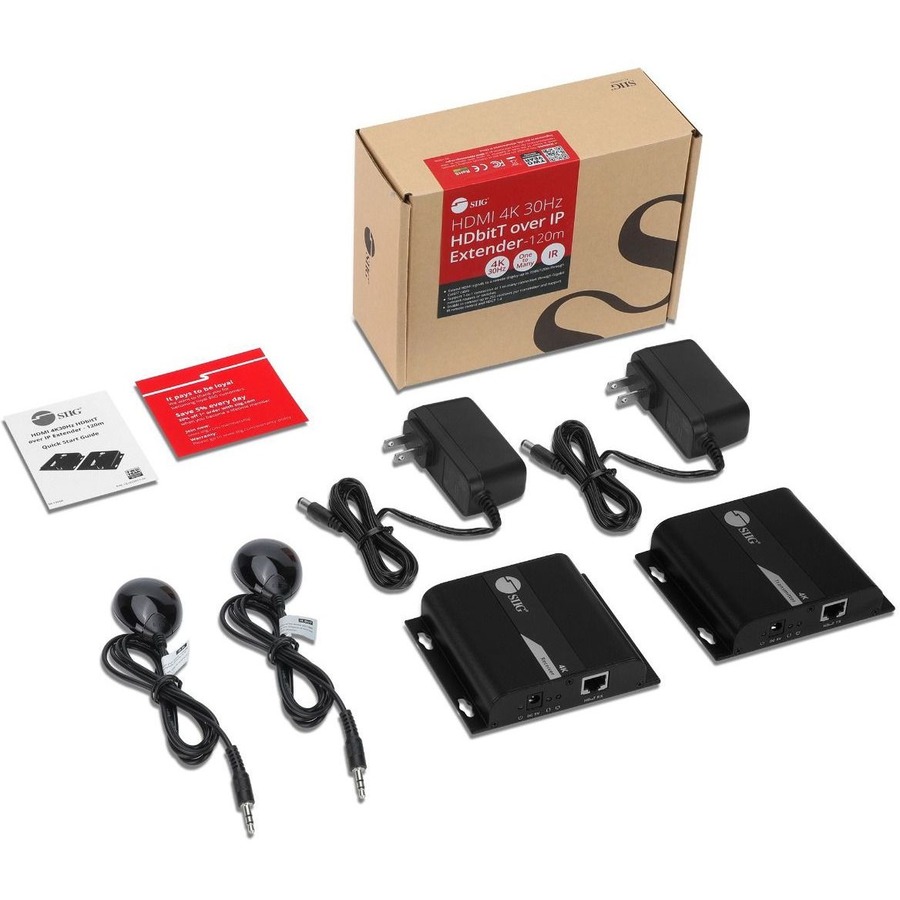

Package Contents
1 x Transmitter
1 x Receiver
2 x Power Adapter
IR Blaster extension cable & IR Receiver Extension Cable
