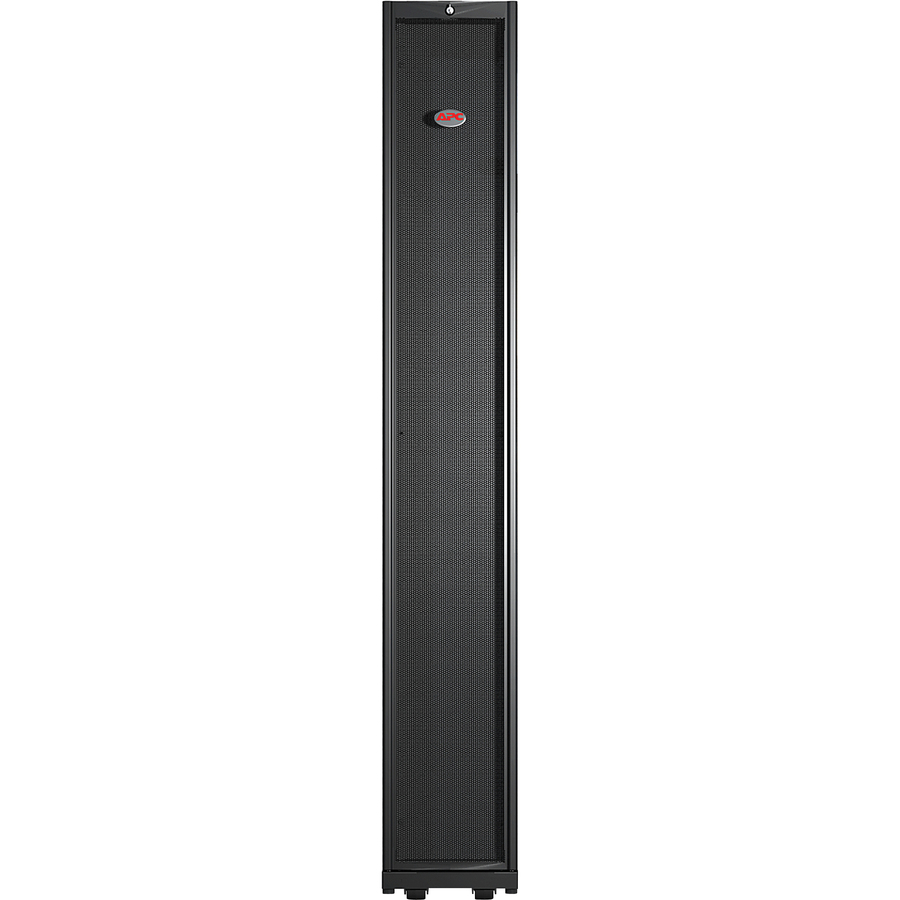

APC by Schneider Electric PDPM100SC 1-Outlet 100kW PDU
Hardwired - 1 x Hardwired - 100 kW - Tower
SKU
Category
PDUs
MSRP$9,325.00
$8,299.25
Save 11%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
PDUs
Overview
Modular Power Distribution mitigates the need to predict the future requirements and configurations of your data center. This visionary power distribution system is agile enough to match the needs of your data center today and enable rapid expansion or reconfiguration in the future. Power management is simplified by output metering, branch current/circuit monitoring and auto-detection by the InfraStruXure suite of management options. When demand rises and expansion becomes necessary, there is no need to schedule downtime to add a breaker, as modules (including circuit breaker, power cord, and power connection) simply plug into a touch-safe backplane. The factory-assembled modules can be installed in mere minutes. This eliminates the need for risky hot work and shields users from dangerous amperage. There are multiple power ratings and power cord lengths for low to high power, guaranteeing compatibility and quick, easy, and convenient installation.
Warranty
Limited Warranty: 1 Year
Highlights
With PDUs decisions for load balancing and minimizing extra cost can be managed
Hardwired receptacle type to ensure maximum productivity with added feasibility
Modular design for better usability and increased efficiency
Hardwired plug/connector type for efficient connectivity and feasible power output
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
PDPM100SC
Brand Name
APC by Schneider Electric
Product Model
PDPM100SC
Product Name
PDPM100SC 1-Outlet 100kW PDU
Product Type
PDU
Physical Characteristics
Form Factor
Tower
Height
78.9"
Width
11.8"
Depth
42.1"
Weight (Approximate)
303.60 lb
Power Description
Input Voltage Range
120 V AC - 600 V AC
Power Rating (Watt)
100 kW
Technical Information
Design
Modular
Plug/Connector Type
Hardwired
Receptacle Type
Hardwired
Receptacle Detail
1 x Hardwired
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
PDPM100SC 1-Outlet 100kW PDU
Installation Guide
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS)
