1U Rack-mountable - 3 Minute Stand-by - 120 V AC Input - 100 V AC, 120 V AC, 127 V AC Output - 5 x NEMA 5-15R
MSRP$1,591.00
$1,463.72
Save 8%In stock: 29
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1440W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output, unity (1.0) power factor, and zero transfer time between on-line and battery modes, the SmartOnline® SU1500LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely

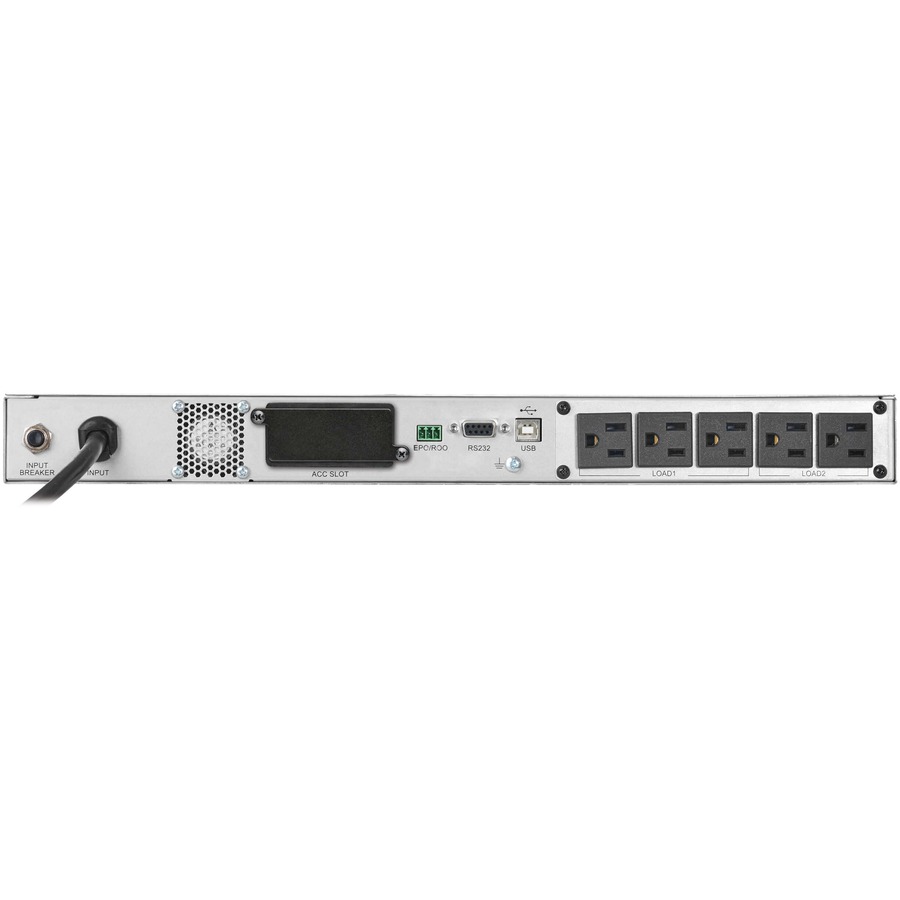

Five NEMA 5-15R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for servers, switches, phone systems, kiosks, high-end engineering and professional A/V computer systems in small-to-mid-size computer rooms, network closets and other applications where rack space is limited.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (720W) and three minutes at full load (1440W), keeping protected equipment operational through power failures. The advanced battery management system with temperature-compensated charging extends battery life.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

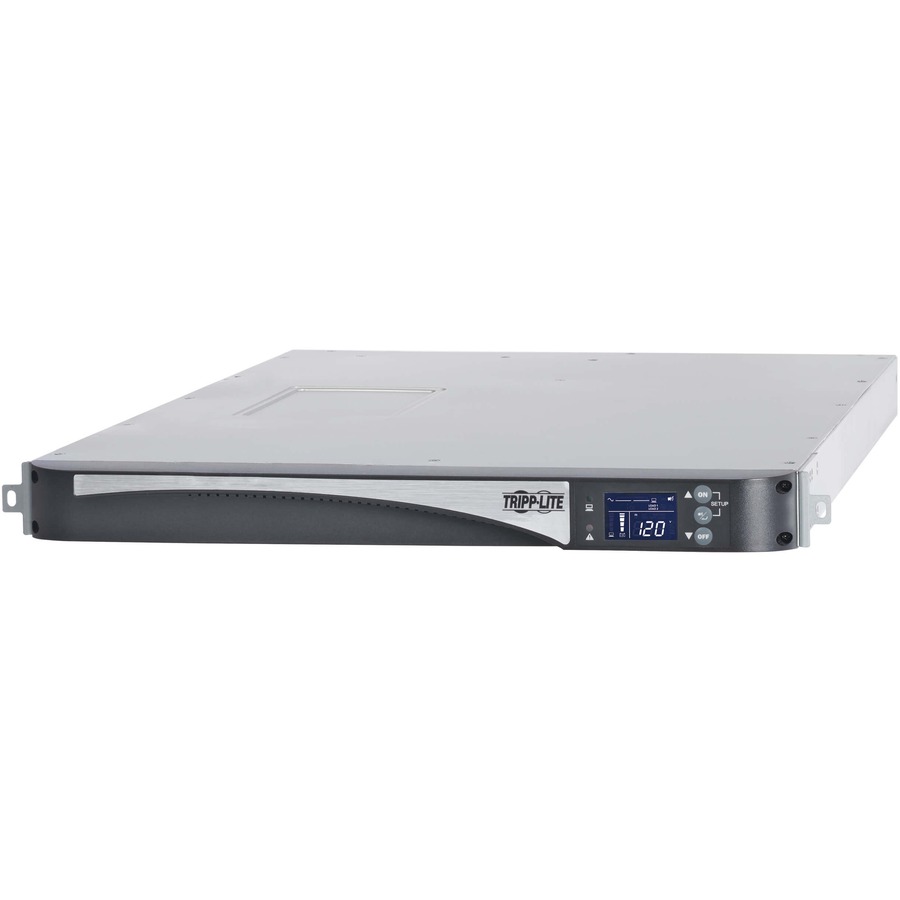

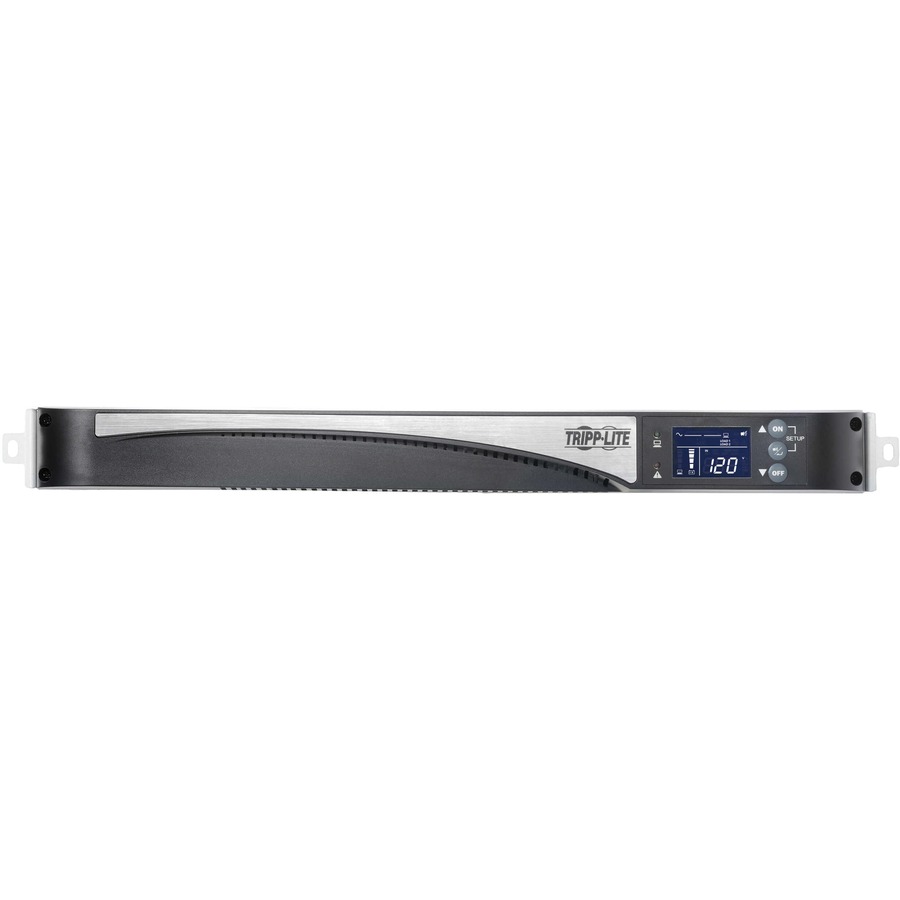

The front-panel LCD features detailed UPS and site power status and operating data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Battery Information | |
|---|---|
| DC System Voltage | 48 V DC |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED Indicators: AC Output Status (green) Shutdown / Fault condition (red) |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Sound Emission (A-Weighted) | 65 dB(A) |
| Thermal Dissipation | 234.42 W |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU1500LCD1U |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU1500LCD1U |
| Product Name | SmartOnline SU1500LCD1U 1500VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP/Web |
| Alarm | Power Failure, UPS StartUp, Low Battery, Overload, UPS Fault |
| Physical Characteristics | |
| Height | 1.73" |
| Width | 17.32" |
| Depth | 27.95" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 45.19 lb |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1440 W |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC, 120 V AC, 127 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 5 x NEMA 5-15R |
| Dataline Protection | RS-232 |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Network Equipment, Computer Room, Server, Network Closet, Switch, Phone, Kiosk, High-end System |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
