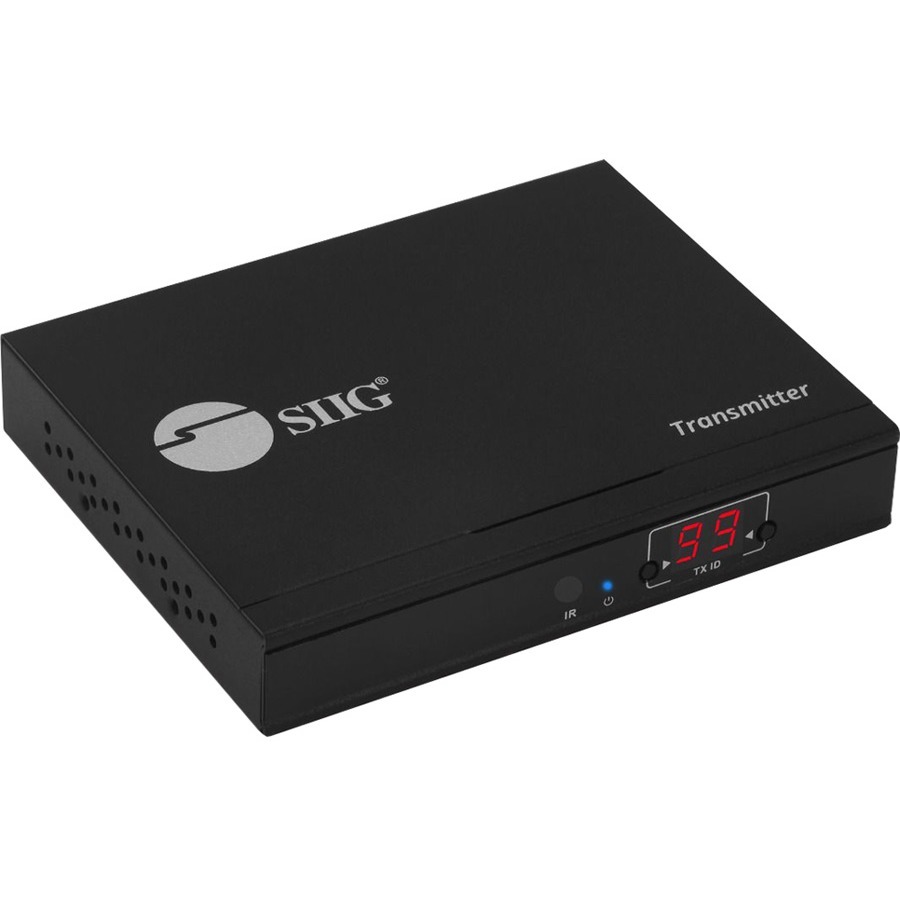

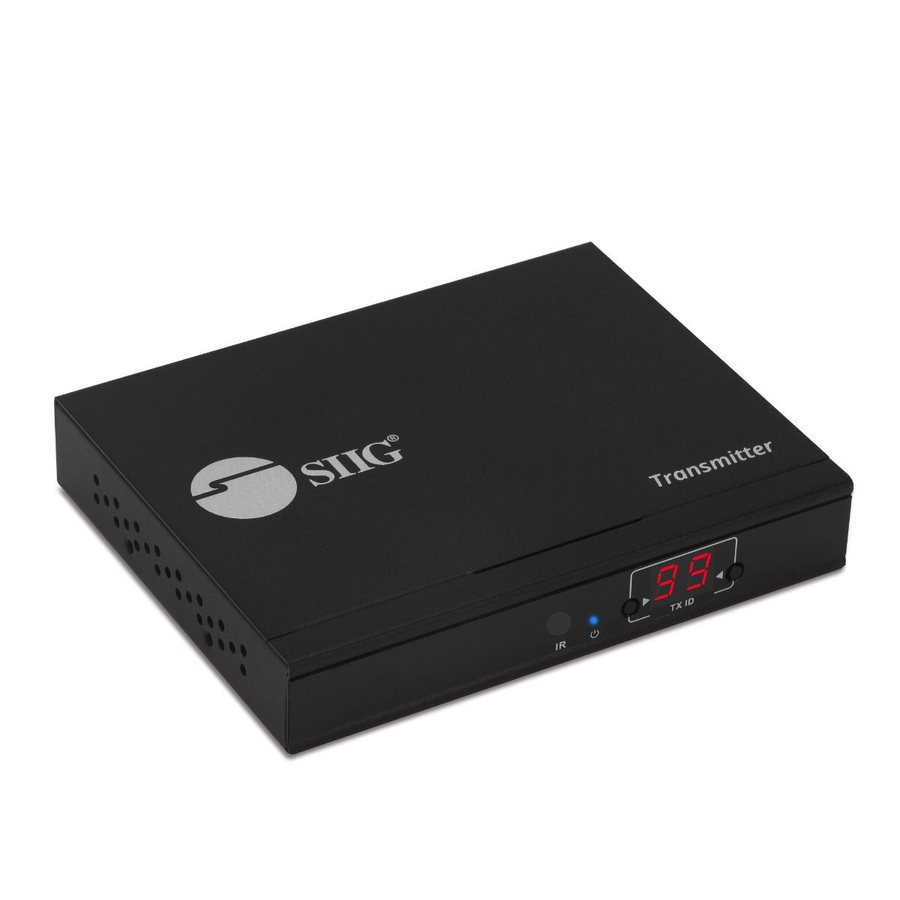

SIIG HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Encoder (TX)
120M HDMI Over IP Network for Cat5e/6 - One to Many/Many to Many - Multi-casting connection - HDMI over HDbitT - Support distance up to 394ft (120M) - Works with IGMP Network switch - Allows up to 256 total units - Resolution up to 4K60Hz - HDMI loopout/HDCP 2.2/IR pass-through/RS-232 Control/LED digital channel buttons or Remote control - Metal housing - 2 years warranty - Work for Decoder (RX) (CE-H25C11-S1)
- SKU
- CE-H25B11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$399.99
$368.93
Save 8%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H25B11-S1
- Category
- Audio & Video Consoles/Extenders
Overview
Receives 4K HDMI signals from a source device and extends the signal through economical Cat5e/6/7 cabling to an HDMI display device up to 120 meters using advanced HDBitT technology, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Decoder (RX)(part # CE-H25C11-S1) sold separately

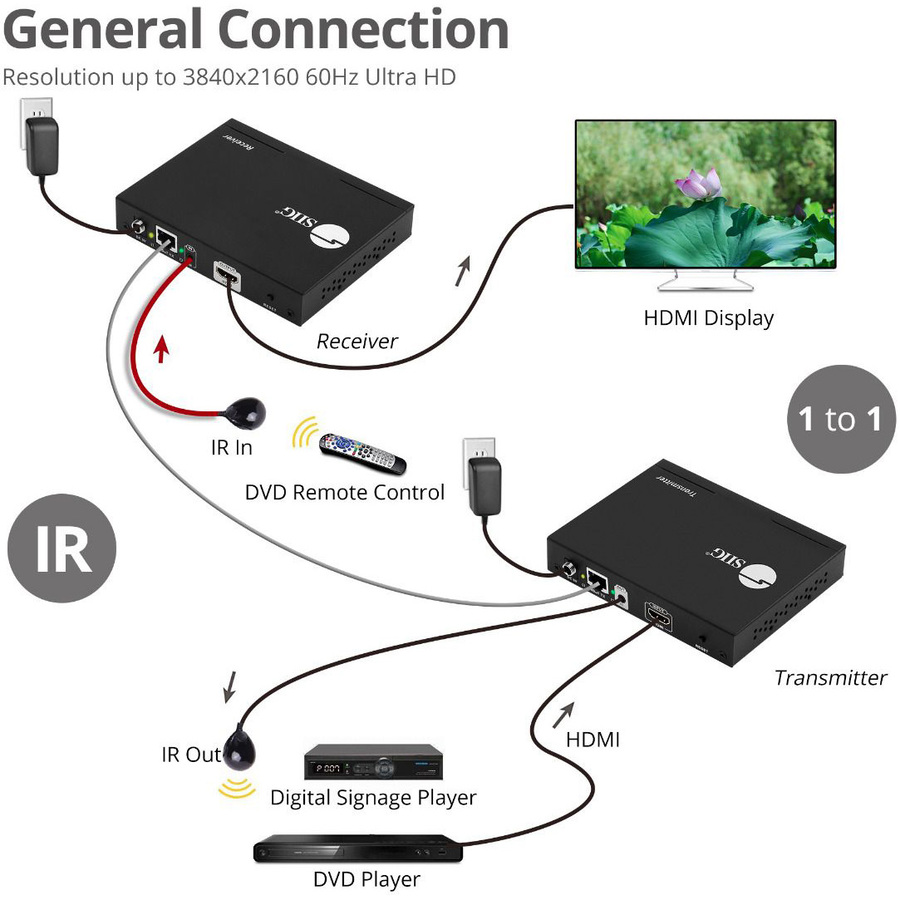

• Transmits 4K HDMI signals with stereo audio to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Decoder (RX)(part # CE-H25C11-S1) sold separately.
• Note : A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e

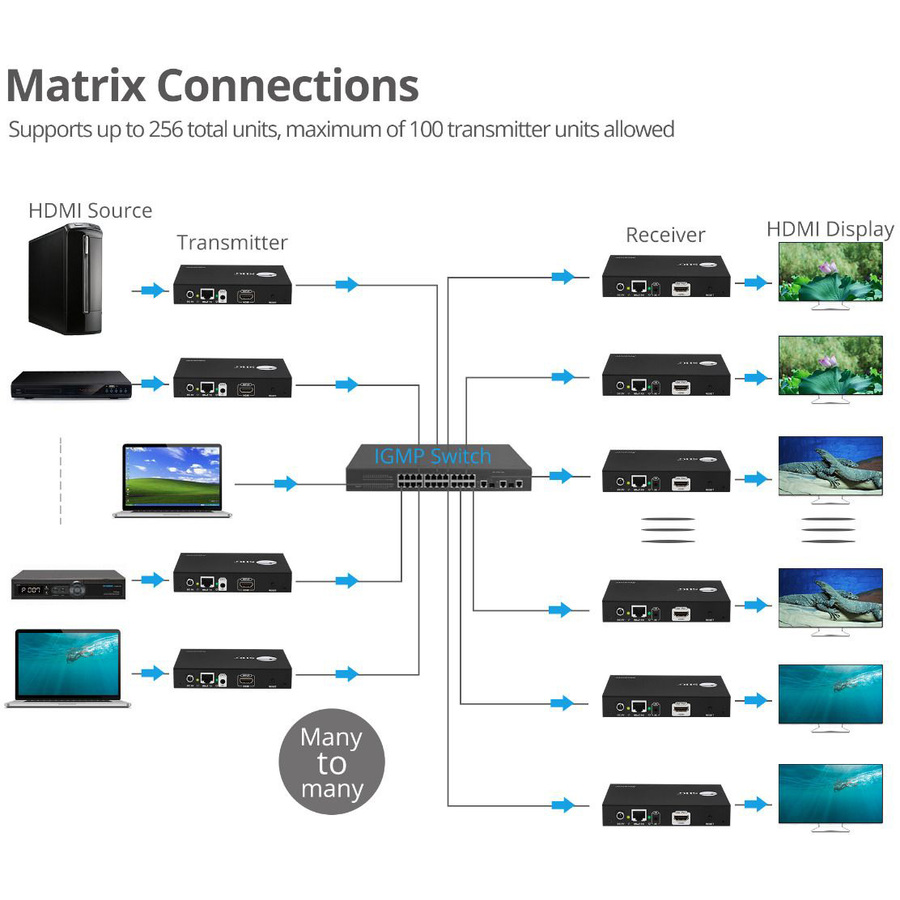

• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional decoder (RX)units (part# CE-H25C11-S1) sold separately, and Matrix Kits (part # CE-H25A11-S1) sold separately.
• Note : Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
• Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images
• IR pass back function to control the source device from RX location
• Computer control software to select and switch between source devices (Matrix only)
• HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
Highlights
- Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
- HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 1 input devices supported for maximum productive usability
- 393.70 ft maximum operating distance for reliable coverage and maximum portability
- 4K graphics mode provides optimal video output with remarkable picture clarity
Specifications

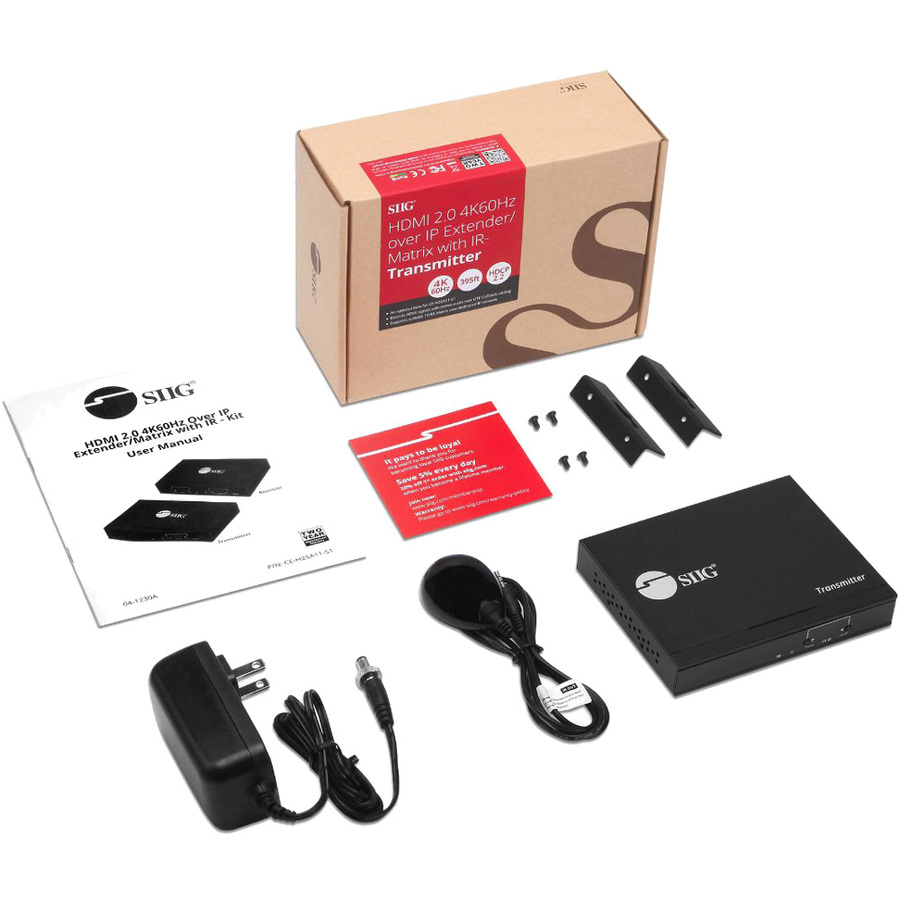

| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | CE-H25B11-S1 |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Transmitter |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Twisted Pair Cable Standard | Category 7 |
| Maximum Operating Distance | 393.70 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |

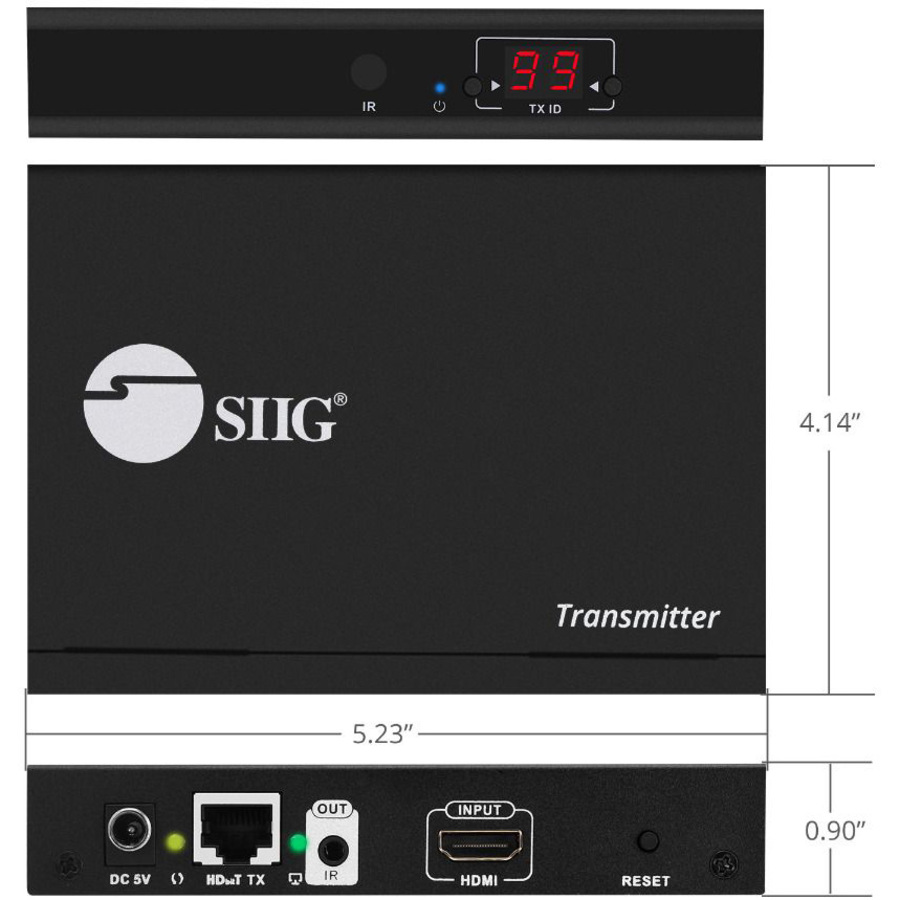

| Transmitter Height | 1.18" |
| Transmitter Width | 4.33" |
| Transmitter Depth | 5.28" |
| Transmitter Weight (Approximate) | 11.52 oz |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
