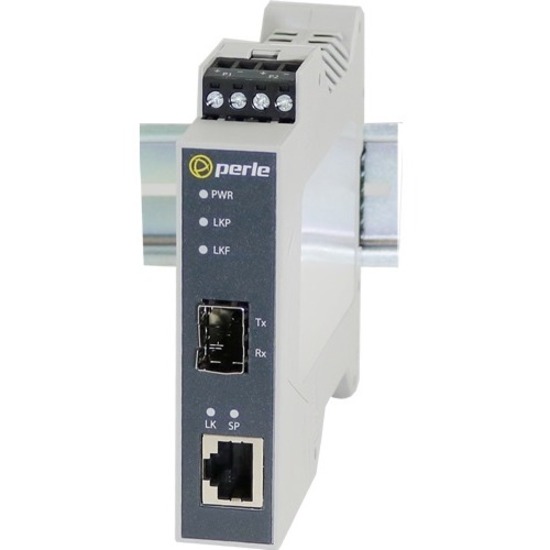

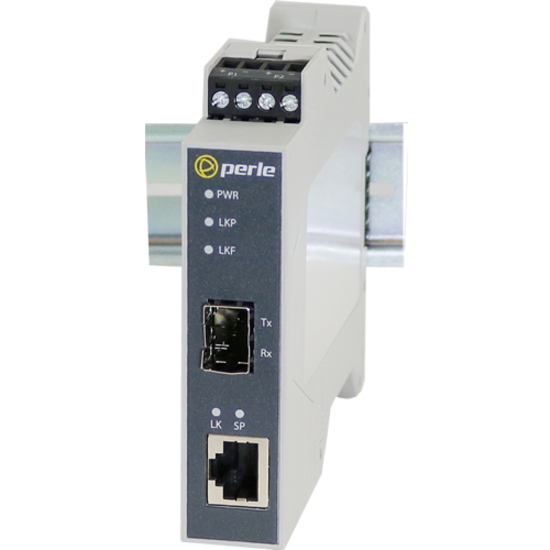

Perle SR-1110-SFP Transceiver/Media Converter
1 x Network (RJ-45) - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X, 100Base-X - 0.10 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - AC Adapter - Rail-mountable
- SKU
- 05091960
- Category
- Transceivers/Media Converters
MSRP$449.00
$346.82
Save 23%Back ordered — ships when restocked.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 05091960
- Category
- Transceivers/Media Converters
Overview
The Perle SR-1110-SFP DIN Rail Media Converter transparently connects UTP copper to fiber. A pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. This rate converting Media Converter provides an economical path to:
• extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over gigabit fiber
• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
• extend the distance between two copper-based devices or networks
• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
An SR-1110-SFP Media Converter is also available with support for -40C to +75C (-40F to +167F) extended operating temperatures.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make the SR-1110-SFP Rate Converting Media Converter the smart choice for IT professionals.
Highlights
- 10/100/1000Base-T to 100Base-X or 1000Base-X
- Connect 10/100 devices to Fast Ethernet or Gigabit backbone
- Link copper to multimode or single mode fiber
- Empty slot for Cisco and other industry standard SFPs
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | 05091960 |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 4.23 oz |
| Form Factor | Rail-mountable |
| Manufacturer | Perle Systems, Inc |
| Product Model | SR-1110-SFP |
| Product Name | SR-1110-SFP Transceiver/Media Converter |
| Network Technology | 10/100/1000Base-T, 1000Base-X, 100Base-X |
| Brand Name | Perle |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | Taiwan |
| Height | 0.9" |
| Width | 4.5" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet, Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
