SKU
05090750
Category
Transceivers/Media Converters
Overview
The S-1110-XT Industrial Temperature Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber optic cable. The S-1110-XT Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C) . Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
Warranty
Limited Warranty: Lifetime
Highlights
With Twisted Pair cable, get the desired data transfer rate up to a required distance
Connect different types of media within a network with this single port
With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
The Rail-mountable provides convenient installation
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
05090750
Brand Name
Perle
Product Model
S-1110-SFP-XT
Product Name

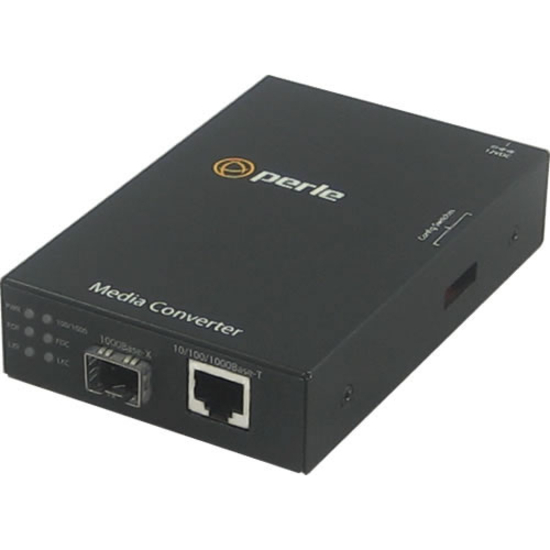

S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter
Product Type
Transceiver/Media Converter
I/O Expansions
Expansion Slot Type
SFP
Number of SFP Slots
1
Interfaces/Ports
Total Number of Ports
1
Network (RJ-45)
Yes
DVI
No
USB
No
Management Port
No
Number of Network (RJ-45) Ports
1
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Maximum Distance Supported
0.10 km
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Physical Characteristics
Form Factor
Rail-mountable, Rack-mountable, Wall Mountable
Height
1"
Width
3.1"
Depth
4.7"
Weight (Approximate)
11.20 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
