568B, RJ45 Ethernet"
MSRP$804.82
$367.86
Save 54%In stock: 320
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

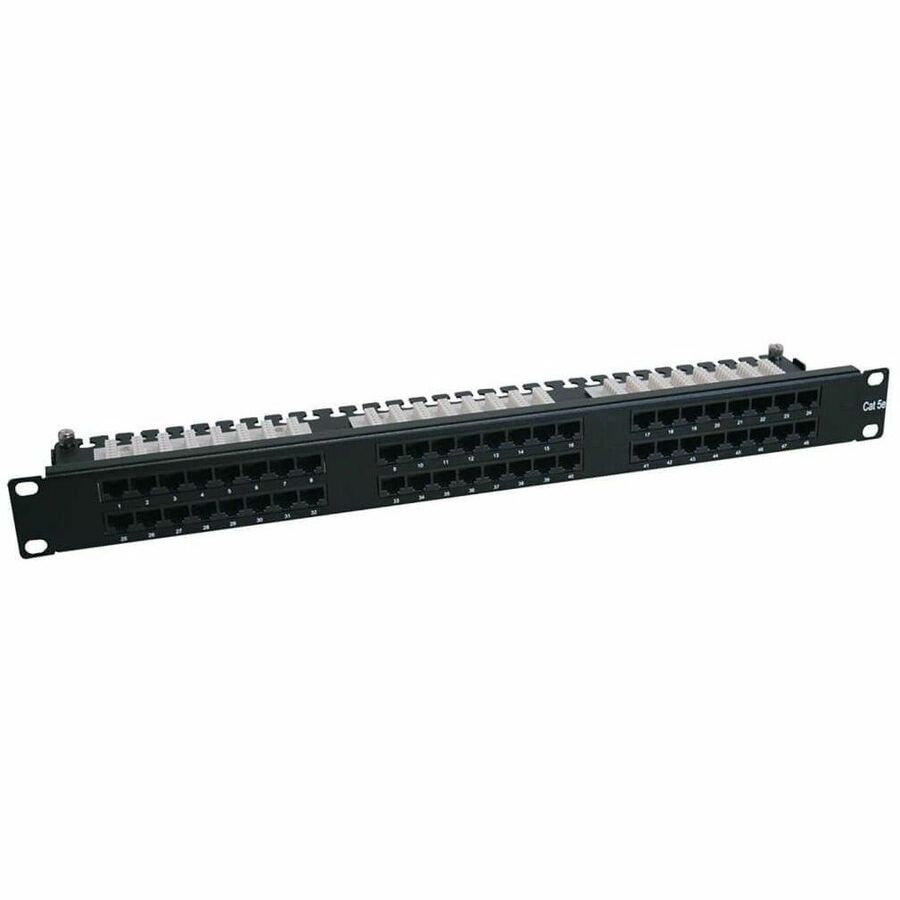

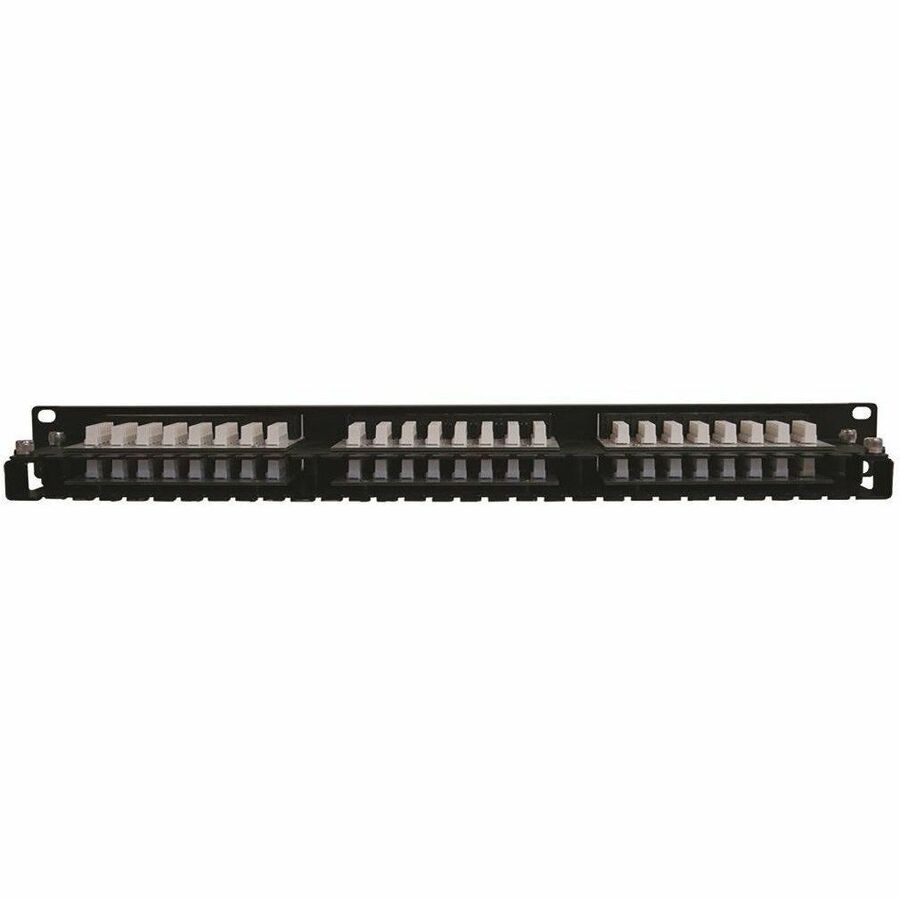

Tripp Lite's 1U, 48port, Cat6 High Density Patch panel frees up valuable rack real estate by condensing a typical 2U 48 port patch panel into 1U of space. The unique design allows for easy punch down termination. Simply unscrew 4 slotted thumbscrews to remove the "upper deck" punch down array. Punch down the "lower deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy Duty 14GA cold rolled steel construction. 110 connectors are color coded for either 568A or 568B wiring.
More from the Manufacturer
Easily Patch Cables for Improved Performance and Efficiency with This 1U, 12-Port, Cat6 Patch Panel
The N252-048-1U frees up valuable rack space by condensing a typical 2U 48-port patch panel into 1U of space. Its unique, all-metal design features a removable upper deck for easy punchdown termination and color-coded couplers for both EIA/TIA 568A and 568B installations. An integrated wire management loom keeps cables tidy and easy to route. For peace of mind, the N252-048-1U comes with a lifetime warranty and RoHS-compliant design.
Ideal Solution for Easily Patching Cables
With 48 color-coded RJ45 ports, a removable upper deck and built-in wire management loom, the N252-048-1U makes patching cables in high-density IT environments simple.
Quick and Easy Installation

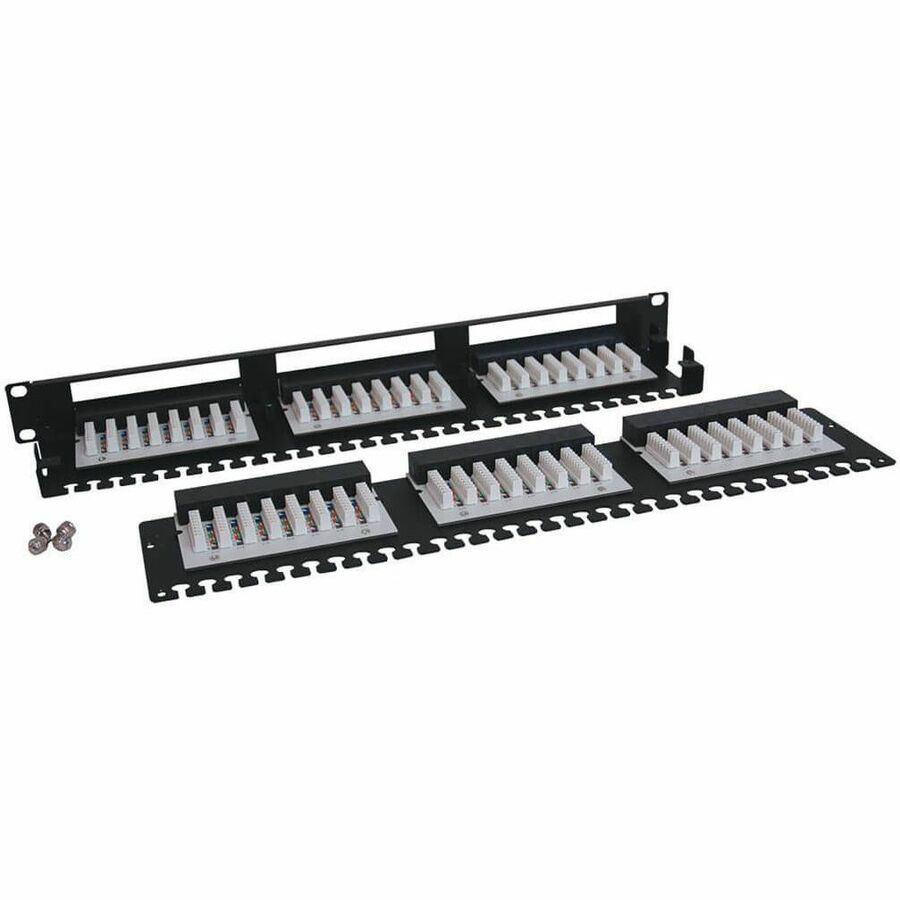

The N252-048-1U ships fully assembled for quick and easy installation. Included mounting hardware supports 1U installation in standard 19-inch rack enclosures. Its unique design allows for easy punchdown termination; simply unscrew 4 slotted thumbscrews to remove the upper deck and punch down the lower deck first. Then replace the upper deck and punch it down.
Tripp Lite N252-048-1U Product Summary:
Spacesaving CAT6 Rated 48-port 1U 110 type Patch panel
Removable"upper-deck" for easy punch down termination
Built-inwire management loom
Colorcoded for 568A/568B wiring
HeavyDuty 14ga cold rolled steel construction
Mountsin standard 19" Racks or Cabinets
Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra. Curabitur placerat nibh eu lacinia sagittis. Praesent ut laoreet lectus. Morbi lacinia nec mi non dignissim. Vivamus arcu massa, iaculis sed vehicula a, suscipit id leo. Aenean at imperdiet arcu. Pellentesque in elit risus. Phasellus interdum rutrum sem, non efficitur urna tristique quis.
Limited Warranty: Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N252-048-1U |
| Brand Name | Tripp Lite series |
| Product Model | N252-048-1U |
| Product Name | N252-048-1U 48-Port CAT6 Network Patch Panel |
| Product Type | Network Patch Panel |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Compatible Rack Unit | 1U |
| Height | 1.8" |
| Width | 19" |
| Depth | 4" |
| Weight (Approximate) | 3.60 lb |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Total Number of Ports | 48 |
| Number of Network (RJ-45) Ports | 48 |
| Number of RJ-11 Ports | 48 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
