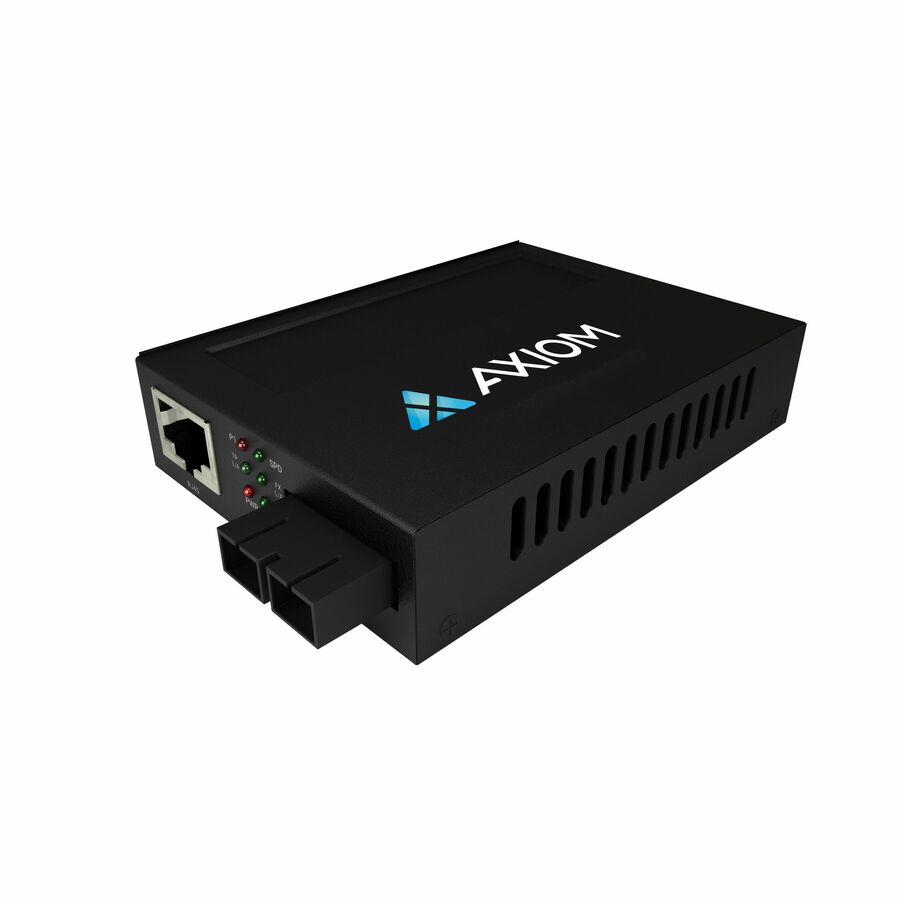

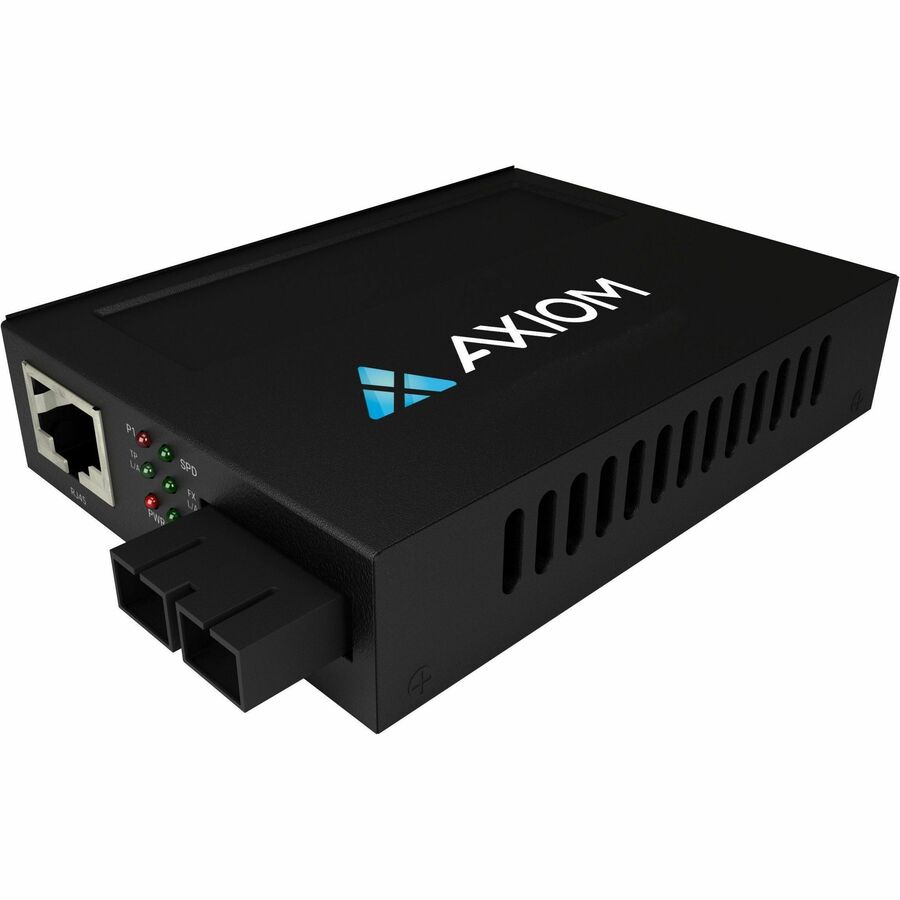

Axiom 1000BASE-T to 1000BASE-LX POE+ Media Converter
Axiom Memory Solutions

Axiom 1000BASE-T to 1000BASE-LX POE+ Media Converter

Axiom 1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter -SMF, SC, 40km, 1310nm

SKU
MCP32-T2-S3S40-AX
Category
Transceivers/Media Converters

MSRP$312.31

$247.13

Save 21%

In stock: 1

Get a quote

Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MCP32-T2-S3S40-AX
Category
Transceivers/Media Converters

Overview

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:

• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion

• IEEE802.3at PoE+ PSE compatible

• Built-in AC/DC power supply

• Over-current protection

• DIP switch to set different configurations

• LFP (Link Fault Pass-through) support

Highlights

  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With 1000Base-LX technology get up to 1000Mbps data transfer rate over optical fiber cable

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part NumberMCP32-T2-S3S40-AX
Maximum Distance Supported40 km
Power SourceAC/DC
Limited Warranty3 Year
ManufacturerAxiom Memory Solutions
Product Name1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter -SMF, SC, 40km, 1310nm
Network Technology1000Base-LX, 10/100/1000Base-T, 1000Base-X, 100Base-FX, 10/100/1000Base-TX, 1000Base-FX
Power Consumption60 W
Brand NameAxiom
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of PoE+ (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
PoE Port TypePSE
Fiber Optic Cable Wavelength1310 nm
