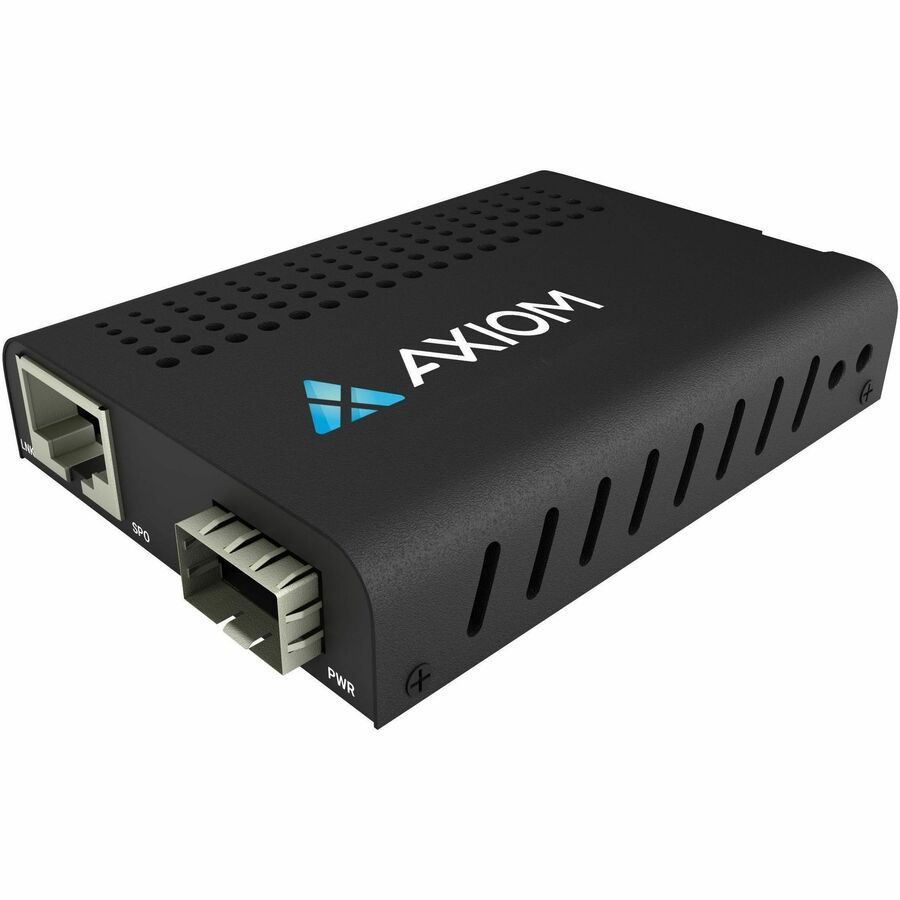

Axiom 1000BASE-T to 1000BASE-BX Simplex LC Fiber Media
Axiom Mini 1Gbs RJ45 to 1000BASE-BXU Media Converter - SMF, LC, 10km, TX-1310NM
- SKU
- MC03-SBXUL10-AX
- Category
- Transceivers/Media Converters
MSRP$160.00
$126.60
Save 21%In stock: 1
Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MC03-SBXUL10-AX
- Category
- Transceivers/Media Converters
Overview
The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function
Highlights
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | MC03-SBXUL10-AX |
| Maximum Distance Supported | 10 km |
| Manufacturer | Axiom Memory Solutions |
| Product Name | 1000BASE-T to 1000BASE-BX Simplex LC Fiber Media |
| Network Technology | 1000Base-T, 1000Base-BX-U |
| Brand Name | Axiom |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| Fiber Optic Cable Wavelength | 1310 nm |
