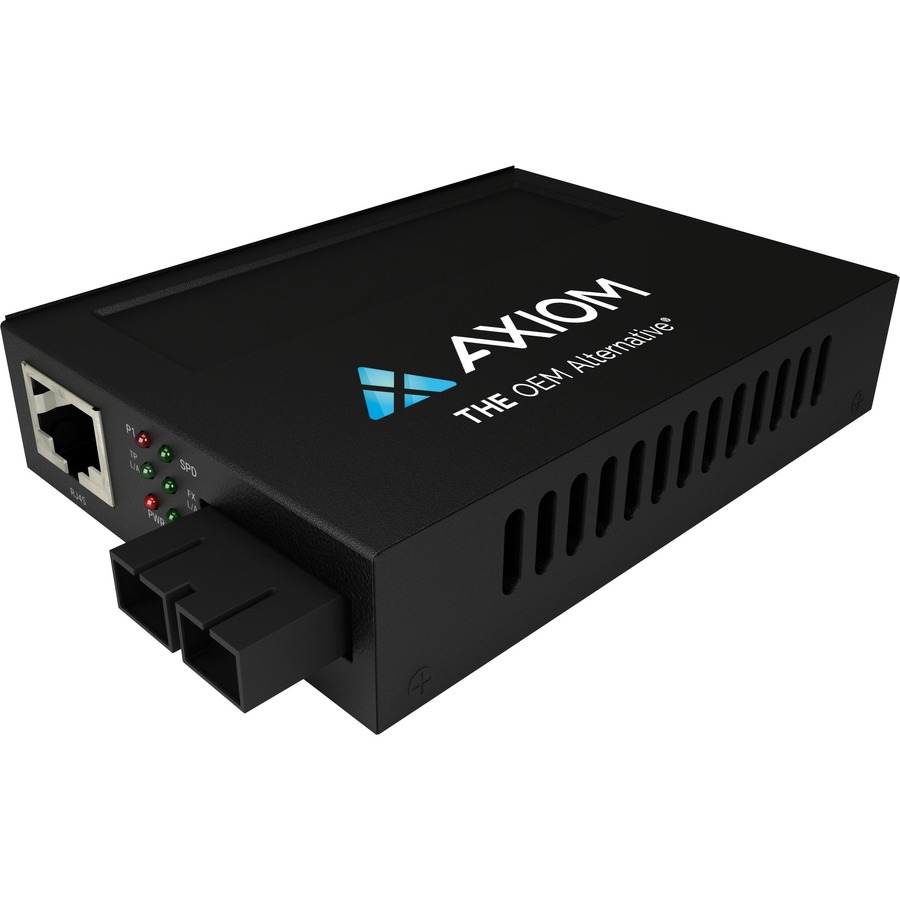

Axiom 1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter - SMF, SC, 10km, 1310nm
Axiom Memory Solutions

Axiom 1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter - SMF, SC, 10km, 1310nm

Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - 10 km - AC

SKU
MCP32-T2-S3S10-AX
Category
Transceivers/Media Converters

MSRP$210.77

$166.78

Save 21%

In stock: 1

Get a quote

Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MCP32-T2-S3S10-AX
Category
Transceivers/Media Converters

Overview

Features

The Axiom POE (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:

• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion

• IEEE802.3af PoE PSE compatible

• Built-in AC/DC power supply

• Over-current protection

• DIP switch to set different configurations

• LFP (Link Fault Pass-through) support

Highlights

  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Expand your network capabilities with this 2 transceiver/media converter
  • With 1000Base-LX technology get up to 1000Mbps data transfer rate over optical fiber cable

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part NumberMCP32-T2-S3S10-AX
Maximum Distance Supported10 km
Power SourceAC
Limited Warranty1 Year
ManufacturerAxiom Memory Solutions
Product Name1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter - SMF, SC, 10km, 1310nm
Network Technology1000Base-LX, 10/100/1000Base-T
Brand NameAxiom
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of PoE+ (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
PoE Port TypePSE
Fiber Optic Cable Wavelength1310 nm
