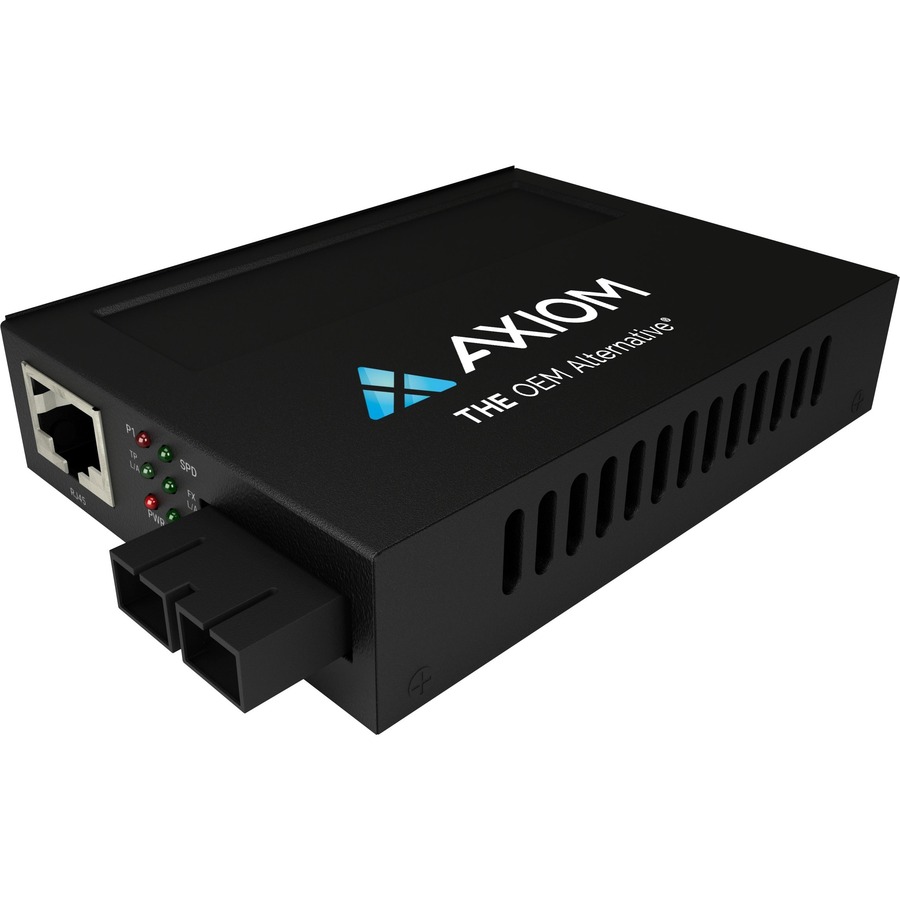

Axiom 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 2km, 1310nm
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - 2 km - AC
- SKU
- MCP32-T2-M3S2-AX
- Category
- Transceivers/Media Converters
MSRP$225.00
$177.74
Save 21%In stock: 1
Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCP32-T2-M3S2-AX
- Category
- Transceivers/Media Converters
Overview
Features
The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
• IEEE802.3at PoE+ PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support
Highlights
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capabilities with this 2 transceiver/media converter
- With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | MCP32-T2-M3S2-AX |
| Maximum Distance Supported | 2 km |
| Power Source | AC |
| Limited Warranty | 1 Year |
| Manufacturer | Axiom Memory Solutions |
| Product Name | 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 2km, 1310nm |
| Network Technology | 1000Base-SX, 10/100/1000Base-T |
| Brand Name | Axiom |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| PoE Port Type | PSE |
| Fiber Optic Cable Wavelength | 1310 nm |
