Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna
698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz - GPS, GLONASS, Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector
SKU
MA240.LBI.001
Category
Antennas
MSRP$118.03
$91.95
Save 22%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
MA240.LBI.001
Category
Antennas
Overview

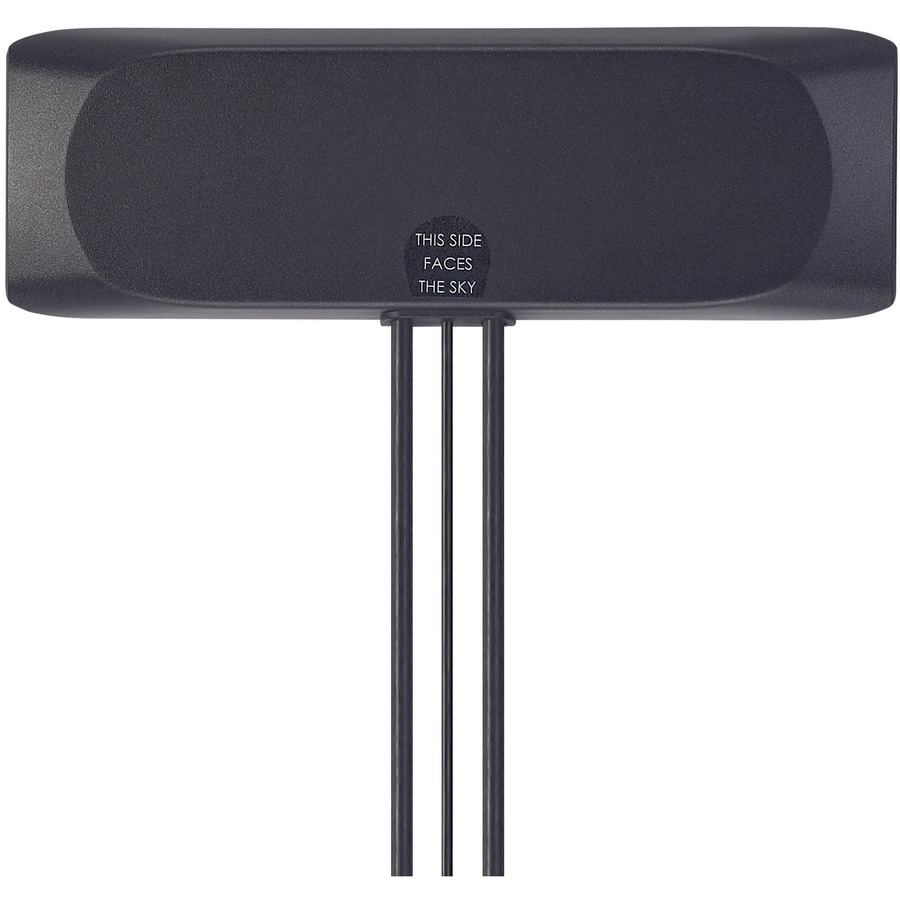

The MA.240 4G Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles.
Typical applications
- HD Video over LTE
- First Responder and Emergency Services
- Automotive Vehicle Tracking and Telematics
This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next generation location accuracy.
4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
Warranty
Limited Warranty: 1 Year
Highlights
IP67 Antenna

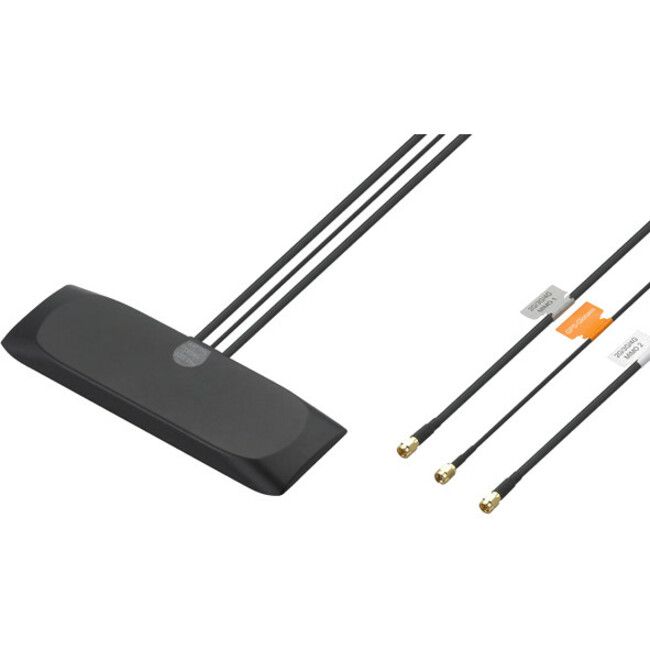

1* GPS-GLONASS-GALILEO: 2 meter RG-174
SMA(M)
2 * LTE: 2 meter Low loss NFC-200 SMA(M)ST
Dimensions: 205.8mm x 58mm x 12.4mm
RoHS Compliant
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
MA240.LBI.001
Brand Name
Taoglas
Product Line
Genesis
Product Model
MA240
Product Name
Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna
Packaged Quantity
1
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
Black
Height
0.49"
Width
2.28"
Depth
8.10"
Form Factor
Adhesive Mount
Weight (Approximate)
8.80 oz
Technical Information
Directivity
Omni-directional
Operating Frequency Range
698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz
