Range - UHF - 1574 MHz to 1610 MHz, 824 MHz to 960 MHz - 31 dB - GLONASS, Cellular Network, Outdoor, GPS, Vehicle - Black - Screw Mount - SMA Connector
SKU
Category
Antennas
$103.64
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 18 and Dec 23, then process your delivery right after.
Genuine Taoglas through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Antennas
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

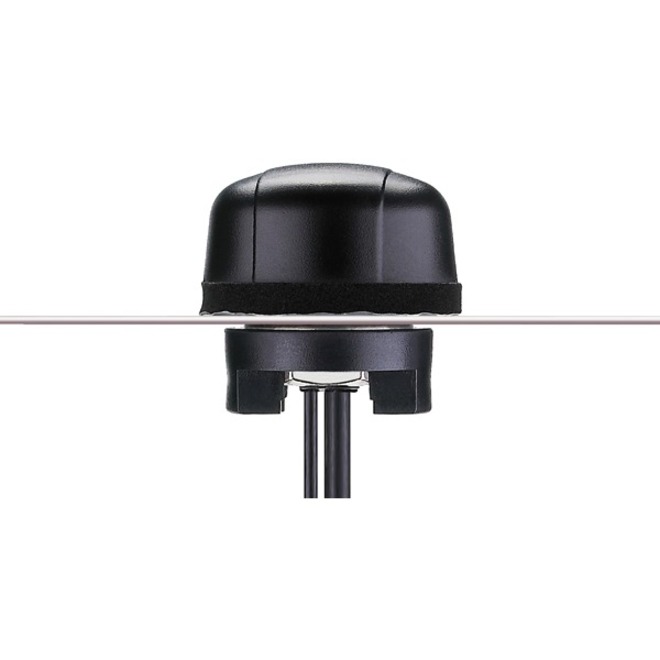

The MA106.C GPS/GLONASS/GALILEO and Cellular Combination Hercules Antenna is the newest upgraded model of Taoglas' popular Hercules series. It is a combination 2in1 high performance GPS/GLONASS/GALILEO and penta-band cellular antenna solution for the most reliable asset tracking and remote monitoring. The GPS/GLONASS/GALILEO antenna and LNA have been optimized to provide excellent performance.
The penta-band cellular antenna delivers high efficiency at all common 3G/2G bands worldwide, making it ideal for use on GSM, GPRS, and CDMA systems.
Durable UV and robust PC housing is resistant to vandalism and direct attack. At only 29 mm in height, it complies with the latest EU height restriction directives for roof-mounted objects, with a diameter of 49 mm. It is designed to be covert and not catch on tree branches.
The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside. A waterproof closed cell foam seal under the base adheres to the surface it is mounted on and can stretch to fit curved surfaces typical on vehicles, preventing water from penetrating any mounting hole.
Highlights
Low profile - Height 29 mm and Diameter 49mm
Heavy duty screw mount
UV and vandal resistant PC housing
Cellular -Penta Band Antenna
Cellular - 3 Meters Low Loss CFD200 SMA(M)
GPS/GALILEO -1575.42MHz - Two Stage 27dB+ LNA
GLONASS - 1602MHz - Two Stage 27dB+ LNA
GPS/GLONASS/GALILEO - 3 Meters RG174 SMA(M)
IP67 & IP69K compliant
Cables and connectors are fully customizable
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
MA106.C.LB.001
Brand Name
Taoglas
Product Line
Hercules
Product Model
MA106
Product Name
Hercules MA106 2in1 GPS/GLONASS/GALILEO & 3G/2G Permanent Mount Antenna
