Taoglas Hercules MA104 2in1 GPS/GALILEO & 3G/2G Permanent Mount Antenna
824 MHz to 896 MHz, 880 MHz to 960 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 1880 MHz, 1920 MHz to 2170 MHz - 2 dB - Cellular Network, GPS, Outdoor - Black - Screw Mount - SMA Connector
SKU
MA104.C.AB.015
Category
Antennas
$77.44
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
MA104.C.AB.015
Category
Antennas
Overview

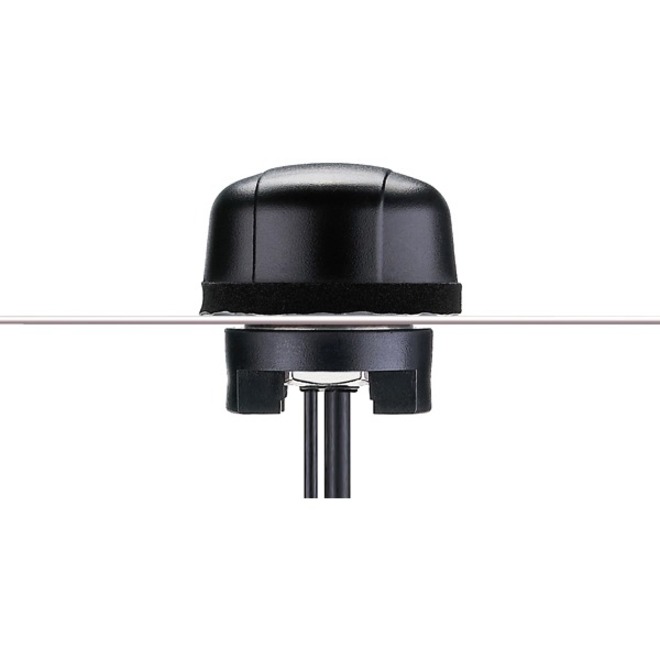

The MA.104.C GPS/GALILEO/Cellular Combination Hercules Antenna is a combination high performance GPS/GALILEO and penta-band cellular antenna solution for reliable asset tracking and remote monitoring. Durable UV and robust PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm.
It is designed to not catch on tree-branches.
The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside.
Highlights
Low profile - Height 29 mm and Diameter 49mm
Heavy duty screw mount
UV and vandal resistant PC housing
Cellular -Penta Band Antenna
850/900/1800/1900/2100/1575.42 MHz
GSM/GPRS/CDMA/EVDO/UMTS/HSPA/WCDMA
GPS/GALILEO - Two Stage 28dB+ LNA
IP67 & IP69K compliance
Standard is 3 metres RG174 SMA(M)
Cables and connectors are fully customizable
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
MA104.C.AB.015
Brand Name
Taoglas
Product Line
Hercules
Product Series
MA104
Product Name
Hercules MA104 2in1 GPS/GALILEO & 3G/2G Permanent Mount Antenna
Packaged Quantity
1
Product Type
Antenna
Package Type
Bulk
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
Black
Height
1.14"
Diameter
1.93"
Form Factor
Screw Mount
Weight (Approximate)
7.05 oz
Technical Information
Operating Frequency Range
824 MHz to 896 MHz, 880 MHz to 960 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 1880 MHz, 1920 MHz to 2170 MHz
