SKU
LMA100.A.BI.001
Category
Antennas
Overview

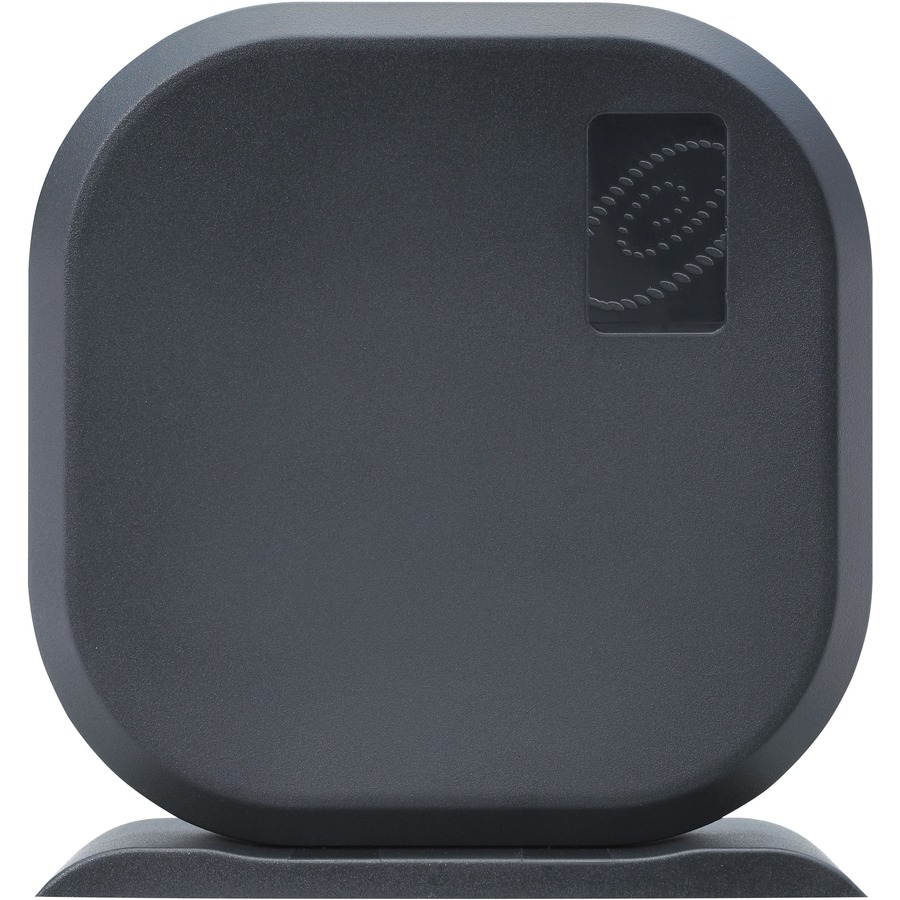

The Gemini LTE 4G MIMO 2X2 is a robust external antenna that is fully IP67 waterproof for use with all 4G/3G/2G MIMO cellular routers and Access points worldwide. It includes two embedded high efficiency LTE MIMO antennas. The antenna elements operate at all common and 4G LTE bands worldwide; 698-960MHz, 1710-2170MHz, 2490-2690MHz, which also include the 3G and 2G bands, meaning the antenna can also be used as fallback on 3G or 2G applications. High isolation and low ECC between the two embedded MIMO antennas prevents self-interference. Low loss cables are used to keep efficiency high over long cable lengths up to 5 meters.

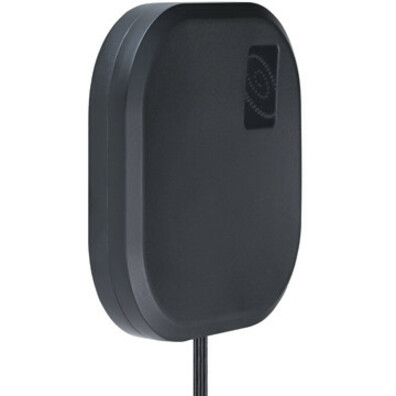

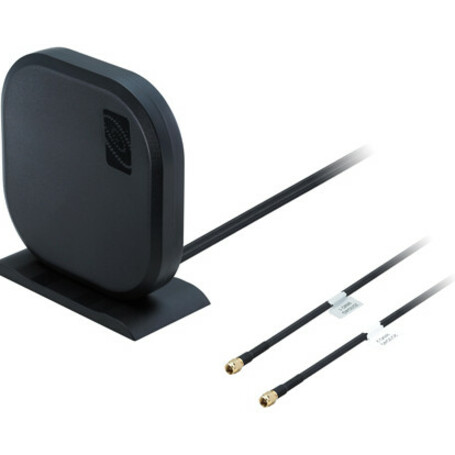

This unique antenna offers two methods for easy installation, both indoors and outdoors. A bracket on the back of the antenna enables easy wall installation, keeping your work area clean and spacious. The antenna can also be placed on a flat surface using the stand holder for easy and quick installation.
Typical Applications:
• -HD Real-time Streaming Video over LTE
• -Intelligent Transport Systems
• -Internet of Things (IoT market)
• -Digital Signage
• -HD Broadcast Systems
• -Wireless 4G LTE MIMO M2M devices with legacy 3G Functionality
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
Highlights
Best solution for 4G 2x2 Worldwide LTE MIMO applications
Covers fallback 3G/2G frequencies too
(HSPA/UMTS/WCDMA/GSM/GPRS)
698-960MHz,1710-2170MHz,2490-2690MHz
High Efficiency Indoor and Outdoor Antenna
Waterproof IP67
Wall Mount or Desktop Mount
Dimension: 164mm*164mm*36.5mm
2* Low Loss 1M CFD-200 Cables - SMA(M)
Cable and connector customizable
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
LMA100.A.BI.001
Brand Name
Taoglas
Product Line
Gemini
Product Name
Gemini LTE 4G MIMO 2x2 Antenna for Routers and Access Points
Packaged Quantity
1
Product Type
Antenna
Package Type
Bulk
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
Black
Height
1.44"
Width
6.46"
Depth
6.46"
Form Factor
Desktop/Wall
Weight (Approximate)
1.43 lb
Technical Information
Operating Frequency Range
698 MHz to 824 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz
Miscellaneous
Application/Usage
Wireless Router, Wireless Access Point, Cellular Network, Indoor, Outdoor
