698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 2800 MHz - Cellular Network, Wireless Data Network, GSM Intercom System - Black - Wall/Panel/Screw - Omni-directional - SMA Connector
SKU
G30.B.108111.WM
Category
Antennas
$41.78
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
G30.B.108111.WM
Category
Antennas
Overview

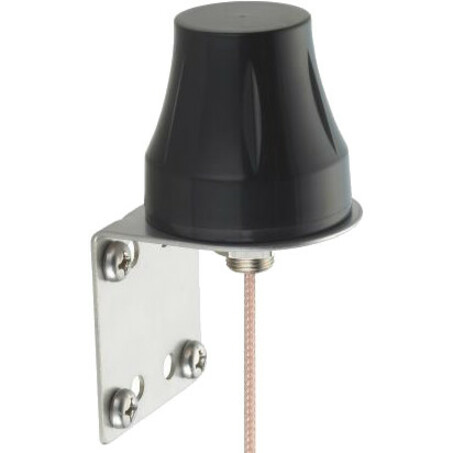

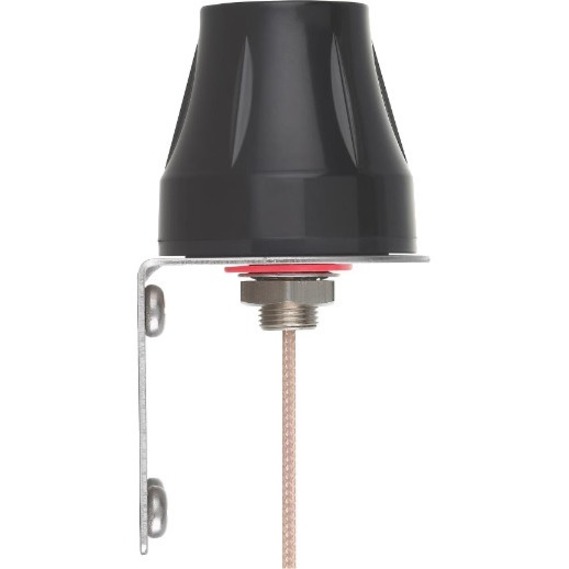

This G30.wm , wall mounted G30 Olympian antenna is a high performance screw mount wide - band cellular antenna with stainless steel L- bracket to allow it to be mounted on a wall or panel. Omni - directional high gain and high efficiency across all bands ensures constant reception and transmission. This is vital for today's high data bandwidth applications in video and mobile broadband.
Durable UV resistant ABS housing is resistant to vandalism and direct attack. At only 48mm in height it is small enough to mount unobtrusively in most locations . This ant enna is mounted on metal and plastic structures and is locked from the inside of the structure by a nut. Adhesive foam at the base provides a watertight seal to the mounting structure. High quality waterproof and corrosion resistant Teflon jacket RG316 is used for the cable.
Two of these G30 separated at distance from each other are ideal for the latest LTE MIMO spatial diversity applications.
Customized cable length and connectors are available. Taoglas recommend a minimum cable length of 70mm when used on a ground plane to achieve an efficiency of greater than 40% in the 900MHz band and greater than 60% in the 1800MHz band. For longer cable lengths and if 700MHz band is required, it is necessary to use the MA740 Pantheon for 2G/3G/4G or the MA 741 2g/3G/4G MIMO Pantheon.
Highlights
Heavy duty screw mount
UV and vandal resistant ABS housing and thread.
L- shaped bracket
IP67 compliant
Standard is 1M RG-316 SMA(M)
Cables and Connectors Customizable
RoHS Compliant
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
G30.B.108111.WM
Brand Name
Taoglas
Product Series
G30
Product Model
G30
Product Name
G30 Antenna
Packaged Quantity
1
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
Black
Height
1.89"
Diameter
1.97"
Form Factor
Wall/Panel/Screw
Weight (Approximate)
2.33 oz
Technical Information
Directivity
Omni-directional
Operating Frequency Range
698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 2800 MHz
Miscellaneous
Application/Usage
Cellular Network, Wireless Data Network, GSM Intercom System
