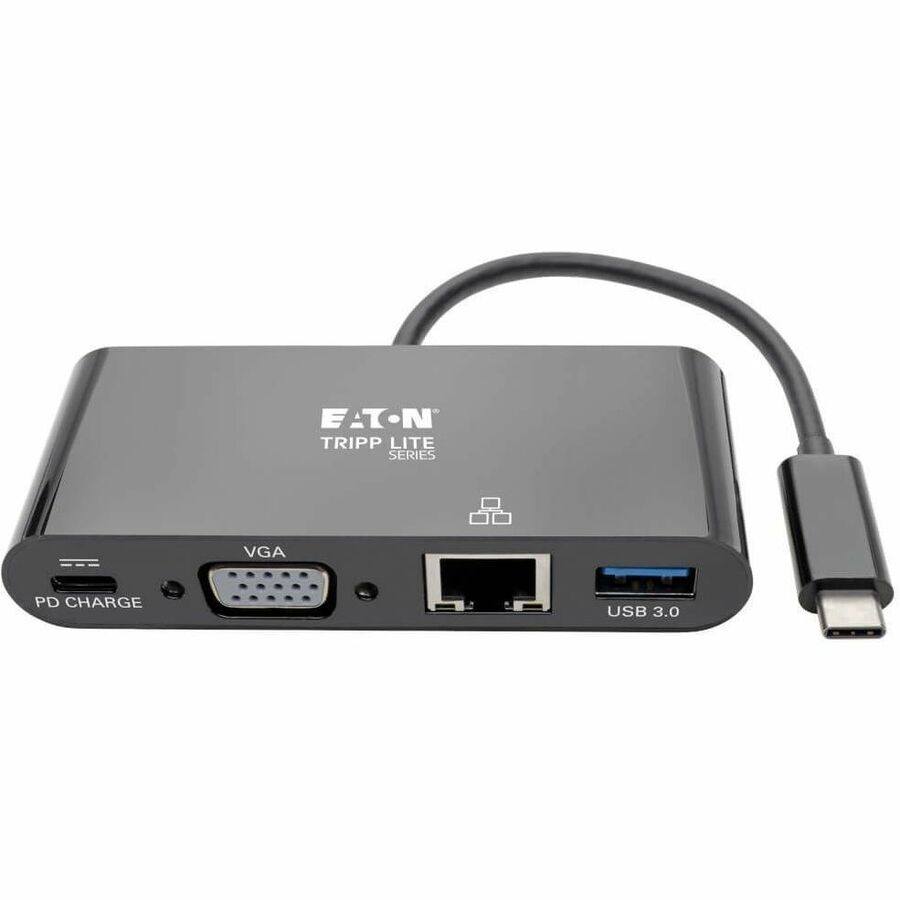

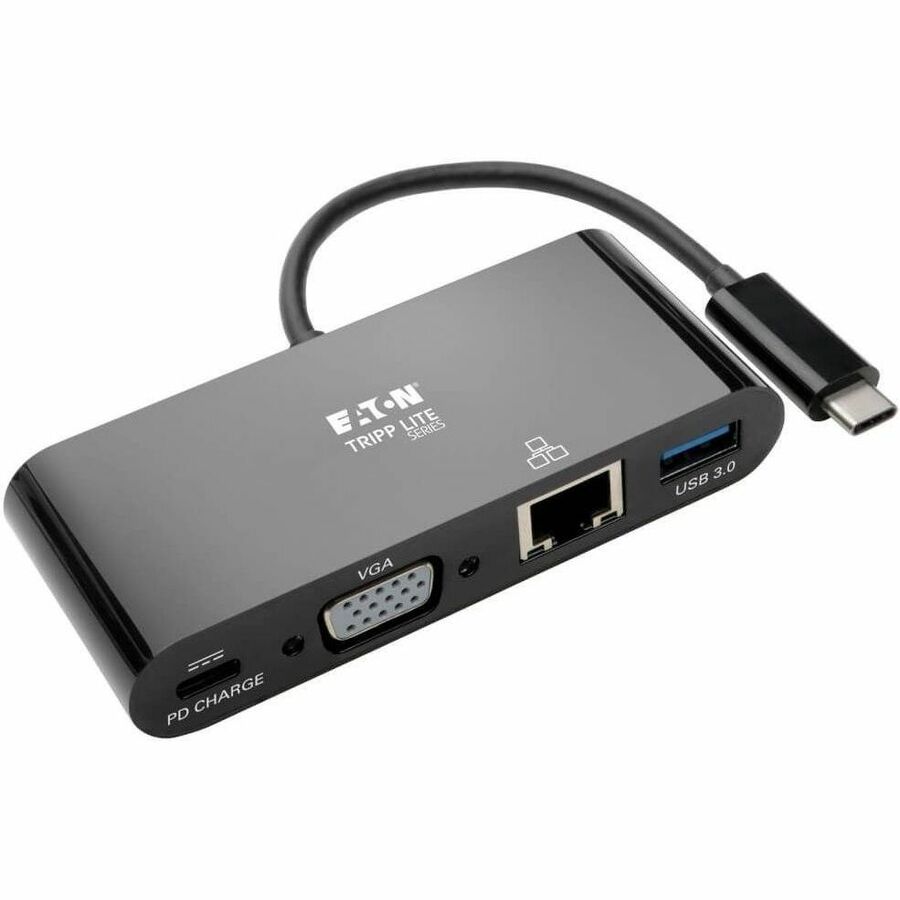

Eaton Tripp Lite Series USB-C Multiport Adapter, VGA, USB 3.x (5Gbps) Hub Port, Gigabit Ethernet and 60W PD Charging, Black

The U444-06N-VGUB-C USB 3.1 Gen 1 USB-C to VGA Adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting 1080p video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and connecting to a Gigabit Ethernet network-all at the same time.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays or change the second display to your primary.

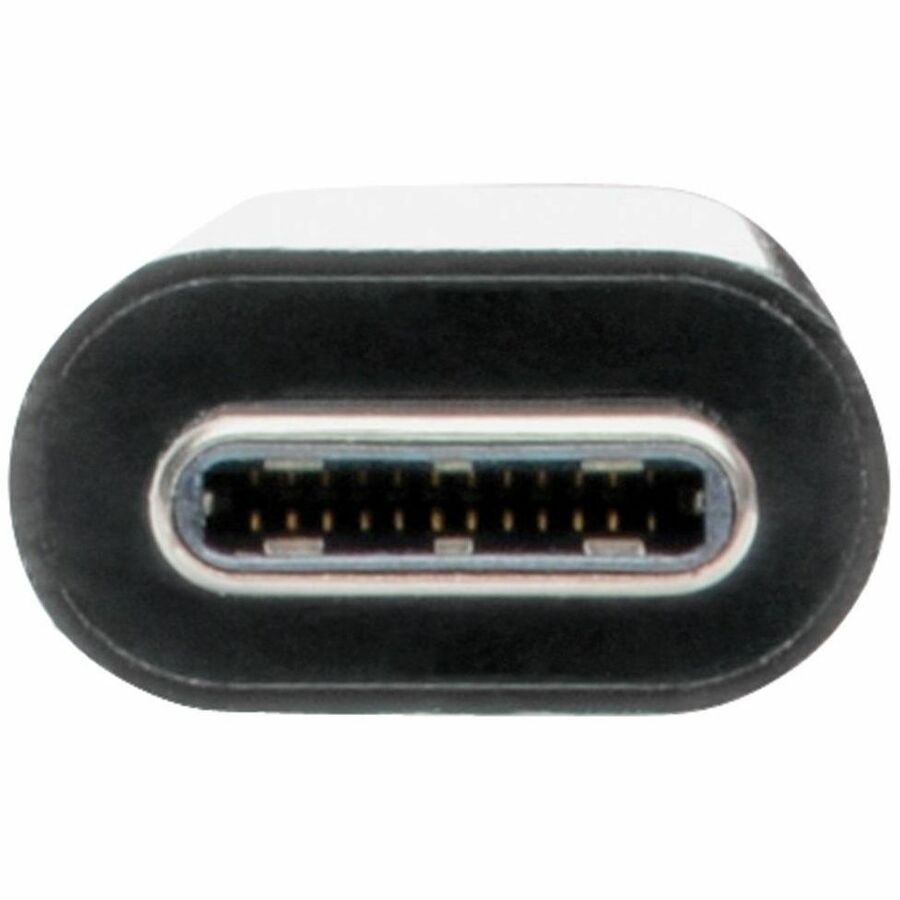

The plug-and-play U444-06N-VGUB-C requires no software, drivers or external power. Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

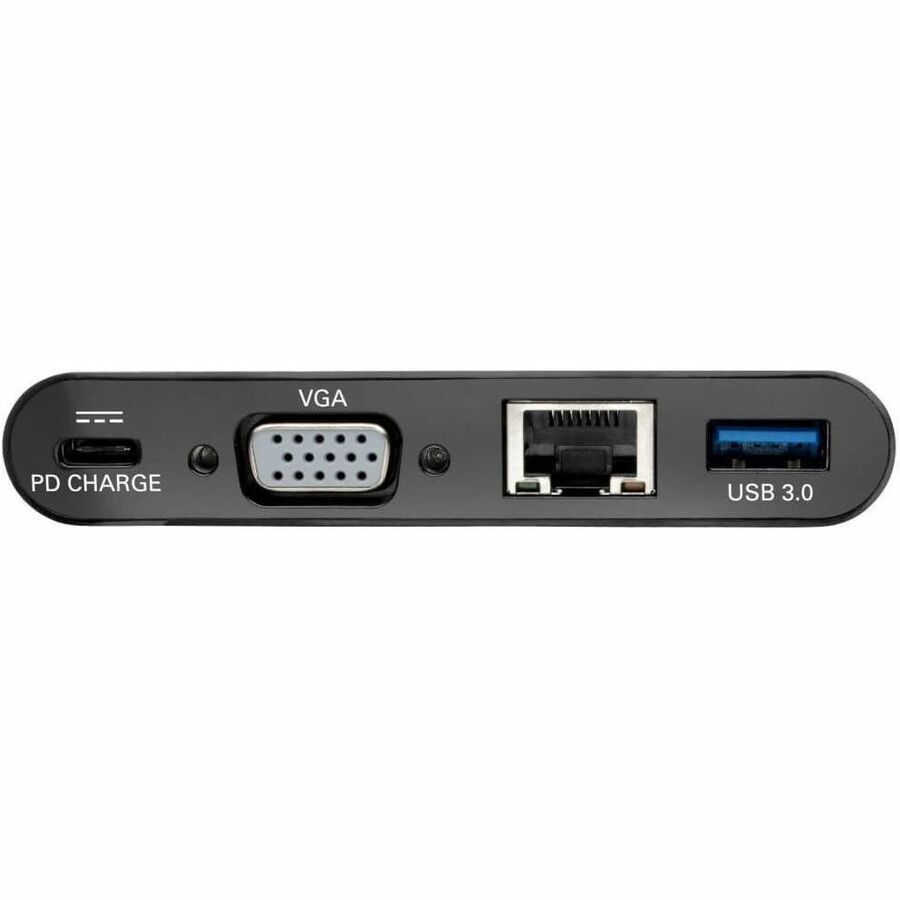

To send HD video to a VGA television, projector or monitor, connect the VGA port to the display using a VGA cable (sold separately). The VGA port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz.

The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. The port provides up to 5V/1.5A (7.5W) of fast-charging power to mobile devices.

The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook or Chromebook) the U444-06N-VGUB-C is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W).

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. More from the Manufacturer

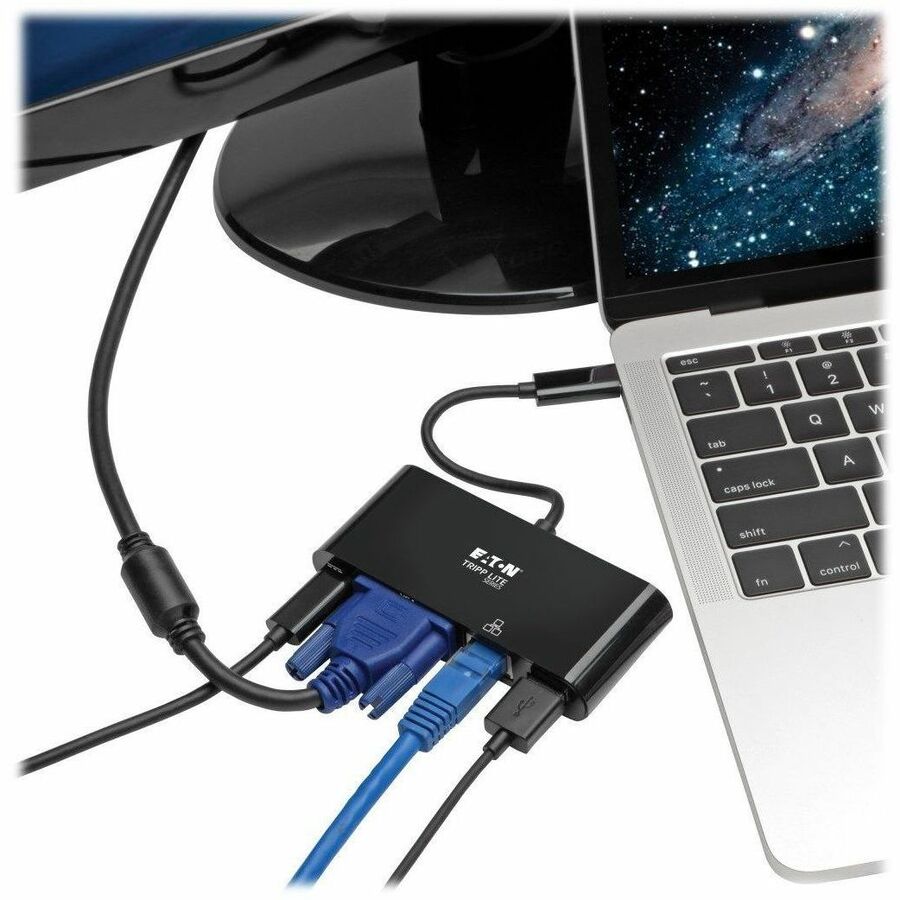

Transform Your Laptop’s USB-C Port into a Multiport Workstation Wherever You Go

Newer tablets, laptops, Chromebook™ and MacBook® notebooks, desktop computers and even smartphones often have USB Type-C™ ports, but come equipped with few others.

Using a single USB-C™ or Thunderbolt™ 3 port, this Tripp Lite docking station expands the functionality of your computer and makes it compatible with your existing equipment.

Typical Applications

Send video to a VGA monitor.

Add a USB-A peripheral to your device.

Power and charge your laptop.

Connect to a Gigabit Ethernet network when Wi-Fi isn’t available.

Convert your MacBook or Chromebook into a powerful and portable workstation.

Simplify Travel with a Bus-Powered, All-In-One USB-C Docking Station

Because just one USB-C connection provides four different ports, you don’t need multiple adapters while on the go. This docking station is also bus-powered, so you don’t have to travel with the weight of a separate external power supply.

With a footprint similar in size to a credit card, this portable docking station fits almost anywhere.

Lightweight, streamlined design doesn’t add weight to your load.

Built-in cable eliminates the chance of losing or forgetting the USB-C cord.

Plug-and-play operation means you don’t need software or drivers.

Display High-Definition Video on a VGA Monitor

This docking station supports USB DisplayPort Alternate Mode (Alt Mode) for carrying high-definition video to a VGA monitor or projector. It supports video resolutions up to 1920 x 1080 at 60 Hz, including 1080p.

Show the same video on your laptop and a second monitor.

Use a second monitor as your primary screen.

Extend video to a second monitor.

Share video in a conference room, classroom or auditorium setting.

Connect a USB Peripheral

The USB-A port provides a place to connect a USB device, like a flash drive, camera, keyboard, mouse or an external hard drive. Or, you can connect a printer with a USB cable when a wireless connection isn’t feasible. The USB-A port supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps and provides up to 1.5A for device charging. It’s also backward compatible with previous USB generations.

Keep Ports Available While Your Laptop Charges

Limited USB-C ports can force you to choose between connecting a peripheral and charging your laptop’s battery. The USB-C Power Delivery (PD) port powers and charges your laptop without affecting the other connections. Your laptop’s wall charger connects to the USB-C PD port, which supports power input up to 20V, 3A (60W).
