1 Output Device - 393.70 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI Out - 480p, 720p, 1080i, 1080p - 4K - 3840 x 2160 - Twisted Pair - Category 6, Category 5, Category 5e - Display, Mouse, Keyboard, Trade Show, Airport, Conference Room, Educational Facilities, Shopping Center, A/V Equipment, Hotel Room, Blu-ray Player, ...
MSRP$270.00
$248.40
Save 8%In stock: 186
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
An Effective Digital Signage Solution Designed for Easy Setup and Operation
This HDMI over IP decoder delivers visually lossless 4K signals with low latency up to 393 feet (120 meters) point to point or via a standard Gigabit Ethernet switch. Engineered to meet today's demands of large-scale, multi-display 4K signal transmission, the B161-001 is ideal for a wide range of indoor environments, such as trade shows, airports, university campuses, conference centers and shopping centers. The decoder follows TCP/IP standards for reliable AV over IP installations.
Lightweight Compression with Ultra-Low Latency
The decoder uses advanced video lossless compression technology to extend 4K video at 30 Hz with 3.4 Gbps/340 mHz per channel (10.2 Gbps all channels), 3D video support and 12-bit per channel color depth.
Limitless Scalability and Flexibility
Mix and match the latest 4K displays in simple point-to-point setups or more elaborate point-to-multipoint setups via LAN (local area network) without distance limitations. Simply connect a B161-101 encoder/decoder kit (sold separately) to a standard network switch and additional B161-001 decoder units to the ports on the switch using Cat6 cabling. This product offers multi-functionality in video wall and daisy-chain applications.
Configure Video Installations with a Keyboard and Mouse
Connect the USB-A port on the encoder unit of a B161-101 kit (sold separately) to a computer and connect a keyboard and mouse to the KVM ports on the B161-101 receiver to control the video installation from the display side.
Extend Multiple B161-Series Decoders
Connect multiple B161-001 decoder units (sold separately) through a dedicated Ethernet network switch. Cabling and system deployment is easy with fewer cables needed. The daisy-chain function is especially ideal for large-scale deployment covering a wide area, such as hotels, airports, shopping malls and expo centers.
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B161-001 |
| Brand Name | Tripp Lite series |
| Product Model | B161-001 |

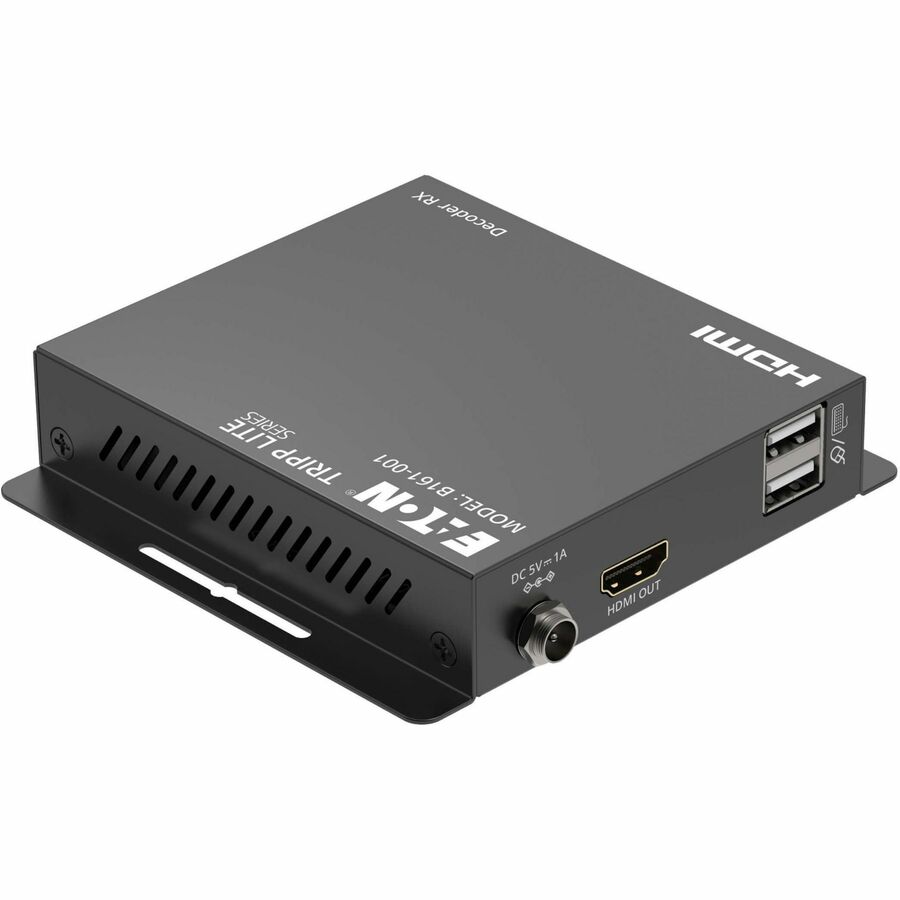

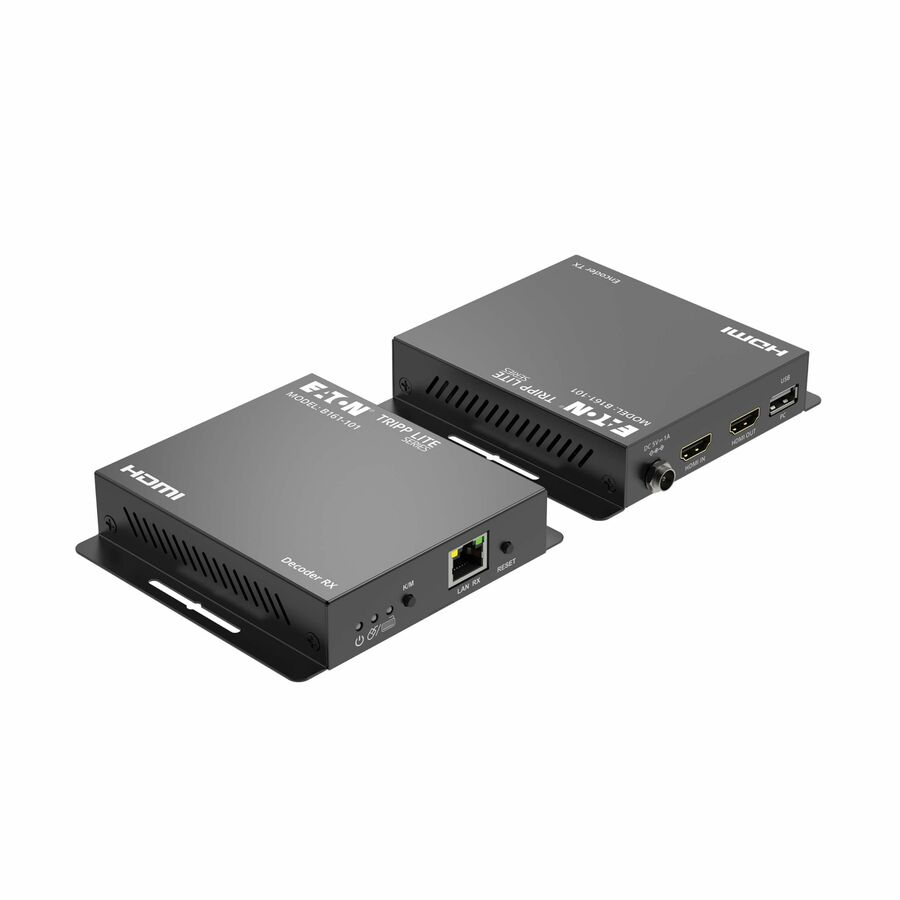

| Product Name | HDMI over IP Decoder with KVM - 4K, TCP/IP, Up to 393 ft. (120 m) |
| Product Type | Video Extender Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6, Category 5, Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 6.70" |
| Receiver Width | 5.01" |
| Receiver Depth | 1.14" |
| Receiver Weight (Approximate) | 1.48 lb |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 393.70 ft |
| Data Link Protocols | TCP/IP |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 480p, 720p, 1080i, 1080p |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Display, Mouse, Keyboard, Trade Show, Airport, Conference Room, Educational Facilities, Shopping Center, A/V Equipment, Hotel Room, Blu-ray Player, Notebook, HDTV, Projector, Monitor |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
