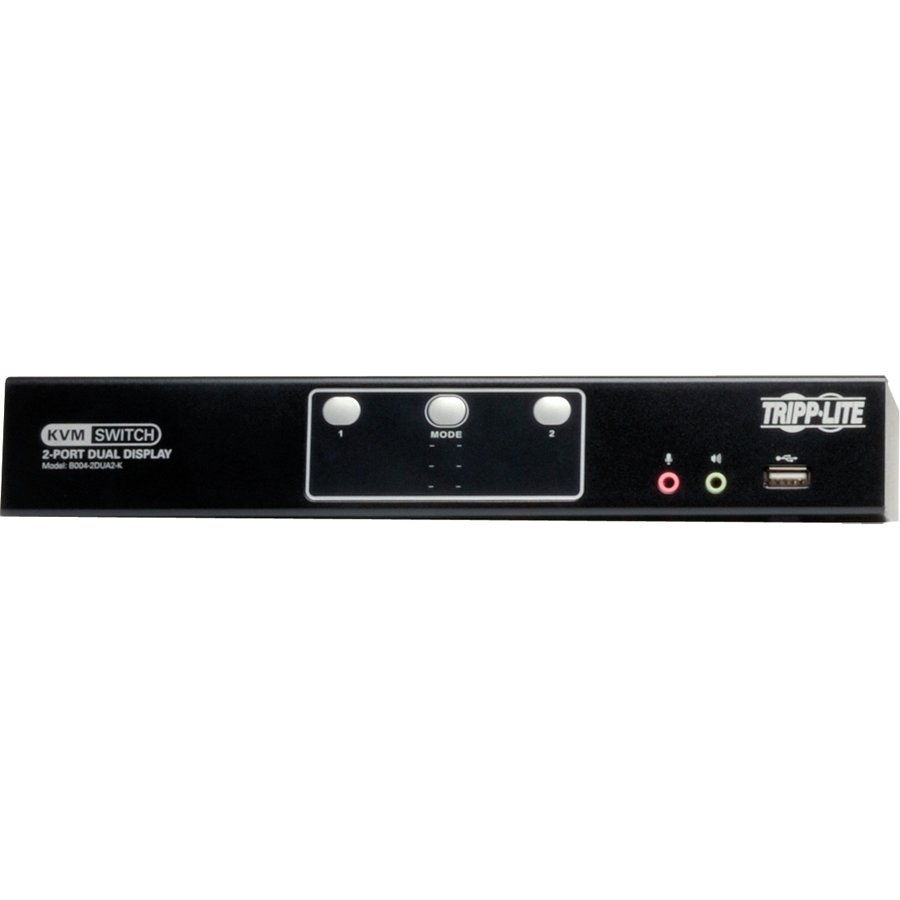

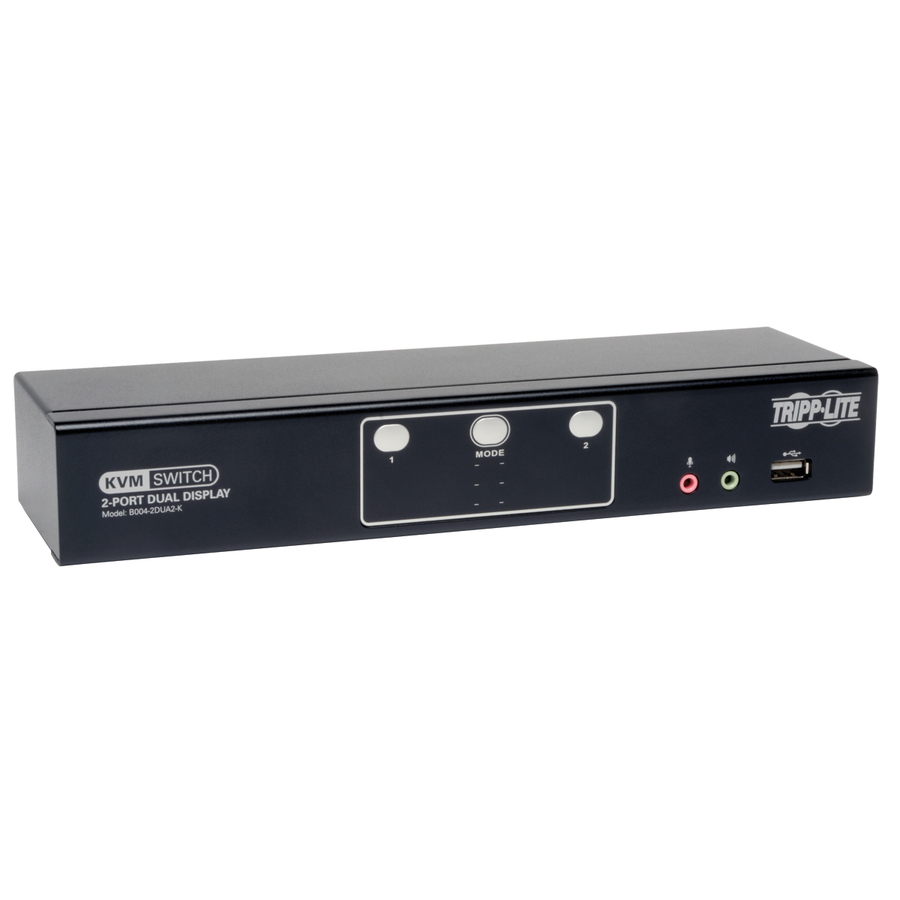

Tripp Lite by Eaton 2-Port Dual Monitor DVI KVM Switch TAA GSA with Audio and USB 2.0 Hub Cables included
2 Computer(s) - 1 Local User(s) - 2560 x 1600 - 1 x Network (RJ-45) - 5 x USB - 6 x DVI - Desktop - TAA Compliant
- SKU
- B0042DUA2K
- Category
- KVM Switchboxes
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B0042DUA2K
- Category
- KVM Switchboxes
Overview
Marketing Information from the Manufacturer
Quick, Simple Setup and Computer Selection Made Easy
The B004-2DUA2-K is easy to configure for your system. Connect your computers and audio components to the switch using the included USB KVM cable kits and audio cable kits, plug in the power adapter and you’re ready to play!

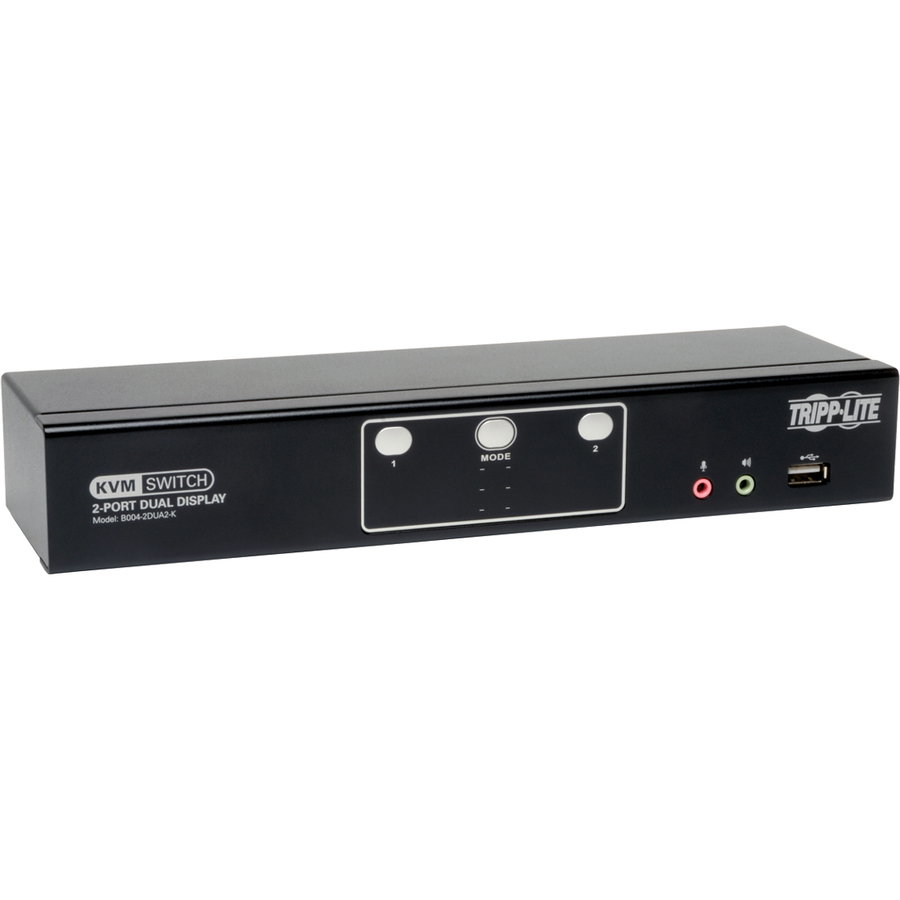

The B004-2DUA2-K lets you control two computers from a single keyboard/mouse/dual display setup. Keyboard hot keys and front-mounted port selection buttons give you two convenient ways to select a computer. You’ll get optimal display resolution for each monitor without delay, since the B004-2DUA2-K stores the EDID (Extended Display Identification Data) of the connected monitors. In Auto Scan mode, the B004-2DUA2-K automatically cycles between the ports at regular 5-second intervals, allowing you to monitor computer activity with no need to manually switch between computers.
Independent Audio Switching, Sharing USB Peripherals and Hot Plug Capability
The B004-2DUA2-K features independent audio switching that allows you to listen to audio from one computer even when switched to the other computer, providing an uninterrupted listening experience.
Two USB 2.0 ports on the B004-2DUA2-K allow connected computers to share USB peripherals, such as flash drives, printers and scanners. There are also two mini stereo ports for connecting speakers and a microphone.
Add or remove computers and devices without powering down the KVM switch. This handy feature enables you to swap out a computer without disrupting the overall system.
TAA-Compliant, Three-Year Warranty and Why Choose Tripp Lite?
The B004-2DUA2-K is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
The B004-2DUA2-K comes backed by a three-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Founded in 1922 in Chicago, Illinois, Tripp Lite is one of the leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights

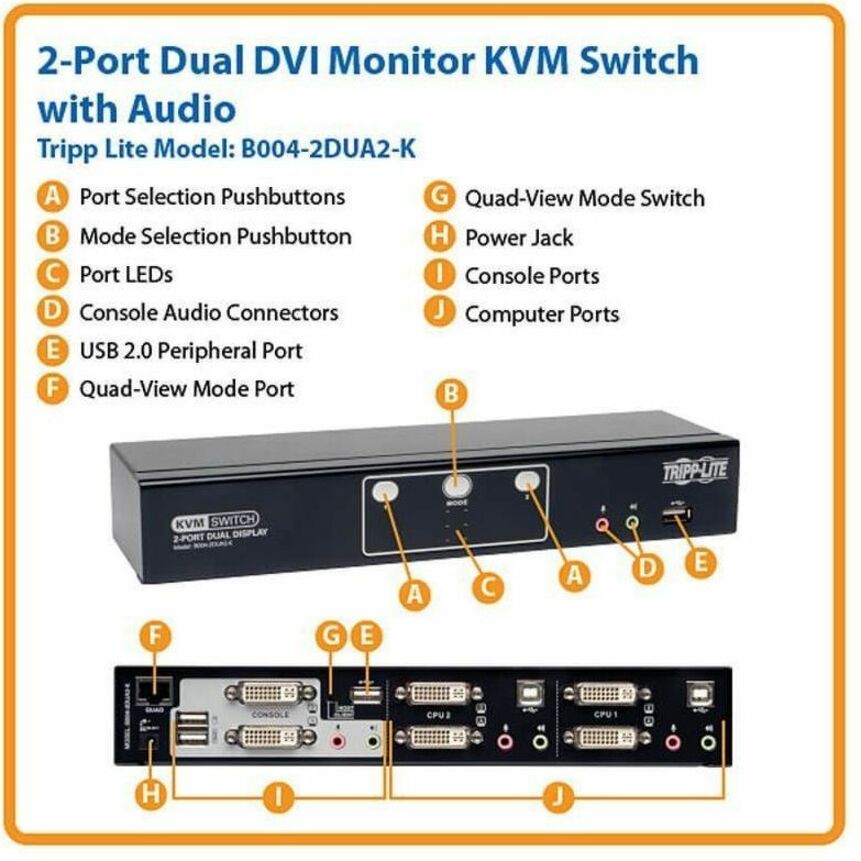

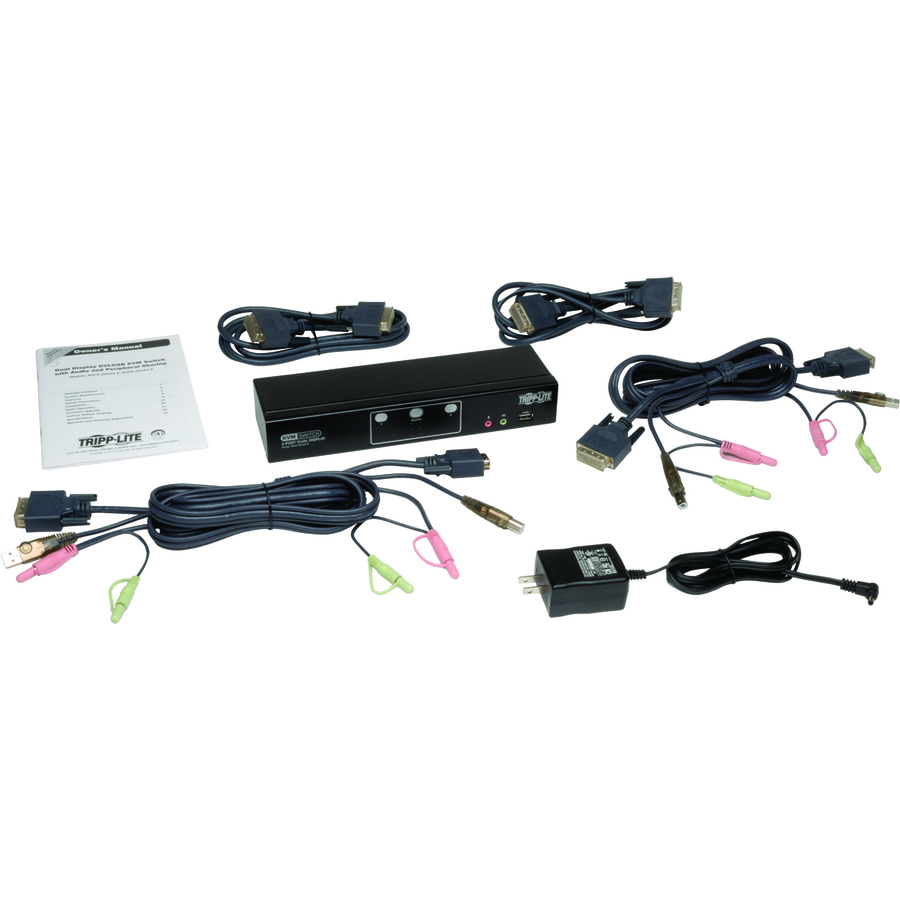

- 2-Port Dual Display DVI KVM switch with USB 2.0 Hub and Audio/ 3.5 mm Mini Stereo jacks, cables included
- Quad-View Mode allows computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display KVM switches together
- Built-in 2-Port USB 2.0 hub allows for the sharing of USB devices (CAC Card Reader, flash drives, printer, etc.) amongst the connected computers
- A powered USB hub may be connected to one of the USB ports to increase the number of connected peripherals
- 3.5 mm Mini Stereo jacks provide Speaker (2.1 stereo sound) and Microphone support to the connected computers
- Additional console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
- Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and a function that allows for switching via your mouse's scroll wheel
- Switch the KVM, USB, and Audio functionality all at the same time, or separately. KVM control can be fixed on one computer, while the USB 2.0 hub and/or Audio functionality is fixed on another
- Auto Scan mode allows you to scan the connected computers without having to manually switch between them

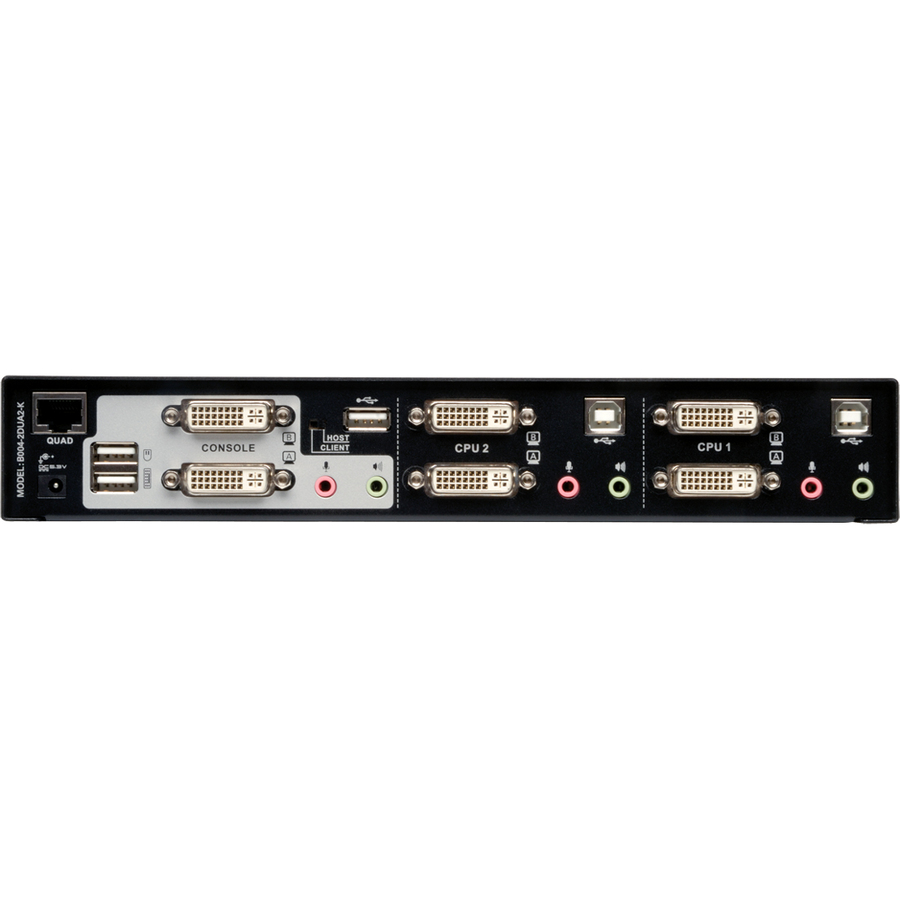

- DVI-I connectors support both Dual Link digital resolutions up to 2560 x 1600, and analog resolutions up to 2048 x 1536
- Connect a VGA monitor or computer port by using a P556-Series DVI to VGA adapter cable instead of the included DVI-D cables.
- Compatible with all major operating systems; Windows, Mac, Linux, Sun
- Supports 3D graphics and gaming
- Supports hot plugging - Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
- The KVM switch stores the EDID (Extended Display Identification Data) of the connected monitors, which ensures optimal display resolution and prevents any delay or change in video resolution when switching between or booting computers
- Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
- Supports VESA DDC2B emulation and TMDS signal pass-through
- LEDs provide for easy monitoring of the connected computers
Specifications
| Package Contents |
|
|---|---|
| Product Type | KVM Switchbox |
| Manufacturer Part Number | B0042DUA2K |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.23 lb |
| Connectivity Technology | Wired |
| Features | LED Indicator |
| Form Factor | Desktop |
| Manufacturer | Eaton Corporation |
| Product Model | B004-2DUA2-K |
| Product Name | 2-Port Dual Monitor DVI KVM Switch TAA, GSA with Audio and USB 2.0 Hub, Cables included |
| Brand Name | Tripp Lite series |
| Input Voltage Range | 100-240V |
| Country of Origin | Taiwan |
| Height | 1.8" |
| Width | 10.3" |
| Depth | 3" |
| Maximum Video Resolution | 2560 x 1600 |
| Graphic Mode | WQXGA |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 6 |
| USB Standard | USB 2.0 |
| Number of DVI Ports | 6 |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| TAA Compliant | Yes |
| USB 2.0 | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
