Club 3D USB 3.0 Dual Display 4K 60Hz Docking Station
for Notebook, Tablet PC - USB 3.0 Type B - 7 x USB Ports - 7 x USB 3.0 - Network (RJ-45) - DisplayPort - Audio Line In - Audio Line Out - Microphone - Wired
SKU
CSV-1460
Category
Docking Stations
$177.26
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Club 3D through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CSV-1460
Category
Docking Stations
Overview

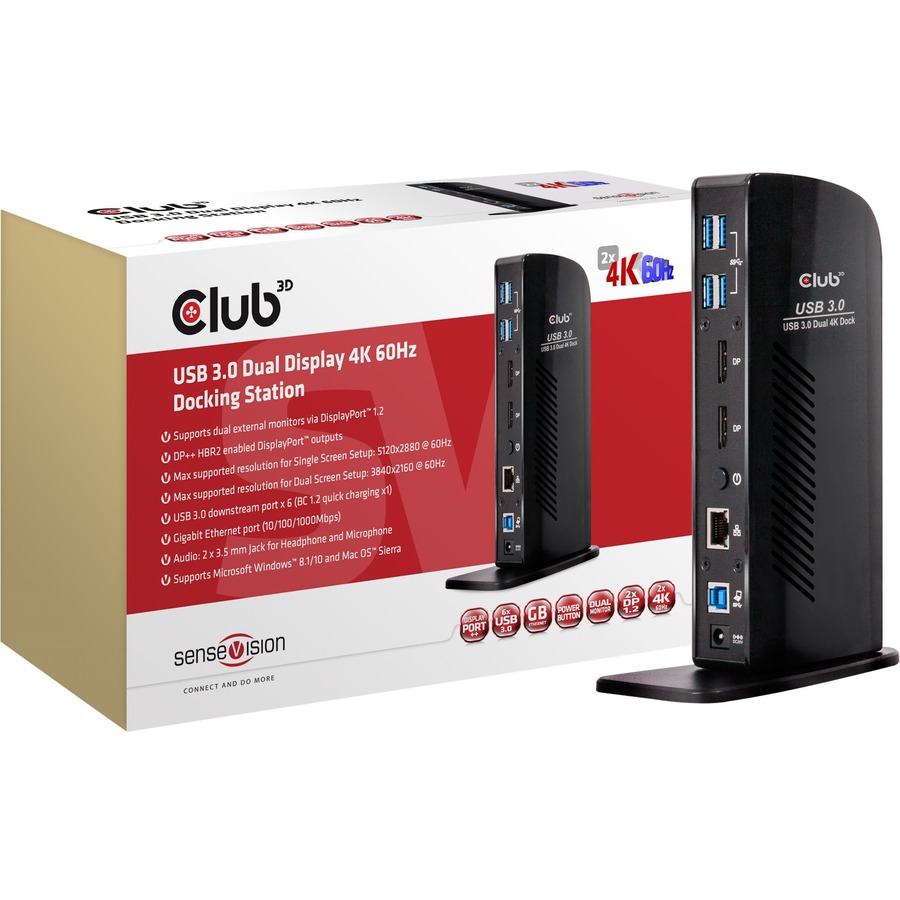

USB 3.0 Dual Display 4K60Hz Docking Station
CSV-1460 - The SenseVision USB 3.0 Dual Display 4K 60Hz Docking Station is designed to satisfy all your connectivity demands. It provides no less than 6 USB 3.0 Ports, Headphone connection, Microphone connection, Gigabit Ethernet port and 2 x Displayport outputs.
It is fully USB C compatible and a USB C cable is included in the box.
With this CSV-1460 you can now connect two Screens at 3840x2160 UHD at 60Hz resolution to almost all existing Notebooks or Tablets just by using a single USB 3.0 port! Featuring the advanced DisplayLink DL-6950 chip, you can even connect one screen at a resolution of 5K at 60Hz!
The SenseVision USB 3.0 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal- or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.
Dual Mode DisplayPort?
The SenseVision USB 3.0 Dual Display 4K 60Hz Docking Station has 2 Displayport?++ outputs or in other words, Displayport 1.2 Dual Mode. This means that for the conversion of the video signal to DVI or HDMI passive cables or adapters must be used.
Highlights
Portable Universal USB 3.0 Dual Display 4K 60Hz Docking Station
Fully USB C compatibel with USB C cable included in the box
DisplayLink DL-6950 chip inside
Supports dual External monitors via Displayport
Max supported resolution up to:
For Single Screen Setup: 5120x2880 @ 60Hz
For Dual Screen Setup: 2 x 3840x2160 @ 60Hz
USB 3.0 downstream port x 6 (BC 1.2 quick charging x1)
Supports Gigabit Ethernet (10/ 100/ 1000Mbps)
Audio: 2 x 3.5 mm Jack for Headphone and Microphone
Specifications
General Information
Manufacturer
Club 3D
Manufacturer Part Number
CSV-1460
Brand Name
Club 3D
Product Line
SenseVision
Product Model
CSV-1460
Product Name
USB 3.0 Dual Display 4K 60Hz Docking Station
Product Type
Docking Station
Interfaces/Ports
Host Interface
USB 3.0 Type B
Audio Line In
Yes
Audio Line Out
Yes
Total Number of USB Ports
7
Number of USB 3.0 Ports
7
Network (RJ-45)
Yes
DisplayPort
Yes
Microphone
Yes
Physical Characteristics
Height
7.68"
Width
1.38"
Depth
3.15"
Weight (Approximate)
13.93 oz
Technical Information
Connectivity Technology
Wired
Device Supported
Notebook, Tablet PC
Miscellaneous

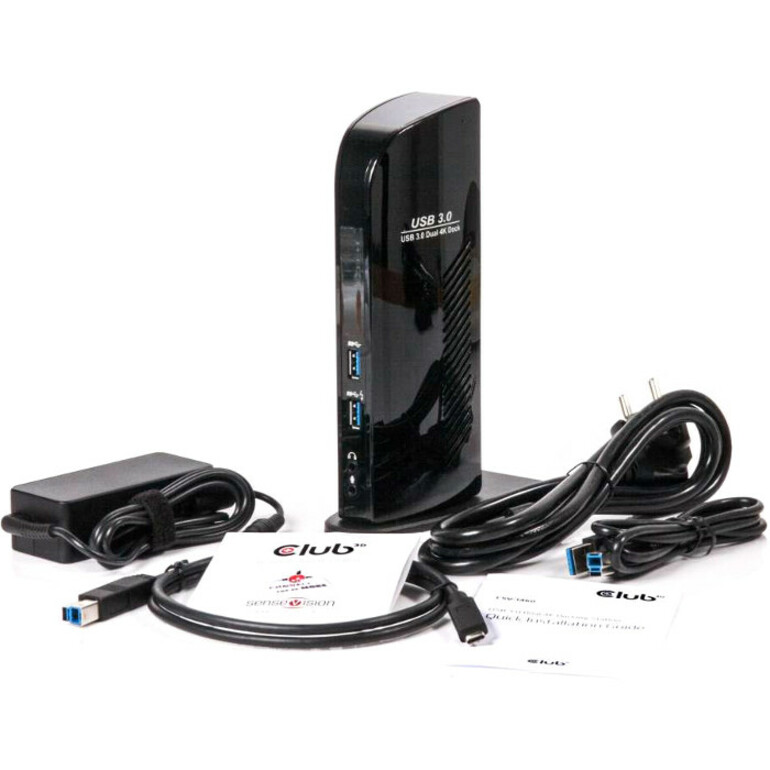

Package Contents
USB 3.0 Dual Display 4K 60Hz Docking Station
Power Adapter 20V/2.25A
2 x USB 3.0 Cable (USB Type-A to B, 1 meter and USB Type C to B 1meter )
