1 Computer(s) - 1 Local User(s) - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI
$1,578.03
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 10 and Nov 14, then process your delivery right after.
Genuine ATEN Technology through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
The KE6900AiT are high performance IP-based transmitters that, when used with receivers (e.g. KE6900AR), provide console access from a separate location. The setup allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet and internet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.
KE6900AiT support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change - boot-ups at BIOS level to system level, logging in and logging out, running software applications to configuring the operating system - are recorded and saved to a secure video file for security reference and troubleshooting purposes, etc..

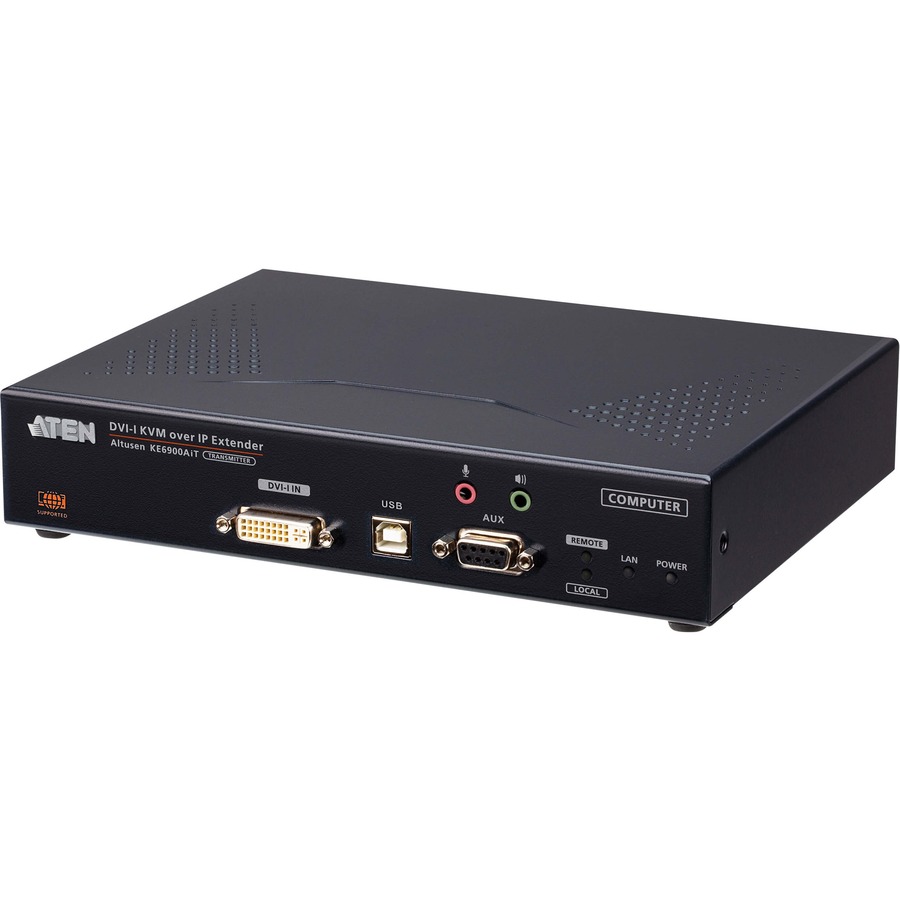

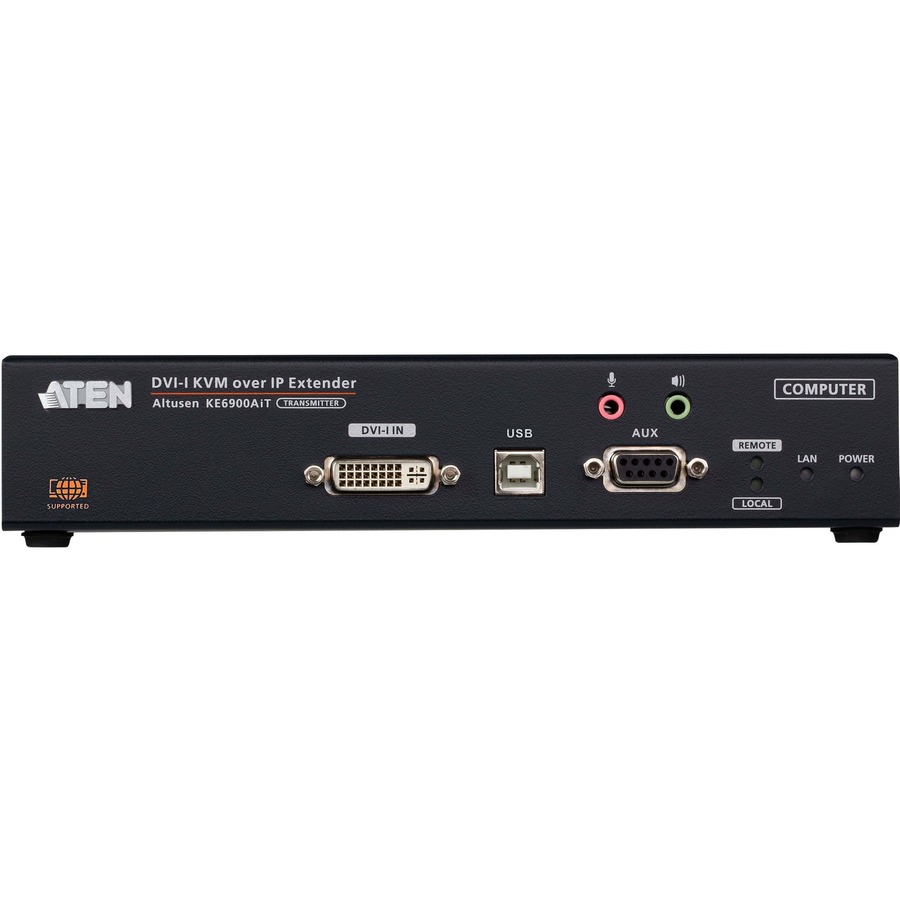

The KE6900AiT DVI-I Single Display KVM over IP Extender supports one DVI display at each end and provide lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.

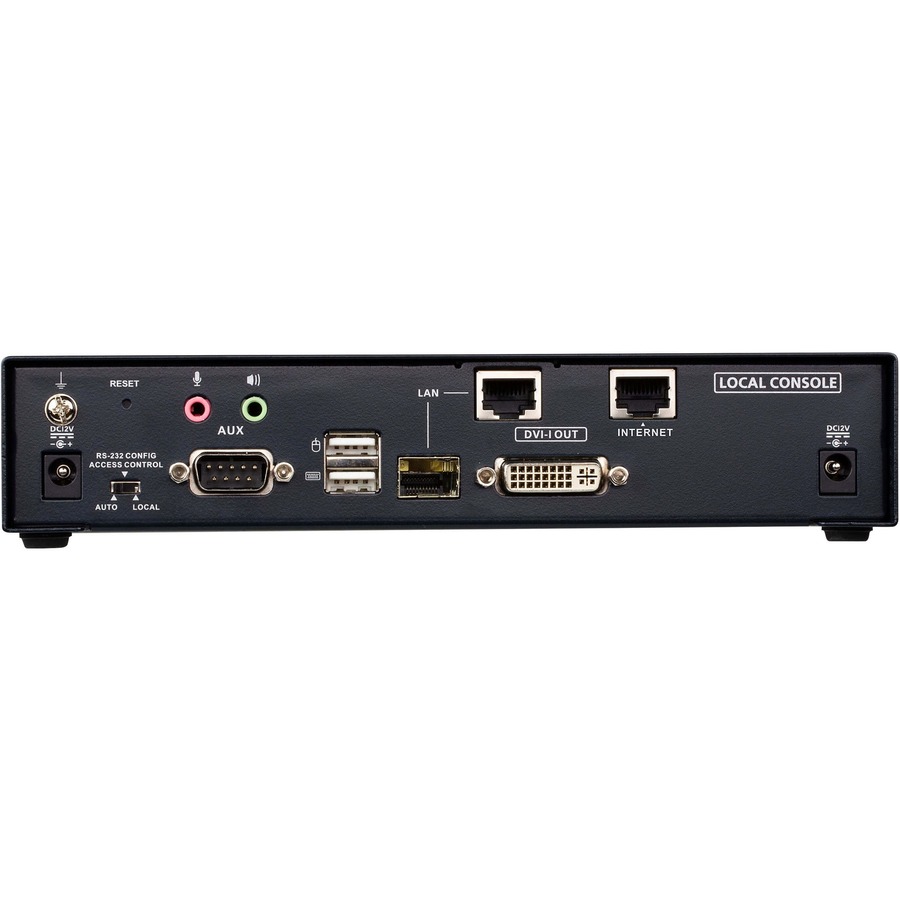

The transmitters support connections via an RJ-45 port or a SFP slot. The transmitter can be connected to a receiver either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module* expansions on fiber optic network, you can extend transmission distances up to 10km. The KE6900AiT also features dual power supplies for redundancy to ensure dependable services.

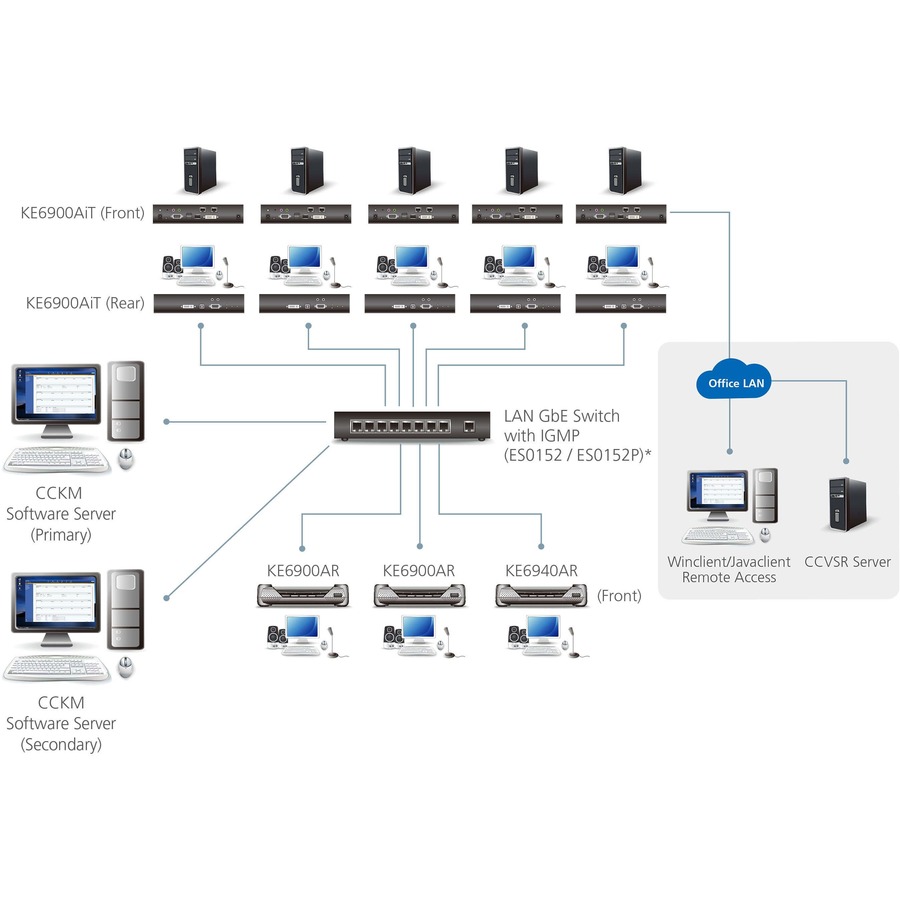

As an IP-based matrix extender, the KE6900AiT can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.
Implementing the KE Matrix Management Software (CCKM) with KE6900AiT, IT administrators can benefit from advanced features such as auto detection of all KE6900AiT devices on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES-128bits encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security. Moreover, with RS-232 support, and Auto MDIX, the KE6900AiT is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
Simply Better Connections ATEN Technology, Inc. is the technology leader and global manufacturer of KVM and Pro AV connectivity solutions, and the U.S. subsidiary of ATEN International Co., Ltd. (TWSE: 6277), established in 1979. A certified member of the HDBaseT Alliance, holding over 640 industry patents, ATEN offers integrated KVM, Professional Audio (Pro AV), and Intelligent Power solutions, across all industries including corporate , commercial, government , industrial, entertainment, educational and retail environments. A technology-first company, ATEN’s advanced ability to quickly develop customized solutions in KVM, Pro AV, PDU , USB , and data communication lines allows the company to build products that connect, manage and optimize electronics based on customer need. ATEN’s comprehensive portfolio of innovative, reliable products is available worldwide, with local U.S support. For more information, visit: http://www.aten.com/us/en/ Markets & Solutions Broadcasting & Media Today's broadcasting and media environment demands versatile, adaptable, and forward-thinking solutions. With media delivery and technology evolving at a rapid rate, media professionals are now looking toward multi-platform content support, efficient power management, and immersive image delivery. Professionals in the field require the power to access content remotely via stable, secure, and fast multimedia data channels. Corporate The corporate environment requires integrated solutions that are flexible, forward–thinking, and that make communication simple. Corporations need to be able to seamlessly and securely distribute information to key stakeholders around the world. They need KVM and A/V solutions that create a framework for effortless meetings, data sharing, and communication with customers. Education Teaching technology and techniques are evolving quickly. Technology has now become a critical educational resource that has helped lessons to become more personalized, collaborative, and interactive. Educators are taking advantage of various innovations to improve teaching effectiveness, learning outcomes, and even extend the reach of institutional resources.. Government Changes in technology have transformed the way government services operate. Today's tech-savvy citizens expect government agencies to maintain up-to-the-minute, secure, and reliable information that is readily available. To meet these challenges, government departments require a dynamic, scalable communication solution that seamlessly delivers information between different stakeholders and heterogeneous systems.
| General Information | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KE6900AIT |
| Brand Name | ATEN |
| Product Line | ALTUSEN |
| Product Model | KE6900AIT |
| Product Name | KE6900AIT DVI-I Single Display KVM over IP Transmitter with Internet Access |
| Product Type | KVM Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 3 |
| Number of DVI Ports | 2 |
| Physical Characteristics | |
| Transmitter Height | 1.65" |
| Transmitter Width | 6.43" |
| Transmitter Weight (Approximate) | 2.56 lb |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
