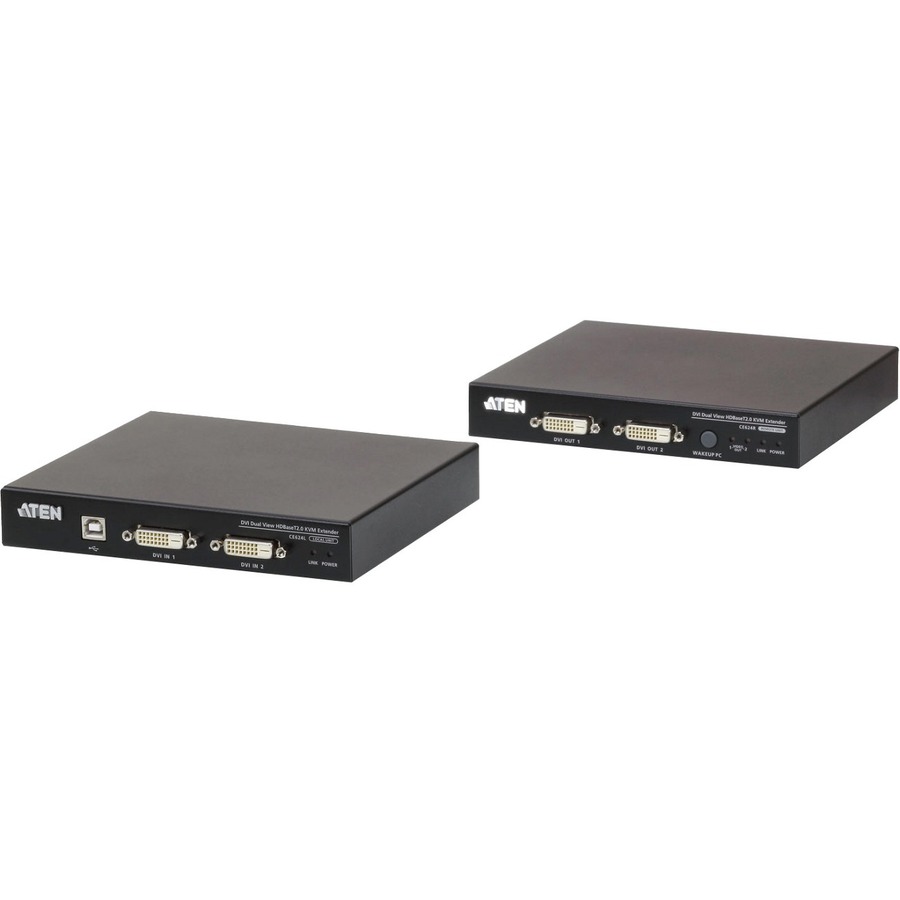

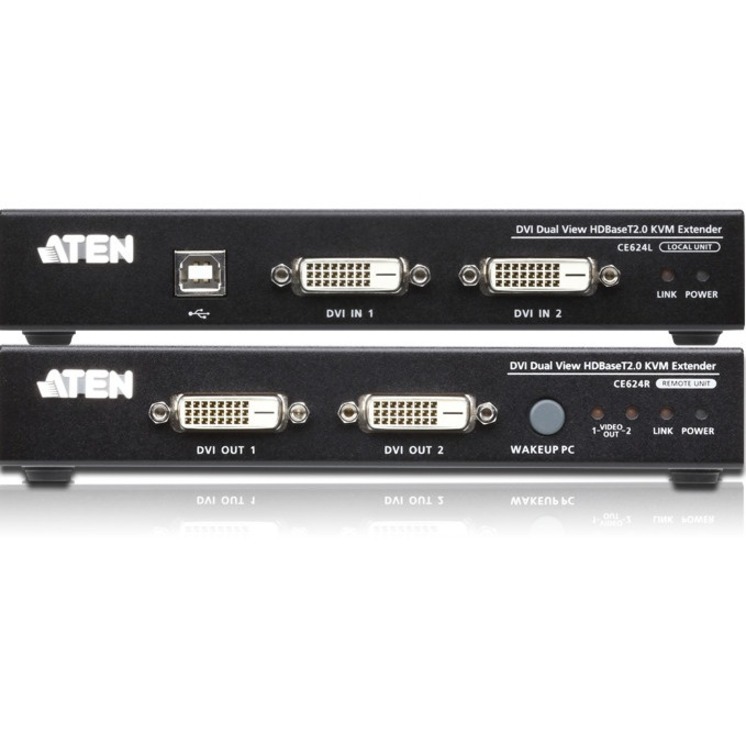

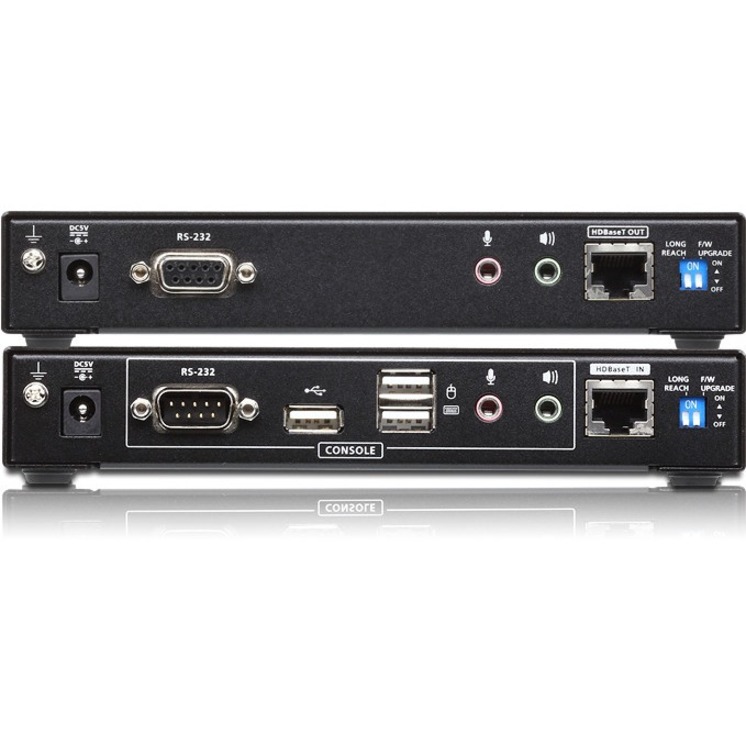

ATEN USB DVI Dual View HDBaseT 2.0 KVM Extender (1920 x 1200 @100 m)-TAA Compliant
2 Computer(s) - 1 Local User(s) - 492.13 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 4 x DVI - 5 V DC Input Voltage - For PC
SKU
CE624
Category
KVM Consoles/Extenders
MSRP$2,143.00
$1,496.22
Save 30%
Back-ordered
Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE624
Category
KVM Consoles/Extenders
Overview
The ATEN CE624 USB DVI Dual View HDBaseT? 2.0 KVM Extender integrates the latest HDBaseT? 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required - in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
Highlights
Allows DVI Dual View access to a computer and KVM control from a remote console
HDBaseT? 2.0 connectivity technology
Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
EDID Buffer for smooth power-up and the highest quality display
Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Long distance superior video quality
HDBaseT? Standard mode up to 1920 x 1200 @ 100 m
HDBaseT? Long Reach mode up to 1920 x 1080 @ 150 m
Long Reach mode switch - switches between HDBaseT? Standard and Long Reach modes in a snap
Integrated USB 2.0 ports - ensuring fast transmission speeds for keyboard, mouse and peripherals
Specifications
Package Contents
1 x CE624L USB DVI Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1 x CE624R USB DVI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2 x DVI-D Cables (1.8m)
1 x Pink Audio Jack Cable Sets (1.8m)
1 x Green Audio Jack Cable Sets (1.8m)
1 x USB Cable (1.8m)
2 x Power Adapters
8 x Foot Pads
2 x Mounting Kits
1 x User Instructions
Product Type
KVM Console/Extender
Input Voltage
5 V DC
Manufacturer Part Number
CE624
Platform Supported
PC
Connectivity Technology
Wired
Manufacturer
ATEN Technology, Inc
Microphone
Yes
Product Model
CE624
Product Name
USB DVI Dual View HDBaseT 2.0 KVM Extender (1920 x 1200 @100 m)
Brand Name
ATEN
Country of Origin
Taiwan
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
Graphic Mode
WUXGA
Maximum Operating Distance
492.13 ft
USB
Yes
DVI
Yes
Headphone
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
4
Number of DVI Ports
4
Number of Computers Supported
2
Number of Local Users Supported
1
Transmitter Height
1.13"
Transmitter Width
6.28"
Transmitter Depth
6.86"
Receiver Height
1.13"
Receiver Width
6.28"
Receiver Depth
6.86"
Transmitter Weight (Approximate)
1.76 lb
Receiver Weight (Approximate)
1.79 lb
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
