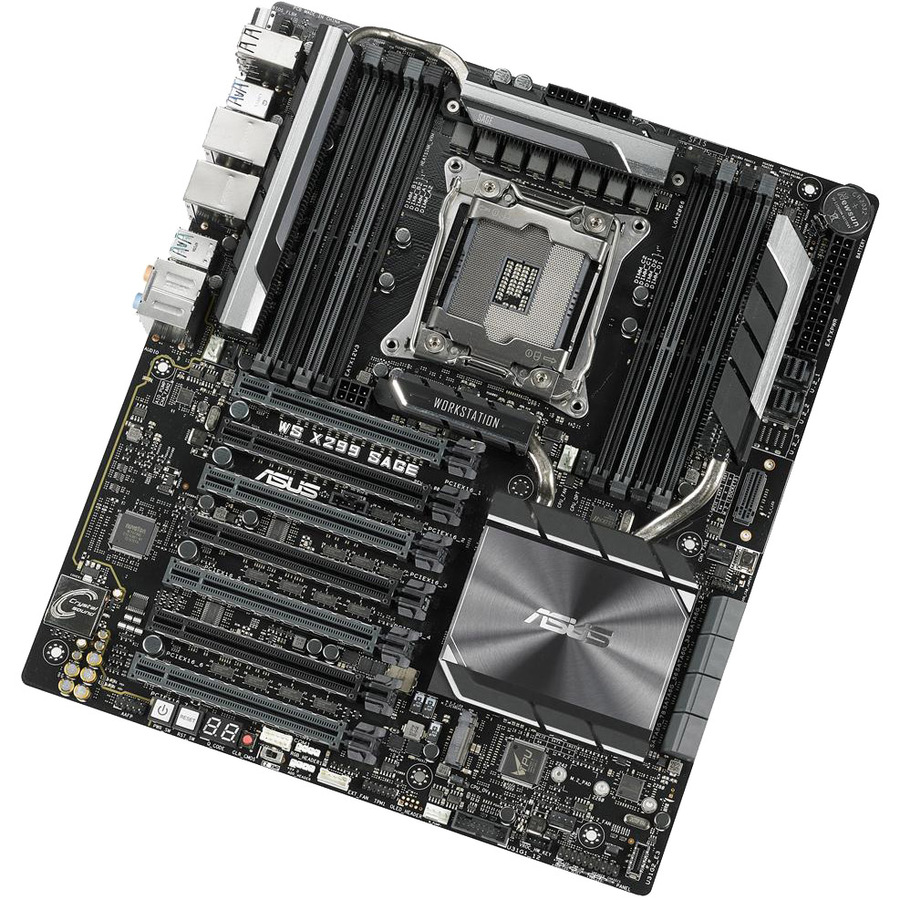

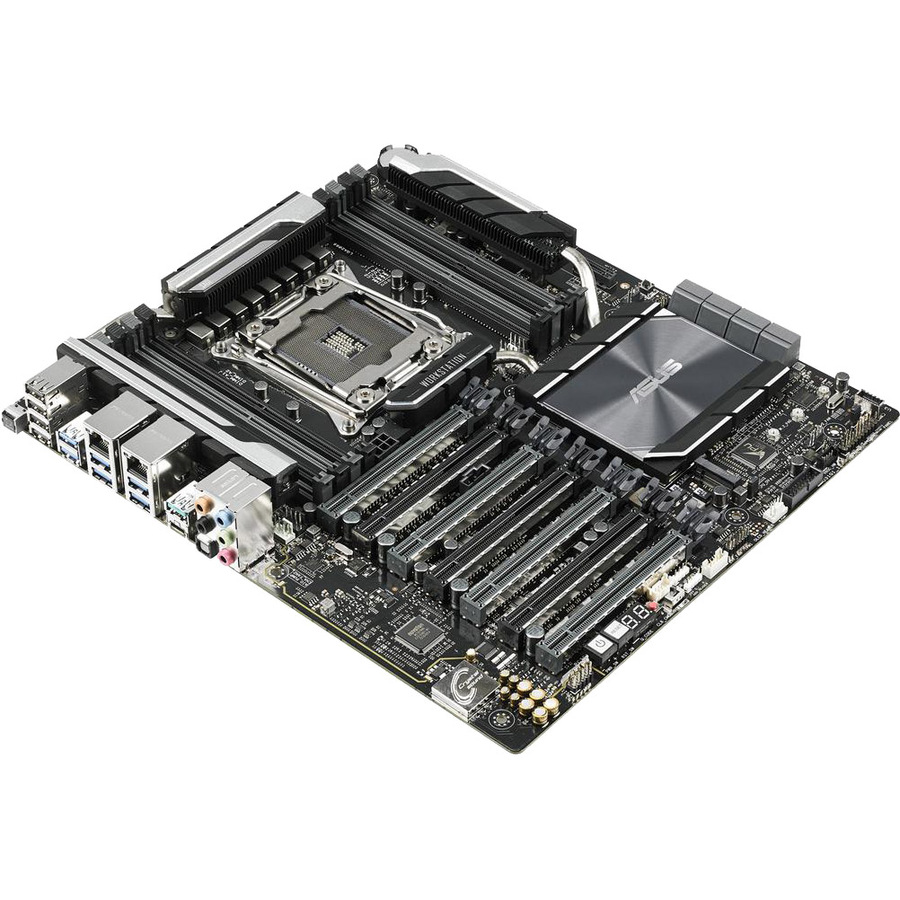

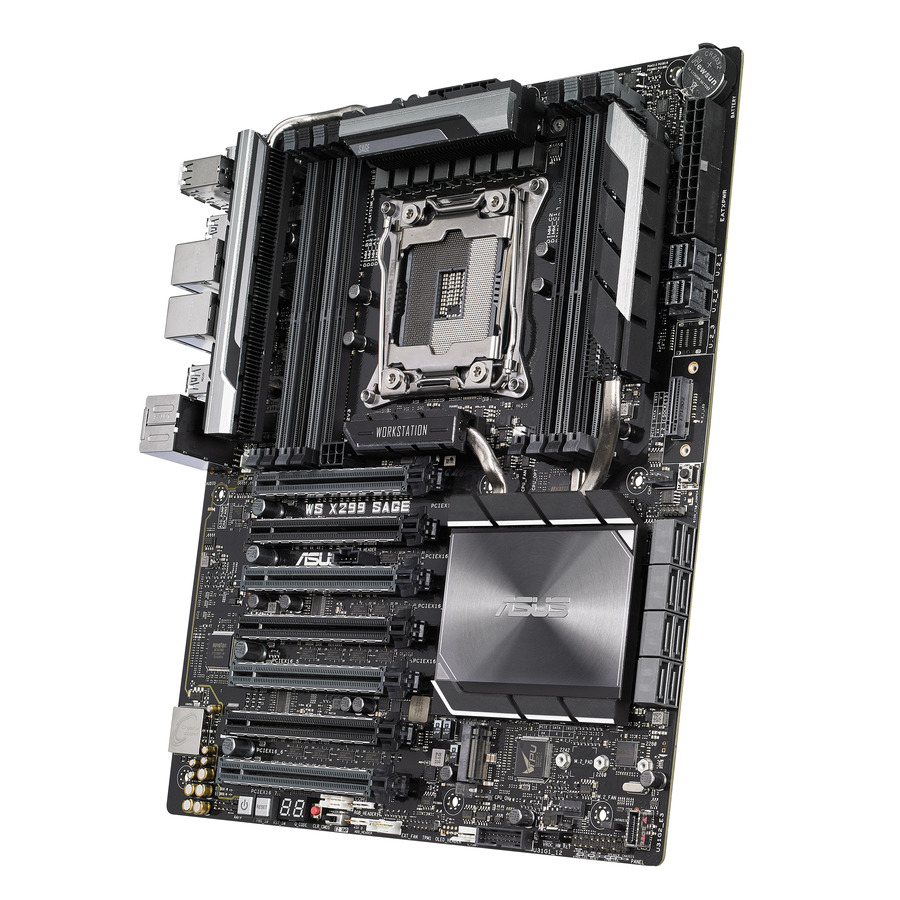

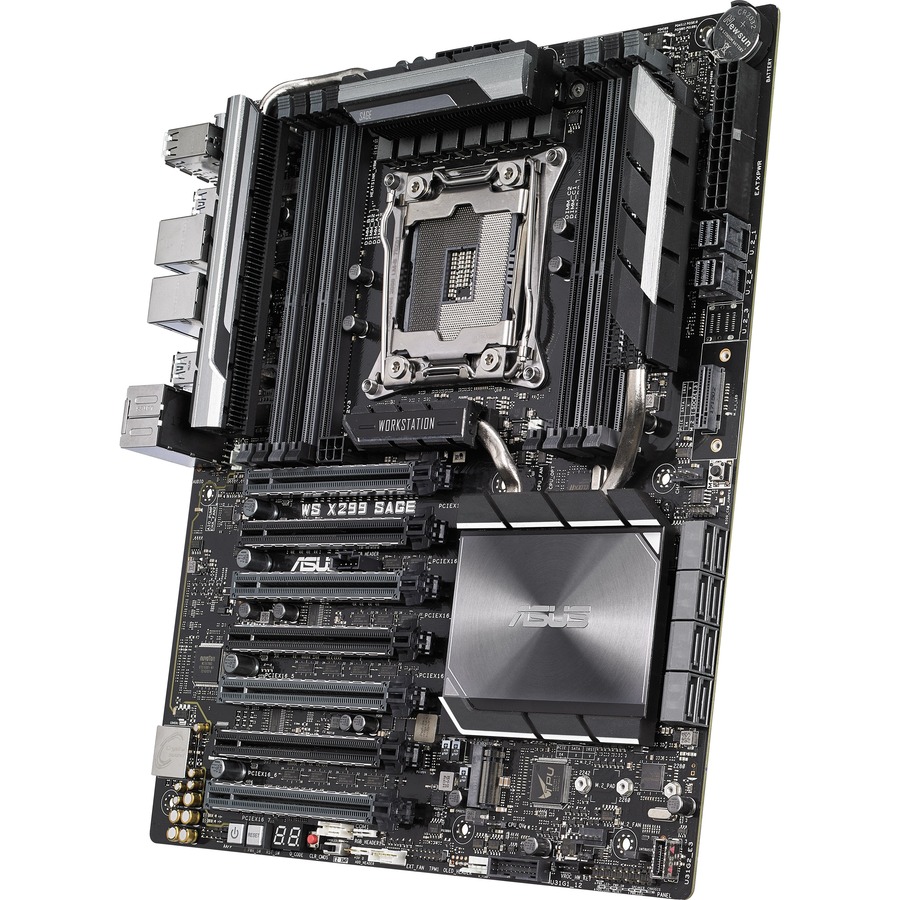

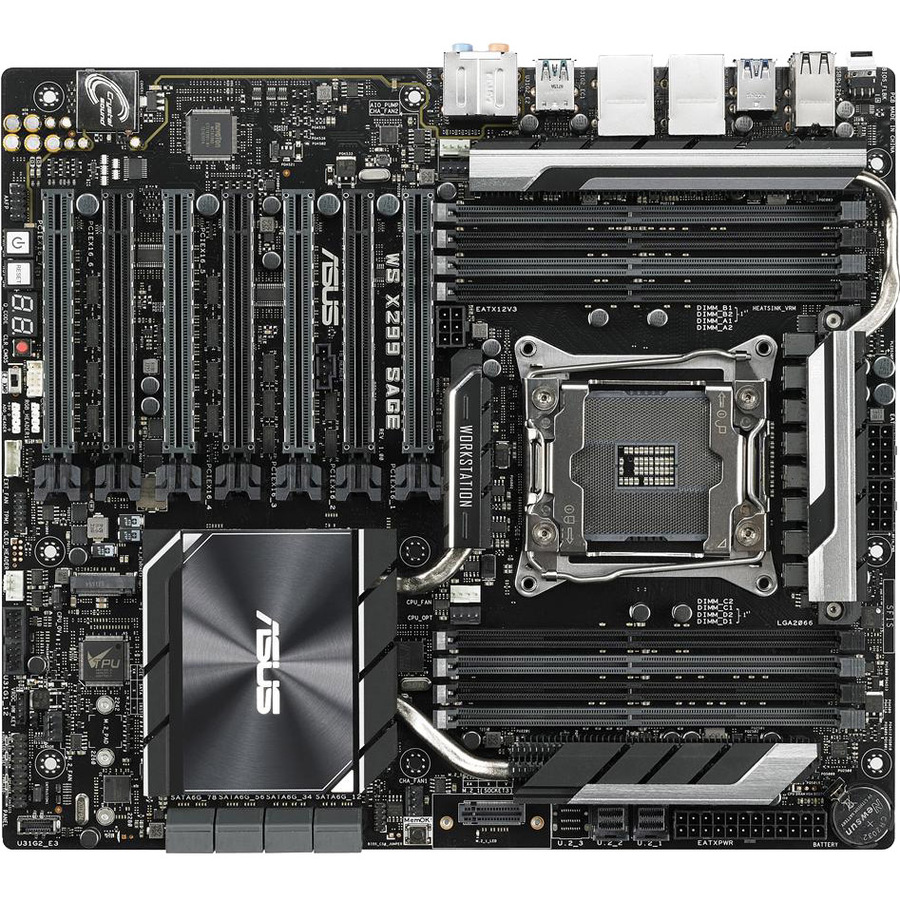

Asus WS X299 SAGE Workstation Motherboard - Intel X299 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - SSI CEB
Core X-Series Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces
- SKU
- WS X299 SAGE
- Category
- Motherboards
$531.38
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- WS X299 SAGE
- Category
- Motherboards
Overview
Multi-GPU Support
WS X299 Sage fits up to four dual-slot graphics cards and supports both NVIDIA® SLI? and AMD CrossFireX? 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA® Quadro®. With performance beyond 15.23 TFLOPS, NVIDIA Quadro is the perfect complement to WS X299 Sage, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.
5-Way Optimization
ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
• An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
• Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
• Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Highlights
- Designed for 7th generation LGA2066 socket Intel® Core? X-Series processors with dual M.2 and U.2, front panel USB 3.1 Gen2, Dual Gigabit Intel® LAN, support for Thunderbolt 3, Intel® VROC and Intel® Optane? Memory compatibility
- OC Design featuring ASUS ProClock and T-Topology Technology extends CPU and Memory overclocking margins while providing the flexibility to extract every ounce of performance for memory speeds of DDR4-4200 MHz and beyond
- 7x PCIe X16 Slots with Patent-pending SafeSlot feature an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 4-Way NVIDIA®SLI® or AMD® CrossfireX?
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance while headers for thermal sensors, AIO pump, and watercooling provide dynamic system cooling
- Complete IT Infrastructure Management with ASMB9 Out-of-band remote management and In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching.
Specifications
| Product Type | Workstation Motherboard |
|---|---|
| Manufacturer Part Number | WS X299 SAGE |
| Maximum Memory Supported | 128 GB |
| S/PDIF | Yes |
| Limited Warranty | 3 Year |
| Form Factor | SSI CEB |
| Manufacturer | ASUS Computer International |
| Product Model | WS X299 SAGE |
| Product Name | WS X299 SAGE Workstation Motherboard |
| Processor Supported | Core X-Series |
| RAID Levels | 10, 5, 1, 0 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket R4 LGA-2066 |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Country of Origin | China |
| Width | 12" |
| Depth | 10.5" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | X299 |
| Number of Memory Slots | 8 |
| Multi GPU Supported | CrossFireX, SLI |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 8 |
| Onboard Video | No |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 7 |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Total Number of Onboard USB Ports | 3 |
| Total Number of PCI Express Slots | 7 |
| Memory Form Factor | UDIMM, DIMM |
| Total Number of Expansion Slots | 7 |
| Number of M.2 Interfaces | 2 |
| Number of USB 3.1 Ports | 7 |
| Number of Onboard USB 3.1 Ports | 3 |
| Memory Speed Supported | 4000 MHz, 4133 MHz, 3600 MHz, 4200 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Intel Optane Memory Ready | Yes |
| Intel VROC | Yes |
| Intel RSTe | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
