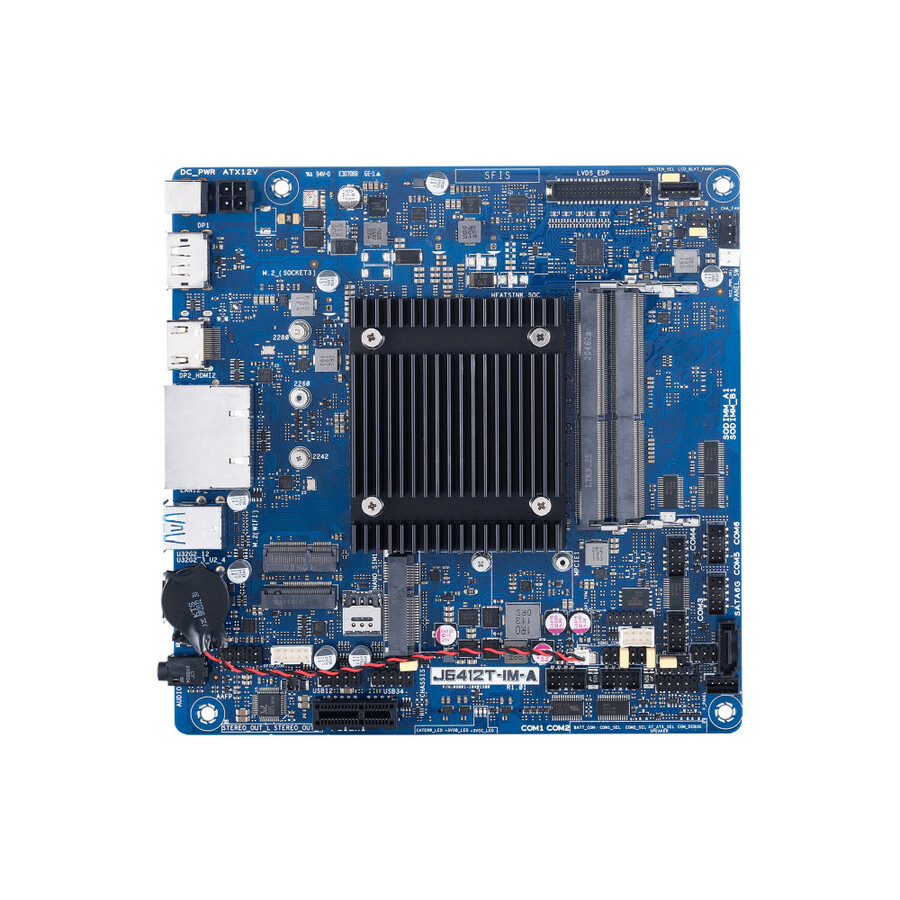

Asus J6412T-IM-A Industrial Motherboard - Intel Chipset - Mini ITX
Celeron J6412 - 2 x Memory Slots - HDMI - DisplayPort
- SKU
- 90ME04B0-M0UCY0
- Category
- Motherboards
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 90ME04B0-M0UCY0
- Category
- Motherboards
Overview

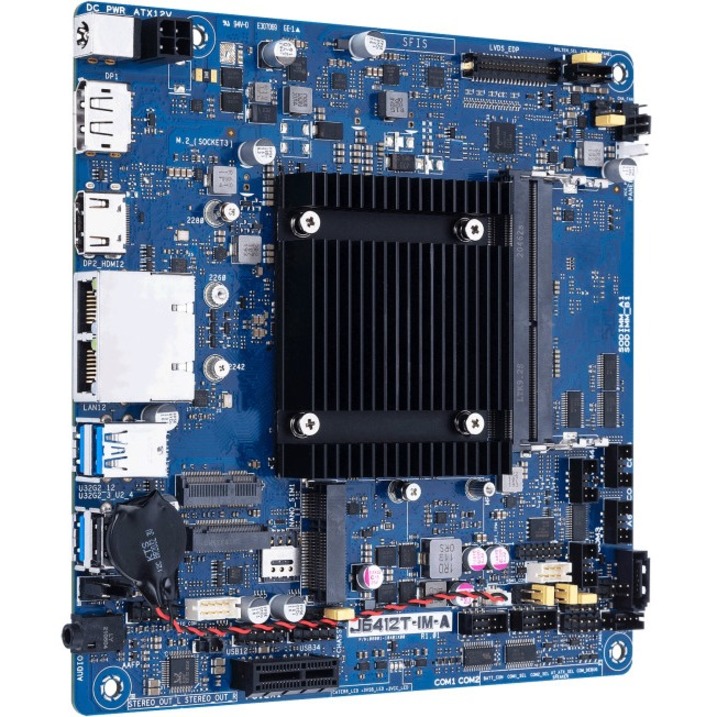

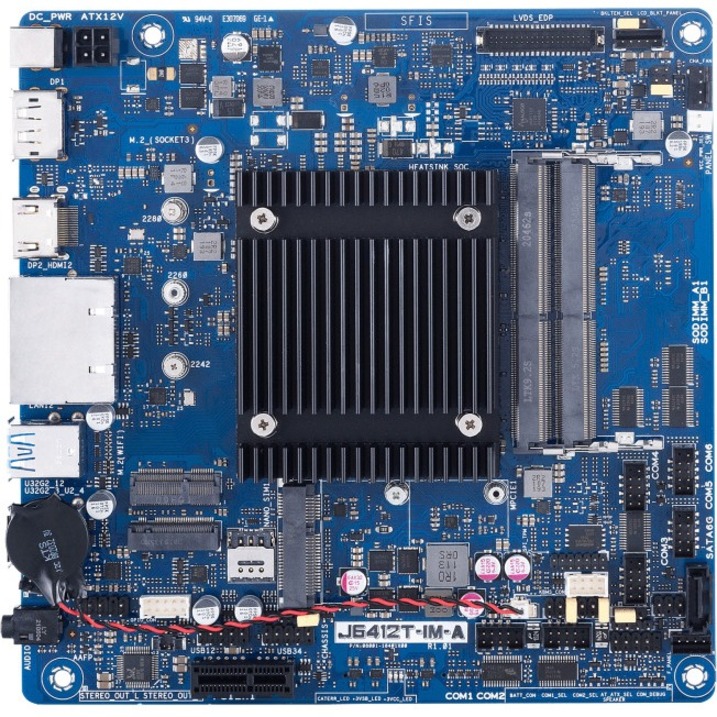

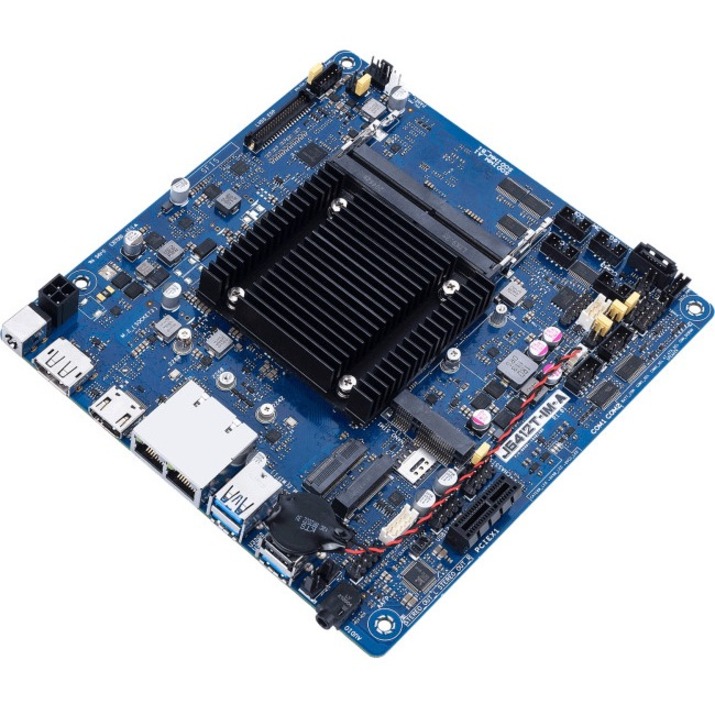

ASUS J6412T-IM-A is a Thin Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller and thinner board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a mini PCIe slot, M.2 E key, M.2 M key, ASUS J6412T-IM-A is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Highlights
- Fan-less mini-ITX Industrial MB with Intel Celeron® J6412 processor
- Supports 3 displays configuration by multiple interface: HDMI/DP/LVDS/eDP(optional)
- 7 years of longevity with extended product life cycles

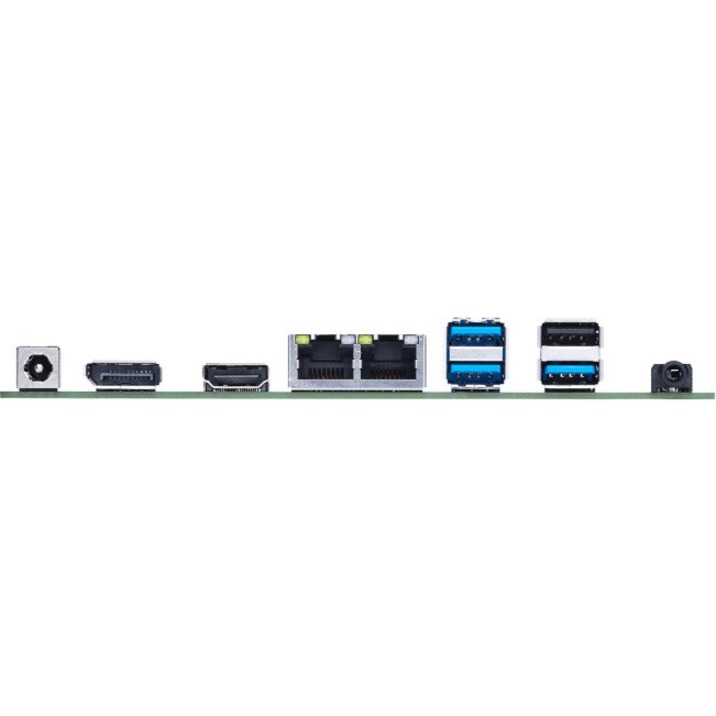

- Advanced I/O and connectivity features
- Wide temperature range endurance: 0-60°C
Specifications
| Product Type | Industrial Motherboard |
|---|---|
| Manufacturer Part Number | 90ME04B0-M0UCY0 |
| Form Factor | Mini ITX |
| Manufacturer | ASUS Computer International |
| Product Model | J6412T-IM-A |
| Product Name | Fan-less Thin Mini-ITX Motherboard |
| Total Processor Supported | 1 |
| Brand Name | Asus |
| Chipset Manufacturer | Intel |
| Number of Memory Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Total Number of PCI Express Slots | 1 |
| Integrated Processor Type | Celeron |
| Integrated Processor Model | J6412 |
| Total Number of Expansion Slots | 1 |
